Launch Tech USA TLT210-XT 10,000 lb Clear Floor Asymmetric 2 Post Lift – ALI/ETL Certified
The Launch Tech USA TLT210-XT is a multi-purpose full asymmetric 10,000 lb capacity two-post lift engineered to deliver maximum versatility for professional service shops. This ALI/ETL Certified clear floor lift is both height and width adjustable, and may be installed in either standard or rotated column configurations—allowing you to accommodate everything from compact cars to the largest SUVs and trucks.
Designed for shops that demand flexibility, the TLT210-XT features adjustable column height (providing an extra 6" of vertical adjustment) and adjustable column width (an additional 6" for narrow service bays), making it easy to custom-fit the lift to your shop's exact ceiling height and bay dimensions. The lift's asymmetric arm design enables front-to-rear load positioning for optimal vehicle balance and easy door access.
Built for heavy-duty daily use, the TLT210-XT includes a 2 HP motor, single point lock release for simultaneous column disengagement, and a heavy-duty arm restraint system with oversize rugged steel gears, pins, and springs for trouble-free operation. Double telescoping screw pads offer 6.5" of height adjustment, and stackable foot pad extensions (two 6" tall and two 3" short) handle extra-tall applications with ease.
The TLT210-XT lifts vehicles to a maximum lifting height of 73" (without adapters) in just 54 seconds, giving technicians fast and safe access to undercarriage service points. With a drive-thru clearance ranging from 88" (rotated) to 98.4" (standard), this lift accommodates a wide variety of vehicle types and service requirements.
Key Highlights
- 10,000 lb capacity handles compact cars, SUVs, and full-size trucks
- ALI/ETL Certified meets all industry safety and performance standards
- Height and width adjustable extra 6" of adjustment in both dimensions for custom shop fit
- Dual installation modes install in standard or rotated asymmetric configuration
- Single point lock release disengage both column locks simultaneously for faster workflow
- 208-230V single phase power standard electrical compatibility for most shops
Design & Installation Flexibility
The TLT210-XT is engineered for maximum installation flexibility. The lift's adjustable column height (providing an extra 6" of adjustment) makes it easy to install in shops with varied ceiling heights, while the adjustable column width (an extra 6" of adjustment) allows for installation in narrower service bays—perfect for retrofitting existing spaces or maximizing shop layout efficiency.
The lift can be installed in two distinct asymmetric configurations: standard (columns facing each other) or rotated (columns offset). This dual-configuration capability allows you to optimize vehicle positioning based on your shop's layout and workflow requirements. The drive-thru clearance is 98.4" in standard configuration and 88" in rotated configuration, ensuring ample space for a wide range of vehicle types.
With a minimum ceiling height requirement of 143.5" and a cylinder full height of 145.2", the TLT210-XT fits into most professional shop environments without requiring structural modifications.
Heavy-Duty Performance Features
The TLT210-XT is built for demanding professional environments. The lift features a heavy-duty arm restraint system with oversize rugged steel gears, pins, and springs for reliable, trouble-free operation. Each lift arm is rated to support up to 2,500 lbs, and the double telescoping screw pads (used with or without rubber pads) offer 6.5" of height adjustment for complete vehicle coverage.
The single point lock release system allows technicians to disengage both column locks simultaneously, improving efficiency and reducing downtime between lifts. The lift reaches its full 73" maximum lifting height in just 54 seconds, ensuring fast cycle times in high-volume shops.
For extra-tall vehicles or specialized service applications, the TLT210-XT includes stackable foot pad extensions two 6" tall and two 3" short extensions—providing additional height adjustment as needed. The lift also includes rubber door guards for added vehicle protection and outer hose guards to protect hydraulic hoses from damage during operation.
The lift's front arm reach ranges from 23.6" to 43.5", and the rear arm reach extends from 38.6" to 61.8", giving you exceptional flexibility in positioning vehicles for optimal balance and door access.
Optional Accessories
Expand the versatility of your TLT210-XT with optional spin-up frame cradle pads ( P/N TLT210-SPNCA ). This set of four spin-up pads provides additional vehicle support and positioning options for specialized service tasks.
Detailed Features & Construction
Adjustable Column Height
Provides an extra 6" of height adjustment for ease of installation with various ceiling heights.
Adjustable Column Width
Provides extra 6" of width adjustment for narrow service bays to custom fit your shop.

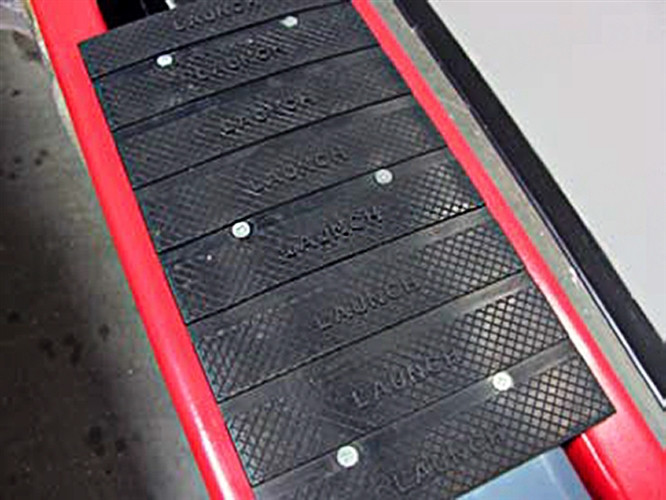

Rubber Door Guards
Provides added security against door damage.

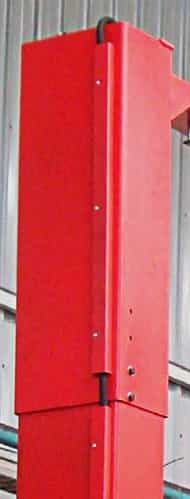

Outer Hose Guards
Protects hydraulic hoses from damage.
Stackable Foot Pad Extensions
Extra tall applications are no problem with the two 6" tall and two 3" short extensions.

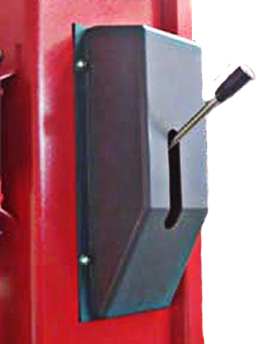

Single Point Lock Release
Allows technicians to disengage both column locks simultaneously.
Heavy-Duty Arm Restraint System
Oversize rugged steel gears, pins, and springs for trouble free operation.

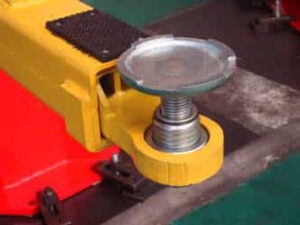

Double Telescoping Screw Pads
Used with or without rubber pads offering 6.5" adjustment for complete vehicle coverage.
Standard Asymmetric
Lift installed with columns facing each other.
Rotated Asymmetric
Lift installed with columns offset – rotated.
Optional Accessory Available
Optional Spin Up Pads
Set of 4 spin up frame cradle pads P/N TLT210-SPNCA
Product Features
Adjustable Column Height
Provides an extra 6” of height adjustment for ease of installation with various ceiling heights.
Adjustable Column Width
Provides extra 6” of width adjustment for narrow service bays to custom fit your shop.
Rubber Door Guards
Provides added security against door damage.
Outer Hose Guards
Protects hydraulic hoses from damage.
Stackable Foot Pad Extensions
Extra tall applications are no problem with the two 6” tall and two 3” short extensions.
Single Point Lock Release
Allows technicians to disengage both column locks simultaneously.
Heavy-Duty Arm Restraint System
Oversize rugged steel gears, pins, and springs for trouble free operation.
Double Telescoping Screw Pads
Used with or without rubber pads offering 6.5” adjustment for complete vehicle coverage.
Standard Asymmetric
Lift installed with columns facing each other.
Rotated Asymmetric
Lift installed with columns offset – rotated.
Optional Accessory Available
Optional Spin Up Pads
Set of 4 spin up frame cradle pads P/N TLT210-SPNCA
Product Specifications
Model Number
TLT210-XT Standard
TLT210-XT Rotated
Lift Capacity*
10,000 lbs. (4536kg)
Maximum Lifting Height
73" (Without Adapters)
Minimum Column Height
143"(3634mm)
Cylinder Full Height
145.2" (3688mm)
Total width
136.6" (3470mm)
137.9" (3502mm)
Drive-Thru Clearance
98.4" (2500mm)
88" (2235mm)
Floor to Overhead Switch
140" (3556mm)
Front Arm Reach (min / max)
23.6" (600mm) / 43.5" (1105mm)
Rear Arm Reach (min / max)
38.6" (980mm) / 61.8" (1570mm)
Screw Pad Height
4" (101mm) to 7.5" (190mm)
Inside Column Width
110.2" (2800mm)
101.9" (2588mm)
Motor
2 HP
Voltage
208 – 230 Volt/60hz./Single Phase
Rise Speed
54 seconds
Max. Load per Arm
2500 lbs (1134 Kilos)
Min Ceiling Height Required
143.5" (3644mm)
Narrow Bay Setting
Deduct 5.9" (149mm)
Maximum Column Height
149" (3874mm)
Shipping Weight
1,570 lbs. (794 kg)
Ship Dimensions
110"L x 24"W X 48"H
Key Features
- Published product configuration: Launch Tech USA TLT210-XT 10,000 lb Clear Floor Asymmetric 2 Post Lift – ALI/ETL Certified The Launch Tech USA TLT210-XT is a multi-purpose full asymmetric 10,000 lb capacity two-post lift engineered to deliver maximum versatility for professional service shops. This ALI/ETL Certified clear floor lift is both height
- Exact manufacturer model or part number: TLT210-XT
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Launch Tech USA |
|---|---|
| SKU | 407ES-004736 |
| MPN / Model | TLT210-XT |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model TLT210-XT, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
