Product Overview
AMGO® Hydraulics 408HLX 8,000 lbs Ex-Height Boat Storage Lift w/Wide Drive-Thru

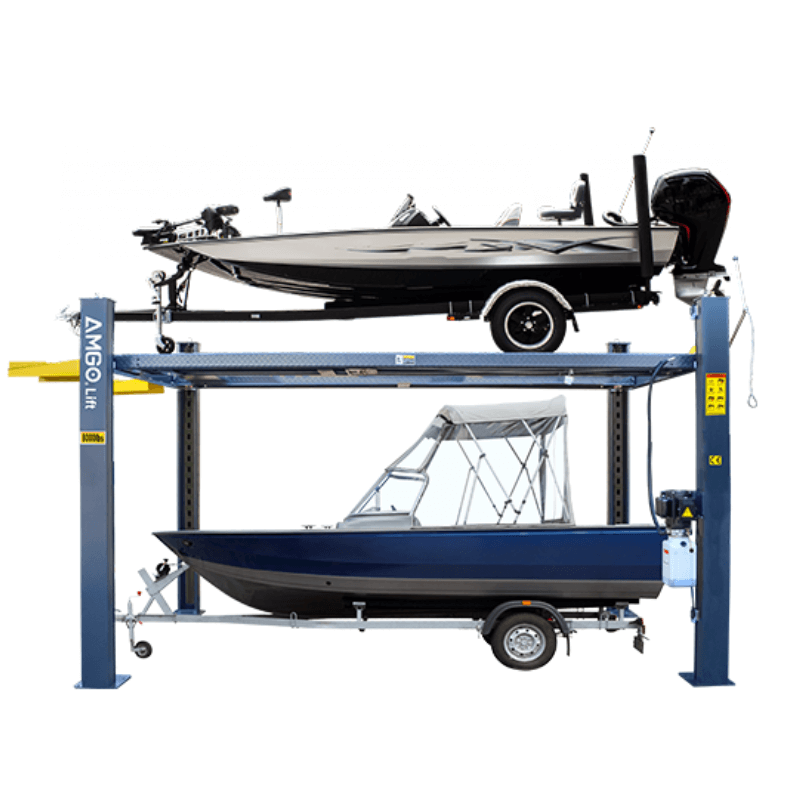

Tailored for over-height boats, the 408HLX builds on all the advantages of the 408-HPX with an extended-height design that provides additional headroom to easily accommodate taller boats
This lift offers an 8,000 lb. lifting capacity and features AMGO’s proprietary concealed lock-control system with a manual single-point release, eliminating the need for an air source. It is equipped with dual safety mechanisms, including primary safety locks and cable-slack protection, along with integrated non-skid diamond platforms for enhanced stability.
The design allows for flexible installation, with the power unit mountable at any corner, and two-width platform settings to accommodate a variety of trailers. It includes standard foldable drive-on ramps and an ETL-certified power unit for reliable performance. Built for taller applications, it stands 15 3/4" higher than the 408-HPX, making it ideal for over-height boats, and comes standard with an adjustable trailer platform with a range of 42 3/8" to 66 1/4".
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 8,000 lbs Lifting capacity

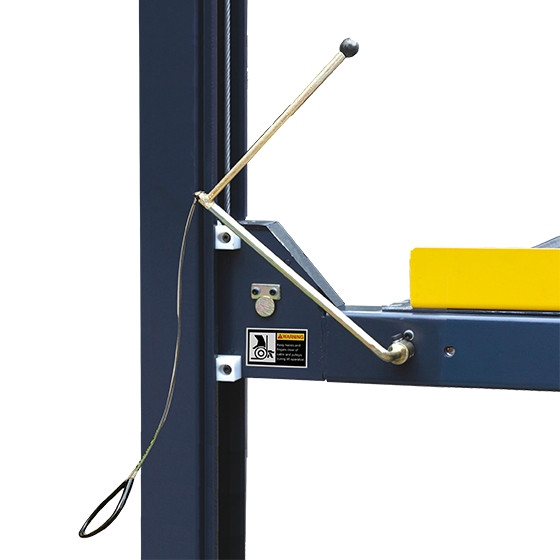

- AMGO’s proprietary concealed lock-control device with a manual single-point release (no air source required)

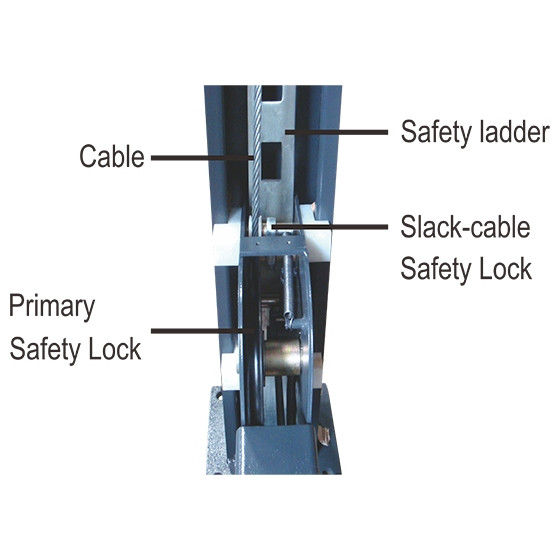

- Dual safety mechanisms with primary safety locks and cable-slack protection
- Integrated non-skid diamond platforms
- Flexible installation with the power unit mountable at any corner

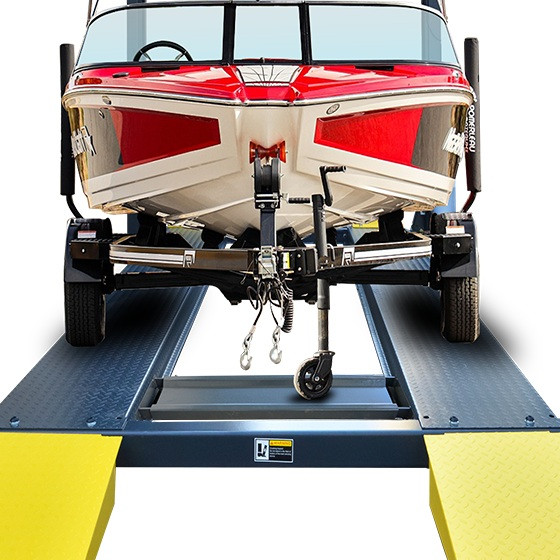

- Two-widths setting platforms accommodates various trailers, 42 3/8" ~ 66 1/4

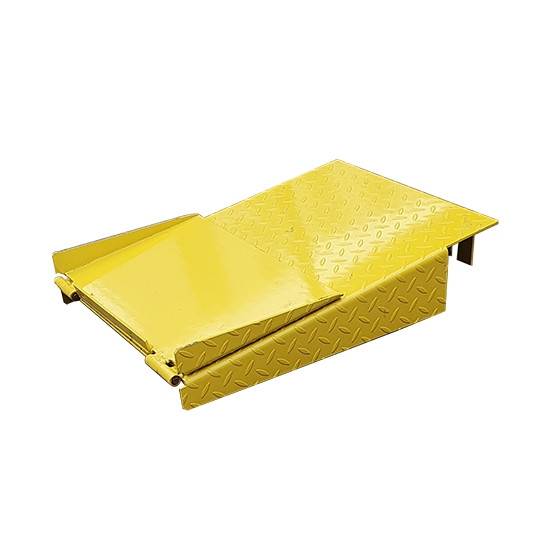

- Set of 2 foldable drive-on ramps
- ETL certified Power unit

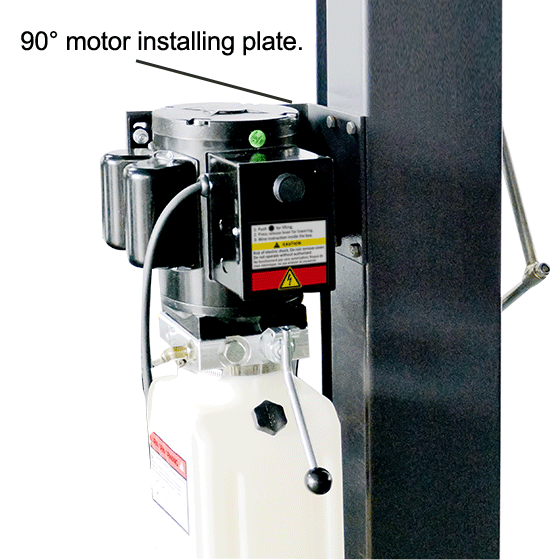

- Standard 90° motor installing plate
- 15 3/4" higher than 408-HPX, ideal for boats with extremely height
Product Specifications
Specifications
408HLX
Lifting Capacity
8,000 lbs
A Overall Length w/Ramp
222 1/8"
B Overall Length w/o Ramp
188 9/16"
C Overall Width
131 7/8"
D Width Between Columns
122 3/16"
E Max Lifting Height
104 11/16"
E Max Lock Height
101 15/16"
F Overall Height
113"
G Minimum Height
5 11/16"
H Max. Underneath Height
99 15/16"
H Max. Lock Underneath Height
97 3/16"
I Drive-Thru Clearance
111"
J Width Between Runways
46 1/2" (Narrow) – 66 3/8" (Wide)
K Outside Edge of Runways
83 7/8" (Narrow) – 103 3/4" (Wide)
Lifting Time
54s
Motor
2.0HP, 220V/60Hz
Shipping Weight
1,726 lbs
Key Features
- Published product configuration: AMGO® Hydraulics 408HLX 8,000 lbs Ex-Height Boat Storage Lift w/Wide Drive-Thru Tailored for over-height boats, the 408HLX builds on all the advantages of the 408-HPX with an extended-height design that provides additional headroom to easily accommodate taller boats This lift offers an 8,000 lb. lifting capacity and
- Exact manufacturer model or part number: 408HLX
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 3 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | 407ES-004735 |
| MPN / Model | 408HLX |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 408HLX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
