Product Overview

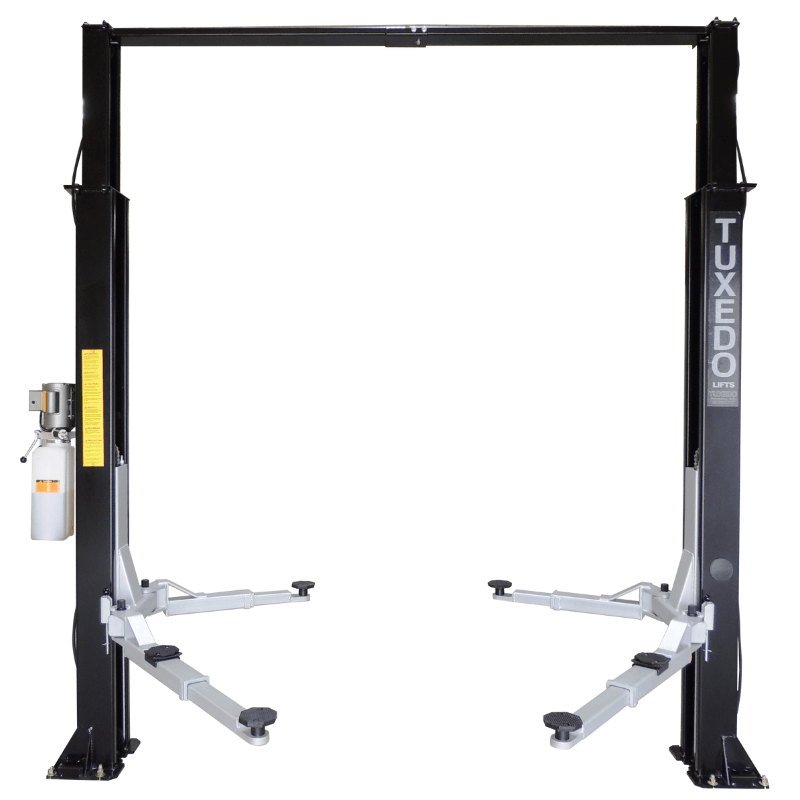

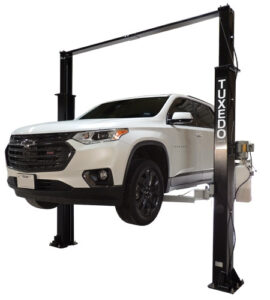

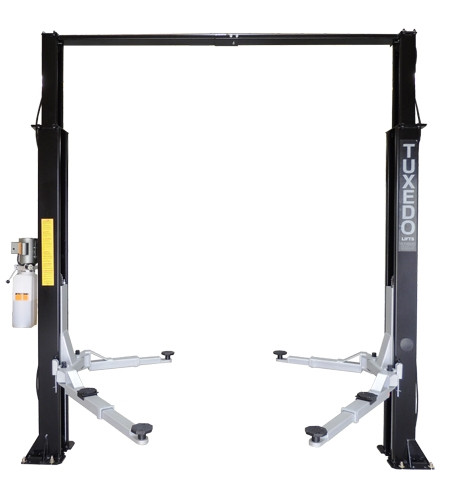

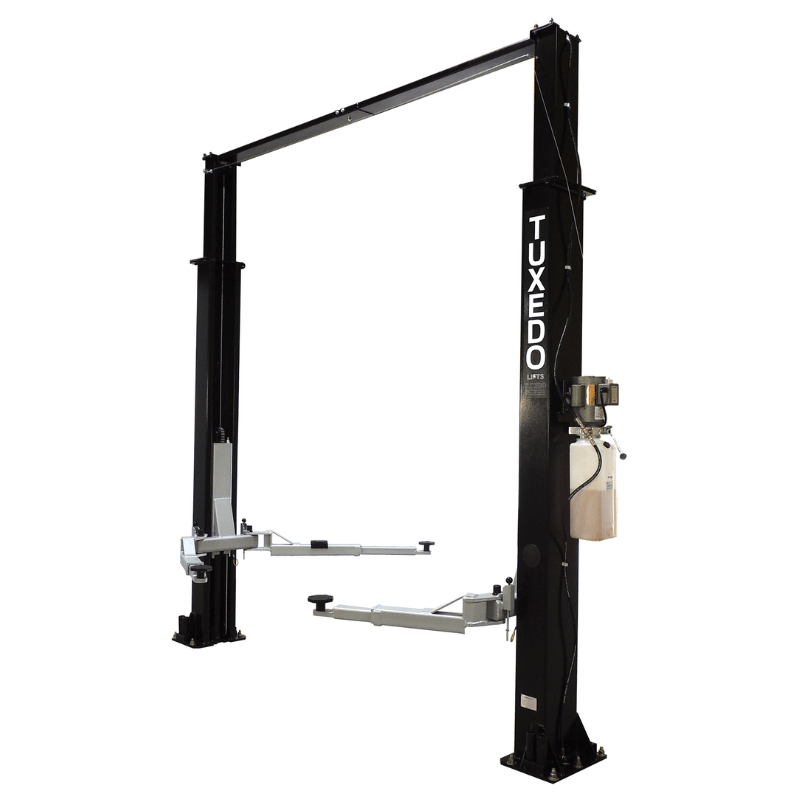

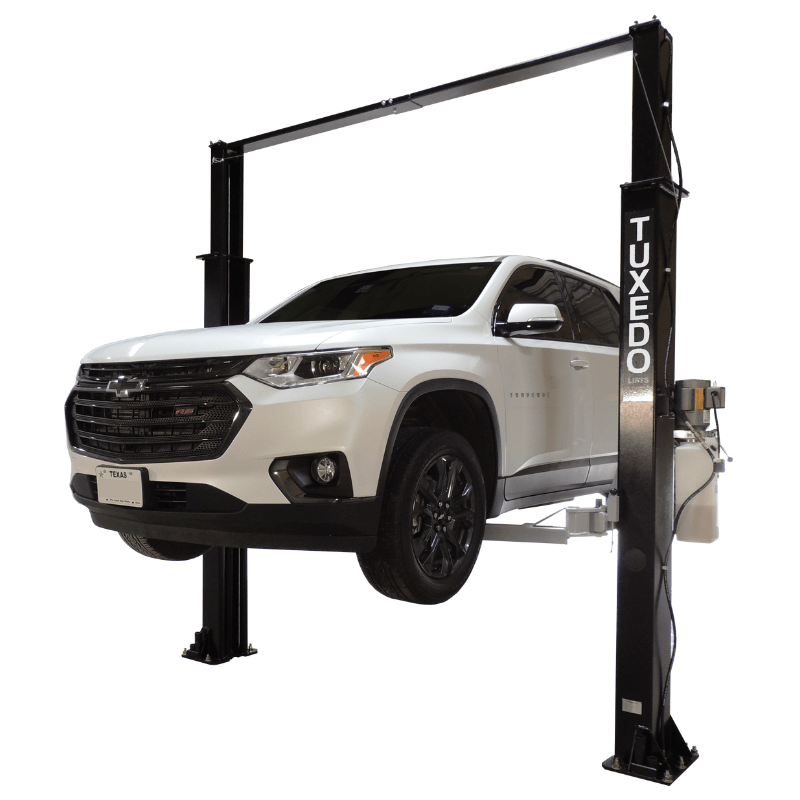

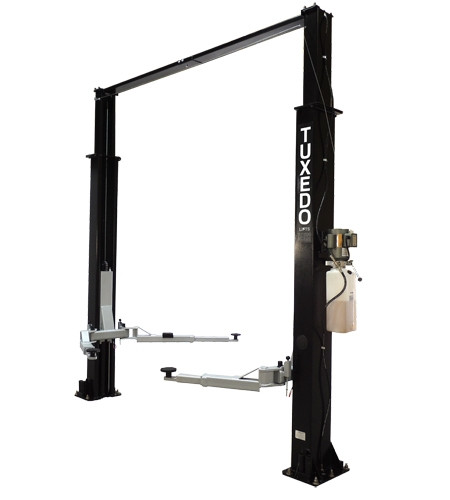

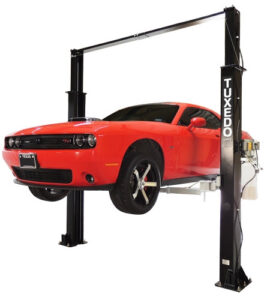

Tuxedo TP9KAC-TUX 9,000 lb. Asymmetric Light Duty 2 Post Car Lift
Professional Performance at an Economical Price
The TUXEDO TP9KAC-TUX delivers the professional-grade features you need without breaking the bank. This 9,000 lb. capacity light duty two post lift combines an economy-focused design with the reliability and safety features demanded in busy service environments. Its clear floor design with two-piece columns provides easy vehicle positioning and maximum workspace underneath, while the asymmetrical swing arms allow optimal placement of lift points for better door clearance and easier vehicle access.
Built with chain drive cylinders for dependable operation, the TP9KAC-TUX reaches its maximum lift height of 72 inches in approximately 50 seconds, getting vehicles up in the air quickly so you can start work faster. The low profile 4" lifting pads accommodate a wide range of vehicle types, from passenger cars to light duty trucks and most SUVs. With a 93.7" drive-thru clearance and 110.4" width between columns, this lift provides the working room needed for efficient service and repair.
Safety and convenience features come standard, including automatic arm restraints, dual point lock release mechanisms for precise control, and an overhead shut-off limit wire for protection. The durable powder-coat finish ensures long-lasting appearance and corrosion resistance even in demanding shop environments. Powered by 220V single-phase electrical service, the TP9KAC-TUX delivers professional performance at a value price point.
Key Features & Benefits
- 9,000 lb. lifting capacity handles passenger cars, light trucks, and most SUVs with ease

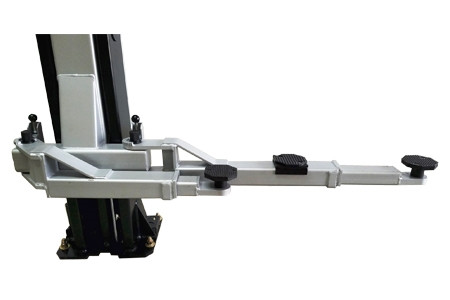

- Asymmetric swing arm design with adjustable reach ( long arms: 28.5" – 41.4", short arms: 37.1" – 57.2" ) for optimal vehicle balance and door clearance
- Clear floor design eliminates tripping hazards and allows easy vehicle positioning from any angle
- Low profile 4" lifting pads accommodate low-clearance vehicles and sports cars

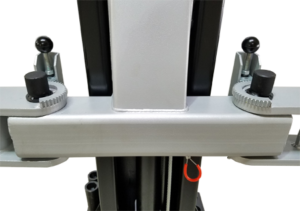

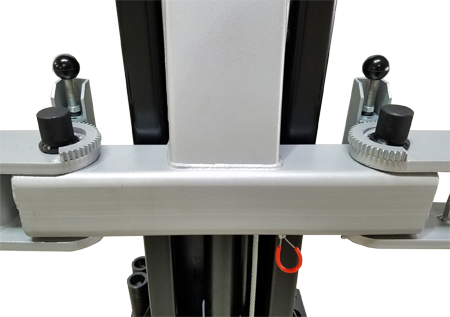

- Dual point lock release and automatic arm restraints provide enhanced safety and control
Included Accessories
Your TP9KAC-TUX includes:
- Saddle pad adapters (1 pair) for standard lifting applications
- Drop-in stackable height adapters Set of 4 each: 1-5/16" and 5" for versatile lift point adjustment
Free drop-in stackable height adapters included – Set of 4 each: 1-5/16" & 5"
Optional Accessories

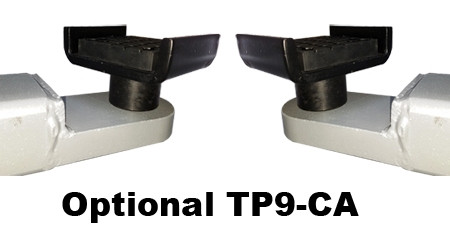

TP9-CA Frame Cradle Pads (4 Pack) Designed specifically for the TP9KAC-TUX and TP9KF-TUX, these optional frame cradle pads provide additional lifting versatility for frame-contact applications and specialized vehicle types.
Optional TP9-CA Frame Cradle Pads (4 Pack) for enhanced lifting versatility
Installation Requirements
The TP9KAC-TUX requires a minimum ceiling height of 144 inches and 220V single-phase electrical service with a 20 AMP circuit. With an overall height of 142.7 inches and an overall width (including power unit) of 141 inches, ensure your workspace can accommodate these dimensions. The lift ships at 1,390 lbs and requires professional installation per the included manual.
Product Features
- 9,000 lb lifting capacity
- Asymmetric Lift Arms
- Low Profile Swing Arm Design
- Low Profile 'Drop In' Lift Pads
- Saddle Pad Adapters included (1 pair)
- Overhead 'Shut Off' limit wire
- Dual Point Lock Release
- Automatic Arm Restraints
- Chain Drive Cylinders
- Durable Power-Coat Finish/li>

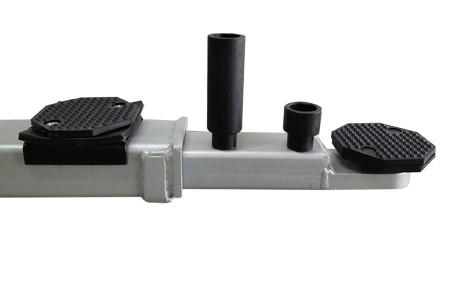

Free Drop-In Stackable Height Adapters
Set of 4 each: 1-5/16" & 5"
Optional Accessory
TP9-CA Frame Cradle Pads (4 Pack) for TP9KAC-TUX & TP9KF-TUX
Product Specifications
Specifications
TP9KAC-TUX
Capacity
9,000 lbs.
Overall Height
142.7"
Width Overall w/Power Unit
141"
Max Lift Height
72"
Width Between Columns
110.4"
Min Pad Height
4"
Drive thru Clearance
93.7"
Lifting speed
50 sec
Asymmetric / Symmetric
Asymmetric
Clear Floor / Floor Plate
Clear Floor
Long Arm Reach – Min/Max
28.5" – 41.4"
Short Arm Reach – Min/Max
37.1" – 57.2"
Ceiling Height Required
144"
Max Load Per Arm
2,250 lbs.
Power
220V – 20 AMP – 1 PH
Ship Weight
1,390 lbs.
Key Features
- Published product configuration: Tuxedo TP9KAC-TUX 9,000 lb. Asymmetric Light Duty 2 Post Car Lift Professional Performance at an Economical Price The TUXEDO TP9KAC-TUX delivers the professional-grade features you need without breaking the bank. This 9,000 lb. capacity light duty two post lift combines an economy-focused design with the reliability
- Exact manufacturer model or part number: TP9KAC-TUX
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Tuxedo |
|---|---|
| SKU | 407ES-004666 |
| MPN / Model | TP9KAC-TUX |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model TP9KAC-TUX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
