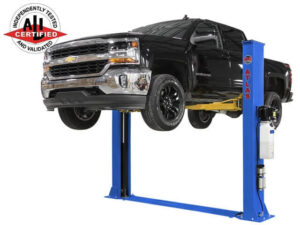

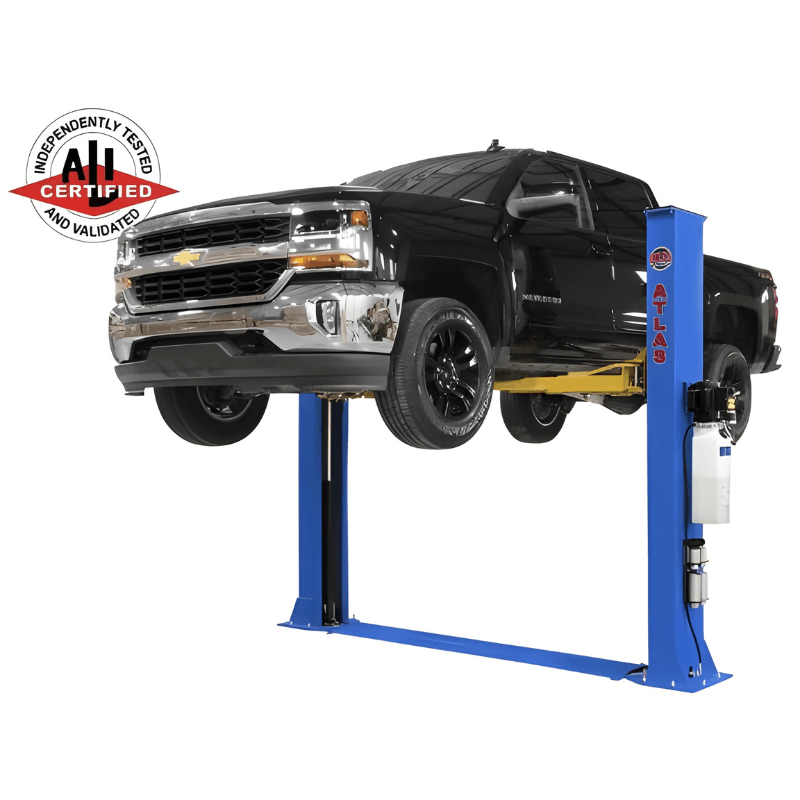

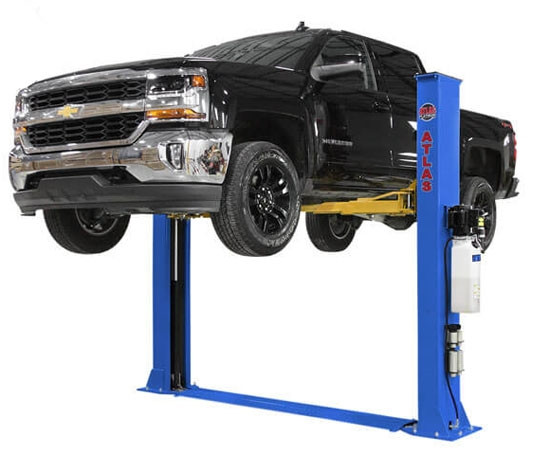

Atlas® Platinum PVL-9BP ALI Certified Base-Plate 2 Post Lift 9,000 lbs
Built for professional service centers operating in shops with limited overhead space, the Atlas® Platinum PVL-9BP delivers 9,000 lbs of lifting capacity in a compact, ALI Certified base-plate design. With a total column height of just 111 1/8" (9' 3 1/8"), this two-post lift is engineered specifically for low ceiling clearance environments while maintaining the strength and features needed to service a wide range of vehicles—from everyday sedans and coupes to full-size pickups, both foreign and domestic.
The PVL-9BP features a robust base-plate design with symmetric arms and dual hydraulic chain-drive cylinders for smooth, balanced lifting. Safety is paramount, with an integrated Secondary Lock System (SLS), automatic arm restraints, and a dual point lock release for secure operation every time. Each lift ships complete with mounting hardware and an 8-piece truck adapter set, including both 3" and 6" adapters, so you're ready to service a diverse fleet right out of the box.
Premium ALLY Hydraulic Power Unit
This lift is powered by an ALLY Hydraulic Power Unit, a premium system certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. The power unit features extra heavy-duty armatures and more motor windings with increased silver metal content in wires and connections. This design dramatically reduces heat generation and allows the unit to maintain constant torque throughout the entire lifting cycle—resulting in smoother, more reliable operation over the long haul.
The ALLY power unit is backed by an industry-leading two-year limited warranty, reflecting the manufacturer's confidence in its durability and performance.
Key Highlights
- 9,000 lb capacity handles everything from compact cars to full-size pickups
- ALI Certified meets rigorous safety and performance standards
- Base-plate design with symmetric arms ideal for balanced lifting and durability

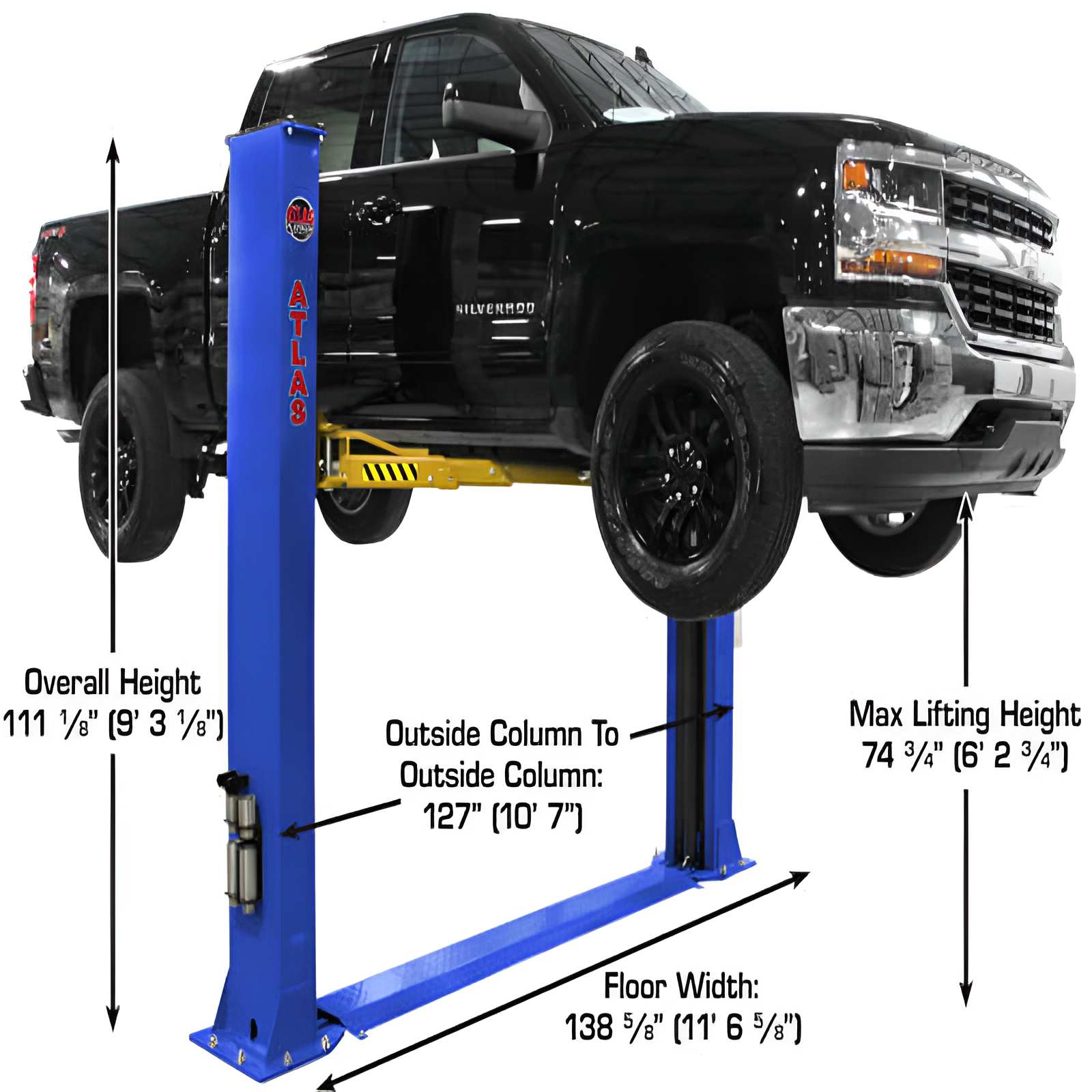

- Low ceiling design only 111 1/8" (9' 3 1/8") total column height for shops with limited overhead space
- Max lift height of 74 3/4" with a minimum lowered height of 5" excellent working range
- Dual hydraulic chain-drive cylinders and Secondary Lock System (SLS) for safe, stable operation
- Includes 8-piece truck adapter set for versatile vehicle compatibility
- Requires 220V single-phase / 30 amp breaker
What's Included
Every Atlas® Platinum PVL-9BP lift ships with everything you need to get started:
- Mounting hardware all necessary hardware for installation
- 8-piece truck adapter set includes both 3" and 6" adapters for versatile vehicle lifting
8-Piece Truck Adapter Set included with your lift
Designed for Your Shop

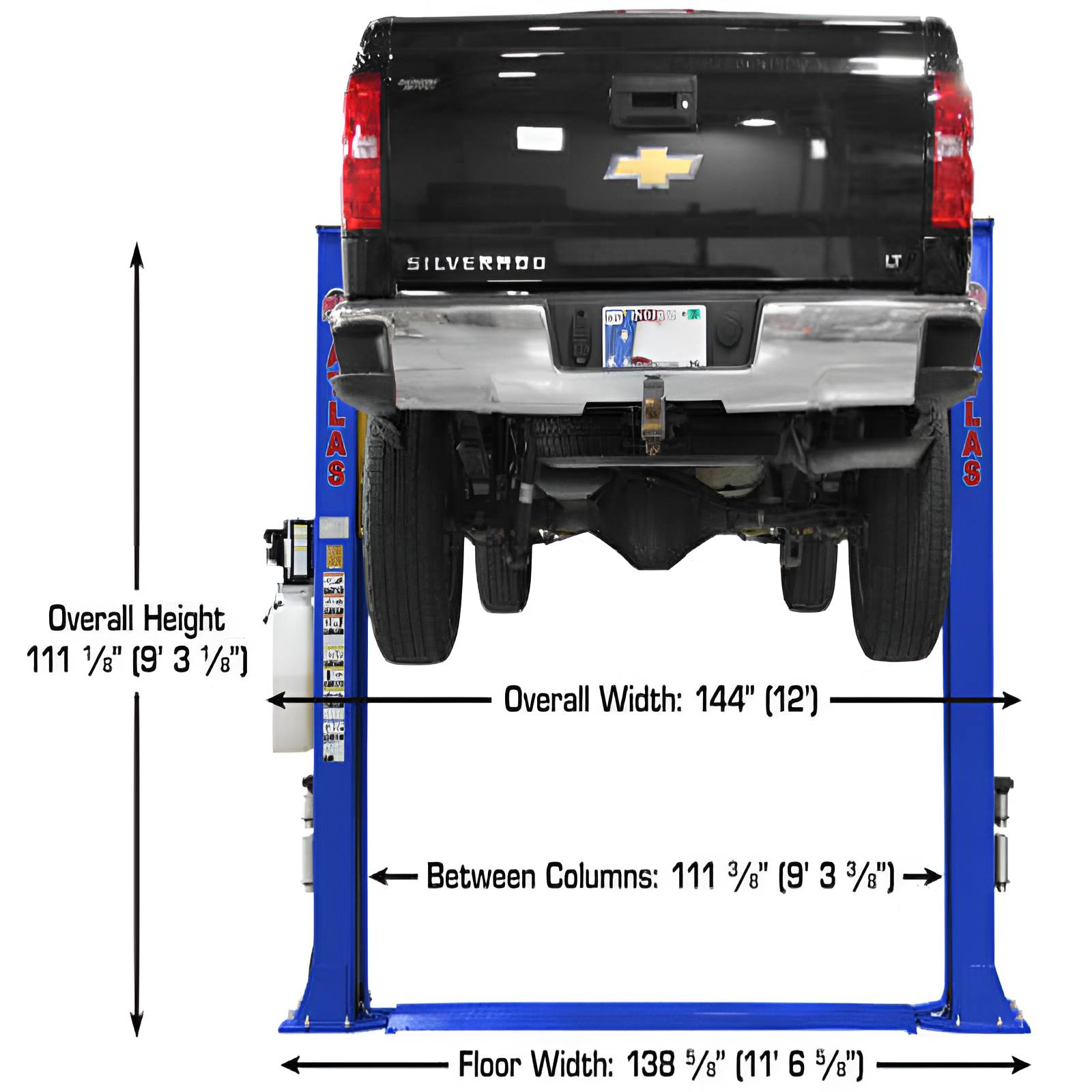

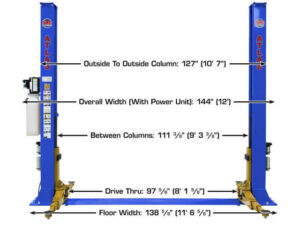

The PVL-9BP is engineered for real-world shop environments. With an overall width (including power unit) of 144" (12') and a drive-thru clearance of 97 5/8" (8' 1 5/8"), this lift provides ample space for a wide variety of vehicles. The adjustable arms extend from 30 1/8" to 46", allowing you to position lift points precisely for optimal balance and safety.
At just 1,700 lbs, the lift is manageable for installation yet built with the durability to handle daily professional use. The open-top, base-plate design keeps overhead clearance minimal while delivering maximum lifting performance.
Industry-Leading Warranty & Support
The Atlas® Platinum PVL-9BP is backed by one of the industry's best warranties, giving you confidence in your investment. Combined with the two-year limited warranty on the ALLY Hydraulic Power Unit, you're covered for years of reliable service and performance.
Whether you're expanding your shop's capabilities or replacing an aging lift, the PVL-9BP delivers professional-grade performance in a compact, low-ceiling package—without compromise.
Product Features
- 9,000 lb. Capacity
- ALI Certified
- Symmetric Arms
- Base Plate Design
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS)

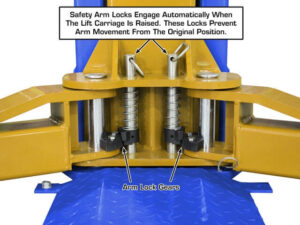

- Automatic Arm Restraints
- Dual Point Lock Release
- Designed For Low Ceiling Clearance – 9' 3 1/8" Columns
Includes
- Mounting Hardware
- 8 Piece Truck Adapter Set
Product Specifications
Specifications
PVL-9BP
Capacity
9,000 lbs

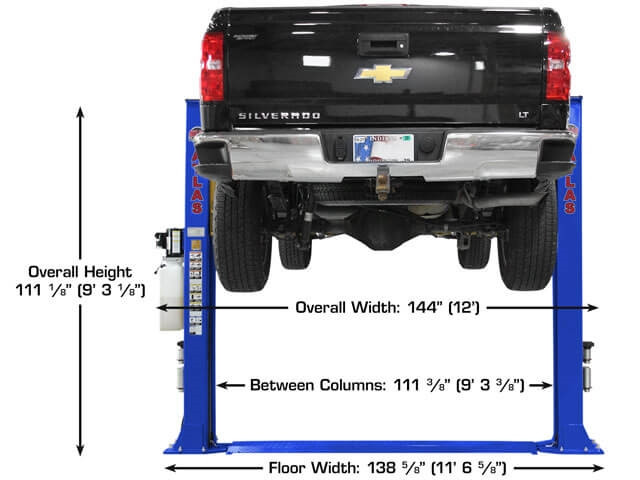

Overall Height
111 1/8" (9' 3 1/8")
Lifting Time
N/A

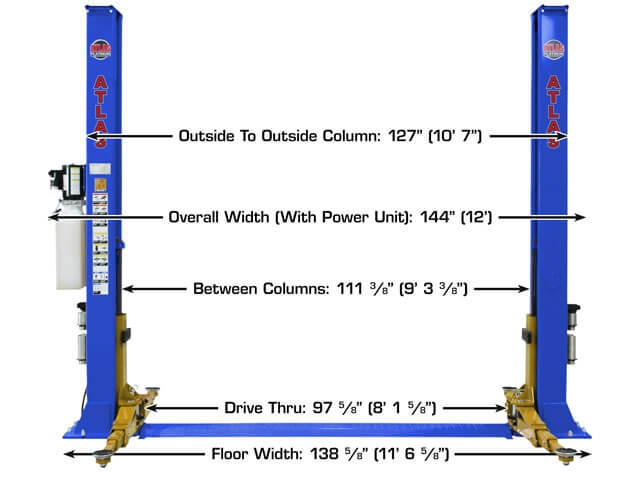

Floor Width
138 5/8" (11' 6 5/8")
Overall Width w/Power Unit
144" (12')
Outside Column To Outside Column
127" (10' 7")
Max Lift Height
74 3/4" (6' 2 3/4")
Minimum Lowered Height
5"
Adapter Height
3" & 6"
Inside Column to Inside Column
111 3/8" (9' 3 3/8")
Drive Thru
97 5/8" (8' 1 5/8")

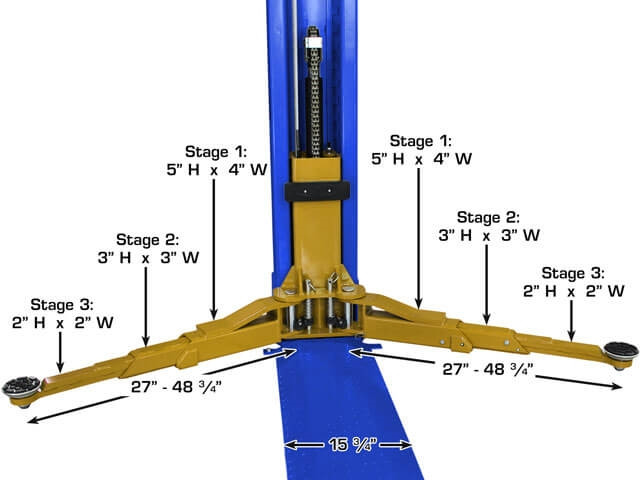

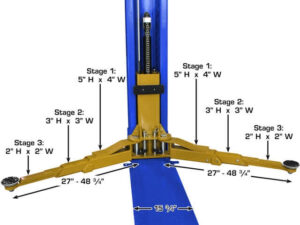

Arm Length
30 1/8" – 46"
Column Measurement
14 1/4" x 7 5/8"
Base of Column Measurement
20 1/2" x 19 1/2"
Motor/Electrical Requirement
220V single (1) phase / 30 amp breaker is required.
Weight
1,700 LB.
Key Features
- Published product configuration: Atlas® Platinum PVL-9BP ALI Certified Base-Plate 2 Post Lift 9,000 lbs Built for professional service centers operating in shops with limited overhead space, the Atlas® Platinum PVL-9BP delivers 9,000 lbs of lifting capacity in a compact, ALI Certified base-plate design. With a total column height of just 111 1/8" (9'
- Exact manufacturer model or part number: AP-PVL9BP
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Platinum |
|---|---|
| SKU | 407ES-004737 |
| MPN / Model | AP-PVL9BP |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model AP-PVL9BP, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
