Product Overview

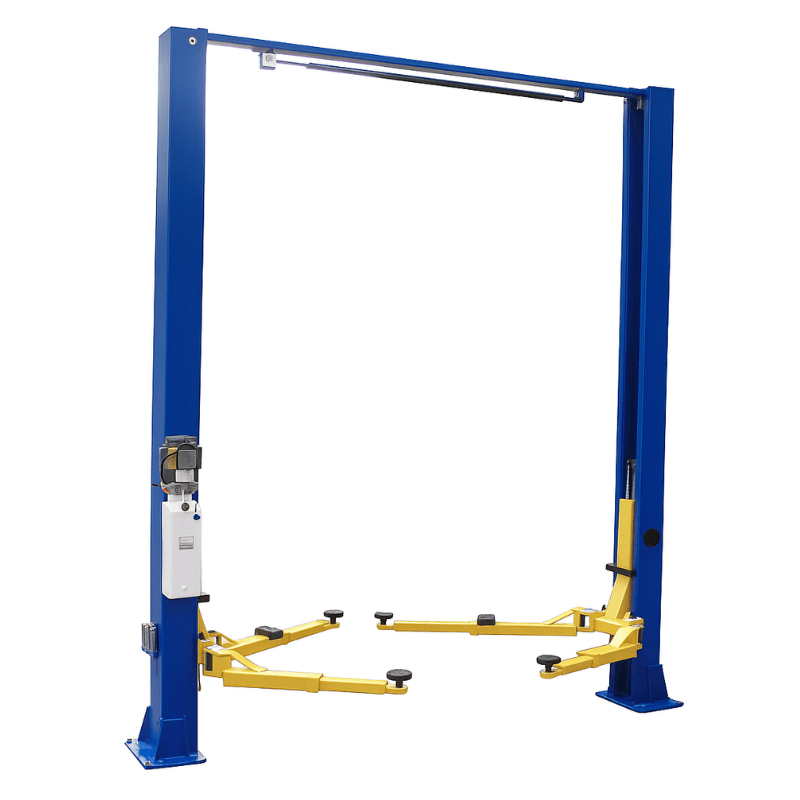

Tuxedo TP9KACX 9,000 lb. Capacity Asymmetric Two Post Car Lift
The Tuxedo TP9KACX is the next generation of professional two post lifts, delivering 9,000 lbs. of lifting capacity in a redesigned asymmetric clear floor configuration that offers exceptional vehicle access and workspace efficiency. Engineered with single piece column construction for superior rigidity and safety, this lift combines rugged durability with innovative features that make it one of the best values in the professional two post lift category. Whether you're running a busy independent shop or outfitting a serious home garage, the TP9KACX delivers commercial-grade performance at a price point that makes sense.
The NEW 9K "X" Series lifts have been completely redesigned with the professional technician in mind. The TP9KACX clear floor model features a host of standard upgrades including internal hose routing with integrated hose guards, an overhead shut-off bar with kill switch for enhanced safety, reduced overall width with front-side power unit mounting for easier bay installation, low profile drop-in adjustable swivel pads with 1-1/2" height adjustment, a full set of stackable drop-in height adapters, and protective rubber door guards to prevent accidental vehicle damage. This lift is built for daily professional use with high quality construction, a dependable chain drive system, and a durable powder coat finish that stands up to years of hard work.
Key Advantages of the TP9KACX
- Asymmetric Design: Optimized arm positioning with front arm reach of 29"-41" and rear arm reach of 37"-57" allows perfect balance for most vehicles and provides superior door access for in-car work.
- Clear Floor Configuration: No floor plates or crossbeams means unobstructed bay space, easier vehicle positioning, and safer shop floor movement. The 96" drive-thru clearance accommodates a wide range of vehicles.
- Single Piece Column Construction: Unlike older welded multi-piece designs, the TP9KACX features one-piece columns with 5mm steel thickness for maximum strength and long-term durability without weak points or stress joints.
- Enhanced Safety Features: A padded overhead shut-off bar with integrated kill switch, dual point lock release system, 3/8" aircraft-quality cables, and robust 6mm arm steel thickness ensure reliable, safe operation on every lift cycle.
- Fast and Efficient Lifting: Powered by a reliable 220V, 20 AMP, single phase motor, the TP9KACX lifts vehicles to its 72" maximum lift height in just 50 seconds, keeping your workflow moving and maximizing productivity.
Premium Features Included as Standard

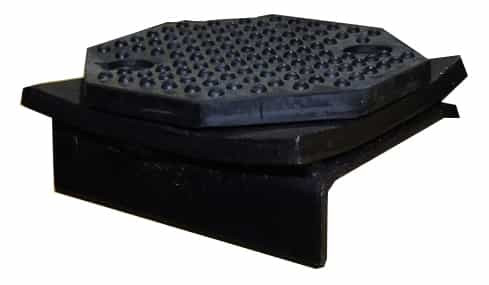

Low Profile Drop-In Swivel Pads
The TP9KACX includes innovative low profile swivel pads that drop into the lift arms and offer 1-1/2" of adjustable height. This allows precise positioning on uneven vehicle frames and provides the versatility to safely lift everything from low-slung sports cars to lifted trucks. The swivel action ensures proper contact with vehicle lift points while the minimum pad height of just 4 inches accommodates even the lowest ground clearance vehicles.
Stackable Drop-In Height Adapters
Every TP9KACX includes a complete set of 4 each stackable 1-3/8" and 4" height adapters at no additional charge. These drop-in adapters quickly extend your lift arms to reach higher frame rails, pinch welds, and factory lift points on trucks and SUVs. Stack them as needed for the perfect height combination, then store them conveniently when not in use. This is a significant value add that expands your lift's versatility without purchasing expensive accessory kits.

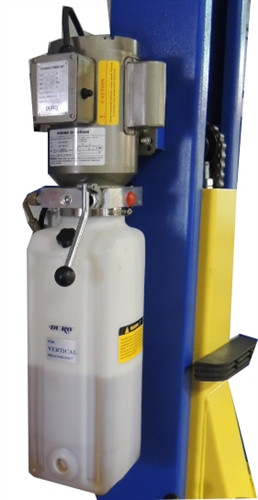

Compact Front-Side Power Unit Mounting
The redesigned TP9KACX features a front-side mounted power unit that reduces the lift's overall width to just 138 inches (including power unit). This space-efficient design makes installation easier in tighter bays while still maintaining a generous 113.6" width between columns for vehicle clearance. The result is a lift that fits where others won't, without sacrificing capacity or stability.

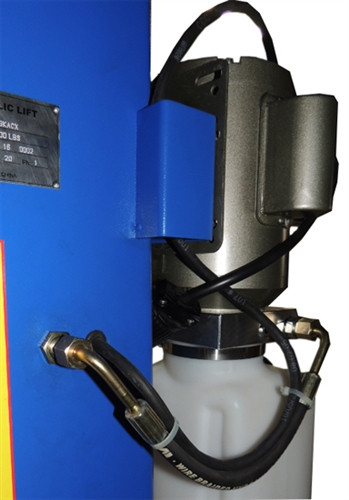

Internal Hose Routing with Integrated Guards
Unlike lifts with exposed hydraulic hoses that are vulnerable to damage, the TP9KACX routes all hydraulic lines inside the columns with integrated hose guards protecting connection points. This professional design detail prevents accidental hose damage from tools, parts, or vehicle contact, reducing maintenance costs and eliminating dangerous hydraulic failures. It also creates a cleaner, more professional appearance in your shop.
Rubber Door Guards
Protect your customers' vehicles with factory-installed rubber door guards that prevent accidental door-to-column contact. These durable rubber bumpers absorb impact if a door swings open during service, preventing costly paint damage and customer complaints. It's a small detail that demonstrates the thoughtful engineering throughout the TP9KACX design.
Optional Accessories
Optional Spin-Up Cradle Adapters
Expand the versatility of your TP9KACX with the optional TP9KX-SPNCA set of 4 spin-up cradle adapters. These professional-grade adapters allow you to safely lift vehicles by their frame rails and provide additional contact options for specialized service work. The spin-up design allows quick height adjustment and secure locking at any position along the arm.
Why Choose the Tuxedo TP9KACX?
The Tuxedo TP9KACX represents the culmination of years of two post lift engineering refinement. With its 9,000 lb. capacity, asymmetric design, and comprehensive list of premium features included as standard equipment, this lift delivers professional performance that rivals units costing significantly more. The clear floor configuration provides the cleanest possible workspace, while the 5mm column steel and 6mm arm construction ensure decades of reliable service.
Every aspect of the TP9KACX has been designed with the working technician in mind—from the padded shut-off bar with kill switch for enhanced safety, to the internal hose routing that eliminates damage-prone external lines, to the included height adapters that expand vehicle compatibility without additional purchase. The dual point lock release system and robust chain drive provide smooth, reliable operation lift after lift, while the powder coat finish resists corrosion and maintains a professional appearance through years of daily use.
With an overall height of 142.9 inches and a maximum lift height of 72 inches, the TP9KACX fits standard ceiling heights while providing excellent working clearance underneath vehicles. The lift supports up to 2,250 lbs. per arm, accommodating uneven vehicle weight distribution safely. At a shipping weight of 1,370 lbs., installation is manageable while the robust construction ensures long-term stability.
When you invest in the Tuxedo TP9KACX, you're choosing a lift that combines cutting-edge safety features, professional-grade construction, exceptional vehicle access, and outstanding value—making it an ideal choice for independent repair shops, dealership service departments, and serious automotive enthusiasts who demand commercial quality in their home workshop.
Product Features
- 9,000 lb lifting capacity
- High Quality Construction
- Chain Drive
- Dual Point Lock Release
- Saddle Pad Adapters included (1 pair
- Powder coat finish
New Features
- 1) Single Piece Column construction (TP9KACX – TP9KSCX)
- 2) Padded ‘Shut-Off’ Bar w/ Kill Switch (TP9KACX – TP9KSCX)
- 3) Low Profile ‘drop-in’ Swivel Pads w/1-1/2” adjustable height
- 4) 4ea Stackable 1-3/8” & 4” ‘drop-in’ Height Adapters
- 5) Reduced overall Width w/ front-side Power Unit mounting
- 6) Internal Hose Routing w/ integrated Hose Guards
- 7) Rubber Door Guards
Free Drop-In Stackable Height Adapters
Set of 4 each: 1-3/8" & 4"
Product Specifications
Specifications
TP9KACX
Capacity
9,000 lbs.
Overall Height
142.9"
Width Overall w/Power Unit
138"
Max Lift Height
72"
Width Between Columns
113.6"
Min Pad Height
4"
Drive thru Clearance
96"
Lifting speed
50 sec
Asymmetric / Symmetric
Asymmetric
Clear Floor / Floor Plate
Clear Floor
Front Arm Reach – min/max
29" – 41"
Rear Arm Reach – min/max
37" – 57"
Max Load Per Arm
2,250 lbs.
Cable Diameter
3/8"
Column Size
7.25" x 10.87"
Column Steel Thickness
5mm
Carriage Steel Thickness
5mm
Arm Steel Thickness
6mm
Power
220V – 20 AMP – 1 PH
Ship Weight
1,370 lbs.
Key Features
- Published product configuration: Tuxedo TP9KACX 9,000 lb. Capacity Asymmetric Two Post Car Lift The Tuxedo TP9KACX is the next generation of professional two post lifts, delivering 9,000 lbs. of lifting capacity in a redesigned asymmetric clear floor configuration that offers exceptional vehicle access and workspace efficiency. Engineered with single
- Exact manufacturer model or part number: TP9KACX-V001
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Tuxedo |
|---|---|
| SKU | 407ES-004683 |
| MPN / Model | TP9KACX-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model TP9KACX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
