Product Overview
AMGO® Hydraulics OH-9 Super-Asymmetric® 2 Post Lift 9,000 lbs
The AMGO® Hydraulics OH-9 is the ultimate 2-post lift solution for professional shops and serious garage enthusiasts who demand versatility, performance, and value. Engineered with a 9,000 lb lifting capacity and a maximum lifting height of 76 5/16", the OH-9 fits garages with 12.5 ft ceilings while delivering professional-grade performance at an exceptional price point. What sets the OH-9 apart is its innovative Super-Asymmetric® arm design, which gives you the flexibility to configure the lift for both symmetric and asymmetric vehicle positioning—making it perfect for working on everything from compact cars to full-size trucks and SUVs.

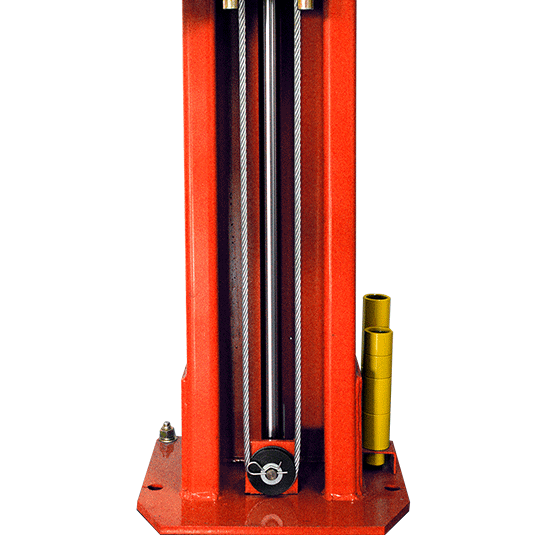

Built with dual direct drive hydraulic cylinders manufactured to exacting standards, the OH-9 delivers smooth, reliable lifting power with a 57-second lifting time. The lift's clear floor design provides unobstructed workspace, while self-lubricating UHMW polyethylene sliders and bronze bushings ensure years of maintenance-free operation. Safety is paramount: the single point safety release allows simultaneous disengagement of both columns, and the overhead safety shut-off device prevents vehicle damage. Synchronization is maintained by 3/8" aircraft quality cable, ensuring perfectly balanced lifting every time.
Super-Asymmetric® Arm System – Maximum Versatility
The Super-Asymmetric® arm configuration is the heart of the OH-9's versatility. This innovative design features 3-piece back arms and 2-piece front arms that can be quickly adjusted to accommodate asymmetric or symmetric vehicle positioning. For shorter vehicles or those with complex underbody layouts, configure the arms asymmetrically to position the vehicle's center of gravity between the posts for optimal balance and access. For longer vehicles, trucks, or traditional service work, switch to symmetric configuration for maximum stability and clearance.
The OH-9 provides an impressive 112 3/16" width between columns and 99 1/2" drive-thru clearance, giving you plenty of room to maneuver even large vehicles into position. The arms feature self-lubricating UHMW polyethylene sliders that glide smoothly while protecting your vehicle, and integrated rubber door guards provide an extra layer of paint protection during vehicle positioning.
Advanced Safety & Locking Systems
Safety isn't optional—it's built into every aspect of the OH-9's design. The lifting arm lock automatic release device with high-strength gear rack provides rock-solid holding power that's more stable and safer than conventional locking mechanisms. When you need to lower the vehicle, the single point safety release allows you to disengage both columns simultaneously from one location, ensuring synchronized descent and eliminating the risk of unbalanced lowering.
An overhead safety shut-off device monitors lifting height and automatically prevents over-extension that could result in vehicle or lift damage. The lift's adjustable height configuration accommodates varying ceiling heights from 143 1/8" to 151", ensuring you can optimize installation for your specific facility while maintaining full safety clearances.
Complete Adapter System Included
The OH-9 comes complete with everything you need for maximum lifting versatility right out of the box. Stackable rubber pads protect vehicle lift points while providing secure grip, and the included 3" extension adapters allow you to customize pad height to reach any vehicle's lifting points. These three different sizes of stackable adapters let you adjust rubber pad height freely, ensuring perfect contact with frame rails, pinch welds, or manufacturer-specified lift points on any vehicle you service.
With a minimum pad height of just 3 9/16", the OH-9 can accommodate even low-profile sports cars and modified vehicles, while the extension adapters provide the reach needed for trucks and SUVs with higher ground clearance.
Key Advantages of the AMGO® OH-9
- 9,000 lb capacity handles a wide range of passenger vehicles, light trucks, and SUVs
- Super-Asymmetric® design offers both asymmetric and symmetric configurations for ultimate flexibility
- Clear floor design with no base frame obstructions—maximizes usable workspace and equipment mobility
- Single phase 220V power with 2 HP motor no need for expensive three-phase electrical installation
- Aircraft quality 3/8" synchronization cable ensures perfectly balanced lifting operation
The design, material and specifications are subject to change without notice.
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 9,000 lbs lifting capacity
- Dual hydraulic direct-drived cylinders made on high standard
- The SuperAsymmetric arms allow symmetrical or asymmetrical loading, ensuring adequate door clearance
- Single-point manual safety lock release, simultaneously unlocks both columns from one side
- Clear-floor design provides an unobstructed floor use
- Overhead safety shut-off device for maximum vehicle protection
- Two standard height settings accommodate varying ceiling heights
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint
- Areo sync cables come standard
- Comes with detachable toe guard and tool tray
- Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.
Includes
- Set of Single Screw Rubber Pads
- 3" Extension Adapters
- Toe Guard & Tool Tray
Product Specifications
Specifications
OH-9
Lifting Capacity
9,000 lbs
A Max Lifting Height w/o Adapters
71 7/16" ~ 73 3/8"
A Max Lifting Height w/Adapters
74 7/16" ~ 76 5/16"
A Max Lock Height w/o Adapters
69 5/8" ~ 71 1/2"
A Max Lock Height w/Adapters
72 5/8" ~74 1/2"
B Overall Height
143 1/8" or 151"
C Overall Width
135"
D Drive-Thru Clearance
99 1/2"
E Width Between Columns
112 3/16"
F Minimum Pad Height
3 9/16"
Lifting Time
57 S
Motor
2 HP / 220V
Gross Weight
1,493 lbs
Key Features
- Published product configuration: AMGO® Hydraulics OH-9 Super-Asymmetric® 2 Post Lift 9,000 lbs The AMGO® Hydraulics OH-9 is the ultimate 2-post lift solution for professional shops and serious garage enthusiasts who demand versatility, performance, and value. Engineered with a 9,000 lb lifting capacity and a maximum lifting height of 76 5/16", the
- Exact manufacturer model or part number: OH-9
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | 407ES-004680 |
| MPN / Model | OH-9 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model OH-9, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
