Product Overview

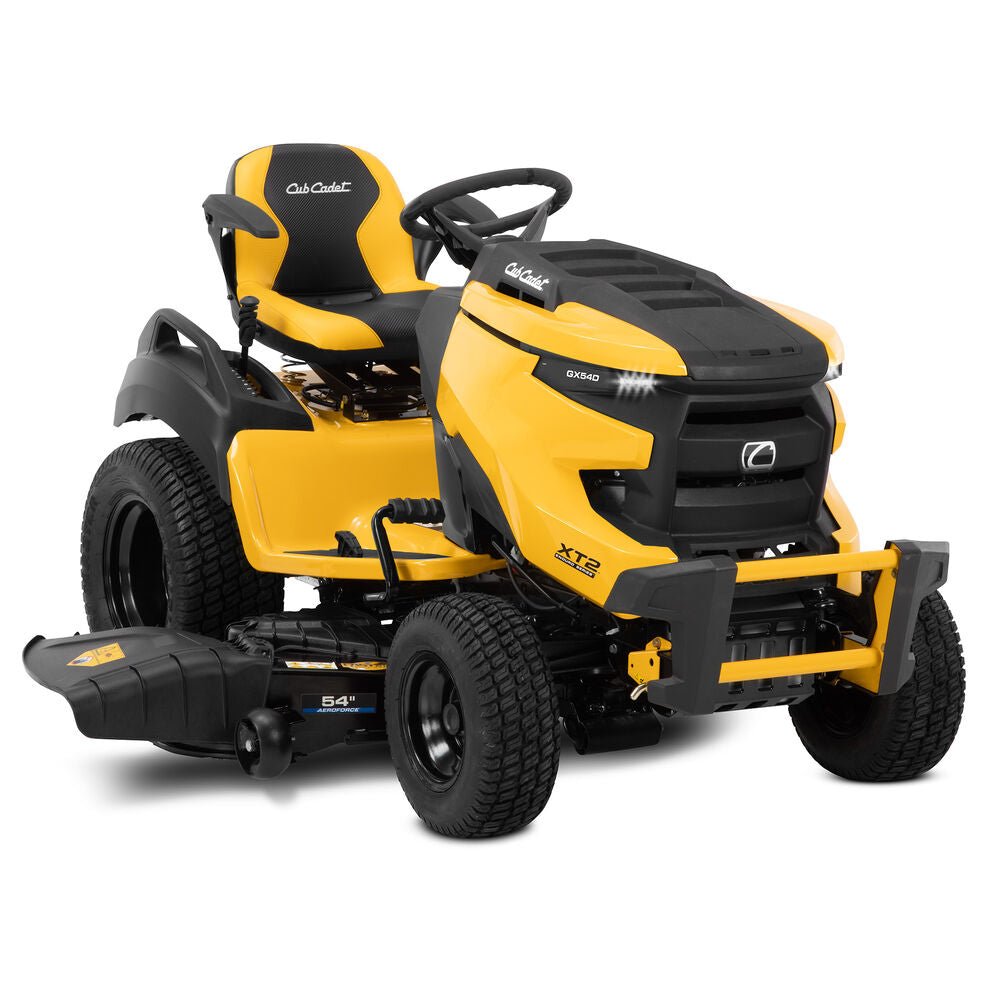

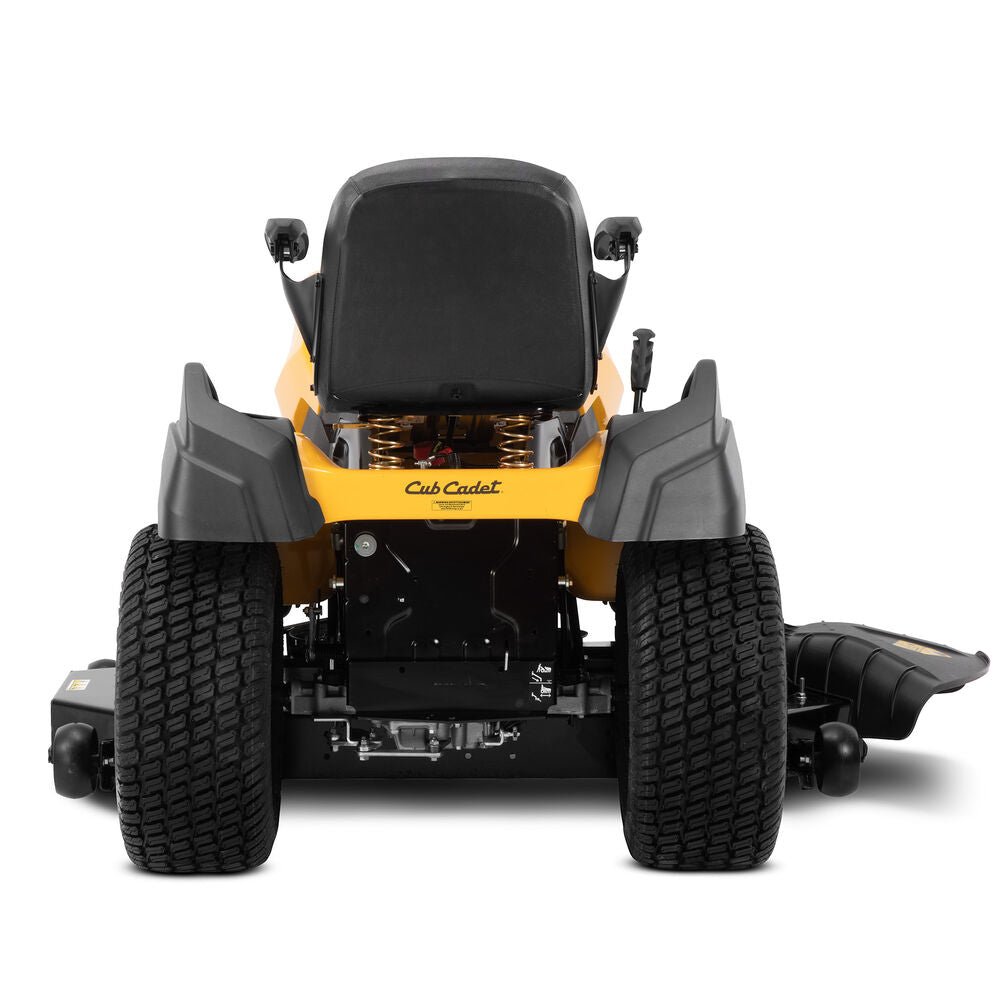

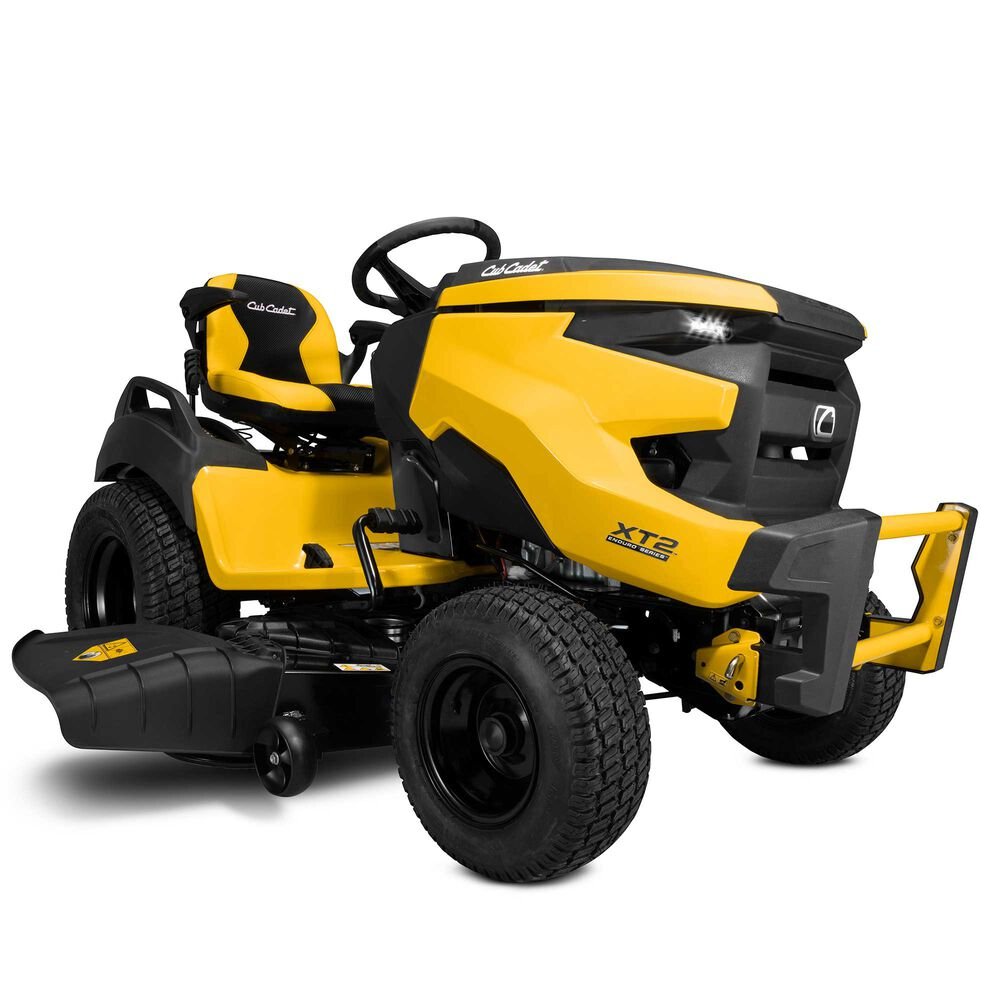

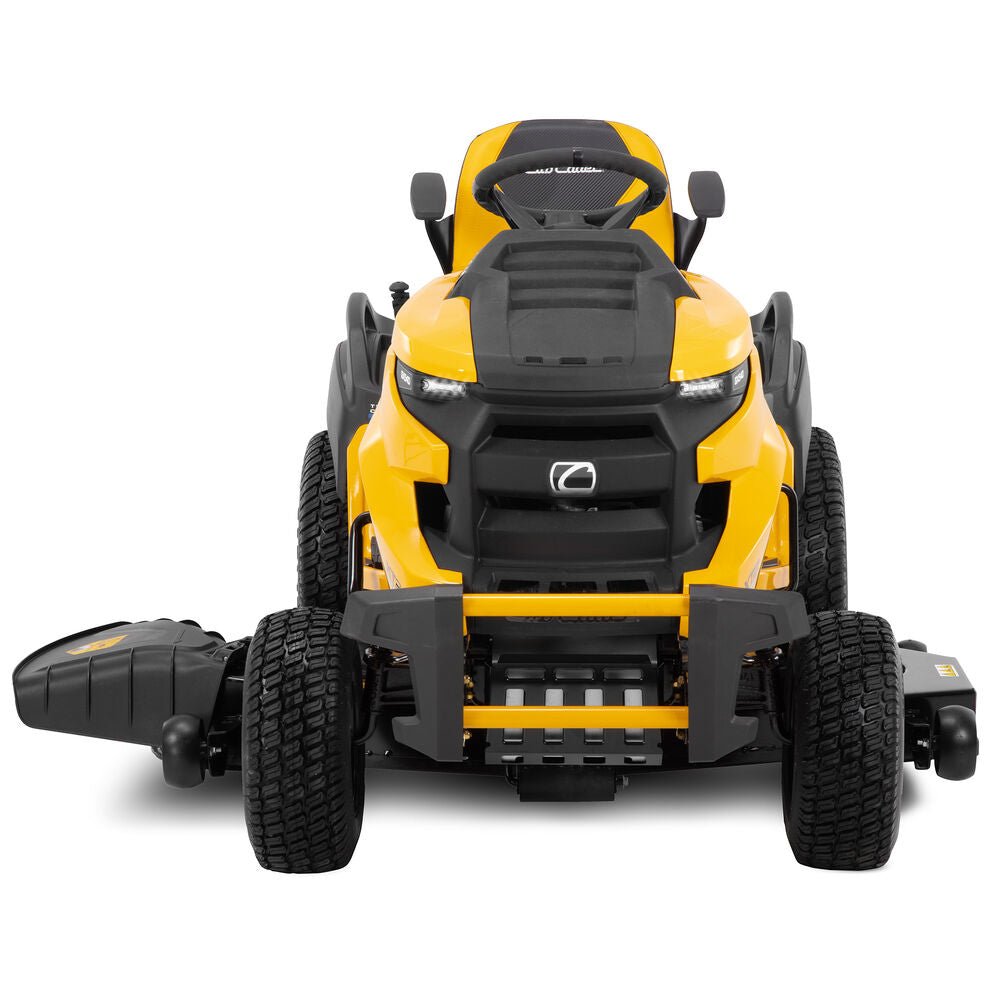

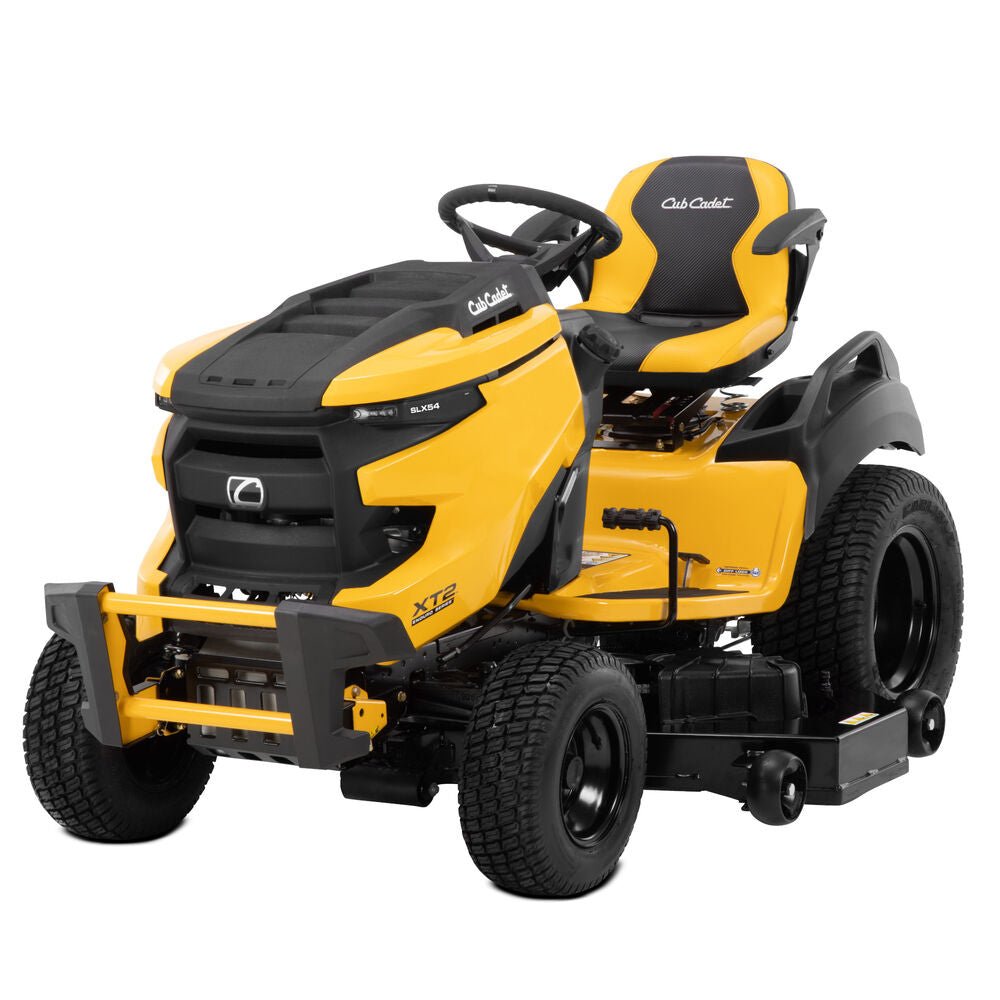

The CUB CADET XT2-GX54 D 14B7A6TMA10 is a Cub Cadet lawn-care equipment product listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-023839. Key specifications for this configuration include engine brand: Kohler; engine model: KT726; model: 14b7a6tma10: Description: MOWER:NX15 GX54D FAB K62 DL CC; deck cutting width: 54-in.
Key Features
- SKU: 407ES-023839
- Engine Brand: Kohler
- Deck Cutting Width: 54-in
- Engine Output: 26 HP
- Engine Displacement: 747cc
- Engine to Transmission: Heavy-duty belt
- Transmission: GT Hydro, Foot (TT K62 w/ Diff-Lock) – Steel
- Transmission Housing: Cast aluminum
- Cutting Height Range: 1″ – 4″
Product Highlights
- Deck construction: the published configuration uses 11-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kohler |
| SKU | 407ES-023839 |
| Deck Cutting Width | 54-in |
| Engine Output | 26 HP |
| Engine Displacement | 747cc |
| Engine to Transmission | Heavy-duty belt |
| Transmission | GT Hydro, Foot (TT K62 w/ Diff-Lock) – Steel |
| Transmission Housing | Cast aluminum |
| Cutting Height Range | 1″ – 4″ |
| Maximum Speed | 5.5 MPH |
| Fuel Capacity | 3.0 gal |
| Battery Voltage | 12V |
| AIR FILTER | 16 883 04-S1 |
| Anti-Scalping | 2 Ball/2 Ball |
| Battery | 12V / 210 cold crank amps |
| Battery Type | AGM (Absorbent Glass Mat) |
| BLADE | 742P05086 OR 490-110-C194 |
| Blade(s) | 3 |
| Brakes | Disc |
| Charging System | Flywheel Alternator – 12 amp regulated |
| Choke | Separate Choke |
| Cruise Control | Soft touch engagement |
| Cup Holder | Included |
| Cylinders/Material | 2/Cast-iron sleeve |
| Deck Attach/Removal | QuickAttach™ |
| DECK BELT | 954-05025A |
| Deck Construction | Fabricated |
| Deck Lift | Manual |
| Deck Positions | 12 Positions |
| Deck Wash | Patented SmartJet™ high-pressure deck washing system |
| Direction | NEW optimized steering system, manual sector and pinion |
| DRIVE BELT | 954-05156A |
| ENGINE Oil | 25 357 26-S OR 490-000-C044 |
| Engine Oil Capacity | 2 qt US ( 2 L) |
| Engine Start | Electric |
| Frame | Fully robotically-welded frame with new e-coating corrosion defense system |
| FUEL FILTER | 24 050 13-S1 |
| Fuel Tank Capacity | 3 gal. US (11.35 L) |
| Headlight(s) | 2 LED High Illumination |
| IGNITION KEY | 925-1745A |
| Lubrication | Fully-pressurized automotive-style oil pump w/spin-on oil filter |
| Mulch Kit | optional |
| OIL FILTER | 52 050 02-s |
| Protection | Single-tube |
| Rear Differential Lock | Yes |
| Seat Adjustment | 10 degree incline and slide |
| Seat Type | Cub Comfort™ high-back seat with armrests |
| SPARK PLUG | 25 132 14-S |
| TRANS FLUID | TT-187Q0899000 |
| Turning Radius | 16-in |
| XTREME BLADE | 742P05086-X OR 490-110-C205 |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use SKU 407ES-023839 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
