Product Overview

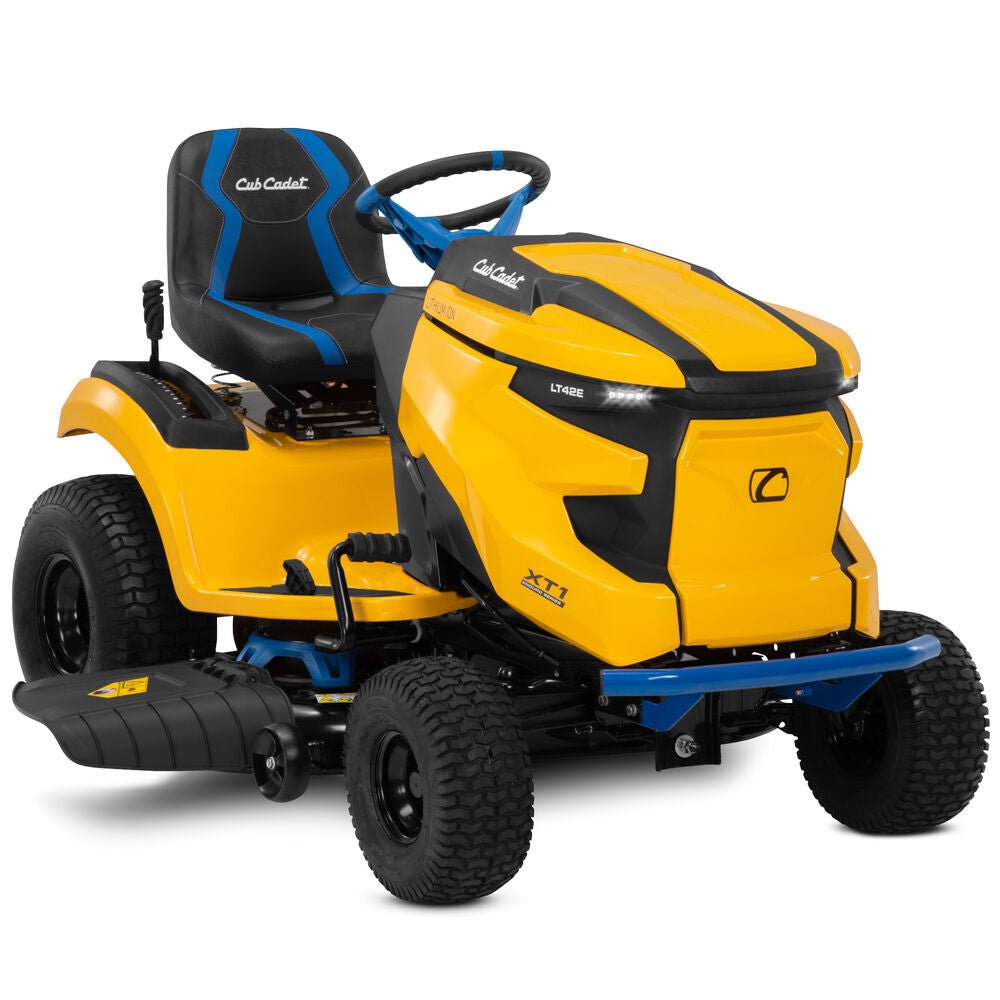

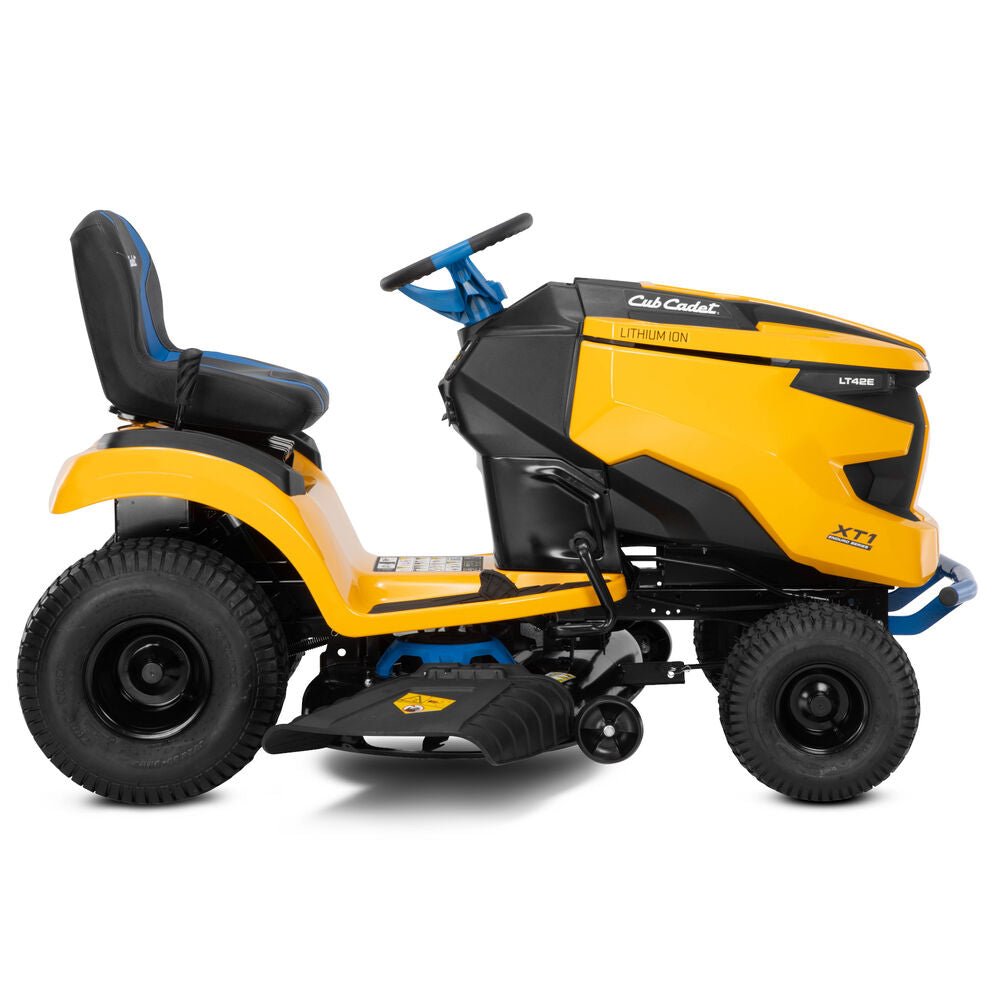

The Cub Cadet XT1LT42E 33ABA7ES710 is a Cub Cadet lawn-care equipment product listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-023831. Key specifications for this configuration include model: 33aba7es710: Description: MOWER:NX15 ELECT 42SD EDRV CC; deck cutting width: 42 in; engine output: N/A; transmission: Electric, 56V MAX.
Key Features
- SKU: 407ES-023831
- Model: 33ABA7ES710: Description: MOWER:NX15 ELECT 42SD EDRV CC
- Deck Cutting Width: 42 in
- Engine Output: N/A
- Transmission: Electric, 56V MAX
- Transmission Control: Foot Pedal
- Transmission Housing: Cast aluminum
- Transmission Input: Brushless motor
- Area Capacity: 3.5 acres
- Cutting Height Range: 1″ – 4″
- Maximum Speed: 5.5 MPH
Product Highlights
- Deck construction: the published configuration uses 13-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Model / MPN | 33ABA7ES710 |
| Model: 33ABA7ES710 | Description: MOWER:NX15 ELECT 42SD EDRV CC |
| SKU | 407ES-023831 |
| Deck Cutting Width | 42 in |
| Engine Output | N/A |
| Transmission | Electric, 56V MAX |
| Transmission Control | Foot Pedal |
| Transmission Housing | Cast aluminum |
| Transmission Input | Brushless motor |
| Area Capacity | 3.5 acres |
| Cutting Height Range | 1″ – 4″ |
| Maximum Speed | 5.5 MPH |
| Battery Voltage | 56V MAX |
| Ampere Hours | 60Ah |
| Anti-Scalping | Four gauge wheels |
| Armrests | No |
| Battery Gauge | Digital |
| Battery Type | Lithium ion |
| Bearing Type | Poly Bushing |
| Blade(s) | 2 |
| Brakes | Disc |
| Bumper | Steel Tube |
| Certifications | Full UL compliance, ANSI certified |
| Charge Time | 4 hours |
| Corrosion Protection | Yes |
| Cruise Control | Yes |
| Cup Holder | Yes |
| Cylinders | N/A |
| Deck Construction | Stamped |
| Deck Engagement | (PTO) Electric |
| Deck Lift; | Manual |
| Deck Material | 13-gauge steel |
| Deck Positions | 12 |
| Deck Wash | No |
| Drive System | Brushless Electric Motor |
| Engine Start | Ignition Key |
| Fast Charger | Included |
| Floor Mats | Rubber |
| Forward Speed | 5.5 MPH / 6.4 KMH |
| Frame | Robotically welded |
| Front Pivot Bar | Cast Iron |
| Front Tires | 15″x 6″-6″ |
| Headlight(s) | LED |
| Mowing Motor | Brushless |
| Mulch | Available Separately |
| Operator Presence System | Yes |
| Rear Axle | 3/4″ |
| Rear Differential Lock | No |
| Rear Tow Hitch | Yes |
| Rear Wheels | 20″x 8″-8″ |
| Reverse Speed | 3 MPH / 3.2 KMH |
| Run Time | Up to 1.5 hour or up to 2 acres |
| Seat Adjustment; | Lever |
| Seat Type | 15″ High-back |
| Series | XT1 Enduro Series |
| Starter Type | Electric |
| Tire Tread | Turf Saver |
| Turning Radius | 16″ |
| Watt Hours | 3000Wh |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use SKU 407ES-023831 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
