Product Overview

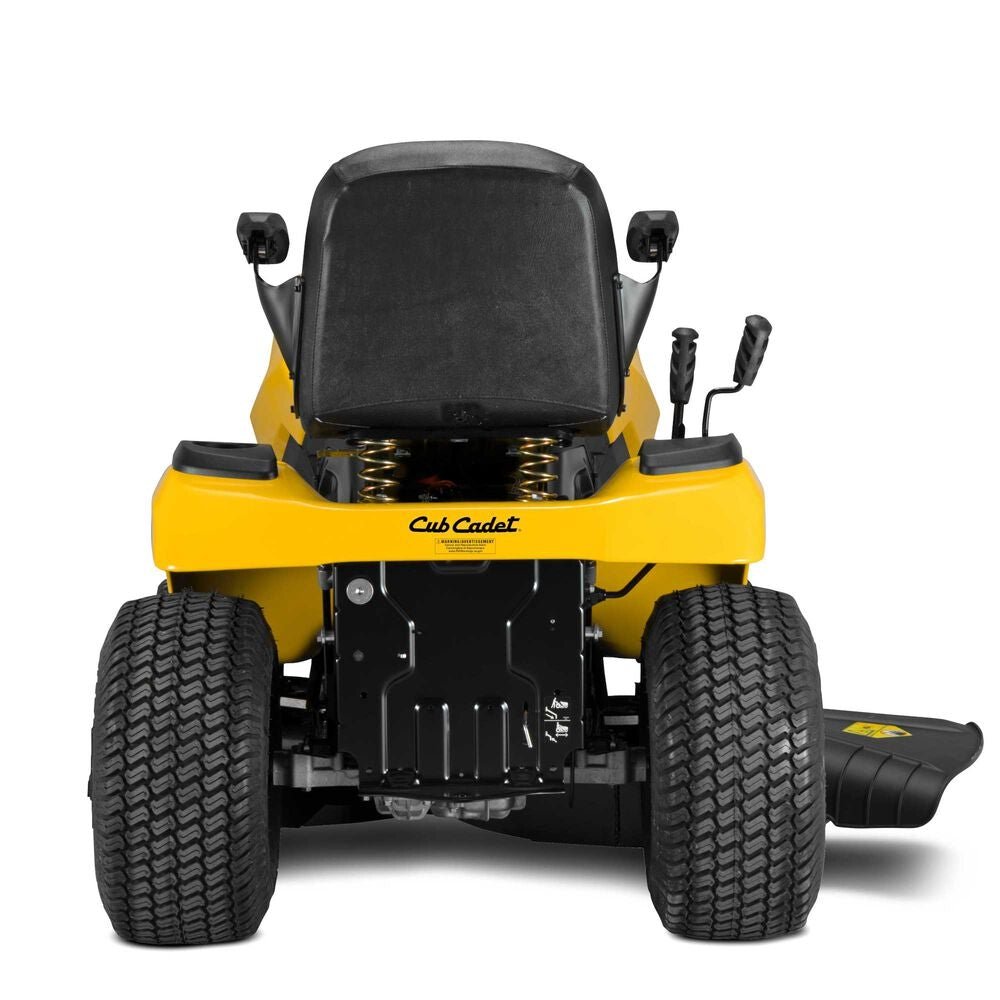

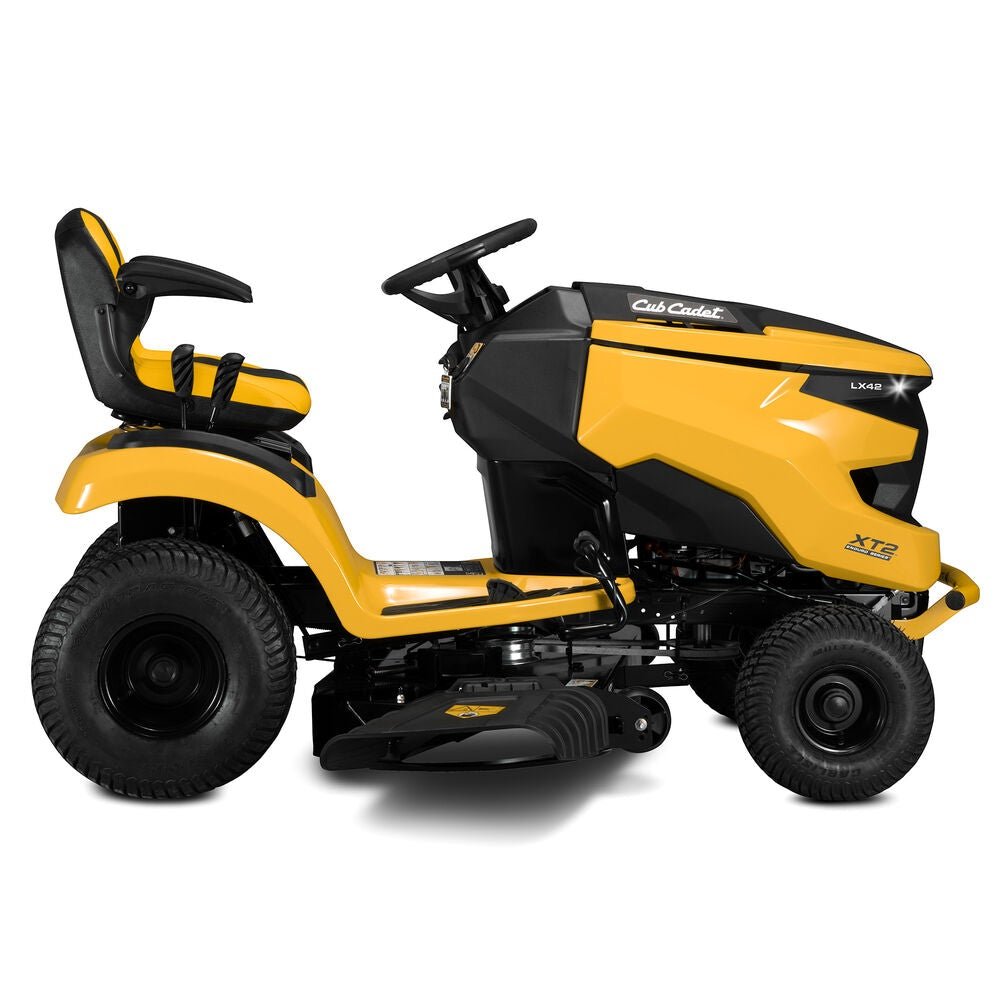

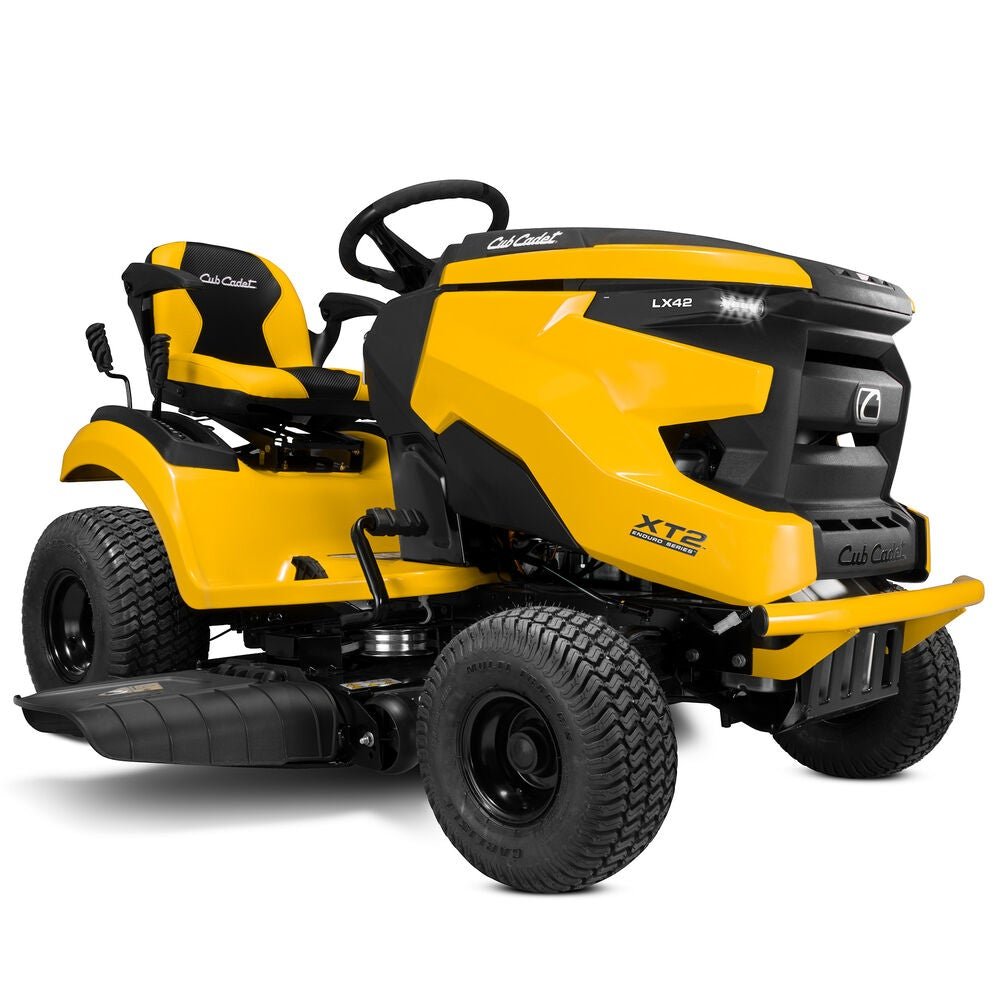

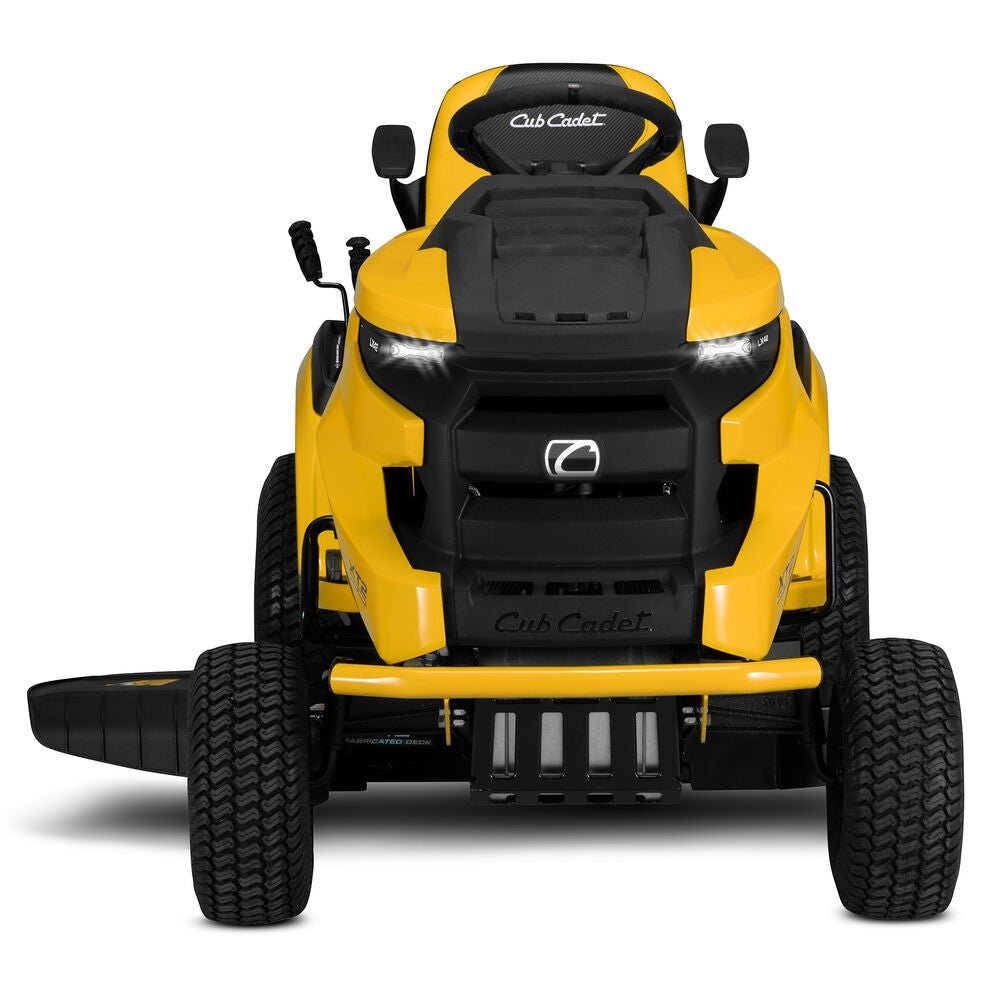

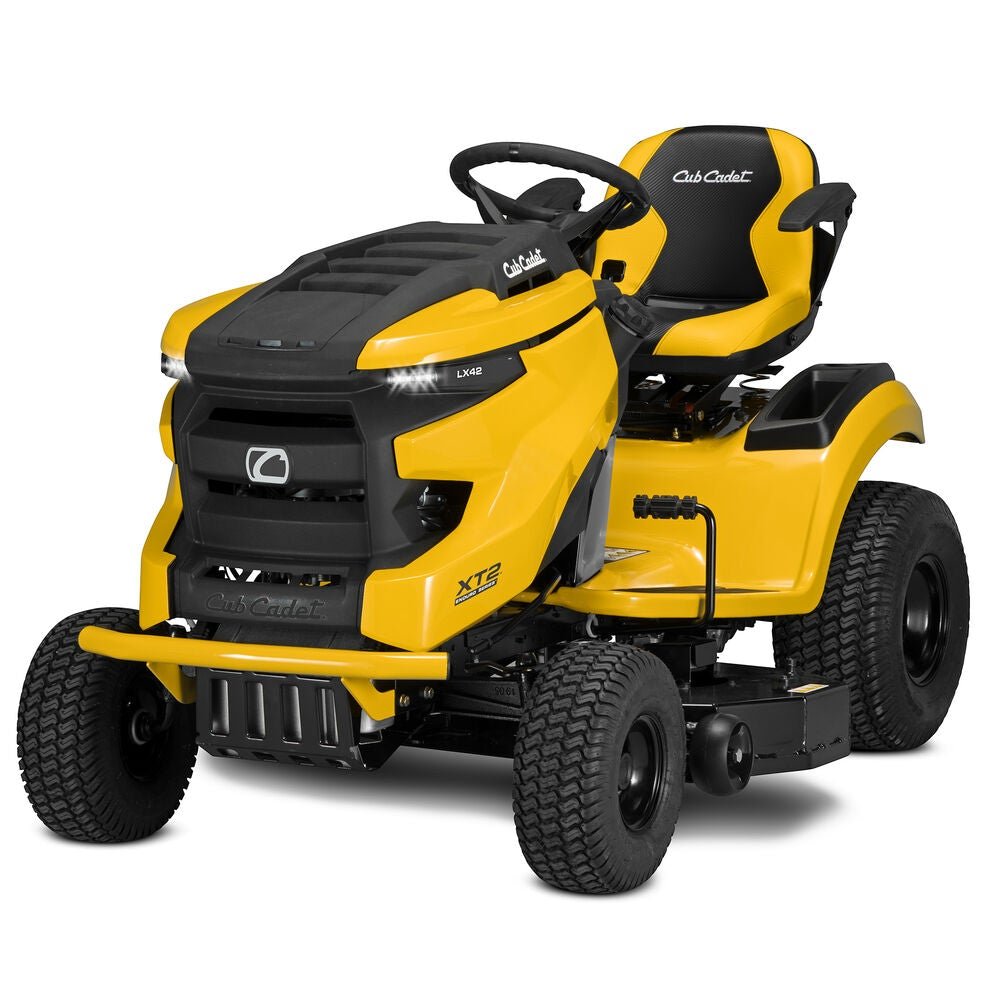

The Cub Cadet XT2-LX 42 13APA1TEA10 is a Cub Cadet lawn-care equipment product listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-023845. Key specifications for this configuration include engine brand: Kohler; model: 13apa1tea10: Description: MOWER:NX15 LX42 FAB K46 CC; deck cutting width: 42″; engine power: 20HP.
Key Features
- SKU: 407ES-023845
- Engine Brand: Kohler
- Model: 13APA1TEA10: Description: MOWER:NX15 LX42 FAB K46 CC
- Deck Cutting Width: 42″
- Engine Power: 20HP
- Engine Displacement: 747cc
- Transmission: Hydrostatic, foot
- Transmission Housing: Cast aluminum
- Transmission Type: Tuff Torq K46
- Cutting Height Range: 1″ – 4″
- Maximum Speed: 5.5 MPH
Product Highlights
- Deck construction: the published configuration uses 11-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests and suspension support.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kohler |
| Model / MPN | 13APA1TEA10 |
| Model: 13APA1TEA10 | Description: MOWER:NX15 LX42 FAB K46 CC |
| SKU | 407ES-023845 |
| Deck Cutting Width | 42″ |
| Engine Power | 20HP |
| Engine Displacement | 747cc |
| Transmission | Hydrostatic, foot |
| Transmission Housing | Cast aluminum |
| Transmission Type | Tuff Torq K46 |
| Cutting Height Range | 1″ – 4″ |
| Maximum Speed | 5.5 MPH |
| Fuel Capacity | 3.0 gal |
| Battery Voltage | 12V |
| Air Filter | Single element |
| Anti-Scalping | 2 ball |
| Arm Rests | Comfort |
| Bagger | Optional |
| Battery | 12V 210 cold crank amps AGM |
| Blade(s) | 2 |
| BLADES ORDER 2 | 742P05177 OR SET 490-110-C191 |
| Brakes | Disc |
| Charging System | 12 Amp Regulated |
| Choke | Separate Choke |
| Corrosion Protection | E-coating |
| Cruise Control | Yes |
| Cup Holder | Included |
| Cutting Modes | Discharge/mulch/bagging |
| Cylinders/Material | Twin Cast Iron |
| Deck Attach/Removal | QuickAttach™ (no tools required) |
| DECK BELT | 954-05021 OR 490-501-C062 |
| Deck Construction | Fabricated |
| Deck Engagement (PTO) | Manual lever |
| Deck Lift | Lever/spring assisted |
| Deck Positions | 12 positions |
| Deck Wash | Included |
| Direction | NEW optimized steering system, manual sector and pinion |
| Discharge Chute | Included |
| DRIVE BELT | 954-05027B OR 490-501-C061 |
| Engine | Kohler KT720 |
| ENGINE Oil | 25 357 26-S OR 490-000-C044 |
| Engine Oil Capacity | 2 qts. |
| Engine Start | Key |
| Floor Mats | Traction Pad |
| Forward Speed | 5.5 MPH |
| Frame | Robotically welded |
| Front Axle(s) | Heavy duty Cast iron |
| Front Tires | 15″x6″-6″ |
| FUEL FILTER | 24 050 13-S1 |
| Fuel Gauge | Fuel sight window |
| Fuel Tank Capacity | 3.0 gal. |
| Governor | Manual |
| Headlight(s) | 2 – LED High Illumination |
| IGNITION KEY | 925-1745A |
| Lubrication | Fully pressurized |
| Mulch Kit | Optional |
| Oil Filter | Yes |
| Operator Presence System | Included |
| Rear Axle | 3/4″ w/dual PM steel drive hubs |
| Rear Tires | 20″x8″-8″ |
| Rear Tow Hitch | Included |
| Reverse Speed | 3 MPH |
| Seat adj | 10 degree incline and slide |
| Seat Adjustment | Lever |
| Seat Suspension | Seat spring |
| Seat Type | Cub Comfort™ high-back seat |
| SPARK PLUG | 25 132 12-S OR RC12YC |
| T | RANS FLUID: TT-187Q0899000 |
| Tire Tread | Multi-Trac |
| Turning Radius | 16″ |
| XTREME BLADES | 742P05177A-X OR SET 490-110-C202 |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use SKU 407ES-023845 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
