Product Overview

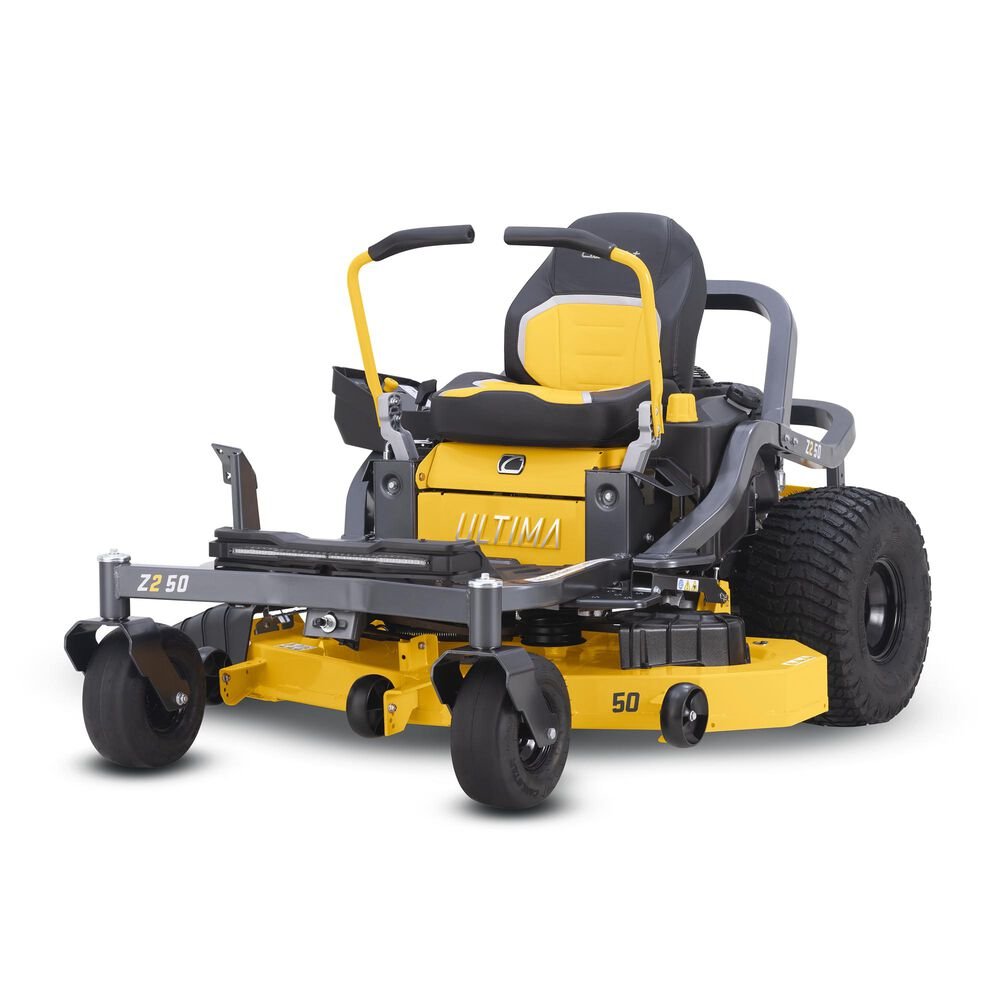

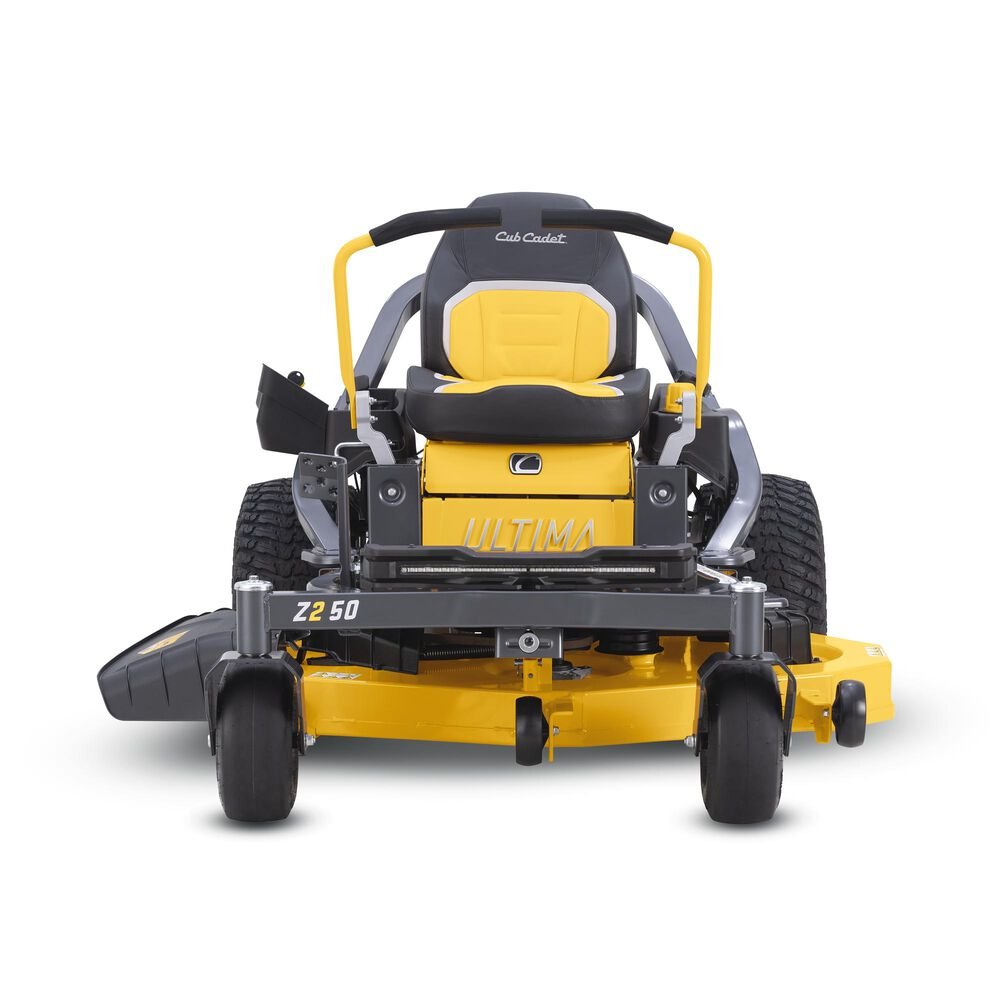

The Cub Cadet ULTIMA Z2 50″ 17RIEAEL010 is a Cub Cadet lawn-care equipment product listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-023716. Key specifications for this configuration include engine brand: Kawasaki®; engine model: FR Series; engine model number: 691V; deck cutting width: 50 in.
Key Features
- SKU: 407ES-023716
- Engine Brand: Kawasaki®
- Engine Model: FR Series
- Engine Model Number: 691V
- Deck Cutting Width: 50 in
- Engine Output: 23 HP
- Engine Displacement: 726cc
- Transmission: Hydro-Gear EZT 2200
- Cutting Height Range: 1” – 4.5”
- Maximum Speed: 7 MPH
- Fuel Capacity: 3.5 gal
Product Highlights
- Deck construction: the published configuration uses 11-gauge fabricated or welded steel.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kawasaki® |
| Engine Model | FR Series |
| Engine Model Number | 691V |
| Model / MPN | 17RIEAEL010 |
| SKU | 407ES-023716 |
| Deck Cutting Width | 50 in |
| Engine Output | 23 HP |
| Engine Displacement | 726cc |
| Transmission | Hydro-Gear EZT 2200 |
| Cutting Height Range | 1” – 4.5” |
| Maximum Speed | 7 MPH |
| Fuel Capacity | 3.5 gal |
| Battery Voltage | 12V |
| Air Filter | Single element |
| Anti-Scalping | Two gauge wheels |
| Armrests | No |
| Battery | 230 CCA |
| Battery Type | Lead Acid |
| Blade(s) | Three |
| BLADES | 742P05094 |
| Brakes | Disc |
| Charging System | 12 amp regulated |
| Choke | Separate Choke |
| Corrosion Protection | Yes |
| Cruise Control | No |
| Cup Holder | Yes |
| Cylinders | Twin |
| DECK BELT | 954-05078 OR 490-501-F070 |
| Deck Construction | Fabricated |
| Deck Engagement | (PTO) Electric |
| Deck Lift | Foot pedal with Dial Adjust |
| Deck Material | 11-gauge steel |
| Deck Positions | 15 |
| Deck Wash | No |
| DRIVE BELT | 954-04317A OR 490-501-C069 |
| Drive System | Hydrostatic |
| Engine Oil Capacity | 2.1 qts. US |
| Engine Start | Ignition Key |
| Forward Speed | 7 MPH / 11.3 km/h |
| Frame | 2” x 2” tubular steel |
| Front Tires | 11″x 6″-5″ |
| Fuel Delivery | Carburetor |
| FUEL FILTER | KM-49019-0031 |
| Fuel Gauge | No |
| Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
| Governor | Mechanical |
| Handle Grip(s) | Ergonomic Overmolded Soft Touch |
| Headlight(s) | LED Lightbar |
| Hour Meter | Yes |
| IGNITION KEY | 925-1745A |
| Lubrication | Fully pressurized |
| Oil Filter | Yes |
| Operator Presence System | Yes |
| Parking Brake | Lap Bar Integrated |
| Rear Tires | 20”x 8”-8″ |
| Rear Tow Hitch | Yes |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| ROPS | No |
| Seat Adjustment | Knob |
| Seat Type | 20″ Cut-and-Sew with Head Bolster |
| SPARK PLUG | KM-BPR4ES |
| Starter Type | Electric |
| Steering Control | Lap Bars |
| Tire Tread | Turf Armor |
| Turning Radius | 0° |
| XTREME BLADES | 742P05094-X |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use SKU 407ES-023716 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
