Product Overview

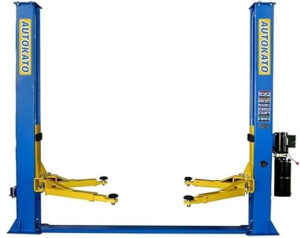

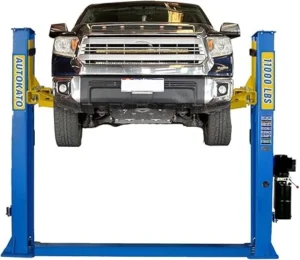

Katool KT-H115Z Symmetric 2 Post Floor-Plate Car Lift 11,000 lbs w/Low Profile Arms
Powerful, Versatile, and Built for Professional Use
The Katool KT-H115Z is a symmetric floor-plate 2-post car lift engineered to handle an impressive 11,000 lb. capacity, making it ideal for lifting a wide range of vehicles—from passenger cars and mid-sized SUVs to light-duty trucks. With low-profile swing arms and a minimum height of just 3.9 inches, this lift accommodates low-clearance sports cars and modern vehicles with ease, offering unmatched versatility in busy shops and home garages alike.
CE certified and approved for international safety and quality standards, the KT-H115Z features dual hydraulic chain-drive cylinders that deliver smooth, consistent, and reliable lifting performance—even under heavy, repeated use. The symmetric installation provides balanced lifting for safer, more stable operation, while the two-point lock release system enables quick, safe, and efficient raising and lowering of vehicles.
Designed with operator convenience in mind, this lift includes a manual safety release accessible from both sides, a top crossbar with limit switch that automatically stops the lift at its maximum height to help prevent vehicle damage, and rubber pad door-opening protection to safeguard doors and body panels during service. The durable powder coat finish in blue not only resists wear and corrosion but also improves visibility and aesthetics in any workspace.
Key Highlights
- 11,000 lb. lifting capacity handles light trucks, SUVs, and passenger vehicles with ease
- Low-profile arms (3.9" minimum height) accommodate low-clearance sports cars and modern sedans
- Symmetric floor-plate design provides balanced, stable lifting for safer vehicle service

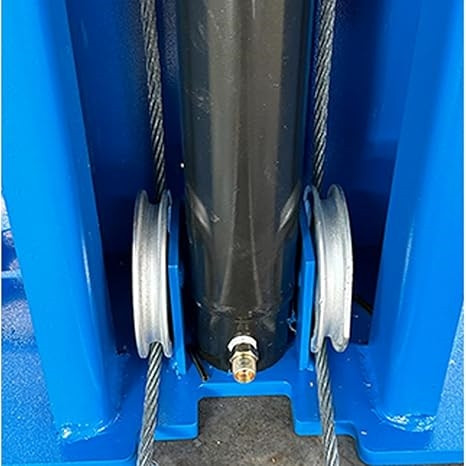

- Dual hydraulic chain-drive cylinders ensure smooth, reliable performance under heavy use
- CE certified for international safety and quality standards, plus manual safety release from both sides
What's Included
Each Katool KT-H115Z lift comes complete with a set of drop-in adapters to provide flexibility when positioning vehicles and accommodate various frame and lifting-point configurations. These adapters help you safely lift a broader range of vehicle sizes and models with confidence.
Technical Performance
Featuring a maximum lifting height of 70.8 inches and an overall height of 110.9 inches, the KT-H115Z provides ample clearance for undercarriage service, tire and brake work, suspension repair, and exhaust system maintenance. The lift's 4.0 HP motor (220VAC / 60Hz / 1PH / 2.2Kw) raises vehicles in just 45-60 seconds, maximizing productivity without compromising safety.
With two-stage swing arms, the front arms extend from 29.5" to 46", and the rear arms reach from 35.4" to 58.2", allowing you to adjust for different vehicle wheelbases and weight distributions. The 98.4-inch drive-thru clearance and 110.2-inch inside column spacing give you the flexibility to position vehicles precisely and work comfortably around them.
Safety and Reliability
Safety is paramount with the KT-H115Z. The lift's top crossbar with automatic limit switch stops upward travel at maximum height, helping to prevent accidental vehicle contact with overhead obstacles. The dual-sided manual safety release ensures that operators can quickly lower the lift from either column in an emergency, and the two-point lock system provides multiple secure hold positions during service.
Constructed with a net weight of 1,257 lbs, this lift is built for long-term durability. The powder coat blue finish resists scratches, chips, and corrosion, maintaining a professional appearance year after year.
Important Concrete Requirements:
Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
Understanding Two-Post Lift Capacities
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 11,000 lb. Capacity
- Lifts a wide range of vehicles: light-duty trucks, mid-sized SUVs, and passenger cars
- Low-profile swing arms: Accommodate low-clearance vehicles, enhancing versatility
- Symmetric installation: Provides balanced lifting for safer, more stable operation
- Drop-in adapters: Allow flexibility to fit various vehicle sizes and lifting points
- Two-point lock release: Enables quick, safe, and efficient raising and lowering
- Top crossbar with limit switch: Automatically stops the lift at its maximum height to help prevent vehicle damage
- CE certified: Meets international safety and quality standards
- Dual hydraulic chain-drive cylinders: Deliver smooth, consistent performance—even under heavy use
- Durable powder coat finish (blue): Resists wear and improves visibility in the workspace
Includes
- Set of Drop-in Adapters
Product Specifications
Specifications
KT-H115Z
Lifting Capacity
11,000 lbs.
Max. Lifting Height
70.8" / 1800mm
Height Overall
110.9" / 2818mm
Min Height
3.9" / 100mm
Overall Width
140.4" / 3565mm
Outside Column
124.8" / 3170mm
Inside Column
110.2" / 27800mm
Drive-Thru Clearance
98.4" / 2500mm
Max Front Arm Reach
46"/1170mm (2 stages)
Min Front Arm Reach
29.5"/750mm (2 stages)
Max Rear Arm Reach
58.2"/1480mm (2 stages)
Min Rear Arm Reach
35.4"/900mm (2 stages)
Lifting Time
45 – 60s
Motor
4.0 HP / 220VAC / 60HZ / 1PH / 2.2Kw
Net Weight
1257 lbs / 570KG
*Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Key Features
- Published product configuration: Katool KT-H115Z Symmetric 2 Post Floor-Plate Car Lift 11,000 lbs w/Low Profile Arms Powerful, Versatile, and Built for Professional Use The Katool KT-H115Z is a symmetric floor-plate 2-post car lift engineered to handle an impressive 11,000 lb. capacity, making it ideal for lifting a wide range of vehicles—from
- Exact manufacturer model or part number: KT-H115Z-V001
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Katool |
|---|---|
| SKU | 407ES-004649 |
| MPN / Model | KT-H115Z-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model KT-H115Z-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
