Product Overview

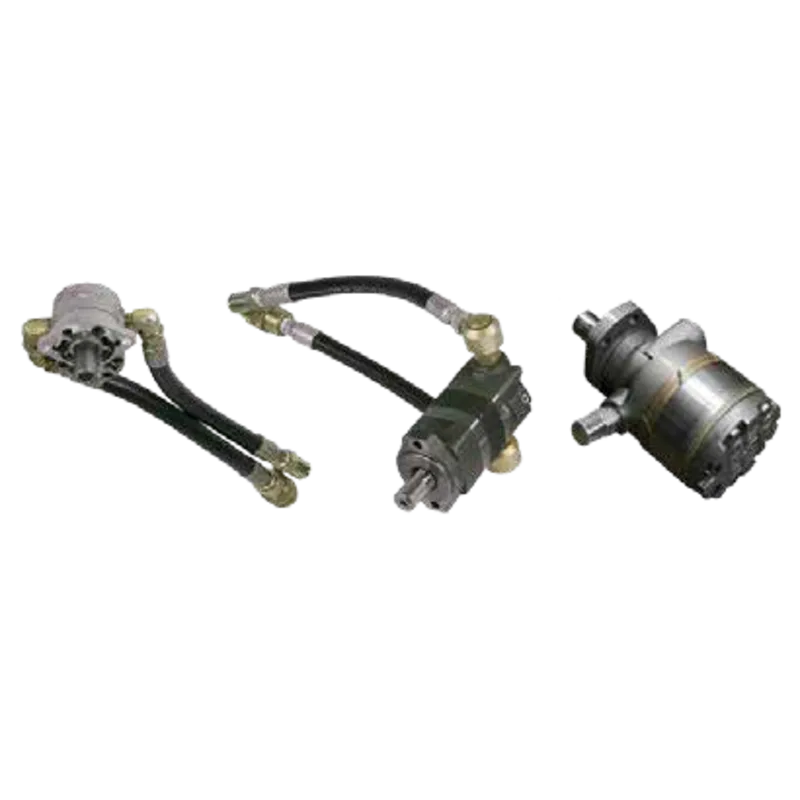

Diamond Products 104-1065 Hydraulic Core Drill Motor is a hydraulic core drill motor designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The 104-1065 configuration pairs Motor Only Motor product subtype, 11.9 cu in displacement, and Hydraulic motor type.
Key Features
- Rig-mounted format supports controlled feed and larger diameter core work
- Built for professional coring in concrete, masonry, stone, and reinforced slabs
- Included configuration: Hydraulic motor assembly in listed Char-Lynn/Diamond Products configuration; hoses and fittings only where stated by supplier
- Product Subtype: Motor Only Motor
- Displacement: 11.9 cu in
- Max RPM @ 8 GPM: 155
Product Specifications
- Model #
- 104-1065
- SKU/Part #
- 4250004
- Cat #
- 01830
- Product Type
- Hydraulic Motor
- Product Subtype
- Motor Only Motor
- Displacement
- 11.9 cu in
- Motor Type
- Hydraulic
- Max RPM @ 8 GPM
- 155
- Max RPM @ 12 GPM
- 233
- Max RPM @ 20 GPM
- 408
- Max RPM @ 25 GPM
- 505
- Applications
- Core drilling, industrial equipment, and hydraulic-powered tools
- Compatible Equipment
- Hydraulic drilling rigs and other machinery using compatible mounts
- Durable Construction
- Yes
- Smooth Operation
- Yes
- Balanced Torque and Speed
- Yes
- Warranty
- Motor : Motor
- WooCommerce SKU
- 1830
- Store Title
- Hydraulic Motor for Core Drilling – Char-Lynn 104-1065
- Diamond Products Part Number
- 4250004
- Catalog Number
- 01830
- Max Bit Diameter
- Up to 42" per the source catalog/CTD source
- Included
- Hydraulic motor assembly in listed Char-Lynn/Diamond Products configuration; hoses and fittings only where stated by supplier
Applications & Purchase Considerations
The 104-1065 is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Motor Only Motor product subtype, 11.9 cu in displacement, and Hydraulic motor type.
- Tooling or working setup: Hydraulic motor assembly in listed Char-Lynn/Diamond Products configuration; hoses and fittings only where stated by supplier
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Diamond Products |
|---|---|
| SKU | 407ES-005528 |
| MPN / Model | 1830 |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Core Drilling |
| Collection | Core Drill Motors |
| Product Type | Hydraulic Core Drill Motor |
Before You Order
Confirm that model 1830, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
