Product Overview

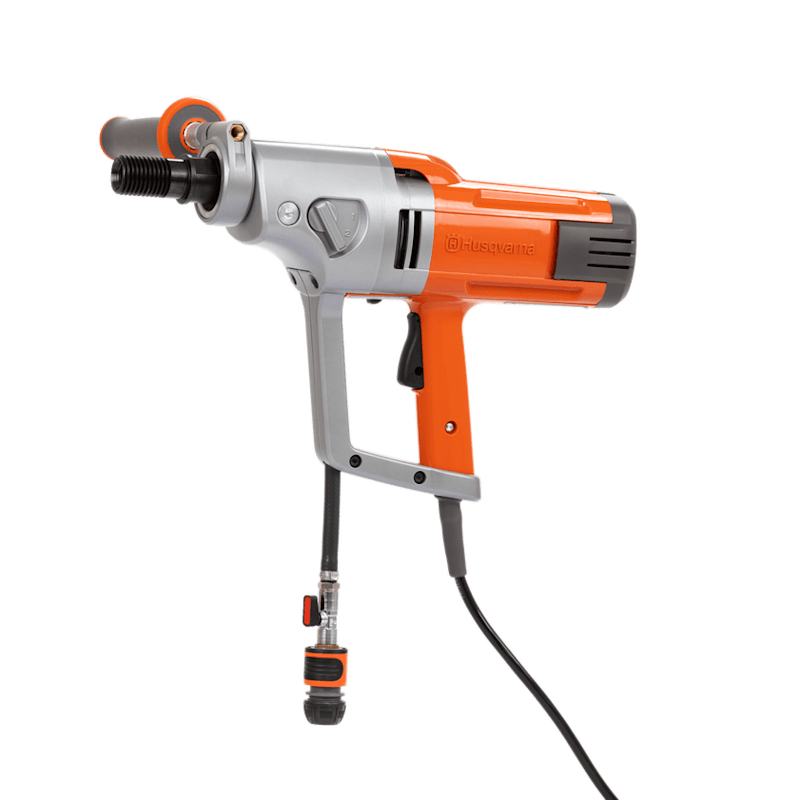

Husqvarna DM 230 Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DM 230 configuration pairs Corded power source, 2.5 hp rated input power, and 15.4 lbs weight.
Key Features
- 100-120 V power/drive requirement captured for jobsite planning
- 6" drilling or boring capacity for selecting the right bit and setup
- 730 rpm speed range or gearbox detail supports bit-size control
- 1 1/4" 7 UNC spindle/thread detail helps confirm bit and adapter compatibility
- Hand-Held mount/system configuration supports correct rig pairing
- Hand-held format supports fast setup for smaller penetrations and repair work
Product Specifications
- Max Bit Diameter
- 6"
- Power Phase
- 1PH
- Power Source
- Corded
- Recommended Bit Diameter
- 1" – 6"
- Tool Mount
- Hand-Held
- Wet/Dry Use
- Wet
- WASHER QUICK RELEASE/COPPER D
- SKU: 543052878 Husqvarna Drill motor keys Accessories SKU: 531140951
- Rated input power
- 2.5 hp
- Frequency
- 60 Hz
- Voltage
- 100-120 V
- Phases
- 1 ph
- Drill bit diameter handheld, max
- 3 in
- Drill bit diameter with stand, max
- 6 in
- Recommended drill bit diameter, min
- 1 in
- Coolant
- Wet
- Number of gearbox speeds
- 3
- Spindle speed unloaded gear 1
- 730 rpm
- Spindle speed unloaded gear 2
- 1,700 rpm
- Spindle speed unloaded gear 3
- 3,600 rpm
- Water connector
- G 1 / 4"
- Water pressure, max
- 116 psi
- Mounting collar
- 2.36 in
- Spindle thread, inner
- 5/8" 11 UNC
- Spindle thread, outer
- 1 1/4" 7 UNC
- Product size length
- 17.5 in
- Product size width
- 4.2 in
- Product size height
- 13.6 in
- Weight
- 15.4 lbs
- Packaging length (Calc)
- 25.984 in
- Packaging width (Calc)
- 20.472 in
- Packaging height (Calc)
- 5.906 in
- Article gross weight (Calc)
- 26.676 lbs
- Sound power level, guaranteed (LWA)
- 108 dB(A)
- Sound power level, measured
- 107 dB(A)
- Sound pressure level at operators ear
- 93 dB(A)
- Warranty
- 2 year limited
- WooCommerce SKU
- 968411301
- Store Title
- Husqvarna DM 230
- Included
- Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
Applications & Purchase Considerations
The DM 230 is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Corded power source, 2.5 hp rated input power, and 15.4 lbs weight.
- Site utility or fuel: 100-120 V
- Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
- Handling reference: 15.4 lbs
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Husqvarna Construction |
|---|---|
| SKU | 407ES-005538 |
| MPN / Model | 968411301 |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Core Drilling |
| Collection | Core Drill Motors |
| Product Type | Core Drill |
Before You Order
Confirm that model 968411301, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
