Product Overview

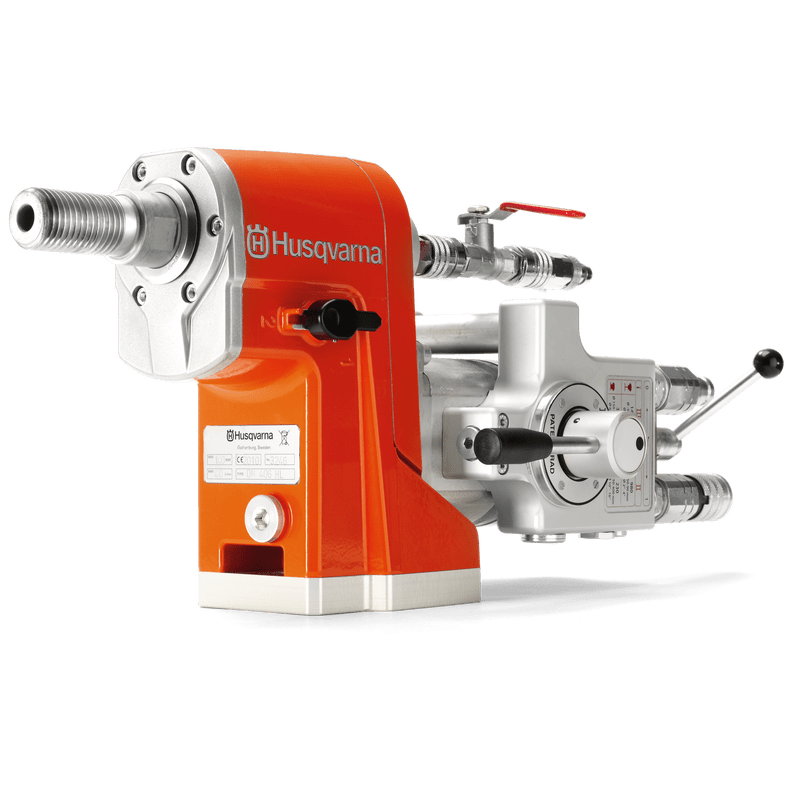

Husqvarna DM 406 H Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DM 406 H configuration pairs Hydraulic power source, 125 hp rated input power, and 35 lbs weight.
Key Features
- 25.6" drilling or boring capacity for selecting the right bit and setup
- 340 rpm speed range or gearbox detail supports bit-size control
- 1 1/4" 7 UNC spindle/thread detail helps confirm bit and adapter compatibility
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Built for professional coring in concrete, masonry, stone, and reinforced slabs
Product Specifications
- Max Bit Diameter
- 25.6"
- Power Source
- Hydraulic
- Recommended Bit Diameter
- 1.97" – 25.6"
- Tool Mount
- Rig-Mounted
- Wet/Dry Use
- Wet
- Illustrated part list
- Illustrated part list DM406, Husqvarna, EN, 2007-17 PDF ANY DM406 H, DM 406 H, Machine No. 3256 and forward, 2010-26 PDF ANY
- WASHER QUICK RELEASE/COPPER D
- SKU: 543052878
- Rated input power
- 125 hp
- Drill bit diameter with stand, max
- 25.6 in
- Recommended drill bit diameter, min
- 1.97 in
- Drill bit diameter, max
- 26 in
- Coolant
- Wet
- Number of gearbox speeds
- 2
- Spindle speed unloaded gear 1
- 340 rpm
- Spindle speed unloaded gear 2
- 1,400 rpm
- Water connector
- R 1 / 2"
- Water pressure, max
- 116 psi
- Spindle thread, outer
- 1 1/4" 7 UNC
- Hydraulic pressure, max
- 2,030 psi
- Product size length
- 10.2 in
- Product size width
- 8.3 in
- Product size height
- 20.5 in
- Weight
- 35 lbs
- Packaging length (Calc)
- 22.047 in
- Packaging width (Calc)
- 9.055 in
- Packaging height (Calc)
- 15.551 in
- Article gross weight (Calc)
- 46.297 lbs
- Sound power level, guaranteed (LWA)
- 113 dB(A)
- Sound power level, measured
- 112 dB(A)
- Sound pressure level at operators ear
- 98 dB(A)
- Warranty
- 2 year limited
- WooCommerce SKU
- 965158207
- Store Title
- Husqvarna DM 406 H
- Included
- Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
Applications & Purchase Considerations
The DM 406 H is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Hydraulic power source, 125 hp rated input power, and 35 lbs weight.
- Site utility or fuel: Hydraulic
- Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
- Handling reference: 35 lbs
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Husqvarna Construction |
|---|---|
| SKU | 407ES-005536 |
| MPN / Model | 965158207 |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Core Drilling |
| Collection | Core Drill Motors |
| Product Type | Core Drill |
Before You Order
Confirm that model 965158207, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
