Product Overview

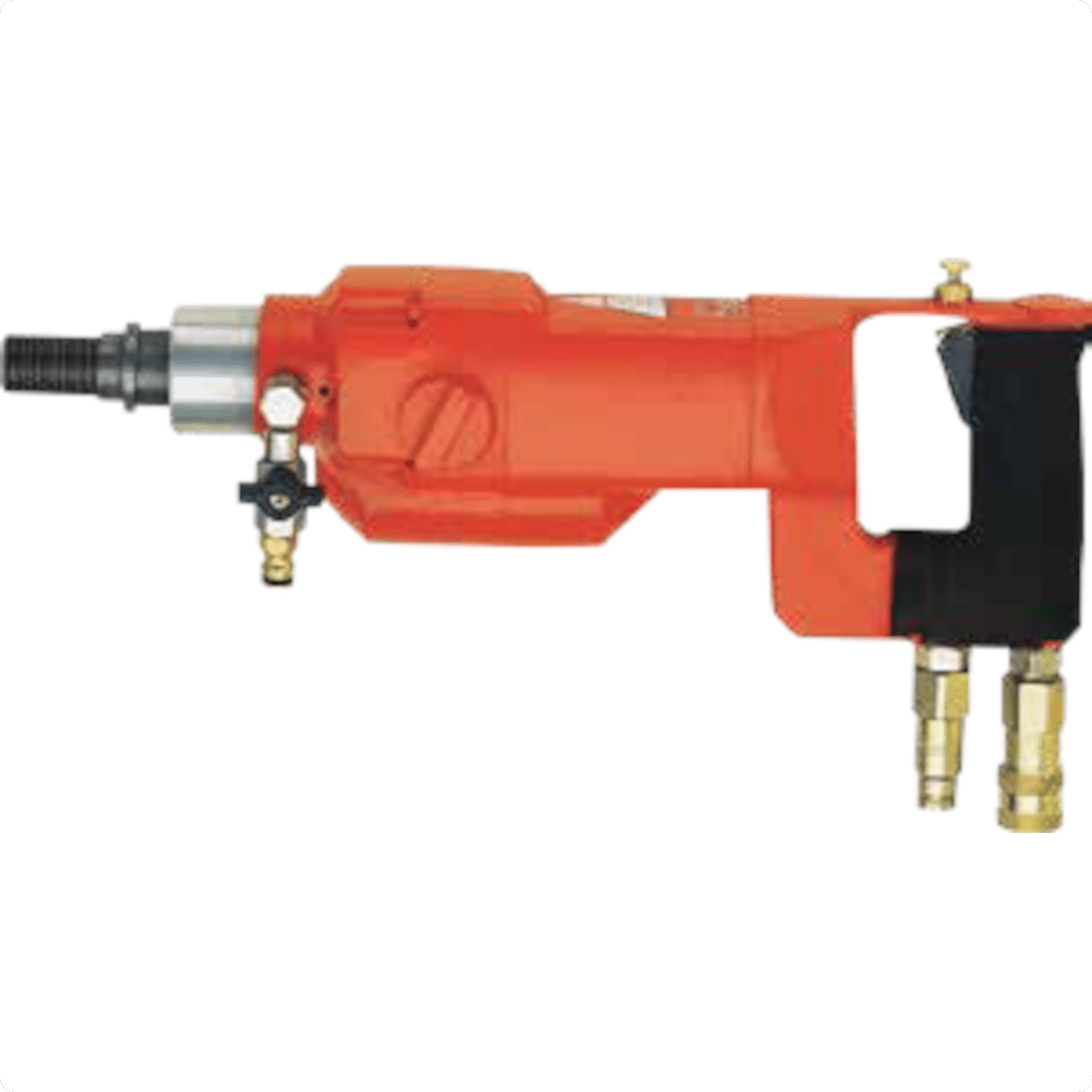

Core Bore CORE BORE 4HP Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The CORE BORE 4HP configuration pairs Hydraulic power source, 4 HP hydraulic power, and 15 lb weight.
Key Features
- 13 GPM maximum power/drive requirement captured for jobsite planning
- 6" drilling or boring capacity for selecting the right bit and setup
- 300 / 800 / 1600 RPM speed range or gearbox detail supports bit-size control
- 1.250"-7 spindle/thread detail helps confirm bit and adapter compatibility
- Hand-Held mount/system configuration supports correct rig pairing
- Hand-held format supports fast setup for smaller penetrations and repair work
Product Specifications
- Max Bit Diameter
- 6"
- Power Source
- Hydraulic
- Tool Mount
- Hand-Held
- Wet/Dry Use
- Wet
- Model #
- CORE BORE 4HP
- SKU/Part #
- 4244057
- Product Type
- Core Drill
- Product Subtype
- Hand-Held
- Product Mount
- Hand-Held
- Engine/Motor
- Hydraulic Motor
- Flow
- 13 GPM maximum
- Variable Speed
- 3-Speed
- Speed 1 Max RPM
- 300 RPM
- Speed 2 Max RPM
- 800 RPM
- Speed 3 Max RPM
- 1600 RPM
- Max Speed RPM
- 1600 RPM
- Drilling Depth per Pass
- User-Dependent
- Spindle Features
- 1.250"-7
- Dust Collection System
- Not applicable
- Weight (lbs)
- 15 lb
- Clutch
- Slip
- Applications
- Concrete, Masonry, Stone
- Dry/Wet
- Wet
- Power Compatibility
- Hydraulic
- Product Warranty
- 1 Year
- WooCommerce SKU
- 4244057
- Store Title
- Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held
- Power
- 4 HP hydraulic
- Speed
- 300 / 800 / 1600 RPM
- Spindle Thread
- 1.250"-7
- Included
- Hydraulic drill motor in listed configuration; power pack, hoses, and core bits sold separately unless stated
Applications & Purchase Considerations
The CORE BORE 4HP is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Hydraulic power source, 4 HP hydraulic power, and 15 lb weight.
- Site utility or fuel: Hydraulic
- Tooling or working setup: Hydraulic drill motor in listed configuration; power pack, hoses, and core bits sold separately unless stated
- Handling reference: 15 lb
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Core Bore |
|---|---|
| SKU | 407ES-005542 |
| MPN / Model | 4244057 |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Core Drilling |
| Collection | Core Drill Motors |
| Product Type | Core Drill |
Before You Order
Confirm that model 4244057, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
