Product Overview

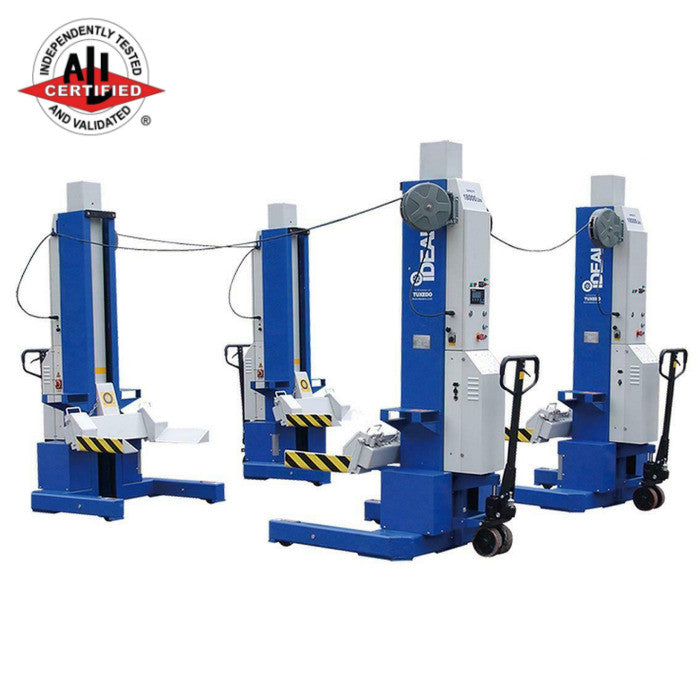

iDeal Lift MSC-18K-X-472 18,000lb. Per Mobile ALI Column Lifting System (Set of 4)
ALI Certified Heavy-Duty Mobile Column System
When your shop demands maximum lifting power, workspace flexibility, and absolute safety, the iDeal Lift MSC-18K-X-472 delivers without compromise. This 4-column set provides a massive 72,000 lbs. total lifting capacity with 18,000 lbs. per column, making it the ideal solution for fire trucks, school buses, large commercial vehicles, and heavy-duty fleet maintenance operations.
Available in multiple configurations 2-column sets (MSC-18K-X-236), 4-column sets (MSC-18K-X-472), or 6-column sets (MSC-18K-X-6108) this mobile lifting system transforms any flat bay into a fully functional lift bay in minutes, then stores compactly when not in use to maximize your valuable shop space.
Professional-Grade Lifting for the Heaviest Commercial Vehicles
Each column in the MSC-18K-X-472 is precision-engineered to safely lift 18,000 pounds, providing a combined 72,000 lbs. total capacity in this 4-column configuration. Designed specifically for wheels-on lifting of fire trucks, school buses, municipal vehicles, large commercial trucks, and fleet service applications, this system offers unmatched versatility for the most demanding heavy-duty service operations. Optional accessories expand functionality to include pickup trucks and wheels-free lifting configurations, making it a complete solution for diversified commercial vehicle maintenance.
The mobile design of the MSC-18K-X system revolutionizes shop efficiency and workflow. Each column is easily positioned using a pallet jack-style device with durable poly caster wheels, allowing technicians to quickly transform any open bay into a professional lift station within minutes. When service is complete, columns roll away for compact storage, preserving your workspace for other operations and maximizing bay utilization. The small footprint ensures that even facilities with limited space can benefit from heavy-duty lifting capability without sacrificing valuable square footage for permanent installations.
Safety and precision are paramount in commercial vehicle service. The MSC-18K-X-472 features an independent mechanical locking system on every column, backed by advanced PLC and optical encoder technology that provides continuous synchronization across all columns during lifting and lowering operations. An emergency switch on each column offers the highest level of safety assurance, ensuring technicians can instantly stop operation from any position around the vehicle. This redundant safety architecture meets and exceeds ALI certification standards for commercial lifting equipment.
Intelligent Control & Synchronized Operation
Technicians can operate the entire system conveniently from any column using the intuitive master control panel. The easy-to-use control panel features an LCD screen with keypad, providing clear, easy-to-read visuals for setting lifting heights and monitoring system status in real time. Whether performing individual column adjustments or paired synchronized operation, the interface simplifies complex tasks and reduces setup time, allowing technicians to focus on the service work rather than lift operation.
The system utilizes a smart U-shape wiring configuration with communication cable and retractable cable reels, enabling quick vehicle entry and exit without repeatedly disconnecting and reconnecting cables. This thoughtful design feature dramatically improves workflow efficiency, particularly in high-volume service environments where speed and convenience directly impact productivity and throughput. The retractable reels keep cables organized and out of the way, reducing trip hazards and maintaining a clean, professional workspace.
With a lifting height of 67.1 inches, adjustable column height ranging from 88.6" minimum to 155.5" maximum, and adjustable lifting forks with a 12.6" to 22" adjustable range, the MSC-18K-X accommodates the widest range of wheel diameters and vehicle configurations in the heavy-duty market. Fork length of 17.9 inches provides stable, secure support under load, while 10 inches of fork-to-column clearance ensures compatibility with various wheel and tire combinations, including dual rear wheels common on commercial trucks. Lifting and lowering times are efficient at 100 seconds up / 60 seconds down at the full rated load of 18,000 lbs. per column, keeping service bays moving efficiently.
The system's column width of 44.1 inches provides stability while maintaining a compact footprint, and the maximum distance between columns of 32 feet 8 inches accommodates even extended wheelbase vehicles like motorhomes, charter buses, and heavy trucks with sleeper cabs. This exceptional range flexibility is unmatched in mobile column lifting systems.
Key Features & Benefits
- Massive 72,000 lbs. total capacity Handle the heaviest commercial vehicles and fleet service applications with confidence and safety
- True mobile flexibility Easily position with pallet jack, store compactly when not in use, maximize shop space utilization and bay efficiency
- ALI Certified safety and quality Independent mechanical locks, emergency stops on every column, continuous PLC synchronization for precision operation
- Adjustable forks and column height Accommodate the widest range of wheel diameters, vehicle sizes, and wheelbase configurations
- Convenient operation from any column LCD control panel, U-shape wiring with retractable reels, simple intuitive operation for all skill levels
- Indoor setup operation Protected environment extends equipment life and ensures consistent performance
- New LED light with magnetic base Improved work area illumination for safer, more efficient service operations
Battery Power System (Batteries Not Included)
The MSC-18K-X-472 operates on a robust 24V DC battery system, with each column requiring one 24V battery (or alternatively, two 12V batteries wired in series). This 4-column set requires a total of four 24V batteries for complete operation. Batteries are NOT included with the system and must be purchased separately based on your operational requirements.
Recommended battery specifications: 12VDC Sealed Deep Cycle Battery, BCI Group 31, 105 AH rating. The system is designed for Type 27 or 31 Series deep cycle batteries with specifications including 120 AMP/HR rating and 350-500 CCA starting current for reliable cold-weather operation. Maximum battery dimensions are 14.2" length x 7.5" width x 11.8" height to fit properly within the battery cover compartment size of 14.56" x 8.27" x 13".
Each column includes an integrated onboard battery charger with 100-140V / 60Hz / Single Phase input and 24VDC output (maximum 15 Amp). Simply plug each column into a standard outlet overnight to maintain full charge and keep your system ready for continuous daily operation. The battery-powered design eliminates the need for shop air lines, hydraulic power units, or dedicated electrical circuits, providing true portability and placement flexibility anywhere in your facility with adequate concrete surface strength of 3,000 PSI minimum.
Battery-powered operation also means quieter lifting cycles, no hydraulic fluid maintenance or leaks, and the ability to reposition columns anywhere in your shop without concern for power source proximity. The sealed deep cycle batteries provide consistent lifting performance across hundreds of service cycles before requiring recharge, making this system ideal for busy fleet operations and high-volume commercial service centers.
⚠️ Battery Requirements
This 4-column system requires four 24V batteries (one per column) or eight 12V batteries (two per column). Batteries are NOT included and must be purchased separately. Refer to the specifications table above or the installation manual for complete battery requirements and recommendations.
Complete Set Configuration & Maximum Coverage
The MSC-18K-X-472 is a 4-column set offering 72,000 lbs. total capacity, the most popular configuration for municipal fleets, fire departments, school bus operations, and commercial truck service centers. For different capacity requirements and budget considerations, iDeal Lift offers the MSC-18K-X system in multiple configurations to match your specific needs:
- MSC-18K-X-236: 2-column set – 36,000 lbs. total capacity (ideal for lighter commercial vehicles, pickup trucks with accessories)
- MSC-18K-X-472: 4-column set – 72,000 lbs. total capacity (this model – perfect for fire trucks, school buses, medium-duty commercial trucks)
- MSC-18K-X-6108: 6-column set – 108,000 lbs. total capacity (ultimate capacity for the heaviest fire apparatus, loaded semi-tractors, and oversized municipal equipment)
Each configuration shares the same quality construction, ALI certification, and proven reliability that has made iDeal Lift a trusted name in commercial vehicle service equipment. Columns from different sets are fully compatible, allowing you to expand your system capacity over time as your service needs grow.
Why Choose the iDeal MSC-18K-X-472?
For fleet managers and shop owners, the MSC-18K-X-472 represents a strategic investment in operational flexibility and efficiency. Unlike fixed in-ground lifts that permanently occupy valuable bay space, this mobile system adapts to your workflow—set it up only where and when needed, then store it out of the way to reclaim your shop floor for other revenue-generating activities.
For technicians, the system's intuitive controls, synchronized operation, and comprehensive safety features make every lift predictable and secure. The LCD display eliminates guesswork, while the ability to operate from any column means less walking around large vehicles. The new LED light with magnetic base provides targeted illumination exactly where you need it, improving inspection quality and reducing eye strain during long service intervals.
For safety managers, the ALI certification, independent mechanical locks, emergency stops at every column, and continuous PLC monitoring provide multiple layers of protection that meet the most stringent workplace safety standards. The system is designed for indoor setup operation, protecting both equipment and personnel from environmental factors that can compromise safety.
For facilities with space constraints, the compact storage footprint and mobile design solve the age-old problem of permanent lift installations that lock up valuable square footage. When not in use, the columns store in a corner or against a wall, freeing your bay for parking additional vehicles, parts staging, or other shop activities that generate revenue.
Standout Features at a Glance
- 18,000 lbs. per column / 72,000 lbs. total capacity Engineered for the heaviest commercial vehicles
- 67.1" lifting height Ample working clearance for undercarriage service, brake work, suspension repairs
- Adjustable column height (88.6" to 155.5") Accommodates varying vehicle heights and ceiling clearances
- PLC & optical encoder synchronization Ensures all columns lift and lower in perfect unison for balanced, safe operation
- Retractable cable reels with U-shape configuration Quick vehicle entry/exit without cable management hassle
Product Features
- 18,000 lb lifting capacity per column. 4 Columns total capacity 72,000 lbs
- Sold in Sets of 2 (MSC-18K-X-236), 4 (MSC-18K-X-472) or 6 (MSC-18K-X-6108)
- Requires a Total of 4 24v Battery (1 Per ea Lift) Batteries are NOT Included
- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
- Convenient Operation from any Column
- Independent Mechanical Locking System
- PLC & Optical Encoder provides continuous synchronization for Columns
- Easily positioned with Pallet Jack type device with Poly Caster Wheels

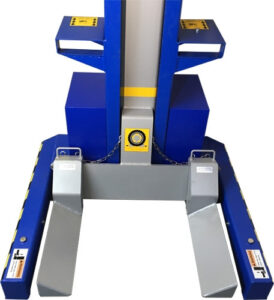

- Adjustable Lifting Forks for the widest range of Wheel Diameters
- Emergency Switch per each Column, provides the highest safety assurance
- Easy to use Master Control Panel for Individual or Paired Synchronized Operation
- LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
- Conveniently stored out of the way when not in use to maximize work space

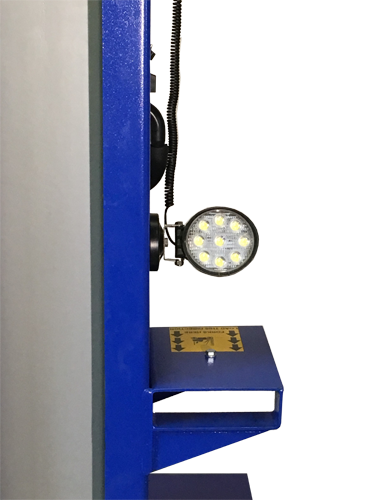

- New! LED Light with Magnetic Base!!
Product Specifications
Specifications
MSC-18K-X-236
MSC-18K-X-472
MSC-18K-X-6108
Capacity Per Column
18,000 lbs.
Total Capacity
36,000 lbs.
72,000 lbs.
108,000 lbs.
Lifting Height
67.1"
Column Height
Min 88.6" / Max 155.5"
Column Width
44.1"
Fork Adjustable Range
12.6" – 22"
Fork Length
17.9"
Fork to Column Clearance
10"
Lifting / Lowering Time
100 seconds / 60 sec at load of 18,000 lbs each column
Max Distance Between Columns
32' 8"
Min Concrete Surface Strength
3,000 Psi
Set-Up Operation
Indoor
Charging Voltage Input
100-140 V / 6oHz / Single Phase
Charging Voltage Output
24VDC, Max 15 Amp
*Battery Type (Recommended)
12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105
*Battery NOT Included
Battery (Not Included) Specifications
MSC-13K-B & MSC-18K-X
Deep Cycle Batteries
Type 27 or 31 Series
Requirement Voltage Per Column
Qty 2 12V or Qty 1 24V
Rating
120 AMP / HR
Starting Current
350 CCA – 500 CCA
Battery Cover Size
14.56" x 8.27" x 13"
Battery Dimension
14.2" x 7.5" x 11.8" Tall Max
Key Features
- Published product configuration: iDeal Lift MSC-18K-X-472 18,000lb. Per Mobile ALI Column Lifting System (Set of 4) ALI Certified Heavy-Duty Mobile Column System When your shop demands maximum lifting power, workspace flexibility, and absolute safety, the iDeal Lift MSC-18K-X-472 delivers without compromise. This 4-column set provides a massive 72,000
- Exact manufacturer model or part number: MSC-18K-X-472
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 3 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | iDeal Lift |
|---|---|
| SKU | 407ES-004951 |
| MPN / Model | MSC-18K-X-472 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model MSC-18K-X-472, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
