AMGO® Hydraulics PRO-30 Heavy-Duty 4 Post Truck Lift 30,000 lbs

Product Overview

AMGO® Hydraulics PRO-30 Heavy-Duty 4 Post Truck Lift 30,000 lbs

Professional Heavy-Duty Lifting for Commercial & Industrial Applications

The AMGO® Hydraulics PRO-30 represents a significant step up in the heavy-duty truck lift category with its impressive 30,000 lb lifting capacity. Engineered for professional service facilities, municipal garages, and commercial operations, this 4-post lift is built to handle the demanding requirements of modern heavy-duty vehicle service.

While the PRO-18 serves as an excellent entry-level lift in the medium-duty truck category, the PRO-30 takes your capabilities to the next level. This lift brings you into the business of working with construction equipment, semi trucks, and buses, opening up new revenue streams and service opportunities for your operation.

Powered by a reliable 2.0HP, 220V single-phase motor, the PRO-30 achieves a full 75 3/16" lifting height in approximately 133 seconds, providing efficient operation without requiring expensive three-phase power installation. The lift features 3/4" aircraft quality cable and hydraulic cylinders designed and manufactured to the highest quality standards, ensuring years of dependable service.

Key Features & Benefits

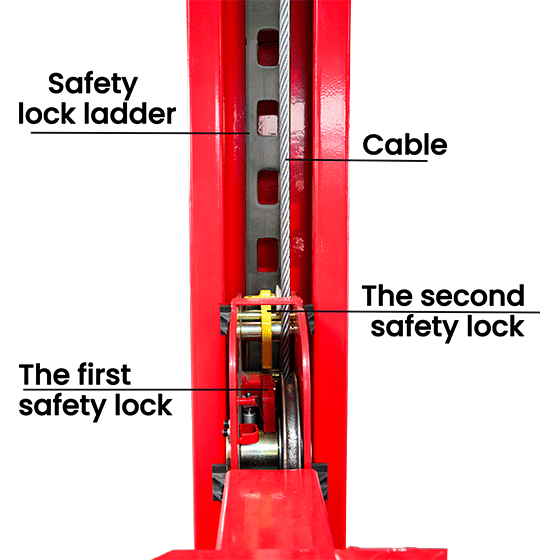

• Air-Released Safety Lock System Convenient operation with reliable safety mechanisms for every lift cycle

• Mechanical Self-Lock & Cable-Breaking Protection Redundant safety systems provide peace of mind when working under heavy vehicles

• Skid-Proof Diamond Plate Runways Enhanced traction and durability with 46" width between runways in narrow position and 54 1/16" width between runways in wide position

• Precision Hydraulic Control Flow restrictor ensures stable, smooth operational speed throughout the lifting range

• Low Profile Design Only 10 1/4" minimum height accommodates a wide variety of vehicle ground clearances

Specifications at a Glance

PRO-30 Model Highlights:

• Capacity: 30,000 lbs (13,600 kg)

• Overall Length with Ramp: 307 1/16" (25' 6")

• Overall Width: 147 9/16" (12' 3")

• Drive-Thru Clearance: 115 3/8" (9' 6")

• Lifting Height: 75 3/16" (6' 3")

• Overall Height: 92" (7' 7")

The PRO-30 model features an overall length of 256 1/2" without the ramp, making it suitable for facilities with space constraints while still providing ample work area. The 130" width between columns ensures excellent vehicle access and operator mobility around the lift.

Note: The PRO-30E extended model is also available with 366 1/8" overall length with ramp for extra-long vehicle applications.

Optional Accessories to Enhance Your Lift

Customize and expand the capabilities of your PRO-30 with these optional accessories:

• 43001 Extension Platform Set (2 Pcs) – Increase the effective working length of your PRO-30

• RJ-20A Pneumatic Rolling Jacks 20,000 lb capacity rolling jacks for axle service and tire work

• 40106 Airline Kit Convenient compressed air delivery for heavy-duty 4-post lifts

California Residents:

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 30,000 lbs capacity

• AMGO ETL certified power unit comes as standard

• Mechanical self-locking safety device with air-driven lock release

• Primary multiple safety locks and cable-slack protection system come standard

• Cable-driven, utilizing aircraft standard high quality cables

• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve

• Non-skid diamond platforms allow two widths setting

Optional Accessories Available

• 43001 Extension Platform Set for PRO-30 (2Pcs)

• RJ-20A Pneumatic 20,000lbs Rolling Jacks

• 40106 Airline Kit for Heavy-duty 4 Post Lifts

Product Specifications

Model

PRO-30
PRO-30E

Lifting Capacity
30,000lbs

A Overall Length w/Ramp
307 1/16"
366 1/8"

A Overall Length w/o Ramp
N/A

B Outside Edge of Crossbeams
248"
307 1/16"

C Overall Width
147 9/16"

D Width Between Columns
130"

E Max Lifting Height
75 3/16"

E Max. Lock Height (to Top of Runway)
71 5/8"
72 1/16"

F Overall Height
92"

G Minimum Height
10 1/4"

H Max. Underneath Height
66 5/16"

H Max. Lock Underneath Runway
63 3/16"

I Drive-Thru Clearance
115 15/16"

J Width Between Runways
46" Narrow / 54 1/16" Wide

K Outside Edge of Runways
94" Narrow / 102 1/8" Wide

Lifting Time
133 S

Motor
2.0HP, 220V/60Hz Single Phase

Gross Weight
5,618 lbs
6,860 lbs

Key Features

• Published product configuration: AMGO® Hydraulics PRO-30 Heavy-Duty 4 Post Truck Lift 30,000 lbs Professional Heavy-Duty Lifting for Commercial & Industrial Applications The AMGO® Hydraulics PRO-30 represents a significant step up in the heavy-duty truck lift category with its impressive 30,000 lb lifting capacity. Engineered for professional service
• Exact manufacturer model or part number: PRO-30
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• Condition: New

Product Specifications

Before You Order

Confirm that model PRO-30, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
