Challenger 4115XFX Ex-Length Closed Front Flat Deck ALI 4 Post Lift 15,000 lb

Product Overview

Challenger 4115XFX Ex-Length Closed Front Flat Deck ALI 4 Post Lift 15,000 lb

Supersedes 4015XFX

Professional-Grade Performance for Your Modern Shop

The Challenger 4115XFX represents the next evolution in four-post lift technology. This 15,000 lb capacity, extended-length, closed front model delivers the versatility, safety, and productivity your shop demands. Engineered for both general service and advanced diagnostics, this ALI-certified four-post lift handles everything from compact passenger cars to medium-duty trucks and vans with ease.

The 4115XFX features an impressive 275.5" overall length and 223.375" between columns, making it ideal for long-wheelbase vehicles up to 210.5" wheelbase. The closed front design provides enhanced structural integrity and a sleeker shop appearance while maintaining excellent ergonomic access to adjustment points. With a 78" rise height and 7" runway height, you'll have ample working clearance for comprehensive undercarriage service.

This lift doesn't just lift vehicles—it expands your service capabilities. The all-new wider 22" runways provide better vehicle stability and operator confidence, while the improved 4-wheel alignment wheelbase configuration allows you to service both long and short wheelbase vehicles for alignment work. Add the optional AR4115XAX Alignment Rack Package with rolling jacks, flush-mount stainless steel turning radius gauges, slip plates, and automatic wheel stops, and you've transformed your shop into a full-service alignment and undercarriage center.

Engineered for Safety, Built for Durability

Designed with productivity and safety at the forefront, the Challenger 4115XFX incorporates several design improvements over previous generations. The all-enclosed front column and crossbeam design keeps your shop looking clean and professional while protecting critical internal components from contaminants. Inside, the UHMW internally encapsulated slide blocks ensure a longer operational life and smoother, quieter cycling.

The lift is equipped with 17 locking positions featuring an improved lock design for enhanced security at every height. Louvered approach ramps prevent wheel-spin and provide superior traction compared to diamond tread or abrasive strips—safer for your technicians and better for your vehicles. Operating at 85 seconds speed of rise, this lift balances efficiency with control.

Power comes from a robust 2HP motor operating at 208v-230v, 60Hz, 1-phase (optional three-phase available). The lift requires 90-120 psi air supply for pneumatic locks and accessories. With a 142" overall width and 125.5" inside columns, the 4115XFX fits comfortably in a 14' x 26' bay while maximizing your service envelope.

Key Selling Points

• 15,000 lb capacity with extended-length design for long-wheelbase trucks, vans, and specialty vehicles

• Closed front flat deck configuration for improved ergonomics and a clean, professional shop appearance

• All-new wider 22" runways with 40.625" width between runways for better vehicle stability

• Compatible with industry-leading imaging alignment systems and optional alignment packages for expanded revenue opportunities

• ALI-certified construction with 17 locking positions and improved lock design for maximum safety

Advanced Features & Options

The 4115XFX comes equipped with a range of features designed to enhance your shop's efficiency and service capabilities:

• All-new and wider 22" runways for improved vehicle positioning and stability

• Open and closed front design options for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks

• Improved 4-wheel alignment wheelbase for extended alignment capabilities, allowing you to service both long and short wheelbase vehicles

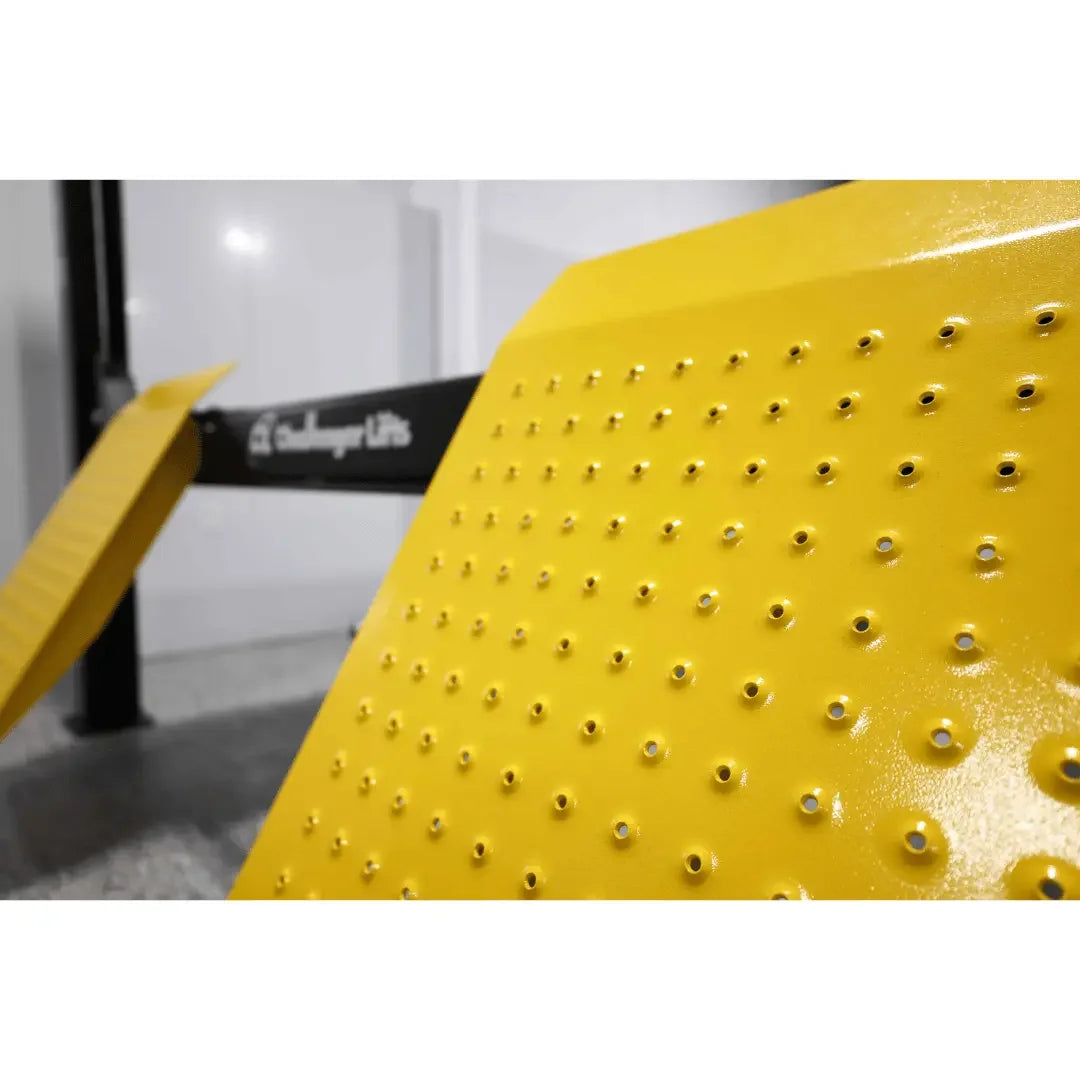

• Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips

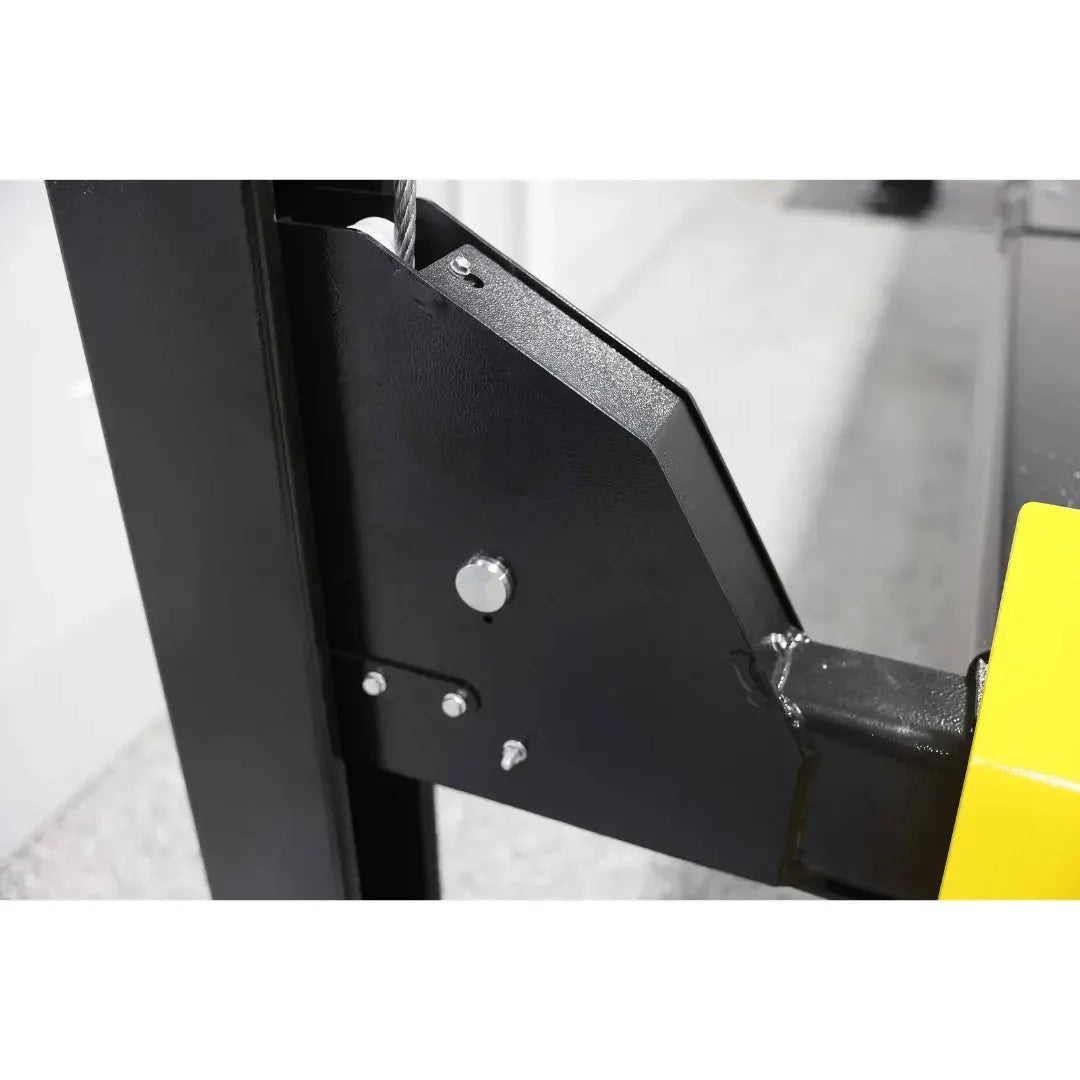

• All-enclosed front column and crossbeam design keeps your shop looking stylish and clean while protecting internal components

• UHMW internally encapsulated slide blocks for longer and smoother operational life

• Compatible with the industry's latest imaging alignment systems

• 17 locking positions with improved lock design for versatile working heights

Optional AR4115XAX Alignment Rack Package

Transform your 4115XFX into a complete alignment and service center with the optional AR4115XAX Alignment Rack Package. This comprehensive package includes:

• Two (2) 9,000 lb rolling jacks for full undercarriage access

• Flush-mount stainless steel turning radius gauges for accurate alignment readings

• Internal airline kit (#40230X) for dual rolling jack operation

• Rear slip plates (recessed free-floating design) for wider range of 4-wheel alignment capabilities

• Multi-position work steps for technician convenience

• Automatic wheel stops for safe and consistent vehicle positioning

The recessed stainless steel turning radius gauges provide precise measurements for caster, camber, and toe-out on turns, while the rear recessed free-floating slip plates expand your 4-wheel alignment capabilities to handle a broader range of vehicles and specifications.

Available Accessories

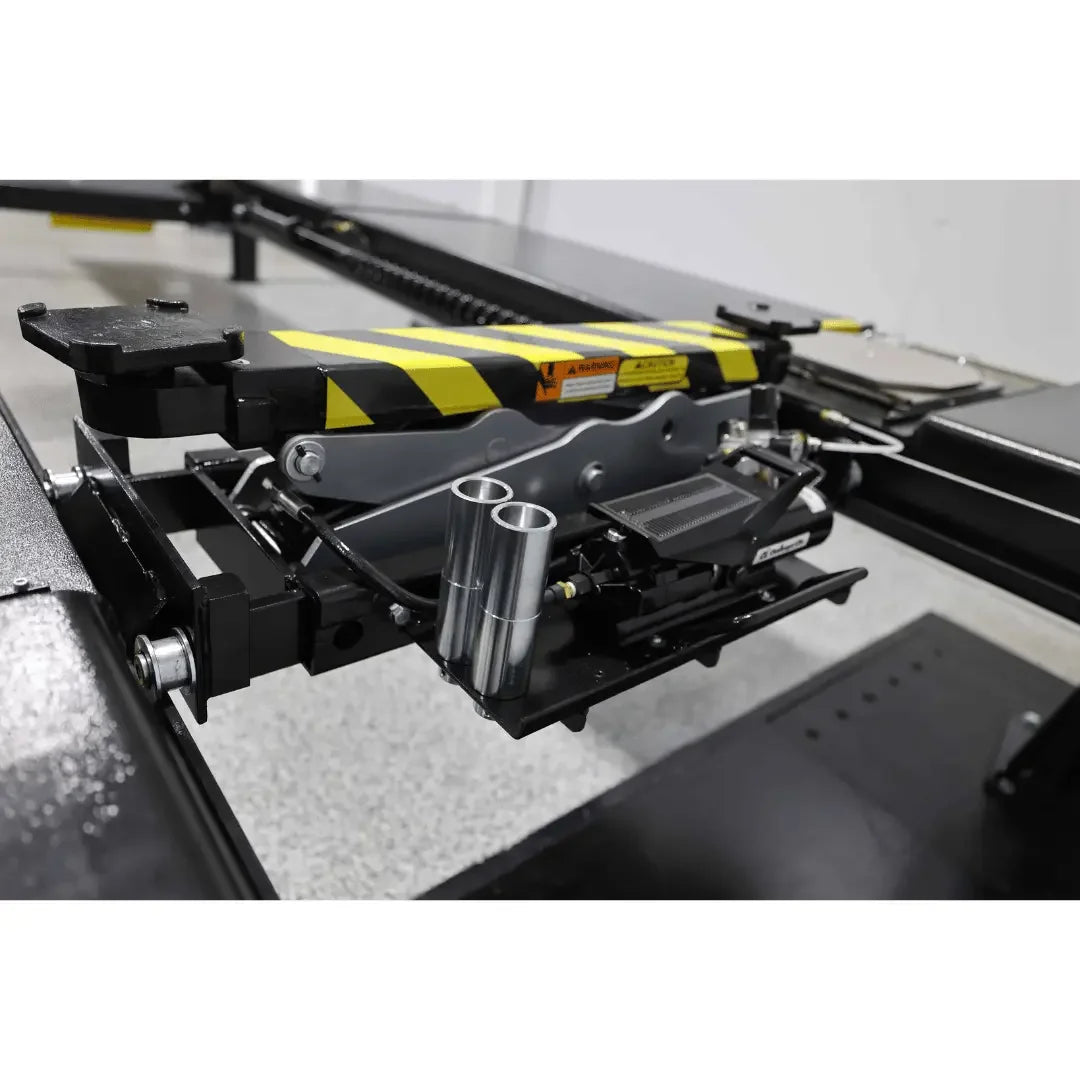

RJ7.5 — 7,500 lb Rolling Jack

The 7,500 lb capacity rolling jack for the 4115 series features air/hydraulic operation and includes four (4) 3" stack adapters. Broaden your service revenue with easy access to brakes and wheels from underneath four-post lifts. Features adjustable width, low vehicle drive-over clearance, stackable height extensions with built-in storage rack, and factory-installed protected filter lubricator and regulator.

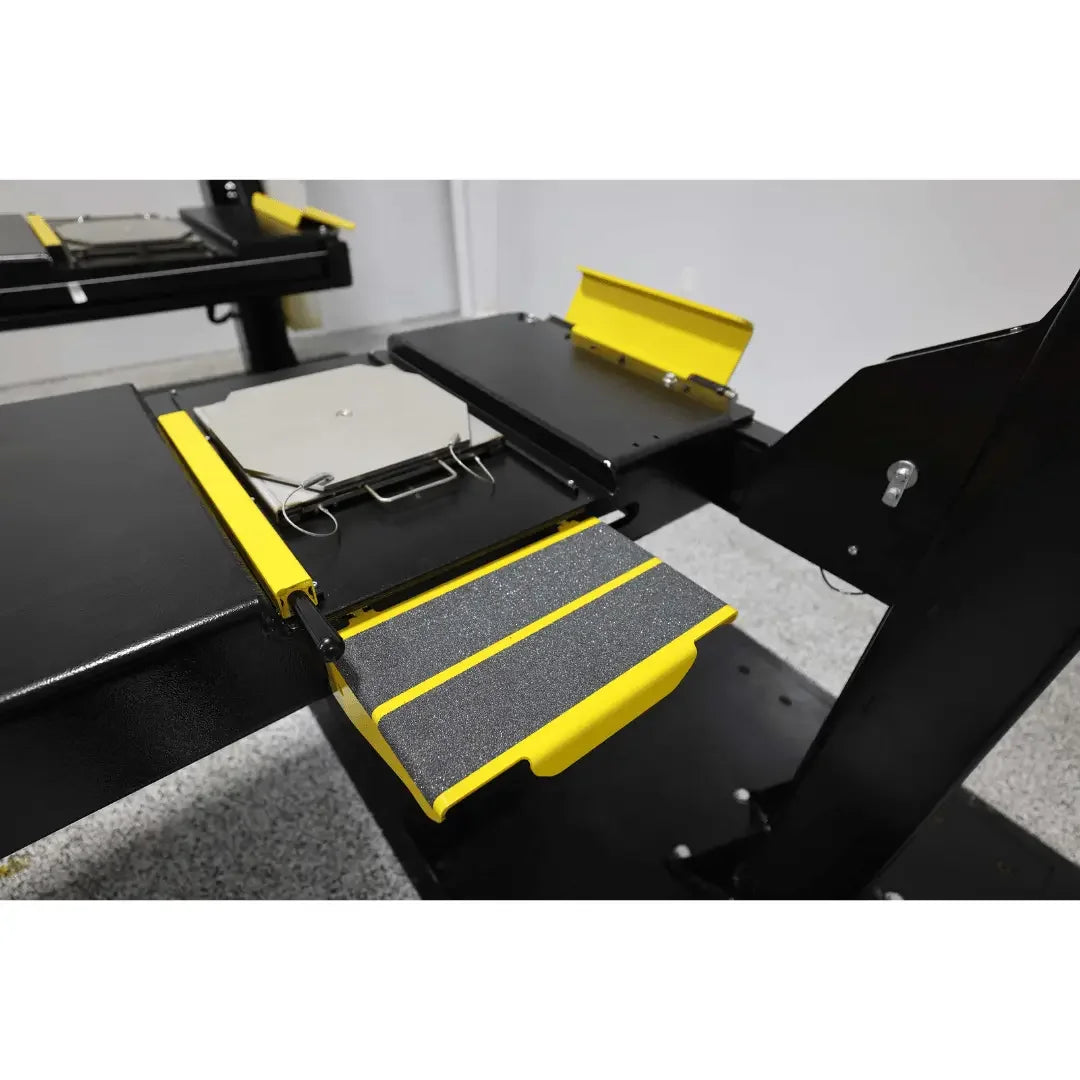

Flush Mount Stainless Steel Turning Radius Gauges

Stainless steel turning radius gauges for the 4115 series four-post lifts are essential for front wheel alignments, measuring how many degrees the front wheels are turned left or right. Commonly used when measuring caster, camber, and toe-out on turns for alignment-capable automotive lifts. General service four-post automotive lifts can be transformed into alignment-capable lifts with a bolt-on alignment kit.

40230X Internal Airline Kit

The 40230X internal airline kit provides air for dual rolling jack operation on the 4115 series extended-length four-post lifts. This kit routes compressed air internally through the lift structure for a clean, professional installation without exposed hoses crossing your shop floor.

Product Features

• All-new and wider 22” runways.

• Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.

• Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.

• Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.

• Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.

• Compatible with the industry’s latest imaging alignment systems.

• 17 locking positions with improved lock design.

Optional AR4115XAX Alignment Rack Package Includes
2) 9,000lb Rolling Jack, Flush Mount SS Turning Radius Gauges, Internal Airline Kit, Rear Slip Plates, Multi-Position Work-Steps & Automatic Wheel Stops

• Recessed stainless steel turning radius gauges provide accurate readings

• Rear recessed free floating slip plates offer a wider range of 4 wheel alignment capabilities

RJ7.5 7,500lb Rolling Jack
7,500 lb. capacity Rolling Jack for 4115series four post automotive lifts features air/hydraulic operation and includes (4) 3" stack adapters. Broaden your service revenue with easy access to brakes and wheels from underneath four post lifts. 7,500 lb. capacity rolling jacks features adjustable width, low vehicle drive-over clearance, stackable height extensions with built-in storage rack and factory installed and protected filter lubricator and regular.

Flush Mount Stainless Steel Turning Radius Gauges
Stainless Steel turning radius gauges for 4P12series, 44018AR and 4115series four post car and truck lifts. Turning radius gauges are used for front wheel alignments to measure how many degrees the front wheels are turned left or right. They are commonly used when measuring caster, camber and toe-out on turns for alignment capable automotive lifts. General service four post automotive lifts can be turned into alignment capable four post lifts with a bolt on alignment kit (Part #40200-3DSS) which includes stainless steel turning radius gauges.

40230X Internal Airline Kit
Internal air line kit for dual rolling jack operation on 15,000 lb. capacity four post automotive lifts. Internal airline kit, #40230E provides air for dual rolling jack on the 4115series standard length four post lifts. #40230X provides air for dual rolling jack operation on the 4115series extended length four post lifts.

Product Specifications

Model

4115EFO

4115XFO

4115EFX

4115XFX

Open or Closed Front

Open

Open

Closed

Closed

Lift Capacity

15,000 lbs.

A Overall Length

250.75"

277"

247.625"

275.5"

B Overall Width

142"

C Inside of Columns

Front: 120.75” / Rear: 125.5

125.5"

D Between Columns

195"

222.5"

196"

223.375"

E Height of Columns

Front: 99.25” / Rear: 98"

98"

F Height of Runways

7"

G Width of Runways

22.375”

H Width Between Runways

40.625”

I Maximum Wheelbase 1

183"

210.5"

183"

210.5"

J Rise Height

78"

Max. 2 Wheel Alignment

N/A

Max. 4 Wheel Alignment

N/A

Air Supply Required

90 -120 psi

Motor/Voltage 2

2HP, 208v-230v, 60Hz, 1Ph

Speed of Rise

85 seconds

Min. Recomm. Bay Size

14' x 24'

14' x 26'

14' x 24'

14' x 26'

1 Maximum wheelbase is based on a tire diameter of 30"

2 Optional Three Phase Electrical Power Available. Please Specify at time of order.

Key Features

• Published product configuration: Challenger 4115XFX Ex-Length Closed Front Flat Deck ALI 4 Post Lift 15,000 lb Supersedes 4015XFX Professional-Grade Performance for Your Modern Shop The Challenger 4115XFX represents the next evolution in four-post lift technology. This 15,000 lb capacity, extended-length, closed front model delivers the versatility
• Exact manufacturer model or part number: 4115XFX-V001
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• Condition: New

Product Specifications

Before You Order

Confirm that model 4115XFX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
