Product Overview

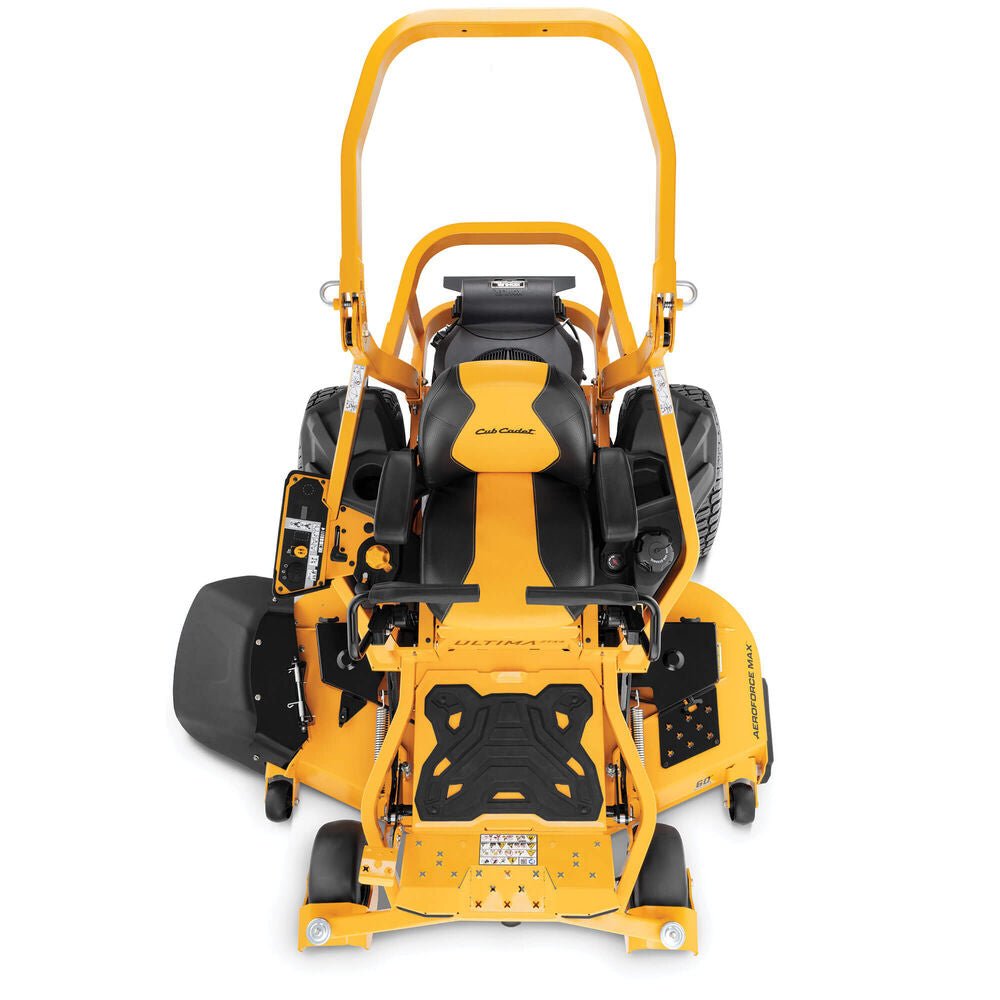

The Cub Cadet ZTX4 60 47TSAAA8A10 is a Cub Cadet lawn-care equipment product listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-023871. Key specifications for this configuration include engine brand: Kohler®; engine model: Pro 7000 series; engine model number: ZT745; model: 47tsaaa8a10: Description: MOWER:ZTX4-60FAB D ZT.
Key Features
- SKU: 407ES-023871
- Engine Brand: Kohler®
- Engine Model: Pro 7000 series
- Engine Model Number: ZT745
- Model: 47TSAAA8A10: Description: MOWER:ZTX4-60FAB D ZT
- Cutting Width: 60 in
- Deck Cutting Width: 60: in
- Engine Output: 26HP
- Engine Displacement: 747cc
- Transmission: Hydro-Gear ZT 3100
- Cutting Height Range: 1″ – 4.75″
Product Highlights
- Deck construction: the published configuration uses 10-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests and suspension support.
- Service access: the published design emphasizes routine maintenance access and adjustment.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kohler® |
| Engine Model | Pro 7000 series |
| Engine Model Number | ZT745 |
| Model / MPN | 47TSAAA8A10 |
| Model: 47TSAAA8A10 | Description: MOWER:ZTX4-60FAB D ZT |
| SKU | 407ES-023871 |
| Cutting Width | 60 in |
| Deck Cutting Width: 60 | in |
| Engine Output | 26HP |
| Engine Displacement | 747cc |
| Transmission | Hydro-Gear ZT 3100 |
| Cutting Height Range | 1″ – 4.75″ |
| Maximum Speed | 8 MPH |
| Fuel Capacity | 5.5 US gal |
| Battery Voltage | 12V |
| 10-gauge steel with 2-gauge reinforcement | Dual Led Headlights Quick-Adjust Lap Bars |
| Air Filter | Dual element |
| Anti-Scalping | Three gauge wheels |
| Armrests | Yes |
| Battery | 210 CCA |
| Battery Type | AGM (Absorbent Glass Mat) |
| Blade(s) | Three |
| Brakes | Disc |
| Charging System | 12 amp regulated |
| Choke | Separate Choke |
| Corrosion Protection | Yes |
| Cruise Control | No |
| Cup Holder | Yes |
| Cylinders | Twin |
| Deck Construction | Fabricated |
| Deck Engagement (PTO) | Electric |
| Deck Lift | Foot pedal with Dial Adjust |
| Deck Material | 10-gauge steel with 2-gauge reinforcement |
| Deck Positions | 17 |
| Deck Wash | No |
| Drive System | Hydrostatic |
| Engine Oil Capacity | 2 qt US |
| Engine Start | Ignition Key |
| Forward Speed | 8.5 MPH |
| Frame | 1.5″ x 3″ tubular steel |
| Front Tires | 13″x 6.5″-6″ |
| Fuel Delivery | Carburetor |
| Fuel Gauge | Yes |
| Fuel Tank Capacity | 5.5 gal. US |
| Governor | Mechanical |
| Headlight(s) | Dual-LED |
| High Back Seat | Easy Maintenance Reduced Vibration |
| Hour Meter | Yes |
| Lubrication | Fully pressurized |
| Mulch Kit | Available separately |
| Oil Filter | Yes |
| Operator Presence System | Yes |
| Parking Brake | Lap Bar Integrated |
| Rear Tires | 22″x 12″-12″ |
| Rear Tow Hitch | Yes |
| Reverse Speed | 3.5 MPH |
| ROPS | Yes |
| Seat Adjustment | Lever |
| Seat Type | 20″ high back |
| Starter Type | Electric |
| Steering Control | Lap Bars |
| Tire Tread | Turf Master / Multi Trac |
| Turning Radius | 0° |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use SKU 407ES-023871 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
