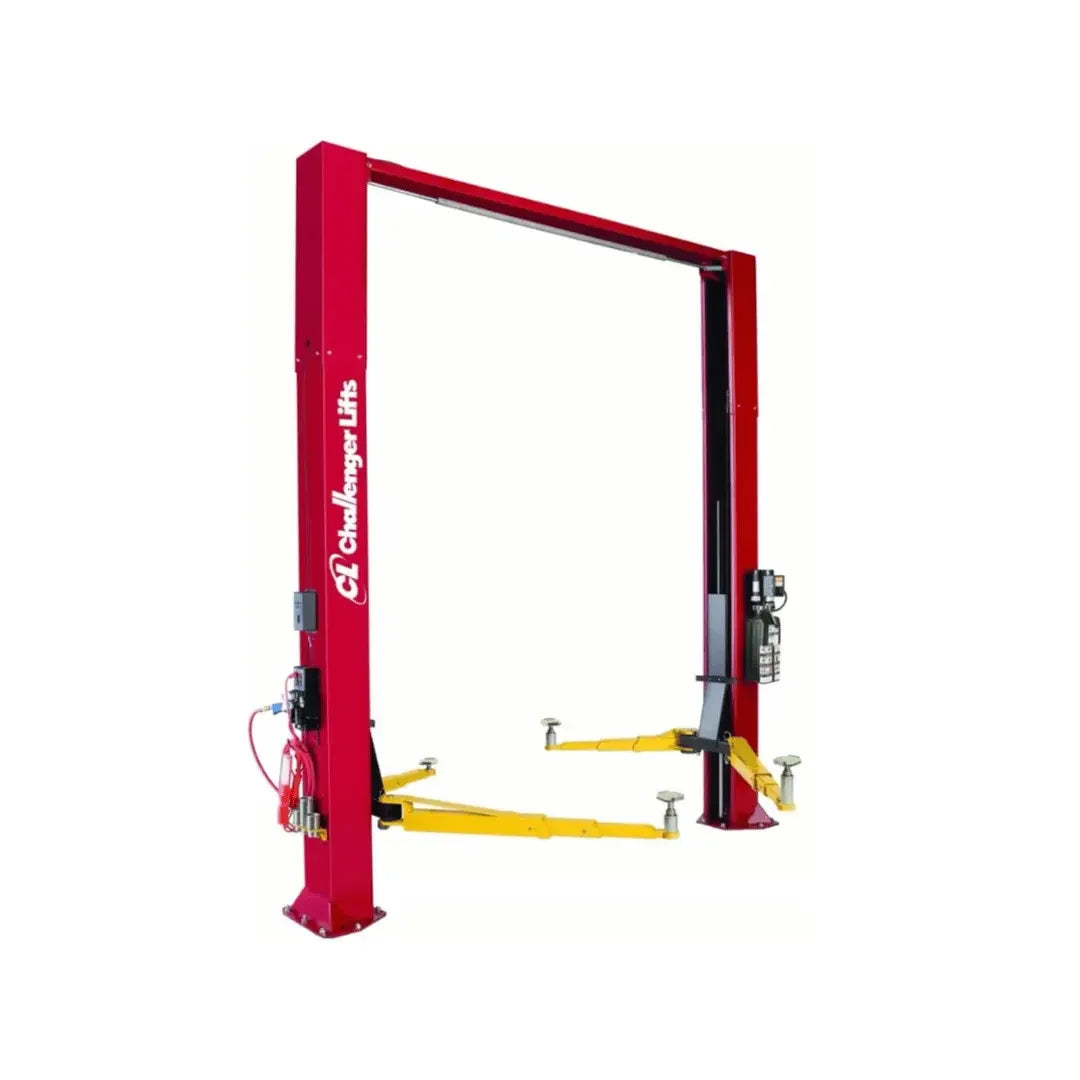

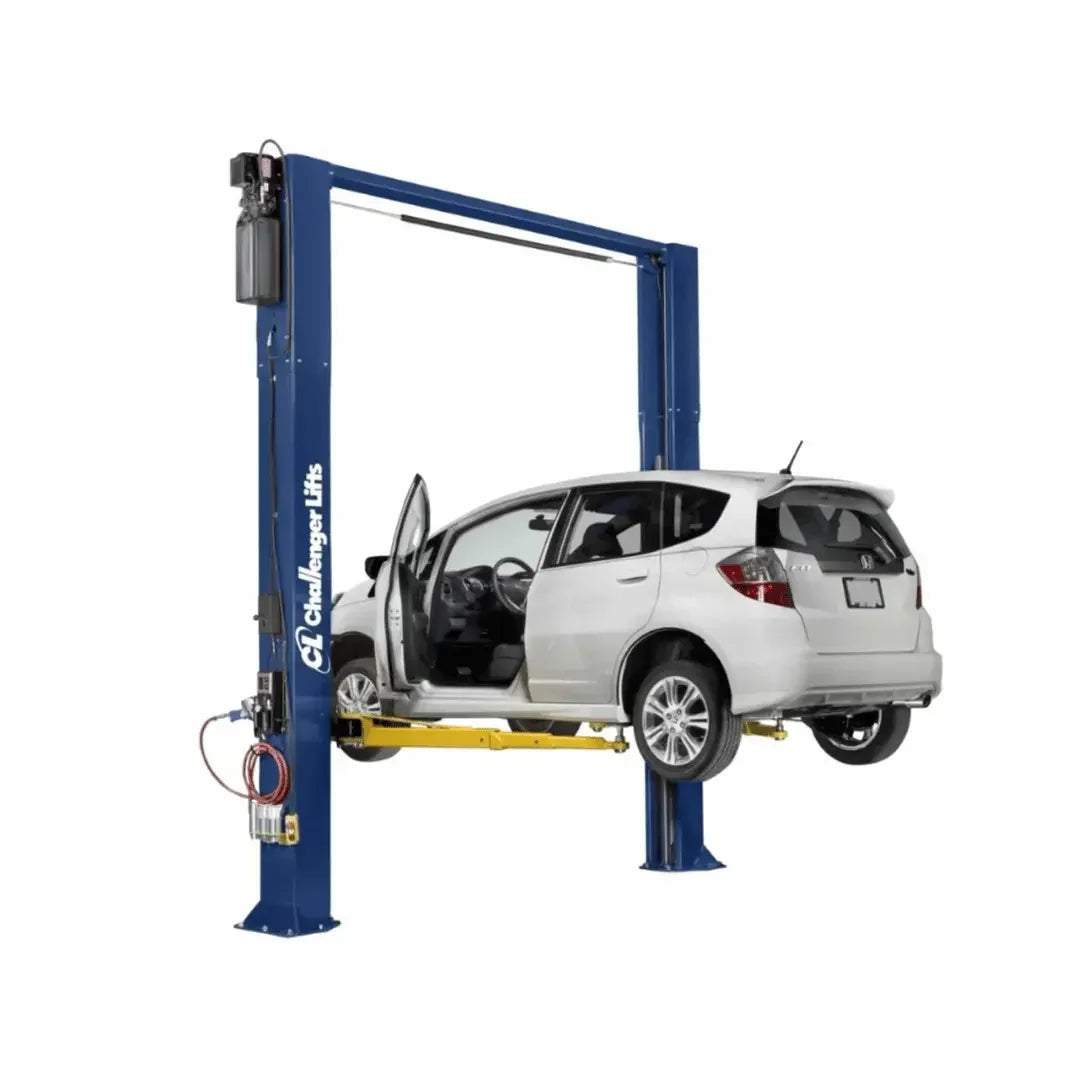

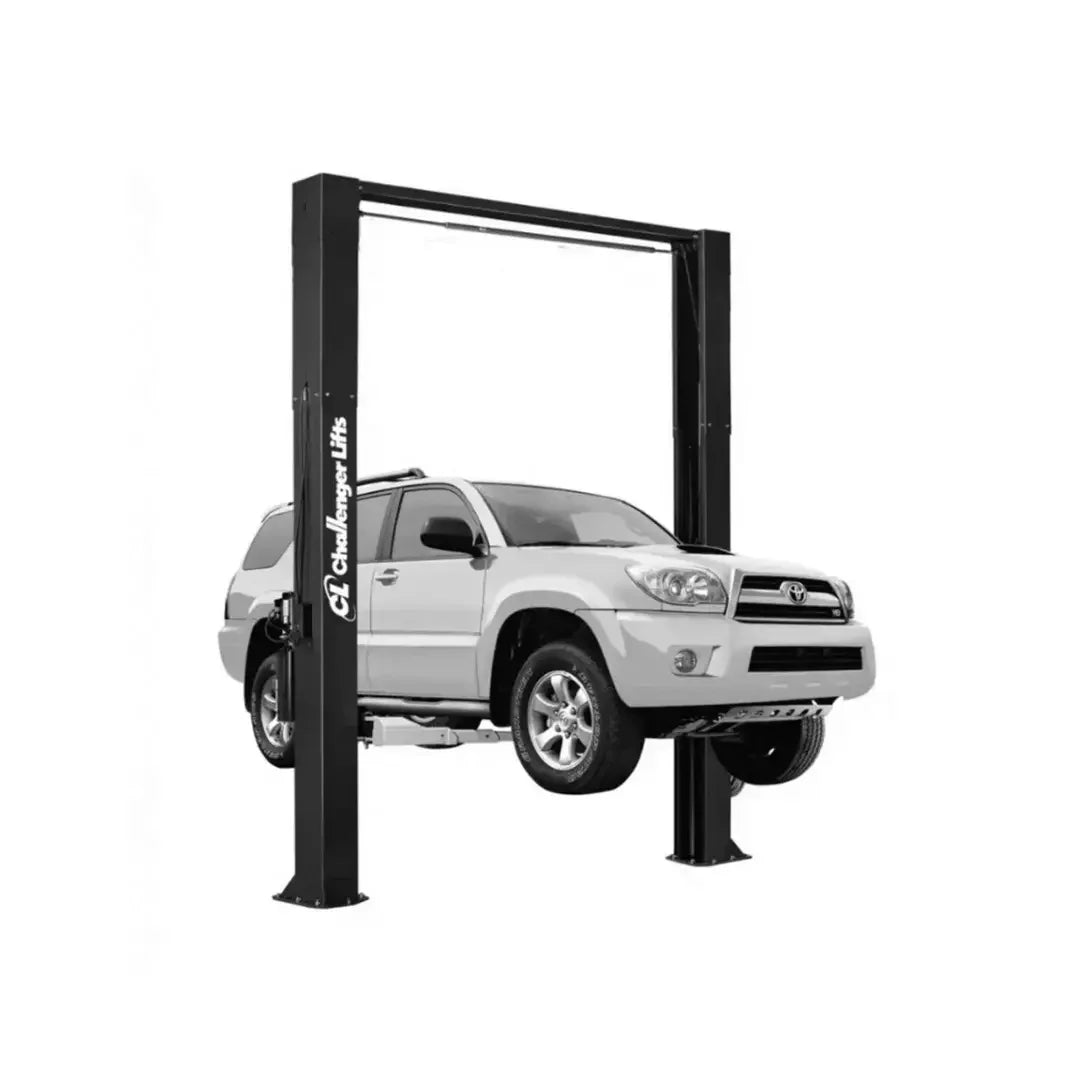

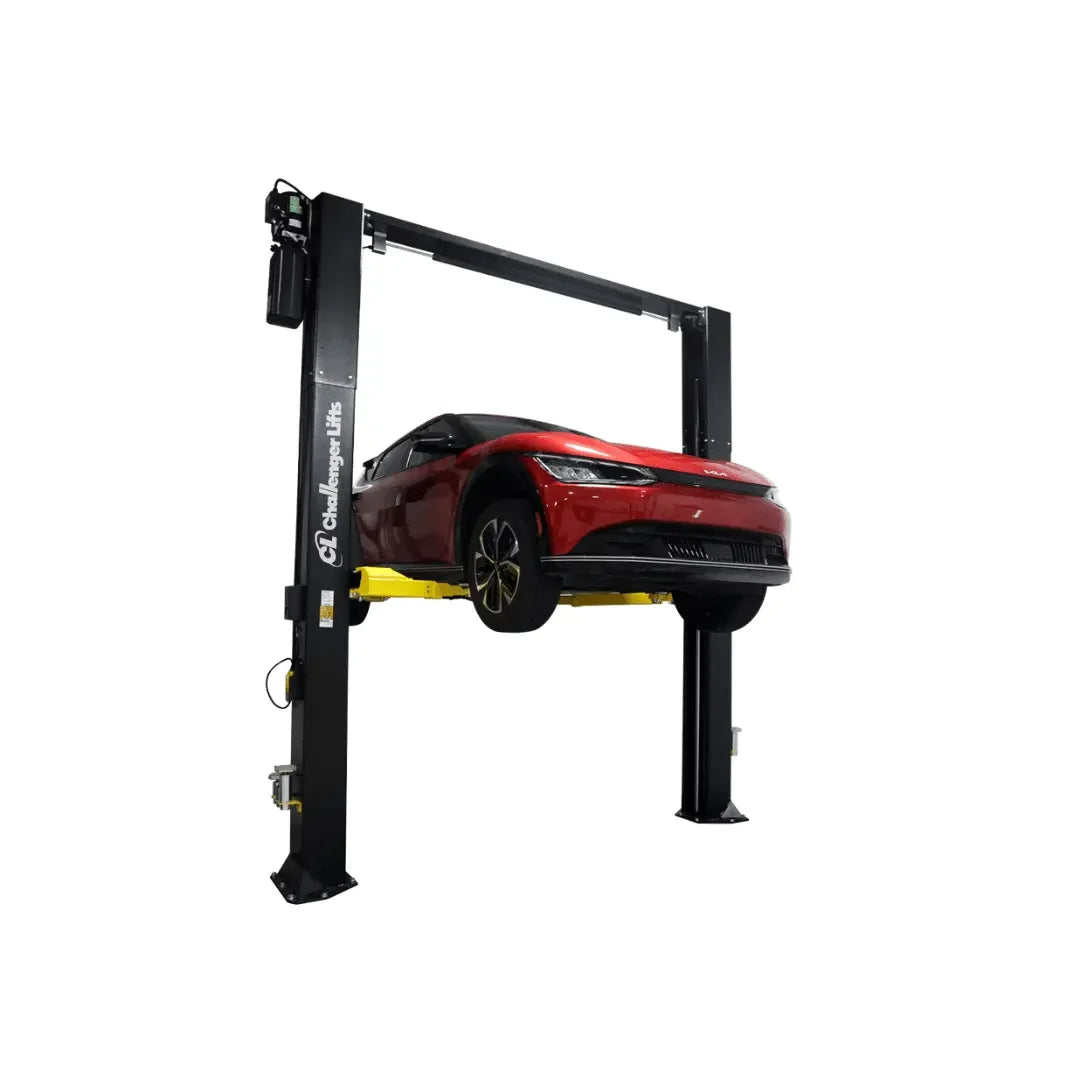

Challenger CL10AV3-DPC-QC Series ALI Versymmetric Adjustable 2 Post Car Lift 10,000 lbs. w/Dual Pendant Power Controls & Quick Cycle

Product Overview

Challenger CL10AV3-DPC-QC ALI Versymmetric Adjustable 2 Post Car Lift 10,000 lbs. w/Dual Pendant Power Controls & Quick Cycle

Supersedes CL10V3-DPC-QC Series

Maximum Versatility Meets Unmatched Speed

In today's fast-paced automotive service industry, efficiency and versatility are paramount. That's where the Challenger CL10AV3-DPC-QC with exclusive Versymmetric® technology truly shines. This innovative 10,000 lbs. capacity two-post lift allows you to service the broadest range of vehicles—from compact cars and luxury EVs to SUVs and trucks—significantly enhancing your shop's capability and, most importantly, your bottom line.

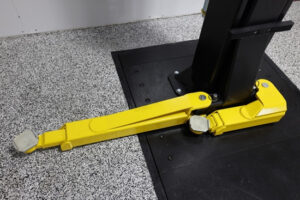

With its 3-stage front and rear arms equipped with the pioneering directSPOT™ design, the days of shuffling a vehicle back and forth to position the front arm properly are over. Now, you can achieve accurate first-try spotting every time, skyrocketing your productivity and reducing vehicle spotting time dramatically. The Versymmetric® offset front arms provide direct access to vehicle lift points and safely lift both symmetrically and asymmetrically within the same service bay, maximizing service capabilities and revenue potential.

QuickCycle™ Technology: Speed That Pays for Itself

The CL10AV3-DPC-QC comes equipped with the QuickCycle™ upgrade, which redefines efficiency with astonishing lift speed. Rising in just 24 seconds (compared to 38 seconds on standard models), this dramatic increase in speed is achieved by upgrading from the standard 2HP motor to a more powerful 3HP motor. This impressive speed propels your service capabilities to new heights and allows your team to handle more vehicles per day, enhancing customer satisfaction, improving throughput, and boosting your shop's reputation and profitability.

For shops prioritizing speed and efficiency—especially express service lanes or high-volume operations—the QuickCycle™ DPC feature is a game-changer. The faster rise and descent cycles mean less waiting, more productivity, and a faster return on your investment.

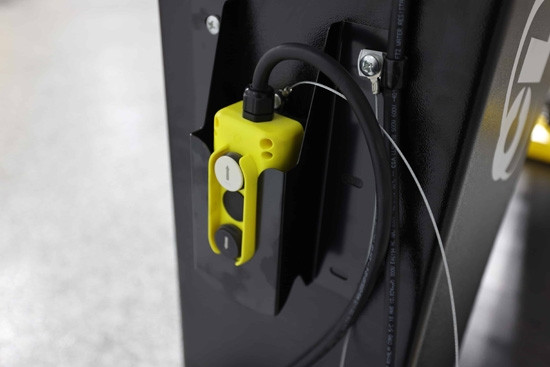

Dual Pendant Power Controls: Precision at Your Fingertips

The Dual Pendant Power Controls are always within technician reach when small spotting adjustments matter the most. These dual pendant controls expedite vehicle spotting by providing an unobstructed view to lifting points, making the process smoother and more intuitive.

• OSHA compliant keyed lockout safety button locks out power to the lift for enhanced safety compliance

• Up power button raises the lift smoothly and quickly

• Down power button / dual single-point mechanical lock release system lowers the lift from either column, providing flexibility and ease of operation

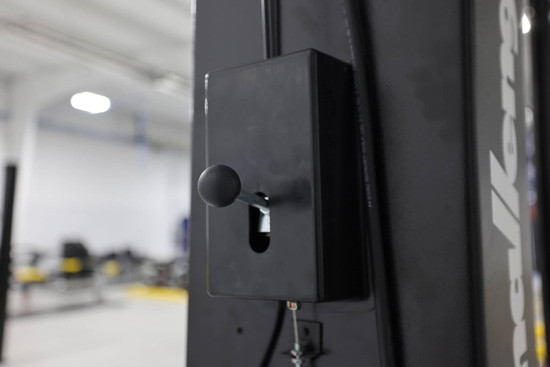

The pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life, reducing maintenance needs and downtime.

Adjustable Width for Every Shop and Every Vehicle

Understanding that one size does not fit all, the CL10AV3-DPC-QC features three adjustable width settings ranging from 11' 6.5" to 12' 6.5", ensuring the lift can adapt to your shop's unique requirements and the wide variety of vehicles you service:

• Narrow (11' 6.5"): Ideal for space-constrained bays or express pad configurations

• Universal (12' 0.5"): Perfect for cars, SUVs, trucks, and most electric vehicles

• Wide (12' 6.5"): Optimal for cars, EVs, and luxury vehicles requiring extra clearance

This adjustable design maximizes your service flexibility and ensures you can accommodate virtually any vehicle that rolls into your bay, from compact sedans to wide-body trucks and the latest electric vehicles.

Flexible Height Configurations for Any Bay

The CL10AV3-DPC-QC Series offers multiple height configurations to fit shops with varying ceiling heights:

• CL10AV3-DPC-QC (Standard): Column height 11' 2" or 11' 8" fits a 12-foot ceiling minimum

• CL10AV3-2-DPC-QC (2-Foot Extension): Column height 13' 2" or 13' 8"

• CL10AV3-3-DPC-QC (3-Foot Extension): Column height 14' 2" or 14' 8"

With a rise height of 74-1/8" and a maximum extended cylinder height of 11' 11", the CL10AV3 provides ample clearance for most service and repair tasks. The standard model fits a 12-foot ceiling height, while additional 2-foot or 3-foot extensions are available for shops with taller bays.

Built to Last: Premium Construction & Safety Features

Challenger has engineered the CL10AV3-DPC-QC with heavy-duty components designed for longevity and reliability:

• Oversized 5" diameter pulley and heavy-duty 5/16" cable reduce stress on the equalization system and increase cable life

• 48" elongated carriage design increases lift life and stability

• Fully gusseted base plate design increases column rigidity and structural integrity

• Padded overhead shut-off system prevents vehicle damage and provides peace of mind

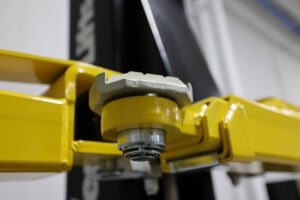

• Premium double telescoping screw pads adjust to multiple heights (Min. 3-7/8" / Max. 6-1/2"), minimizing the need for adapters

• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

• Premium powder coat finish with textured formula (as of Nov 1, 2022) provides long-lasting durability and a professional appearance

• Low lock height of 12" net rise for safe, secure locking at minimal height

Every component is designed to deliver years of trouble-free operation, from the heavy-duty cables and oversized pulleys to the rugged powder-coated finish.

Key Highlights at a Glance

• 10,000 lbs. lifting capacity with ALI® Certified safety and reliability

• QuickCycle™ DPC increases rise speed to just 24 seconds (vs. 38 seconds standard)

• Versymmetric® 3-stage arms with directSPOT™ technology for first-try spotting every time

• Three adjustable width settings from 11' 6.5" to 12' 6.5" to fit any vehicle and any bay

• Dual Pendant Power Controls for unobstructed view and easy operation from either column

Made in the USA with Pride

Choose the CL10AV3-DPC-QC and expand your service potential with Challenger's most versatile, easy-to-operate two-post lift. Proudly ALI® Certified and Made in the USA, it's not just an investment in equipment but an investment in your shop's future, promising reliability, safety, and unmatched performance.

Product Features

• 10,000 lbs. lift capacity

• Dual Pendant Power Controls

• (QC) Quick Cycle increases rise/descent speed

• Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential

• Oversized 5" diameter pulley and heavy duty 5/16" cable reduces stress on equalization system and increases cable life

• 48" elongated carriage design increases lift life

• Three settings for width adjustment, from 11' 6.5" to 12' 6.5"

• Adjustable Configurations

• Narrow: Space Constraints or Express Pads configuration

• Universal: Cars, SUVs, Trucks, Most Electric Vehicles

• Wide: Optimal for Cars, EVs and Luxury vehicles

• Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available

• Padded overhead shut off system prevents vehicle damage

• Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters

• Fully gusseted base plate design increases column rigidity

• Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life

• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

• Premium powder coat finish provides long-lasting durability

CL10V3 Series Available

• CL10AV3-DPC-QC – Column Height 11' 2" or 11' 8"

• CL10AV3-2-DPC-QC – 2ft Column Extension Height 13' 2" or 13' 8"

• CL10AV3-3-DPC-QC 3ft Column Extension Height 14' 2" or 14' 8"

Supersedes CL10V3-DPC-QC Series

Product Specifications

Model

CL10AV3-DPC-QC
CL10AV3-2-DPC-QC
CL10AV3-3-DPC-QC

Lift Configuration

Standard

2' Extensions

3' Extensions

Arm Configuration

Versymmetric®, 3-Stage Front & Rear

Lift Capacity*

10,000 lbs. (4535kg)

Rise Height

74-1/8" (1908mm)

Column Height

11' 2" or 11' 8"

13' 2" or 13' 8"

14' 2" or 14' 8"

Max. Extended Cylinder Height

11' 11"

Adjustable Width Overall

(-12") 11' 6-1/2" / (-6") 12' 1/2" / (Max) 12' 6-1/2"

Drive-Thru Clearance

(-12") 100" or 104 1/2"

Floor to Overhead Switch

10' 8 1/2" or 11' 2-1/2"

12' 8 1/2" or 13' 2-1/2"

13' 8 1/2" or 14' 2-1/2"

Front Arm Reach (Min/Max)

Min. 20" / Max. 42"

Rear Arm Reach (Min/Max)

Min. 37-5/8" / Max. 60"

Screw Pad Height

Min. 3-7/8" / Max. 6-1/2"

Inside Columns

(-12") 110" / (-6") 116" / (Max) 122"

Low Lock Height

12" Net Rise

Rise Time

QuickCycle™ DPC: 24s / Standard DPC: 38s (est.)

Max. Load per Arm

2,500 lbs.

Service Bay Specifications

Height

12' Minimum

Width

13'- 3" or 13'- 9" Required

Depth

14'- 3' or 14'- 9" Required

Electrical

Motor

Quick Cycle DPC: 3HP, Single Phase, 60Hz, 208/230V
Standard DPC: 2HP, Single Phase, 60Hz, 208/230V

Ali Certified

Narrow: Space Constraints or Express Pads configuration
Universal: Cars, SUVs, Trucks, Most Electric Vehicles
Wide: Optimal for Cars, EVs and Luxury vehicles

*The CL10A can also be set at the current 11' 10" width
