Product Overview

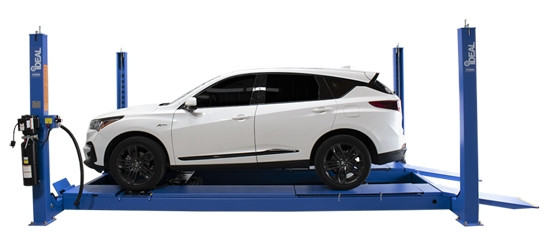

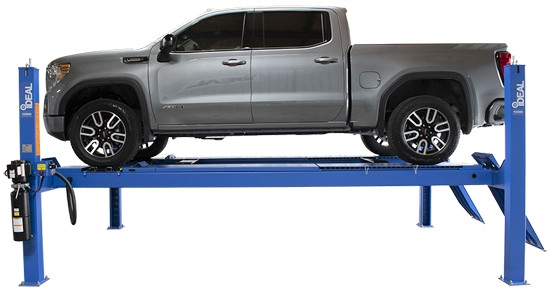

iDeal FP14KAC-X Commercial Alignment Lift 14,000 lb
Professional-Grade Alignment Solution for Modern Shops

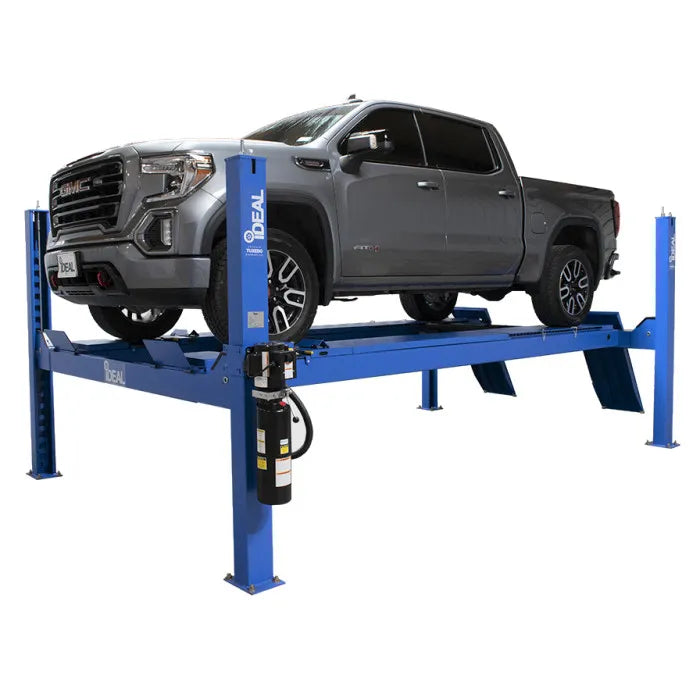

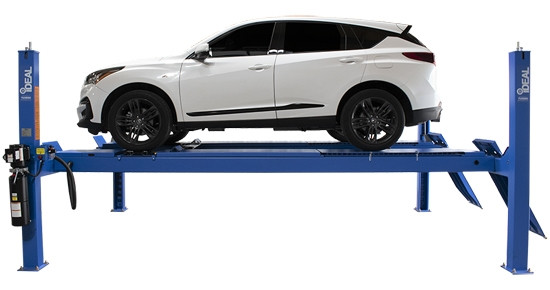

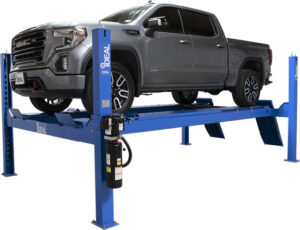

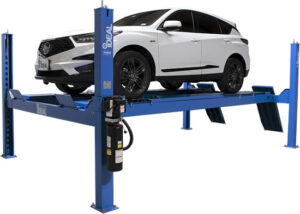

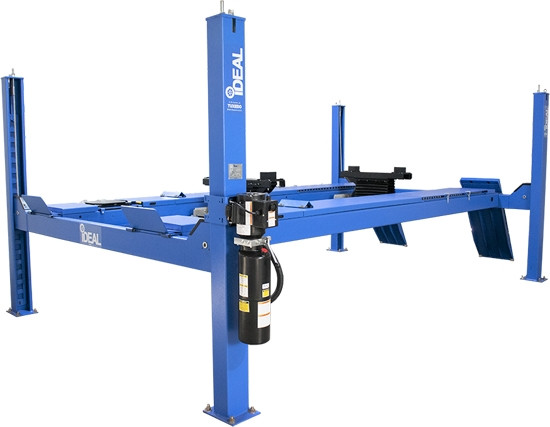

The iDeal FP14KAC-X is a premium 14,000 lb capacity four-post commercial alignment lift engineered for serious automotive professionals. This closed-front, cable-pull vehicle lift is designed to handle a wide range of vehicles including cars, SUVs, vans, and trucks with precision and reliability. Built with high-performance components and advanced safety features, the FP14KAC-X delivers the perfect combination of power, versatility, and value for busy alignment and service bays.

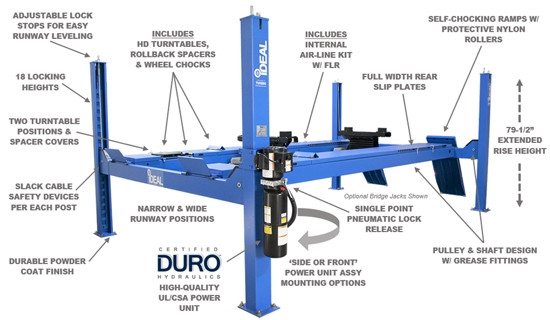

This alignment lift comes fully equipped right out of the box with full-width rear slip plates, heavy-duty carbon steel turntables (4,500 lb capacity each), roll-back spacers, and a complete internal airline kit with filter, lubricator, and regulator. The FP14KAC-X incorporates the latest design innovations including narrow and wide runway mount positions for maximum flexibility, an extended rise height of 79.5 inches, and a concealed hydraulic/mechanical cable lift system featuring slack cable safety devices for enhanced protection.

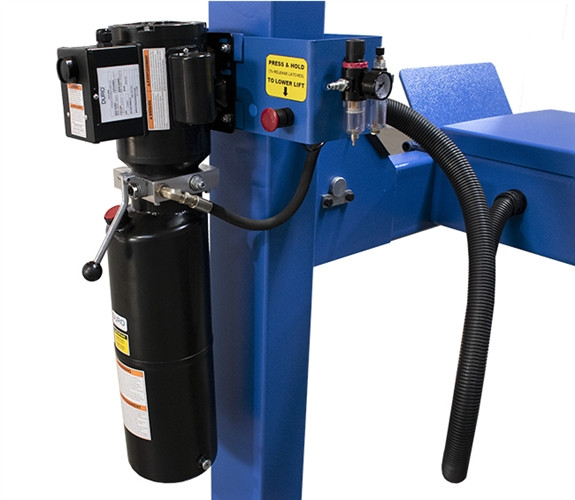

Operation is smooth and effortless thanks to the single-point pneumatic lock release mechanism and high-quality DURO power unit powered by 220V, 20 Amp, 1-Phase electrical. The durable pulley and shaft design incorporates convenient grease fittings to extend the service life of the lift, while self-chocking ramps with nylon rollers and included wheel chocks provide additional safety and protection during loading and unloading operations.
The modular design of the iDeal FP14KAC-X provides exceptional flexibility, allowing you to extend the runways for aligning or servicing longer vehicles with ease. With 18 locking height positions, 20-inch wide runways, fully adjustable lock stops for easy runway leveling, and optional power unit mount positions, this lift delivers professional-grade performance at an unmatched value. The premium powder-coated paint finish ensures long-lasting durability and a professional appearance in any shop environment.
Key Advantages
- Extended Alignment Capacity: Accommodates wheelbase ranges from 103" to 157" (4-wheel alignment) and up to 166.75" (2-wheel alignment), with a maximum overall wheelbase of 182.5 inches for versatile vehicle coverage
- Flexible Runway Configuration: Choose between 43" or 46" width between runways for narrow or wide stance vehicles, with 20-inch wide runways providing stable, secure support
- Impressive Rise Height: 79.5-inch maximum rise height provides exceptional under-vehicle clearance ( 69 5/8 inches ) for comfortable working conditions and complex service procedures
- Complete Alignment Package: Includes HD carbon steel turntables (4,500 lb capacity each), roller spacers, full-width rear slip plates, and internal airline system—everything you need to perform precision alignments
- Space-Efficient Design: Fits in a 16' x 25' minimum bay size with 100-inch drive-thru clearance, making it ideal for shops with space constraints while maintaining full functionality
Built for Safety and Reliability
Safety is engineered into every aspect of the FP14KAC-X. The durable, high-quality cable lift system incorporates slack cable safety devices that monitor cable tension and immediately lock the lift if any slack is detected. The single-point pneumatic safety release mechanism ensures consistent, controlled lowering, while 18 locking height positions provide secure working levels throughout the lift's travel range.

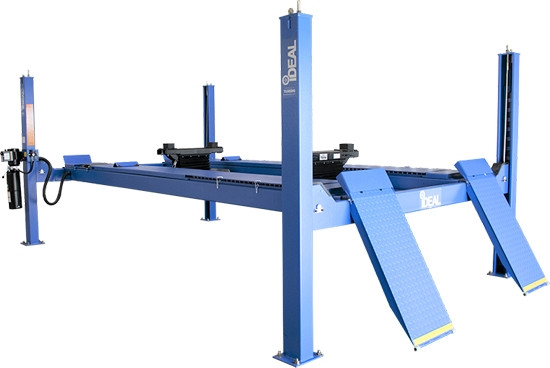

The self-chocking approach ramps with nylon rollers automatically grip the vehicle tires during loading, preventing rollback and ensuring safe positioning. Fully adjustable lock stops allow for precise runway leveling, compensating for uneven shop floors and ensuring balanced, stable lifting. One pair of wheel chocks is included as standard equipment for additional vehicle security during service operations.
Product Features
- 14,000 lb Lifting capacity
- High performance commercial service lift
- Durable, high quality cable lift system
- Extended rise height
- 166.7 Max alignment wheelbase (2 Wheel)
- 157 Max alignment wheelbase (4 Wheel)
- 182.5" Max wheelbase
- 18 Locking height positions
- 20" wide runways
- Narrow & wide runway mounting positions
- Single point pneumatic safety release mechanism
- Fully adjustable lock stops for easy leveling
- Slack cable safety devices
- Self-chocking approach rampps w/nylon rollers
- Powder-coated paint finish
Includes
- HD Carbon steel turntables – 4.5 capacity each
- Roller spacers for HD turnables
- Internal airline kit w/ Filter, lubricator & Regulator
- 1 Pair of Wheel Chocks
Product Specifications
Specifications
FP14KC-X
Capacity
14,000 lbs.
Overall Length w/Ramp
252 1/2"
Overall Width w/Power Unit
142"
Overall Width w/o Power Unit
131 7/8"
Overall Height
92 1/2"
Max Rise Height
79 1/2"
Min Height
9 7/8"
Width Between Posts
116 1/4"
Length Between Posts
196"
Width Between Runways
43" or 46"
Width of Runways
20"
Max Wheelbase
182 1/2"
Max Wheelbase (2 Wheel)
166 3/4"
Min/Max Align Wheelbase (4 Wheel)
103" / 157"
Ramp Length
44"
Max Clearance Under Runway
69 5/8"
Drive-Thru Clearance
100"
Base Plate
10 1/2" x 9"
Power
220V – 20 Amp – 1PH
Ship Weight
3,810 lbs.
Min Bay Size
16' x 25'
Key Features
- Published product configuration: iDeal FP14KAC-X Commercial Alignment Lift 14,000 lb Professional-Grade Alignment Solution for Modern Shops The iDeal FP14KAC-X is a premium 14,000 lb capacity four-post commercial alignment lift engineered for serious automotive professionals. This closed-front, cable-pull vehicle lift is designed to handle a wide
- Exact manufacturer model or part number: FP14KAC-X
- Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | iDeal Lift |
|---|---|
| SKU | 407ES-004846 |
| MPN / Model | FP14KAC-X |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Alignment Lifts |
Before You Order
Confirm that model FP14KAC-X, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
