Product Overview

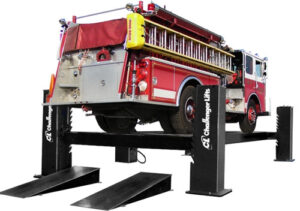

Challenger 44060E HD Chain-Driven Ex-Length 4-Post Truck Lift 60,000 lb Capacity – New Black Color
The Challenger 44060E is engineered specifically for heavy commercial truck and transit vehicle service, delivering a robust 60,000 lb. lifting capacity in an extended-length configuration. Designed as an economical yet high-performance solution for demanding commercial facilities, this chain-driven 4-post lift combines traditional proven design with advanced features like a variable-synchro power system and velocity fused redundant hydraulic safety system. With an impressive 41-foot overall length and 370-inch maximum wheelbase, the 44060E handles everything from waste trucks and construction vehicles to long-wheelbase transit buses. Available exclusively in a sleek new black finish, this lift brings both durability and professional appearance to your shop floor.
Heavy-Duty Engineering for Commercial Applications
The Challenger 44060E was designed from the ground up to be an economical high-capacity lifting solution without sacrificing the features and safety systems that serious commercial operations demand. Built on a traditional 4-post design, this lift provides a stable, reliable platform for servicing the heaviest trucks and commercial vehicles in your fleet.
Diamond plated anti-skid runways and heavy-duty fixed approach ramps provide positive vehicle traction and long-lasting durability, ensuring safe drive-on access even in demanding shop environments. The adjustable runways accommodate a wide variety of tread and axle widths, from 36 inches to 58 inches between runways, making this lift versatile enough to handle diverse vehicle configurations. With 32-inch wide runways and 144 inches inside the columns, you have ample space for even the widest commercial chassis.
At the heart of the 44060E is its variable-synchro power system with dual hydraulic lift cylinders. This advanced system gives you the ability to raise the front or rear lift suspension either variably or simultaneously, providing a perfectly stable platform when lifting vehicles with heavier front or rear axles. Whether you're working on a front-heavy waste truck or a rear-loaded construction vehicle, you maintain complete control and balance throughout the lift cycle.

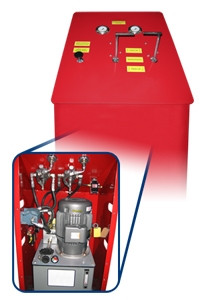

Independent Control Console for Safe Operation
The independent control console is strategically mounted away from the hydraulic lift, providing safe and convenient access to all power controls. This thoughtful design keeps the operator at a safe distance during lift operations while maintaining full visibility and control.
The console features the variable-synchro power system controls to raise and lower the front or rear suspension either simultaneously or independently, dual pressure gauges for monitoring system performance, and a single point air lock release button for quick and simultaneous disengagement of all column locks. This intuitive control layout puts everything the technician needs right at their fingertips.
Anti-Skid Diamond Plate Construction
Safety starts the moment a vehicle approaches the lift. The 44060E features heavy-duty anti-skid diamond plate ramps that are securely bolted down for safe and easy drive-on access. These ramps provide exceptional traction in all conditions, ensuring confident vehicle positioning every time.
The diamond plate construction extends across the runways as well, delivering positive vehicle traction throughout the lift's surface area and outstanding durability that stands up to years of heavy commercial use.
Twin Ladder Lock Positioning System
Versatility in working height is essential for efficient service. The 10-level twin ladder lock positions provide a comfortable working height for a wide variety of service tasks on different vehicle types. With a maximum rise height of 73 inches, technicians have ample clearance for undercarriage work while maintaining easy access from ground level.
The single point air actuated lock release system allows technicians to disengage all column locks simultaneously with the push of a button, streamlining operation and reducing cycle time between jobs.
Premium Components and Safety Systems
The Challenger 44060E is built with components designed for maximum reliability and longevity. Heavy-duty, high tensile strength leaf chain and sealed roller bearings provide smooth, dependable operation lift after lift, year after year.
Safety is paramount in any lift operation, which is why the 44060E incorporates a velocity fused redundant hydraulic safety system. This advanced safety design provides multiple layers of protection, ensuring that vehicles remain securely elevated even in the unlikely event of a hydraulic system failure.
The powerful 15HP motor operates on 230v – 460v 3-phase power at 30 amps, delivering a swift 75-second speed of rise to minimize downtime and maximize productivity. The overall height of 92 inches allows installation in most commercial facilities with standard ceiling heights.
Built-In Convenience Features
Efficiency comes from thoughtful design details. The 44060E includes a built-in runway rail system that accommodates optional convenience accessories like rolling jacks and sliding drain pans. This integrated rail system eliminates the need for separate support equipment and keeps your workspace organized and productive.
With 14-inch height runways, the lift provides excellent ground clearance while maintaining easy access. The robust construction and generous 17' 1-1/4" overall width ensures stability even when working with the heaviest commercial vehicles.
Key Highlights
- 60,000 lb. lifting capacity handles heavy commercial trucks, waste trucks, and transit vehicles
- 41-foot overall length (44060E model) with 370-inch maximum wheelbase for extended vehicles
- Variable-synchro power system with dual hydraulic cylinders for independent front/rear control
- Velocity fused redundant hydraulic safety system and single point air lock release
- Heavy-duty leaf chain and sealed roller bearings for maximum reliability and long service life
Product Features
- 40,000 – 60,000 lb. lifting capacity for heavy commercial truck and transit vehicles
- Heavy duty, high tensile strength leaf chain and sealed roller bearings for maximum reliability
• Variable-synchro power system with dual hydraulic
lift cylinders provide the ability to variably or
simultaneously raise the front or rear lift suspension,
providing a stable platform when lifting
vehicles with heavier front or rear axles
- Velocity fused redundant hydraulic safety system
- Single point air actuated lock release system allows technician to disengage all column locks simultaneously
- Diamond plate anti-skid runways and heavy duty fixed approach ramps for positive vehicle traction and long lasting durability
- Adjustable runways accommodate a variety of tread and axle widths
- Built-in runway rail system for optional convenience accessories like rolling jacks and sliding drain pan
Product Specifications
Model Number
44060
44060E
44060X
Lift Capacity
60,000 lbs.
A Overall Length
36'
41'
46'
B Overall Width
17' 1-1/4"
C Inside Columns
144"
D Between Columns
290"
350"
410"
E Overall Height
92"
F Height of Runways
14"
G Width of Runways
32"
H Width Between Runways
36" – 58"
I Maximum Wheelbase
310"
370"
430"
J Rise Height
73"
Motor
15P
Voltage
230v – 460v 3 Phase
Speed of Rise
75 seconds
Amps
30
Available in Black Only
Key Features
- Published product configuration: Challenger 44060E HD Chain-Driven Ex-Length 4-Post Truck Lift 60,000 lb Capacity – New Black Color The Challenger 44060E is engineered specifically for heavy commercial truck and transit vehicle service, delivering a robust 60,000 lb. lifting capacity in an extended-length configuration. Designed as an economical yet
- Exact manufacturer model or part number: 44060E
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 407ES-004972 |
| MPN / Model | 44060E |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model 44060E, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
