Product Overview

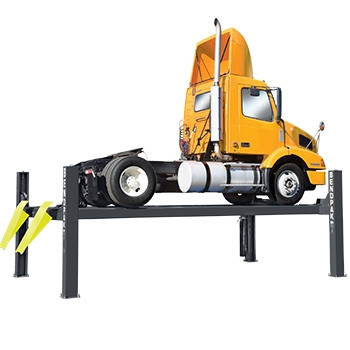

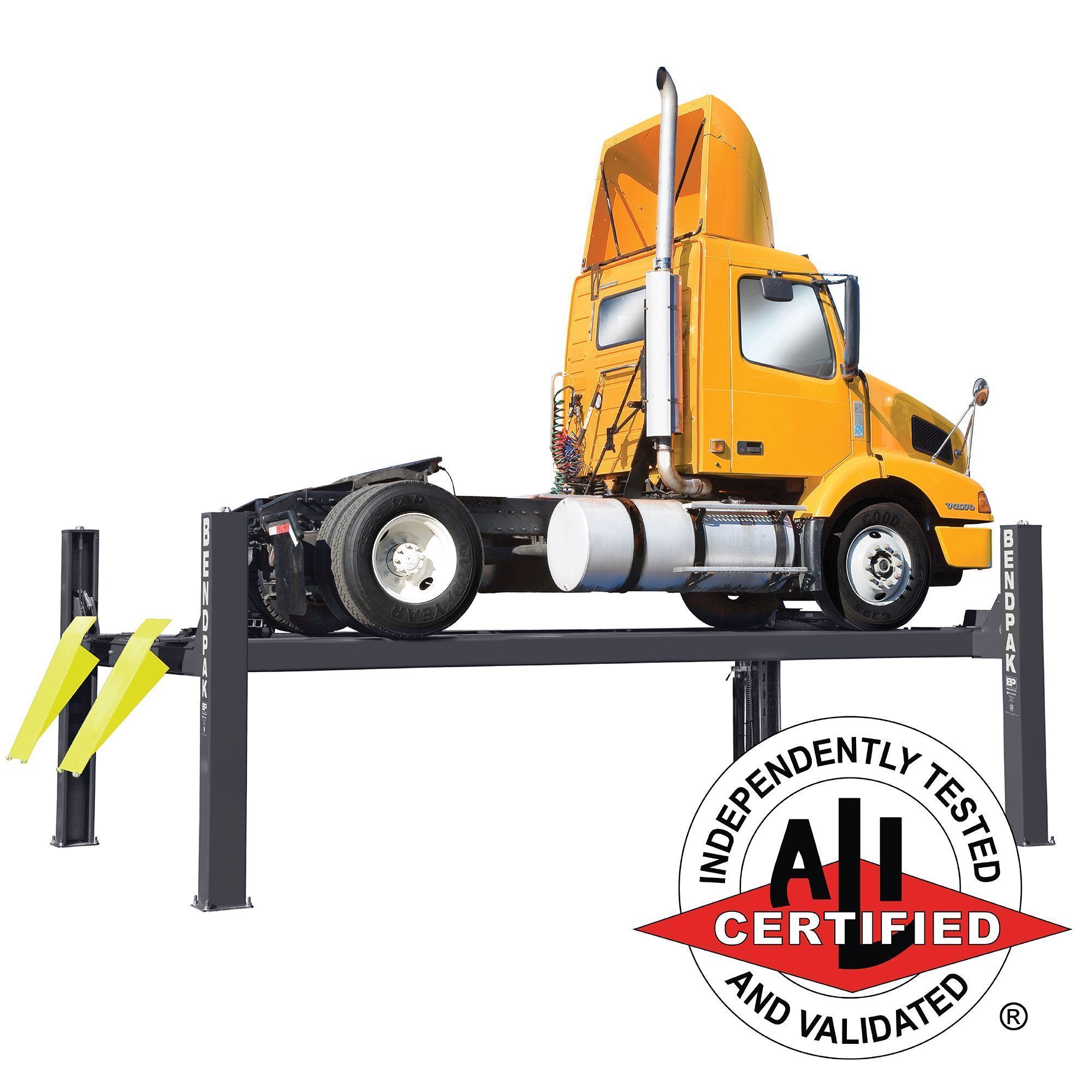

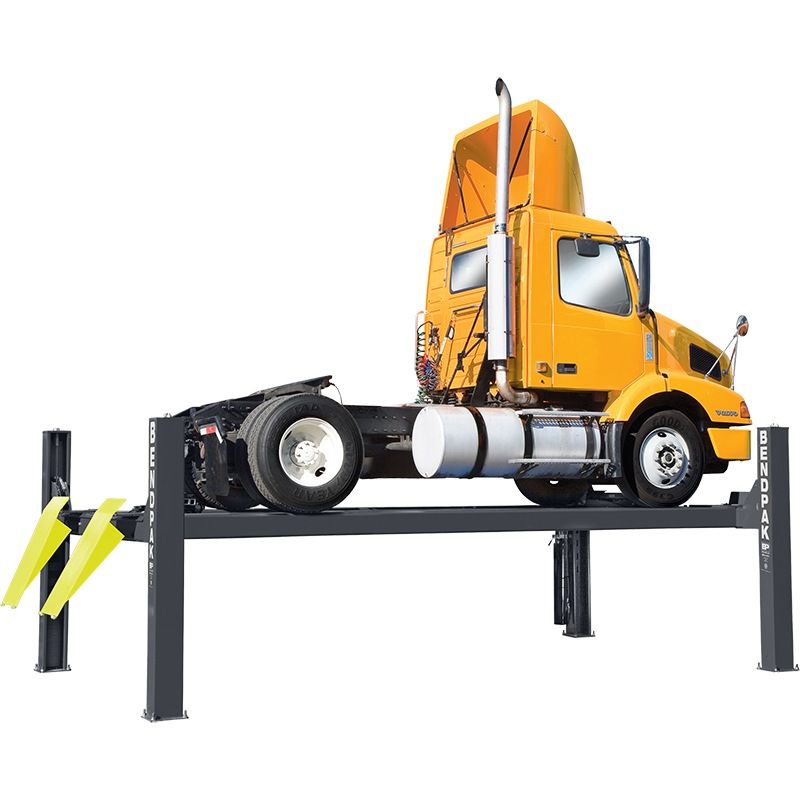

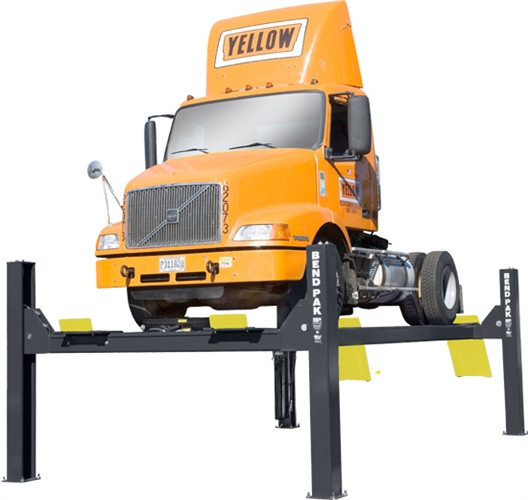

BendPak HDS-27 Heavy Duty Four Post Lift 27K lb. Capacity
BendPak's HDS-Truck Series four-post lifts are a whole new breed of rugged. They're newly engineered heavy-duty truck lifts that make light work out of heavy lifting. They work better, are built to last, and feature upgrades that increase safety, durability and productivity. The HDS-18, HDS-27, and extended length HDS-27X four-post models provide a generous 18,000 and 27,000-lb. lifting capacity and feature extra-wide runways to accommodate a wide variety of vehicles configurations.
Looking for even more lifting capabilities? Check out the the extended HDS-27X.
All HDS-27 standard length truck lifts feature:

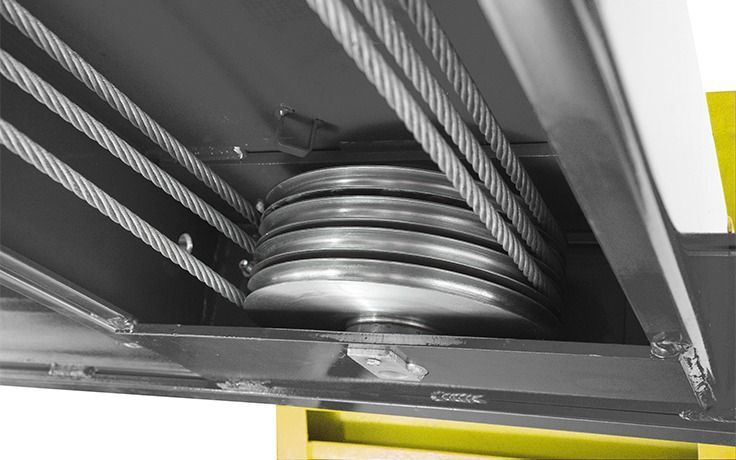

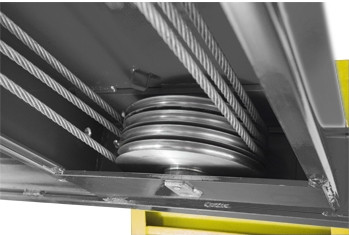

- Supersized 12” diameter cable sheaves within the runway and cross tubes combined with massive 4” diameter sheave axles dramatically improve cable wear and critical component lifespan meaning you’ll increase safety and spend less money in service related expenses down the road.
- BendPak's HDS-Truck Series lifts feature four stainless-steel lifting cables that provide a great balance between abrasion resistance and fatigue.

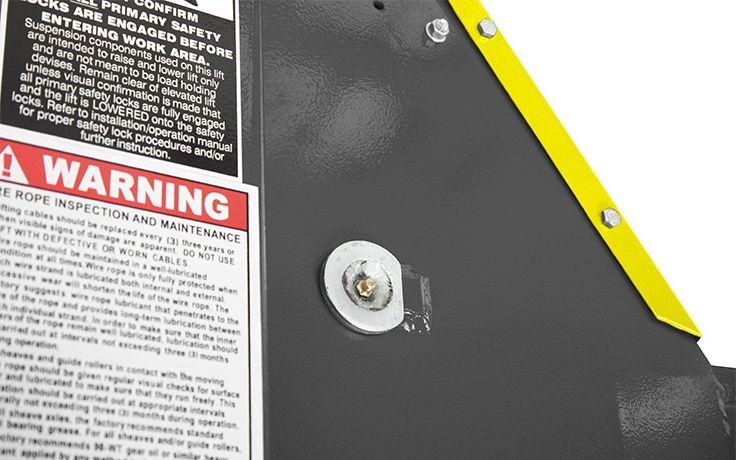

- Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.
- Each HDS-Truck Series four-post lift is equipped with a single hydraulic cylinder hidden away under the runway for maximum performance and reliability and minimum exposure to elements. The hydraulic cylinder features high-durometer rod seals, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass. The welded cylinder body is made from high strength steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures straight, smooth, cylinders that will provide years and years of dependable trouble-free service.
- An integrated hydraulic flow restrictor provides a controlled descent in the unlikely event of an unexpected hose rupture.
- A durable powder coat finish can withstand harsh environments and chemical spills and will provide years of protection.

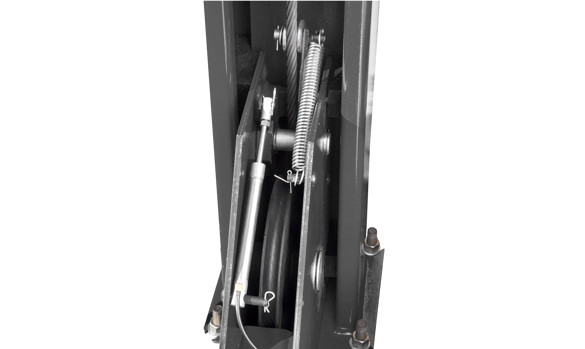

- Spring-loaded safety locks automatically engage continuously during rise and adjustable safety ladders allow for precise runway leveling even when installed on sloped floors.
- A simple push-button pneumatic lock release makes lowering operations simple and fast. Aircraft-quality stainless steel and aluminum pneumatic cylinders will provide years of trouble-free service.
- A secondary lock system is on constant guard and acts as a slack-cable device in the unlikely event of an unexpected cable failure.
- Lifting cables, airlines, safety latches and sheaves are all fully enclosed within lift structure.
- Features multiple adjustable height locking positions for variable-height parking and infinite leveling.
- A maintenance-free electric hydraulic power system assures ultimate dependability.
- All operator controls are conveniently located within easy reach.
- 12" x 12" base plates provide a solid foundation.
- Non-skid runways provides maximum grip, even when the runway surface is wet or oily.

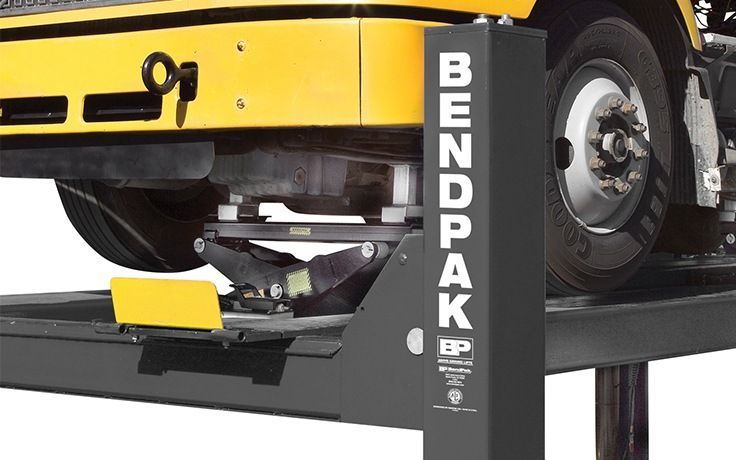

Optional rolling jacks make a great addition to increase service capacity. Rolling jacks are used to raise the front or rear portion of a vehicle off the runways allowing operators to perform efficient wheel and break service. A pair of jacks allows the entire vehicle to elevated. Each jack has telescoping arms and frame contact pads that can be extended over the runways and positioned under vehicle lifting points. Each jack features three safety-lock positions and stackable truck and van adapters for increased lifting height and better access to frame contact points on high ground-clearance vehicles. The jacks come equipped with a commercial grade air-hydraulic pump.
Product Features
- 27,000-lb. lifting capacity
- Supersized 12" diameter cable sheaves
- Stainless steal lifting cables
- Grease nipples
- Single hydraulic under-runway cylinder
- Integrated flow restrictor
- Durable powder coat
- Spring-loaded safety locks
- Second lock system on constant guard
- Fully enclosed lifting cables
- Multiple adjustable height locking positions
- Maintenance-free electric hydraulic power system
- Conveniently positioned operator controls
- 12" x 12" base plates
- Non-skid runways
- Optional rolling jacks
Optional # 5210541 Add-On Alignment Kit Available – Fits 27K Runway Lifts
Kit Includes
- Bolt on ramp piece for both the front turn plates & back slip plates
- Turn plates
Product Specifications
Model
HDS-27
HDS-27X
Style
Standard
Extended
Capacity
Lifting Capacity: (*)
27,000 lbs. (12,247 kg)
*Max Capacity / Front Axle
13,500 lbs. (6,123 kg)
*Max Capacity / Rear Axle
13,500 lbs. (6,123 kg)
Rise
A Min. Runway Height
8.25" (210 mm)
B Max. Rise
58" (1,473 mm)
58.25" (1,480 mm)
C Max. Lifting Height
69.5" (1,765 mm)
Time to Full Rise
75 seconds
Outside Dimensions
D Overall Width
153.5" (3,899 mm)
E Outside Length
257" (6,528 mm)
317.5" (8,065 mm)
F Overall Length
312.75" (7,944 mm)
372.75" (9,468 mm)
G Height of Columns
91.25" (2,318 mm)
Inside Dimensions
H Width Between Columns
133.5" (3,391 mm)
I Drive-Thru Clearance
109" (2,769 mm)
Runways
J Runway Width
22" (559 mm)
K Length of Runways
257.5" (6,541 mm)
317.5" (8,065 mm)
L Width Between Runways
40" or 45.5" (1,016 or 1,156 mm)
M Runway Centerline
62" or 67.5" (1,575 or 1,715 mm)
N Outside Edge of Runways
84" or 89.5" (2,134 or 2,273 mm)
Minimum Wheelbase
Rated Capacity
185" (4,699 mm))
230" (5,842 mm)
75% Capacity
160" (4,064 mm)
195" (4,953 mm)
50% Capacity
135" (3,429 mm)
165" (4,191 mm)
25% Capacity
110" (2,794 mm)
130" (3,302 mm)
Locking
Locking Positions
9
Lock Spacing
Every 6" (152 mm)
Power Unit
Motor
220 VAC / 60 Hz / 1Ph
Noise
45 dB
Shipping
Weight
6,109-lbs. (2,770 kg)
6,944-lbs. (3,149 kg)
Dimensions
266" x 27" x 35"
(6,756 mm x 685 mm x 889 mm)
265" x 27" x 36"
(6,731 mm x 685 mm x 914 mm)
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Key Features
- Published product configuration: BendPak HDS-27 Heavy Duty Four Post Lift 27K lb. Capacity BendPak's HDS-Truck Series four-post lifts are a whole new breed of rugged. They're newly engineered heavy-duty truck lifts that make light work out of heavy lifting. They work better, are built to last, and feature upgrades that increase safety, durability and
- Exact manufacturer model or part number: 5175162
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 407ES-004907 |
| MPN / Model | 5175162 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model 5175162, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
