Product Overview

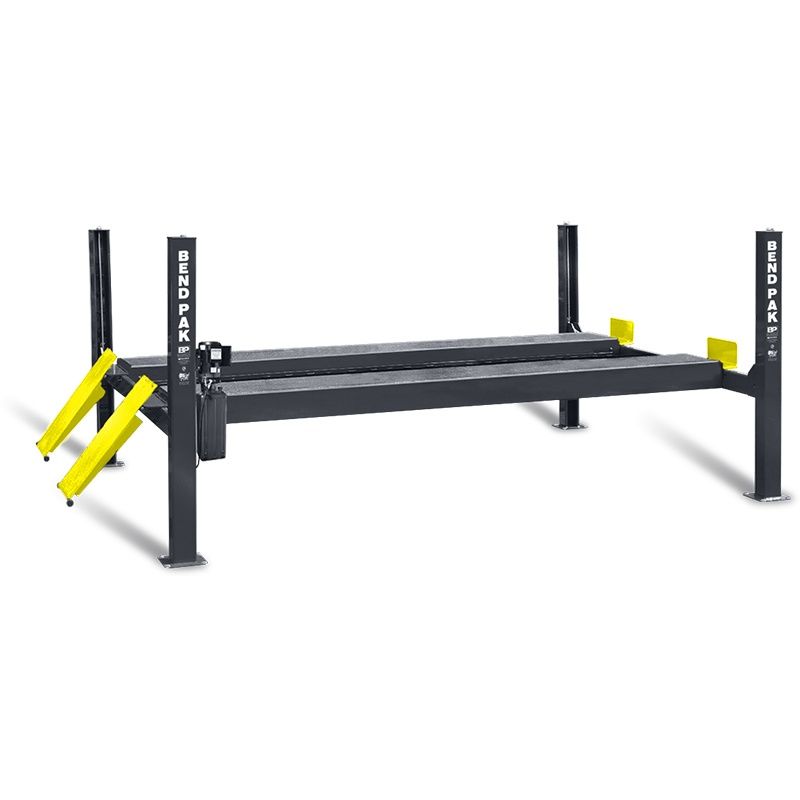

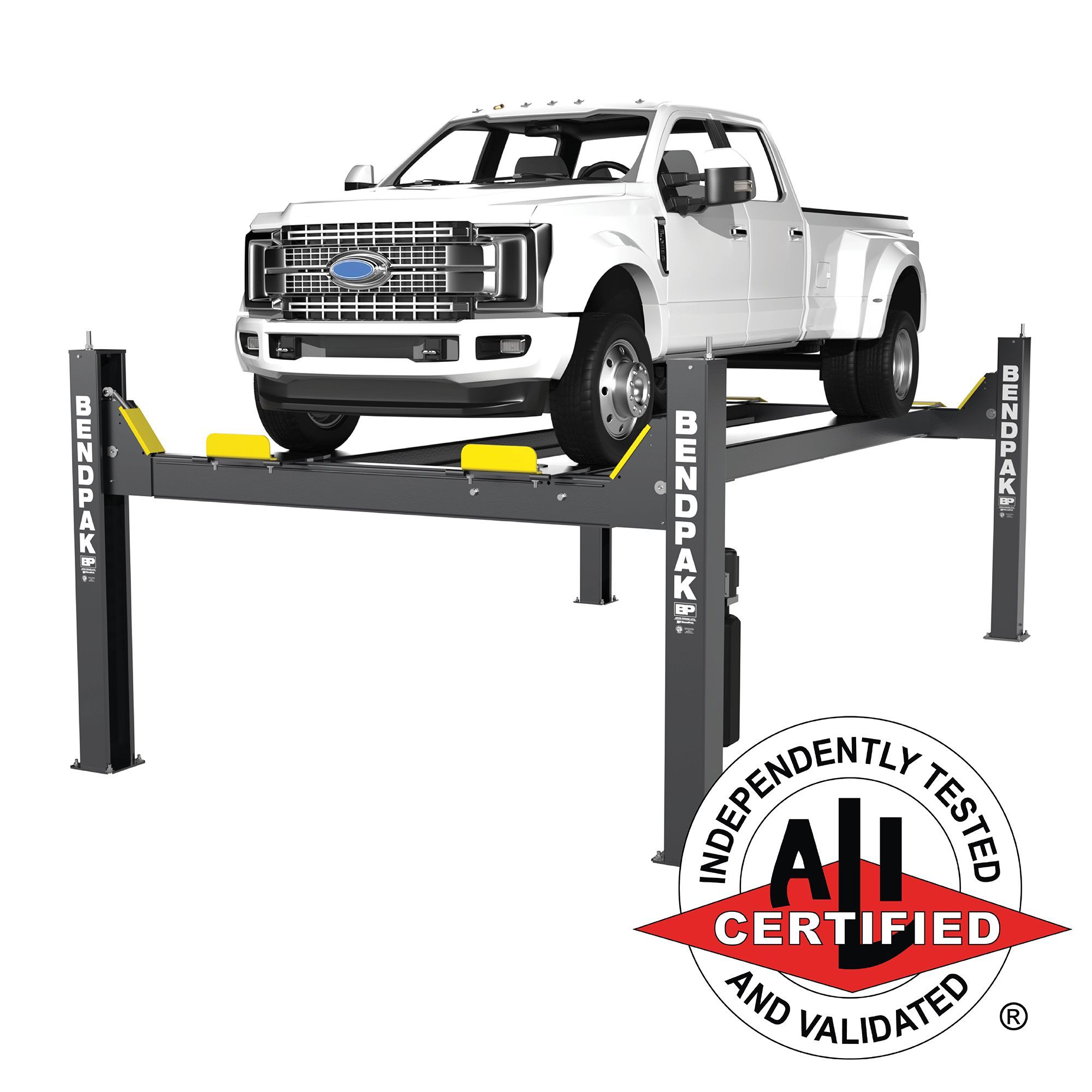

BendPak HDS-18E Heavy Duty 18,000 lb. Four Post Auto Lift
BendPak's HDS-Truck Series four-post lifts are a whole new breed of rugged. They're newly engineered heavy-duty truck lifts that make light work out of heavy lifting. They work better, are built to last, and feature upgrades that increase safety, durability and productivity. The HDS-18, HDS-27, and extended length HDS-27X four-post models provide a generous 18,000 and 27,000-lb. lifting capacity and feature extra-wide runways to accommodate a wide variety of vehicles configurations.
Looking for even more lifting capabilities? Check out the HDS-27 or the extended HDS-27X. They both can lift up to 27,000 lbs.
All HDS-18E standard length truck lifts feature:

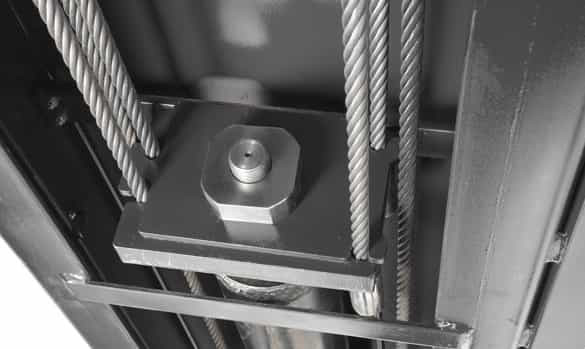

- Supersized 12” diameter cable sheaves within the runway and cross tubes combined with massive 4” diameter sheave axles dramatically improve cable wear and critical component lifespan meaning you’ll increase safety and spend less money in service related expenses down the road.
- BendPak's HDS-Truck Series lifts feature four stainless-steel lifting cables that provide a great balance between abrasion resistance and fatigue.
- Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.
- Each HDS-Truck Series four-post lift is equipped with a single hydraulic cylinder hidden away under the runway for maximum performance and reliability and minimum exposure to elements. The hydraulic cylinder features high-durometer rod seals, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass. The welded cylinder body is made from high strength steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures straight, smooth, cylinders that will provide years and years of dependable trouble-free service.
- An integrated hydraulic flow restrictor provides a controlled descent in the unlikely event of an unexpected hose rupture.
- A durable powder coat finish can withstand harsh environments and chemical spills and will provide years of protection.
- Spring-loaded safety locks automatically engage continuously during rise and adjustable safety ladders allow for precise runway leveling even when installed on sloped floors.
- A simple push-button pneumatic lock release makes lowering operations simple and fast. Aircraft-quality stainless steel and aluminum pneumatic cylinders will provide years of trouble-free service.
- A secondary lock system is on constant guard and acts as a slack-cable device in the unlikely event of an unexpected cable failure.
- Lifting cables, airlines, safety latches and sheaves are all fully enclosed within lift structure.
- Features multiple adjustable height locking positions for variable-height parking and infinite leveling.
- A maintenance-free electric hydraulic power system assures ultimate dependability.
- All operator controls are conveniently located within easy reach.
- 12" x 12" base plates provide a solid foundation.
- Non-skid runways provides maximum grip, even when the runway surface is wet or oily.
Optional rolling jacks make a great addition to increase service capacity. Rolling jacks are used to raise the front or rear portion of a vehicle off the runways allowing operators to perform efficient wheel and break service. A pair of jacks allows the entire vehicle to elevated. Each jack has telescoping arms and frame contact pads that can be extended over the runways and positioned under vehicle lifting points. Each jack features three safety-lock positions and stackable truck and van adapters for increased lifting height and better access to frame contact points on high ground-clearance vehicles. The jacks come equipped with a commercial grade air-hydraulic pump.
Product Features
- 18,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Supersized 12" diameter cable sheaves
- Stainless steal lifting cables
- Grease nipples
- Single hydraulic under-runway cylinder
- Integrated flow restrictor
- Durable powder coat
- Spring-loaded safety locks
- Second lock system on constant guard
- Fully enclosed lifting cables
- Multiple adjustable height locking positions
- Maintenance-free electric hydraulic power system
- Conveniently positioned operator controls
- 12" x 12" base plates
- Non-skid runways
- Optional rolling jacks
Optional # 5210143 Add-On Alignment Kit Available – Fits 18K Runway Lifts
Kit Includes
- Bolt on ramp piece for both the front turn plates & back slip plates
- Turn plates
Product Specifications
Model
HDS-18E
LiftingCapacity*
*Max Capacity/ FrontAxle
*Max Capacity / RearAxle
18,000 Lbs. / 8,165 kg
9,000 lbs. / 4,082 kg
9,000 lbs. / 4,082 kg
A Overall Width
154" / 3,912 mm
B Outside Length
309.25" / 7,856 mm
C Overall Length
297" /,544 mm
D Height of Columns
93" / 2,362 mm
E Min. Runway Height
8-1/2" / 216 mm
F Max. Rise
60" / 1,524 mm
G Max. Lifting Height
68-1/2" / 1740 mm
H Width Between Columns
134" / 3404 mm
I Runway Width
22" / 559 mm
J Min Width Between Runways (*)
38" / 965 mm (min)
J Max Width Between Runways (*)
56" / 1,422 mm
K Min Runway Centerline (*)
60" / 1,524 mm
K Max Runway Centerline (*)
78" / 1,981 mm
L Min Outside Edge of Runways (*)
82" – 100" / 2,083 mm – 2,540 mm
L Max Outside Edge of Runways (*)
100" / 2,540 mm
M Drive-Thru-Clearance
109" / 2,769 mm
N Length of Runways
263" / 6,680 mm
Min Wheelbase @ Rated Capacity
185" / 4,699 mm
Min Wheelbase @ 75% Capacity
160" / 4,064 mm
Min Wheelbase @ 50% Capacity
135" / 3,429 mm
Min Wheelbase @ 25% Capacity
110" / 2,794 mm
Locking Positions
9
Lock Spacing
Every 6" / 152 mm.
Lifting Time
75 Sec
Standard Motor (***)
220 VAC / 60 Hz. 1Ph.
* This dimension may be limited with the addition of rolling jacks. See rolling jack specifications on separate page.
** Special Voltages Available Upon Request
The design, material and specifications are subject to change without notice.
Key Features
- Published product configuration: BendPak HDS-18E Heavy Duty 18,000 lb. Four Post Auto Lift BendPak's HDS-Truck Series four-post lifts are a whole new breed of rugged. They're newly engineered heavy-duty truck lifts that make light work out of heavy lifting. They work better, are built to last, and feature upgrades that increase safety, durability and
- Exact manufacturer model or part number: 5175968
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 407ES-004900 |
| MPN / Model | 5175968 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model 5175968, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
