Product Overview

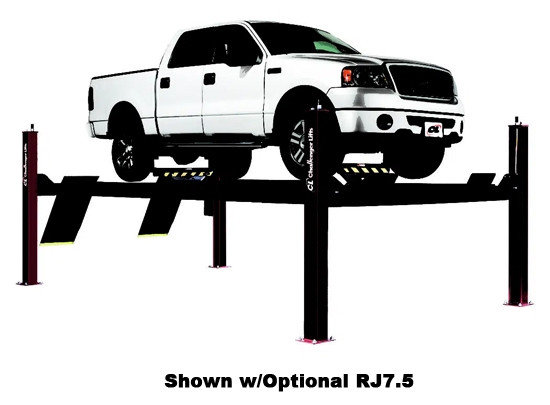

Challenger 4P14XFX 4P14series Ex-Length Hydraulic Four Post Lifts 14,000 lbs
The Challenger 4P14XFX is a premium extended-length 14,000 lb. capacity four post car lift designed to deliver exceptional value and performance for professional automotive service centers. This heavy-duty hydraulic lift combines the features you'd expect from higher-priced equipment with an economy price point that makes it accessible for shops looking to expand their service capabilities. With its extended 210" maximum wheelbase, the 4P14XFX is engineered to handle longer vehicles including full-size trucks, vans, and extended cab pickups with ease.
Built with robust solid piece column construction for maximum rigidity and stability, this lift features an impressive 78" rise height the highest in the industry—providing exceptional clearance and working room underneath vehicles for comprehensive service work. The louvered approach ramps ensure positive vehicle traction, while automatic wheel stops and 14 level locking positions offer versatility for a wide range of general service tasks. Turn your lift into a complete productivity center with optional accessories including rolling jacks, oil drain pans, air/electric workstations, and even a bolt-on alignment kit (Part #40200-3DSS) to transform this general service lift into a 3D-capable wheel alignment rack.
Why Choose the Challenger 4P14XFX?
Challenger Lifts has engineered the 4P14 series to be one of the most feature-rich economy four-post lifts available. Whether you're servicing standard passenger vehicles, large SUVs, or extended-length trucks, the 4P14XFX provides the capacity, reach, and versatility to handle demanding workloads day in and day out.
- Extended Wheelbase Capacity: Accommodates vehicles up to a 210" maximum wheelbase (based on 30" tire diameter), perfect for full-size trucks and extended cabs
- Industry-Leading Rise Height: 78" lift height provides unmatched under-vehicle clearance for comprehensive service and repair tasks
- Durable Construction: Solid piece columns, oversized machined steel pulleys, and hydraulic cylinders mounted underneath runways ensure long-term reliability and performance
- Versatile Service Options: 14 locking positions and adjustable runways to fit a variety of vehicle tread widths
- Alignment Upgrade Ready: Transform into a 3D-capable alignment rack with optional bolt-on alignment kit featuring stainless steel turning radius gauges
Extended Length for Maximum Versatility
The 4P14XFX is the extended-length model in Challenger's 4P14 series, offering a longer overall footprint compared to the 4P14EFX. With an overall length of 22' 9-1/4" and a 223-1/2" span between columns, this lift is purpose-built for longer vehicles that won't fit on standard four-post lifts. The recommended minimum bay size is 12' x 26', ensuring you have ample room for safe operation and vehicle maneuvering.
Despite its extended footprint, the 4P14XFX maintains the same 10' 10-3/4" overall width, 116" inside column measurement, and 20" runway width as its standard-length sibling. This ensures compatibility with a wide range of vehicle types while maximizing your shop's service capacity.
Built-In Features That Save You Money
With optional rolling jacks, oil drain pans, and air/electric workstations, you can configure your 4P14XFX as a complete service center capable of handling virtually any job that rolls into your bay. The lift's adjustable runways accommodate various tread widths, while the louvered approach ramps ensure safe and secure vehicle loading. The hydraulic cylinder is mounted underneath the runway, keeping it protected from shop debris and ensuring smooth, reliable operation.
The lift operates on a 2HP motor with 208v-230v single phase power (optional three-phase available upon request at time of order) and achieves full rise in just 70 seconds. Air supply requirements are a standard 85-115 psi, making integration into your existing shop infrastructure simple and straightforward.
Alignment-Ready Upgrade Path
One of the standout features of the Challenger 4P14XFX is its ability to convert from a general service lift into a professional-grade alignment rack. With the optional bolt-on alignment kit (Part #40200-3DSS) featuring stainless steel turning radius gauges, you gain the ability to perform fast and profitable wheel alignment work—offering an economy option that can quickly pay for itself through additional revenue opportunities. This 3D alignment-capable upgrade transforms the lift into a dual-purpose workhorse, perfect for shops looking to expand service offerings without investing in an entirely separate alignment system.
Standard Finish and Optional Colors
The 4P14XFX hydraulic vehicle lift is available in red and blue standard colors, with optional custom colors available to match your shop's branding. The lift ships at 2600 lbs., making delivery and installation manageable for professional installers.
Product Features
- 78" rise height provides more working room underneath vehicles
- Louvered approach ramps for positive vehicle traction
- Solid piece column construction provides rigidity and stability for rigorous servicing needs
- Oversized solid machined steel pulleys for prolonged pulley and cable life
- Adjustable runways to accommodate a variety of tread widths
- Hydraulic cylinder mounted underneath runway
- 14 level locking positions for a variety of general service tasks
- Optional bolt on alignment kit converts general service application into alignment rack
- Many accessories available such as air/electric workstation, rolling jacks and oil drain pan make Challenger 4-posts a complete productivity center
Product Specifications
While both the 4P14EFX and the 4P14XFX have a 14,000 lb. lifting capacity, the two lifts have many other differences. From maximum wheelbase to overall length, these two models vary. Take a look at the specifications below to see which 4P14 series model works best for your needs, or
Model
4P14EFX
4P14XFX
Lift Capacity
14,000 lbs.
Max. Wheelbase 1
182-1/2" (4636mm)
210" (5334mm)
A Rise Height
78" (1981mm
B Length Overall
20' 5-3/4" (6242mm)
22' 9-1/4" (6940mm)
C Width Overall
10' 10-3/4" (3321mm)
D Inside of Columns
116" (2946mm)
E Between Columns
196" (4978mm)
223-1/2" (5677mm)
F Height of Columns
90-1/2" (2299mm)
G Width of Runways
20" (508mm)
H Height of Runways
7-1/4"" (184mm)
I Width Between Runways
Min. 40" / Max. 43" (1016mm / 1092mm)
Air Supply Required
85 – 115 psi
Motor
2HP
Voltage (Single Phase)
208v – 230v
Speed of Rise
70 seconds
Min. Recomm. Bay Size
12' x 24' (3658mm x 7315mm)
12' x 26' (3658mm x 7315mm)
Shipping Weights
2450 lbs. (1112 kg)
2600 lbs. (1180 kg)
1. Maximum wheelbase is based on a tire diameter of 30"
2. Optional Three Phase Electrical Power Available. Please Specify at time of order.
Standard Color is Red and Blue. Optional Colors Available.
Key Features
- Published product configuration: Challenger 4P14XFX 4P14series Ex-Length Hydraulic Four Post Lifts 14,000 lbs The Challenger 4P14XFX is a premium extended-length 14,000 lb. capacity four post car lift designed to deliver exceptional value and performance for professional automotive service centers. This heavy-duty hydraulic lift combines the features
- Exact manufacturer model or part number: 4P14XFX-V001
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 407ES-004852 |
| MPN / Model | 4P14XFX-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model 4P14XFX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
