Product Overview

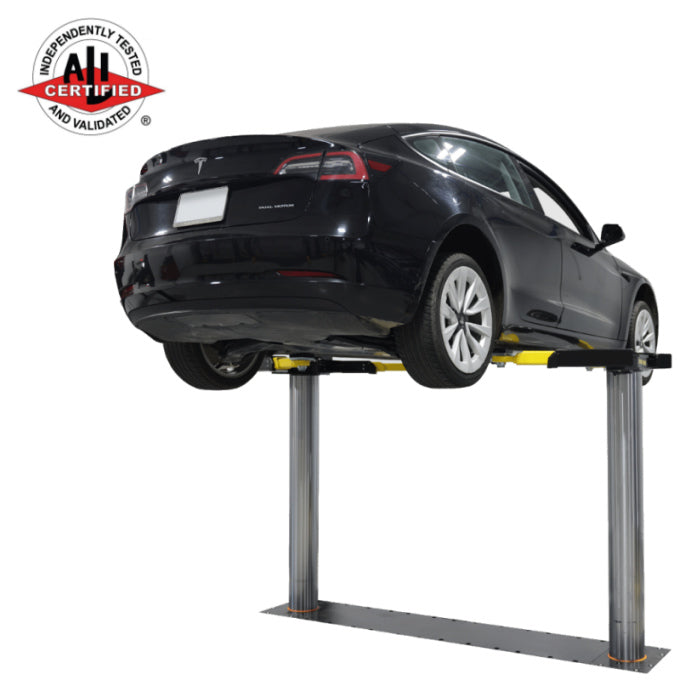

Challenger EW1020 Wide Inground ALI Car Lift 10,000 lb. Capacity
The Challenger EW1020 is a professional-grade 10,000 lb. capacity ALI-certified inground hydraulic car lift engineered specifically for modern wide-bodied and electric vehicles. With an impressive 88" drive-through clearance, this lift handles vehicles that simply won't fit on standard lifts — including popular models like the RAM TRX, Hummer EV, Tesla Model X, and Ford Mach-E. Its innovative design features true 3-stage front and rear arms, double-telescoping screw pads, and no bolster to drive over, making it easier to position and service even the most challenging vehicles. The EW1020 is ideal for shops servicing electric vehicles, as its wide clearance allows full access for battery-lowering and undercarriage service work.
Important Power Unit & Control Configuration Update
Integrating the Powerunit & Controls Under the Bench Changes
Due to the recent move to the DLH power units on the EW and EV Series inground lifts, the configuration for the cabinet door for bench mount levered controls will change. Please make sure that when using BML controls with ingrounds configuration change.
NOTE: The BMC configuration will not change.
Control Configuration Manuals:
BMC Configuration & Bench Mount Lever (BML-DLH)
Engineered for Today's Widest Vehicles
The Challenger EW1020 delivers 10,000 lbs. of lifting capacity with an industry-leading 118" overall width and 88" drive-through clearance. This extra-wide design is purpose-built for modern wide-bodied trucks, SUVs, and electric vehicles that exceed the dimensions of traditional lifts. The hydraulic inground design features a 78" rise height with a 72" stroke, providing ample working space underneath while keeping the lift profile low and unobtrusive.
With true 3-stage front and rear arms, the EW1020 offers exceptional versatility and reach. Each arm extends from 20" to 42", and each of the four arms can safely support 2,500 lbs. The double-telescoping screw pads adjust from 4" to 6.125" in height, allowing precise positioning on a wide variety of vehicle frame and lift point configurations. This is especially critical when servicing electric vehicles with battery packs or wide-bodied trucks with reinforced frames.
Simplified Installation & Operation
One of the standout advantages of the EW1020 is its simplified installation process. Unlike traditional inground lifts that require three separate concrete pours, the EW1020 only requires one concrete pour, significantly reducing installation time, labor, and costs. There is no bolster to drive over, making vehicle positioning easier and reducing the risk of undercarriage contact during drive-on.
The lift operates on a powerful 2HP motor (208v-230v, 60Hz, 1Ph) and requires 90-120 psi air supply. The EW1020 achieves full rise in just 41 seconds, maximizing shop efficiency and minimizing vehicle turnaround time. Bench-mounted controls are available as an optional upgrade, giving you flexibility in how you configure your workspace.
Key Highlights
- 10,000 lb. lifting capacity with 2,500 lbs. per arm built for heavy-duty vehicles
- 88" drive-through clearance handles RAM TRX, Hummer EV, Tesla Model X, Ford Mach-E, and other wide-bodied vehicles
- True 3-stage front and rear arms with 20" – 42" reach and double-telescoping screw pads
- Easier installation: only one concrete pour required, no bolster to drive over
- Fast operation: full rise in 41 seconds, ALI-certified for safety and reliability
Compare the EW10 vs EV10
Wondering how the EW1020 compares to the EV10 standard inground lift? We've put together a detailed comparison layout to help you make the right choice for your shop's needs.
Customization Options
The Challenger EW1020 is available in Black, Red, or Blue powder coat finishes, allowing you to match your shop's branding or aesthetic preferences. All finish options provide durable, corrosion-resistant protection for years of reliable service.
Product Features
- 3-Stage Front & Rear Arms
- No Bolster to Drive Over
- Easier install thanks to only needing one concrete pour instead of the current three
Product Specifications
Specifications
EW1020
Lift Capacity
10,000 lbs. (4536kg)
Capacity per Arm
2,500 lbs.
Arms
3-stage front/3-stage rear
Arm Reach
20" – 42"
Screw Pad Height
4" – 6.125"
Width Overall 118"
118"
Drive-Thru Clearance
88"
Rise Height
78"
Stroke
72"
Speed of Rise
41 seconds
Air Required
90 – 120 psi
Motor
2HP, 208v-230v, 60Hz, 1Ph
Available in Black, Red or Blue
Key Features
- Published product configuration: Challenger EW1020 Wide Inground ALI Car Lift 10,000 lb. Capacity The Challenger EW1020 is a professional-grade 10,000 lb. capacity ALI-certified inground hydraulic car lift engineered specifically for modern wide-bodied and electric vehicles. With an impressive 88" drive-through clearance, this lift handles vehicles
- Exact manufacturer model or part number: EW1020-V001
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 5 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 407ES-004899 |
| MPN / Model | EW1020-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model EW1020-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
