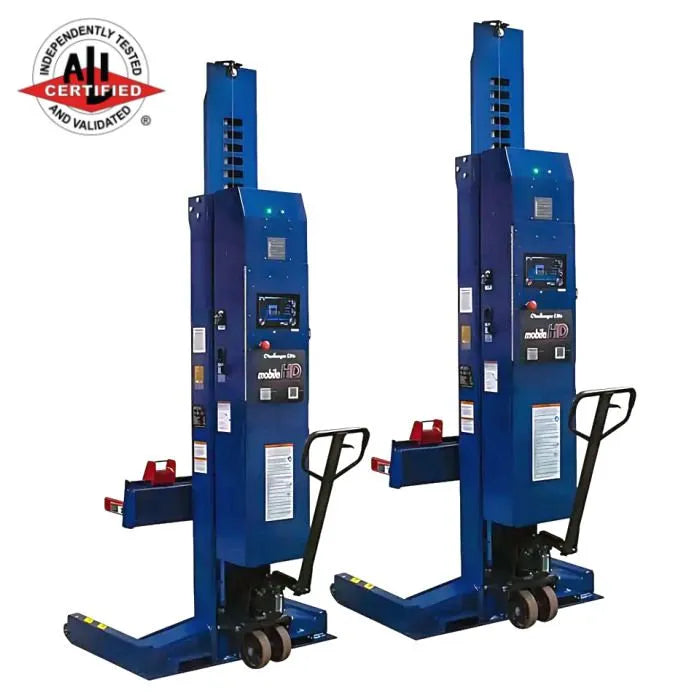

Challenger CLHM-140 ALI Mobile HD Column Lifts (Set of 2)
Transform your shop into a multi-bay lifting powerhouse with the Challenger CLHM-140 heavy-duty mobile column lift system. Engineered for professional automotive, fleet, and municipal service applications, this 2-column configuration delivers a combined 28,000 lbs. total lifting capacity (14,000 lbs. per column). Featuring wireless operation, an integrated 110V charging system, and a state-of-the-art Android-based 10" touch screen control console, the CLHM-140 brings unmatched mobility, precision, and safety to every lift. ALI/ETL certified, these robust mobile columns can be operated on almost any solid surface—indoors or outdoors—making them the ultimate solution for shops that demand versatility and performance.
Ultimate Mobile Lifting Flexibility
The Challenger CLHM-140 is a complete mobile lifting system designed to accommodate multiple lift bays with one lift set. Each robust yet easily maneuverable column operates independently and can be positioned precisely where you need it—on shop floors, paved outdoor areas, or any solid surface. The system's 12-volt deep cycle battery operation (providing 24V nominal power) eliminates the need for external power hookups during lifting operations, giving you true cable-free mobility throughout your facility.
The CLHM Series is available in 1, 2, 4, 6, and 8 column configurations with both 14,000 lb and 19,000 lb per column capacity options. With a 2-column CLHM-140 set, you achieve a maximum lift capacity of 28,000 lbs, handling everything from passenger cars to light commercial trucks. Expand to larger configurations for even heavier-duty applications—up to 152,000 lbs. total capacity with an 8-column 19,000 lb setup.
Integrated Battery & Intelligent Charging System
Each CLHM-140 column features a built-in 110-volt multi-stage charging system for continuous battery maintenance and peak performance. The integrated charger requires only 120 VAC @ 60 Hz and draws just 1.3 Amps, making installation and operation simple in any shop environment. A charging status light provides real-time battery updates, helping you plan your workload and manage battery life effectively.
Starting in May 2025, all Challenger CLHM lifts come equipped with AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. These advanced batteries offer superior durability, faster recharge times, and enhanced reliability compared to traditional batteries—and are backed by a 2-year free replacement warranty.
Cable-Free Wireless Operation
Say goodbye to tangled cables and trip hazards. The CLHM-140 wireless operation system provides a completely clutter-free work area with no cables to connect, navigate around, roll over, or replace. Each column communicates via 12 distinct radio frequencies with a wide channel range (100 to 120) for each frequency, ensuring reliable communication and eliminating interference from external radio noise or other shop equipment.
This wireless technology streamlines setup and operation while maximizing shop safety and efficiency. Technicians can move freely around the vehicle without obstruction, and there's no downtime due to damaged or worn cables.
Android-Based 10" Touch Screen Control Console
Take full command with the NEW Android-based 10" touch screen control console. This intuitive integrated interface provides easy-to-use control and precise measurements of lifting height and lifting weight per column in real time. Operators can monitor every aspect of the lift with a simple glance, ensuring safe and accurate positioning every time.
The console features:
- Internal CPU and fully functional web browser for easy access to online resources
- On-board training videos and manuals for instant technical support and operator training at your fingertips
- Clear, high-resolution display for maximum visibility in any lighting condition
This advanced control system reduces operator training time, minimizes errors, and keeps your team productive from day one.
Engineered for Safety & Performance
The Challenger CLHM-140 is built to meet the industry's most stringent safety standards. Each column is ALI/ETL certified, ensuring compliance with ALI Gold Label standards for maximum operator and vehicle protection.
Key Safety Features:
- Linear position transducers maintain system synchronization across all columns and ensure maximum reliability during lifting and lowering operations
- Integrated weight gauges help prevent column overloading by displaying real-time weight distribution per column and verify lock engagement for added confidence
- Hydraulic operation with a maximum operating pressure of 2,180 psi provides smooth, controlled lifting at 60" per minute (even at maximum load)
- Maximum lift height of 69 inches (when using 4 or more units) and 32 inches in 2-unit normal mode for quick undercarriage access
The precise balanced design and heavy-duty tow handle combined with spring-loaded wheels make moving and aligning individual lift units simple and easy with minimal effort. The compact turning radius of 47 inches allows maneuverability in tight spaces.
Adjustable & Versatile

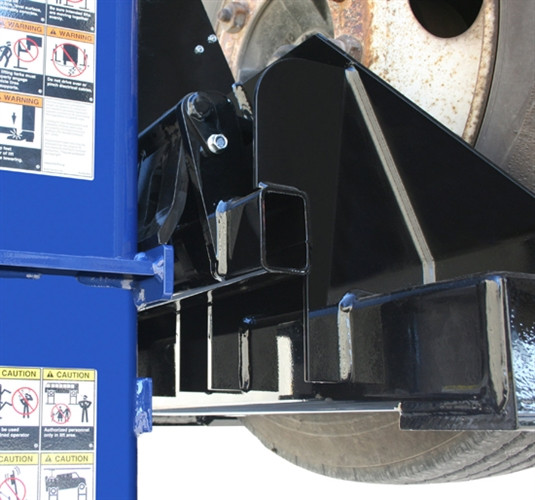

Each CLHM-140 column features adjustable wheel carriages that accommodate a wide range of wheel sizes—from 5" to 24.5" diameter (127 to 622 mm)—making this system compatible with passenger vehicles, light trucks, vans, and more. The columns measure 44.25" wide (C) by 53.625" long (D), with a footprint of 560 sq inches, providing a stable lifting platform without consuming excessive shop space.
At a weight of 1,485 lbs per column, the CLHM-140 is robust yet manageable. The ground pressure at maximum load is just 27.7 psi, minimizing stress on shop floors.
Key Highlights
- 14,000 lbs. lifting capacity per column 28,000 lbs. total for this 2-column set
- Wireless operation with 12 radio frequencies for interference-free communication
- Android-based 10" touch screen console with on-board training videos and manuals
- Integrated 110V charging system with real-time battery status indicators
- ALI/ETL certified meets stringent ALI Gold Label safety standards
Promotional Rebate Offer

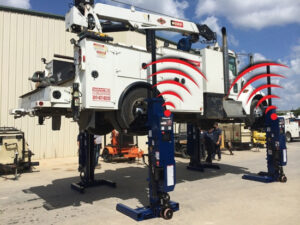

Watch these videos to see how the Challenger CLHM Series mobile column lifts deliver unmatched versatility and performance in real-world shop environments:
Additional Resources
Product Features
- Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.
- 110 volt built in multi-stage charging system
- Adjustable wheel carriages fits a range of wheels
- Integrated touch screen control console provides easy-to-use and precise operating.
- Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.
- Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation
- Meets stringent ALI Gold Label standards
- Safety Features
- Linear position transducers maintains system synchronization and ensures maximum reliability
- Integrated weight gauges help prevent column overloading and verifies lock engagement
- Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace
- Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty
Product Specifications
Model
CLHM-140
CLHM-190
CLHM-190W
Lift Capacity Per Column
14,000 lbs.
19,000 lbs.
A Height of Lift Unit
88.5" (2,248 mm)
B Height of Lift Unit at Full Rise
157.125" (3,991 mm)
C Width of Lift Unit
44.25" (1,124 mm)
49" (1,245 mm)
D Length of Lift Unit
53.625" (1,362 mm)
E Maximum Lift Height
(4 or more units)
69" (1,753 mm)
Maximum Lift Height
(2 units – Normal Mode)
32" (813 mm)
F Min-Max Wheel Diameter
5" – 24.5" (127 -622mm)
4" – Max det. by tire size
Max. Hydraulic System Operating Pressure
2,180 psi
2,600 psi
Lift Speed (Max Load)
60" per min. (1524 mm)
Weight of Lift Unit
1,485 lbs (674 kg)
1,500 lbs (685 kg)
1,565 lbs (714 kg)
Footprint of Lift Unit
560" 2 (3,613 sq cm)
600" 2 (3,870 sq cm)
Ground Pressure for Each Lift
(Max. Load)
27.7 psi
36.6 psi
34.3 psi
Turning Radius of Lift Unit
47" (1194 mm)
Operating Peak Power
4HP
Operating Voltage
24 VDC Nominal
25 VDC Nominal
26 VDC Nominal
Charger Voltage Required
120 VAC @ 60 Hz
Charger Amps Required
1.3 Amps
ALI/ETL Certified
Yes
*CLHM Series Wireless/Battery Operated Mobile Columns available in 1, 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.
1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.
Only Available in Blue
Key Features
- Published product configuration: Challenger CLHM-140 ALI Mobile HD Column Lifts (Set of 2) Transform your shop into a multi-bay lifting powerhouse with the Challenger CLHM-140 heavy-duty mobile column lift system. Engineered for professional automotive, fleet, and municipal service applications, this 2-column configuration delivers a combined 28,000
- Exact manufacturer model or part number: CLHM-140-2
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 3 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 407ES-004914 |
| MPN / Model | CLHM-140-2 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model CLHM-140-2, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
