Product Overview

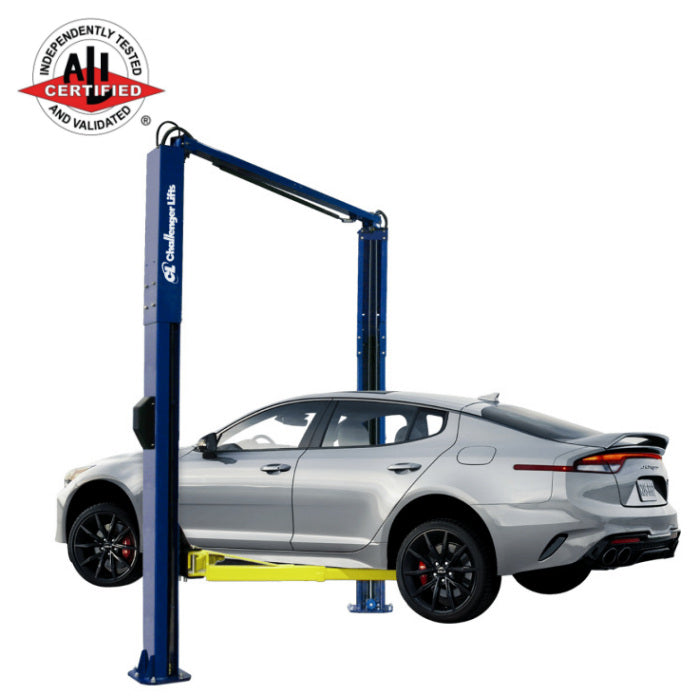

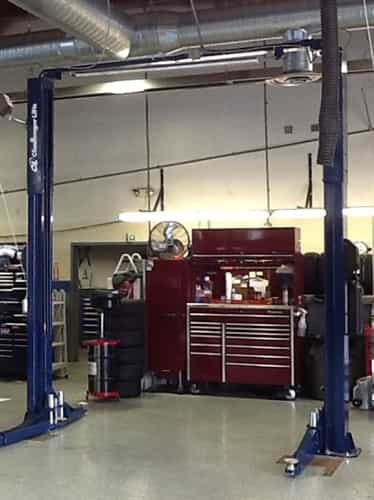

Challenger SA10 ALI-ETL Certified Symmetric or Asymmetric Two Post Car Lift 10,000
The Challenger SA10 is the ultimate 10,000 lb. capacity two post automotive lift designed for shops that demand maximum versatility without compromising safety or performance. ALI-ETL Certified and built to exceed industry standards, the SA10 is engineered to configure in both symmetric and asymmetric positions, giving your service bay the flexibility to handle everything from compact cars to full-size trucks and SUVs with ease.
What sets the SA10 apart is its 3-stage front arms that deliver exceptional extension and retraction range, ensuring safe and reliable lifting on virtually any vehicle within its rated capacity. Whether you're working on low-profile sedans, crossovers, or heavier truck chassis, this lift adapts to your workload. With its double telescoping screw pads, you can quickly adjust lift points to multiple heights, minimizing the need for additional adapters and saving valuable time on every job.
The SA10 is engineered for the rigorous demands of a full-service facility. Its adjustable height and width options accommodate varying service bay sizes, making it ideal for shops with space constraints or those planning future expansion. A premium powder coat finish in your choice of red or blue provides long-lasting durability and corrosion resistance, while plated arm restraints and pins inhibit rust and ensure years of dependable performance even in high-volume environments.
Safety is paramount. The SA10 features a padded overhead shut-off system to prevent vehicle damage and a single-point mechanical lock release that allows technicians to disengage both columns simultaneously for faster, safer operation. Wide rubber door guards protect customer vehicles from door dings, and rubber foot pads minimize stress on delicate undercoatings. These thoughtful details ensure that every lift is smooth, secure, and damage-free.
Why Shops Choose the Challenger SA10

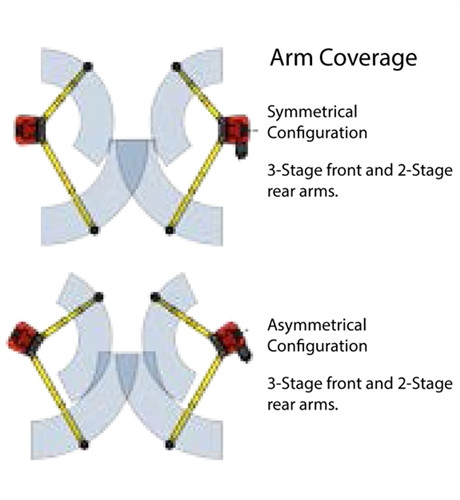

- Dual Configuration Flexibility: Switch between symmetric and asymmetric setups to match your service needs—perfect for shops that service a wide variety of vehicles.
- Extended Arm Reach: 3-stage front arms provide greater overall sweep, accommodating vehicles with difficult lift points or unique body designs.
- Fast 48-Second Rise Time: Powered by a 2HP single-phase motor, the SA10 gets vehicles in the air quickly, maximizing bay productivity.
- Adjustable for Your Bay: Variable height and width configurations mean you can install this lift in bays with ceiling heights as low as 12 feet, with optional 2-foot height extensions available.
- Built to Last: Mirrored "S" shaped columns, premium powder coat finish, and plated hardware deliver unmatched durability and longevity in demanding shop environments.
Optional Accessories to Maximize Productivity
Stack Adapter Extension Kit P/N 10315
Take your SA10 to the next level with the 10315 Stack Adapter Extension Kit, designed specifically for 10,000 lb. and 12,000 lb. two post and in-ground lifts. These drop-in style stack adapters help you reach pickup points on vehicles with running boards, side steps, or non-standard frame configurations.
Installation is simple: just remove the screw pad, drop in the stack adapter extension, and replace the screw pad to safely reach lifting points that would otherwise be difficult to access. The kit includes four 3-inch stack extensions, two 6-inch stack extensions, and two organizer racks with mounting hardware. The organizer racks mount directly to the lift columns, keeping adapters within arm's reach and your work area clutter-free.
The 10315 kit works seamlessly with all Challenger two post automotive lifts, giving you the versatility to service trucks, SUVs, and specialty vehicles with confidence.
Important: Frame engaging adapters ( P/N 10314 or 10318 ) are REQUIRED when lifting vehicles with frame construction.
These adapters ensure safe, secure contact with vehicle frame rails and are essential for trucks, body-on-frame SUVs, and commercial vehicles.
Backed by Challenger Quality and Support
All Challenger two post lifts are designed and manufactured to the highest standards for performance, durability, and longevity. When you invest in a Challenger SA10, you're not just getting a lift—you're getting a complete productivity center backed by decades of engineering excellence and a commitment to safety.
Available in your choice of red or blue powder coat finish, the SA10 fits seamlessly into any professional shop environment while delivering the rugged reliability you need day in and day out.
Product Features

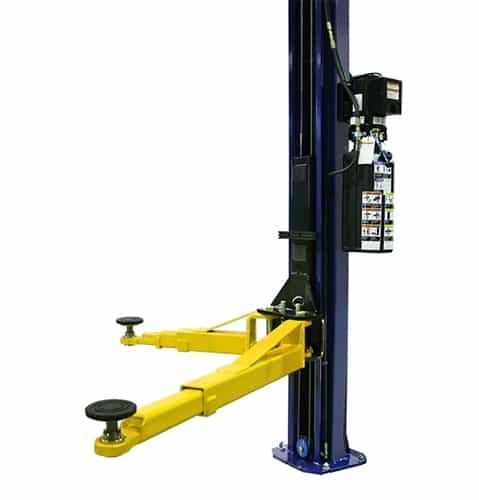

- 3-stage front arms provide greater overall arm sweep
- Set up in a symmetric or asymmetric configuration
- Adjustable height and width options accommodate varying service bay sizes
- Double Telescoping Screw Pads adjust to multiple heights minimizing the need for adapters
- Rubber foot pads minimize stress to vehicles with delicate undercoatings

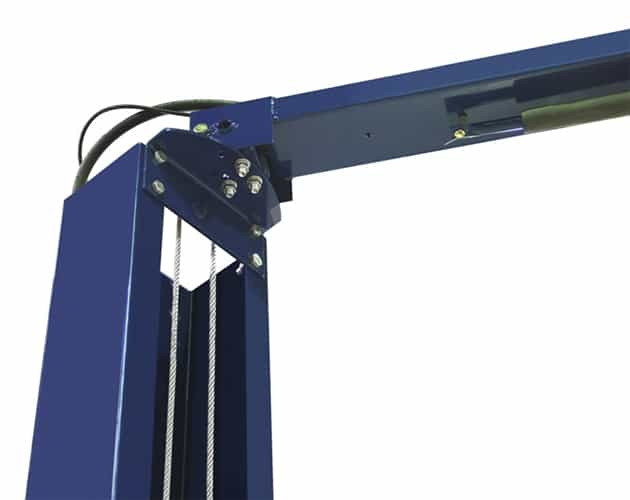

- Padded overhead shut off system prevents vehicle damage
- Single-point mechanical lock release system allows technician to disengage both columns simultaneously

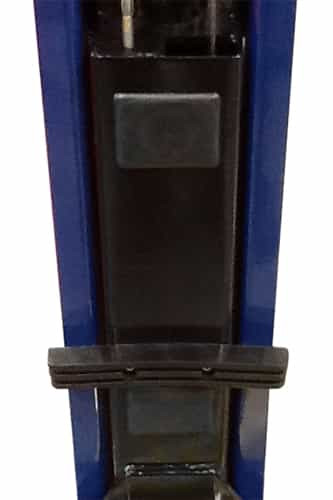

- Wide rubber door guards protects vehicle from door damage
- Premium powder coat finish provides long-lasting durability
- Plated Arm Restraints and Arm Pins inhibit rust and provide long-lasting durability
- Mirrored “S” shaped column
Product Specifications
Model Number
SA10
Lift Configuration
Symmetric Configuration
Asymmetric Configuration
Lift Capacity*
10,000 lbs. (4536kg)
A – Rise Height 1
74.5" (1892mm)
B – Overall Height
136.5”
C – Overall Height (Cylinder Extended)
142.5"
2’ Height Extension Available
Yes
D – Overall Width
129” / 135”
131.5” / 137.5”
E – Drive-Thru Clearance
92.75” / 98.75”
88.5” / 94.5”
F – Floor to Overhead Switch
131.125” / 137.125”
G – Short Arm Reach
22.375” / 41.5”
H – Long Arm Reach 2 (min/max)
38.25” / 59”
I – Screw Pad Height
4.75” / 6.875”
J – Inside of Columns
106.75” / 112.75”
101.5” / 107.5”
Motor
2HP, Single Phase, 60Hz
Voltage
208v – 230v
Speed of Rise
48 seconds
Max. Load per Arm
2,500 lbs. (1134kg)
Ceiling Height Required
12 (3658mm)
*Lift capacity ratings are based on loads equally distributed on all four arms.
- Rise Height is measured with telescoping screw pads in highest position.
- Specifications are listed without rubber pad, for measurements with rubber pad add 1/4" (6mm)
- Overall width of Asymmetric lift is 11' 3"' / 11' 9" including power unit
Frame engaging adapters ( 10314 or 10318 ) are REQUIRED when lifting vehicles with frame construction
Key Features
- Published product configuration: Challenger SA10 ALI-ETL Certified Symmetric or Asymmetric Two Post Car Lift 10,000 The Challenger SA10 is the ultimate 10,000 lb. capacity two post automotive lift designed for shops that demand maximum versatility without compromising safety or performance. ALI-ETL Certified and built to exceed industry standards, the
- Exact manufacturer model or part number: SA10-V001
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 407ES-004764 |
| MPN / Model | SA10-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model SA10-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
