Challenger 44050E HD Chain-Driven Ex-Length 4-Post Lift 50,000 lb – New Black Color

Product Overview

Challenger 44050E HD Chain-Driven Ex-Length 4-Post Truck Lift 50,000 lb Capacity – New Black Color

Engineered for Heavy Commercial and Transit Vehicles

The Challenger 44050E is a premium 50,000 lb. capacity 4-post truck lift designed specifically for heavy commercial trucks, waste trucks, construction vehicles, and transit buses. With its extended 41-foot overall length, this chain-driven lift provides an economical yet highly reliable solution for shops that service large-axle vehicles with varying weight distributions. The innovative variable-synchro power system with dual hydraulic lift cylinders allows technicians to independently raise the front or rear suspension—or both simultaneously—making it ideal for vehicles with heavier front or rear axles.

Built with heavy-duty, high tensile strength leaf chain and sealed roller bearings, the 44050E delivers maximum reliability and long-term durability in demanding commercial environments. The lift features diamond plate anti-skid runways and heavy-duty fixed approach ramps for positive vehicle traction, along with adjustable runways that accommodate a variety of tread and axle widths. A built-in runway rail system supports optional accessories like rolling jacks and sliding drain pans, adding versatility to your service operations.

Safety and convenience are paramount with the velocity fused redundant hydraulic safety system, 10-level twin ladder lock positions providing comfortable working heights, and a single point air actuated lock release system that allows technicians to disengage all column locks simultaneously. With a 73-inch rise height and 75-second speed of rise, this lift provides fast, efficient service access. Now available in an attractive new black color, the Challenger 44050E combines industrial strength with a modern, professional appearance.

Key Selling Points

• 50,000 lb. lifting capacity handles heavy commercial trucks, waste trucks, and transit vehicles with ease

• 41-foot overall length (Extended model) with a 370-inch maximum wheelbase accommodates long vehicles

• Variable-synchro power system with dual hydraulic lift cylinders allows independent control of front or rear suspension for uneven weight distribution

• Heavy-duty leaf chain and sealed roller bearings deliver maximum reliability and long service life

• Velocity fused redundant hydraulic safety system and single point air lock release ensure operator safety and convenience

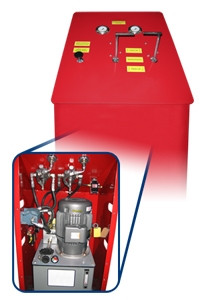

Independent Control Console

The independent control console is mounted away from the hydraulic lift for safe, convenient access to all power controls. The console features the variable-synchro power system, which allows operators to raise and lower the front or rear suspension either simultaneously or independently—perfect for vehicles with heavier front or rear ends. Dual pressure gauges provide real-time feedback on hydraulic pressure at both ends of the lift, and the single point air lock release button enables technicians to disengage all column locks at once for faster, safer operation.

Anti-Skid Diamond Plate Ramps

Diamond plate anti-skid runways and ramps are bolted down for safe, easy drive-on access. The textured surface provides positive vehicle traction, preventing slippage during vehicle loading and unloading. These heavy-duty fixed approach ramps are built for long-lasting durability in demanding commercial shop environments. The 32-inch wide runways and adjustable runway positioning accommodate a wide variety of tread widths, from 36 inches to 58 inches between runways, giving you the flexibility to service everything from delivery trucks to large transit buses.

Twin Ladder Lock Positions

The 10-level twin ladder lock positions provide a comfortable working height for a variety of service work on many different vehicle types. Whether you're performing routine maintenance, brake service, exhaust work, or heavy drivetrain repairs, you can position the vehicle at the optimal height for ergonomic access. The 73-inch rise height offers ample clearance for undercarriage work, and the robust ladder lock mechanism ensures the lift remains securely locked at the selected height. Combined with the velocity fused redundant hydraulic safety system, these locks provide multiple layers of protection for technicians working beneath the vehicle.

Product Features

• 40,000 – 60,000 lb. lifting capacity for heavy commercial truck and transit vehicles

• Heavy duty, high tensile strength leaf chain and sealed roller bearings for maximum reliability

• Variable-synchro power system with dual hydraulic
lift cylinders provide the ability to variably or
simultaneously raise the front or rear lift suspension,
providing a stable platform when lifting
vehicles with heavier front or rear axles

• Velocity fused redundant hydraulic safety system

• Single point air actuated lock release system allows technician to disengage all column locks simultaneously

• Diamond plate anti-skid runways and heavy duty fixed approach ramps for positive vehicle traction and long lasting durability

• Adjustable runways accommodate a variety of tread and axle widths

• Built-in runway rail system for optional convenience accessories like rolling jacks and sliding drain pan

Product Specifications

Model Number

44050
44050E
44050X

Lift Capacity

50,000 lbs.

A Overall Length

36'

41'

46'

B Overall Width

17' 1-1/4"

C Inside Columns

144"

D Between Columns

290"

350"

410"

E Overall Height

92"

F Height of Runways

14"

G Width of Runways

32"

H Width Between Runways

36" – 58"

I Maximum Wheelbase

310"

370"

430"

J Rise Height

73"

Motor

15P

Voltage

230v – 460v 3 Phase

Speed of Rise

75 seconds

Amps

30

Available in Black Only

Key Features

• Published product configuration: Challenger 44050E HD Chain-Driven Ex-Length 4-Post Truck Lift 50,000 lb Capacity – New Black Color Engineered for Heavy Commercial and Transit Vehicles The Challenger 44050E is a premium 50,000 lb. capacity 4-post truck lift designed specifically for heavy commercial trucks, waste trucks, construction vehicles, and
• Exact manufacturer model or part number: 44050E
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 44050E, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
