Product Overview

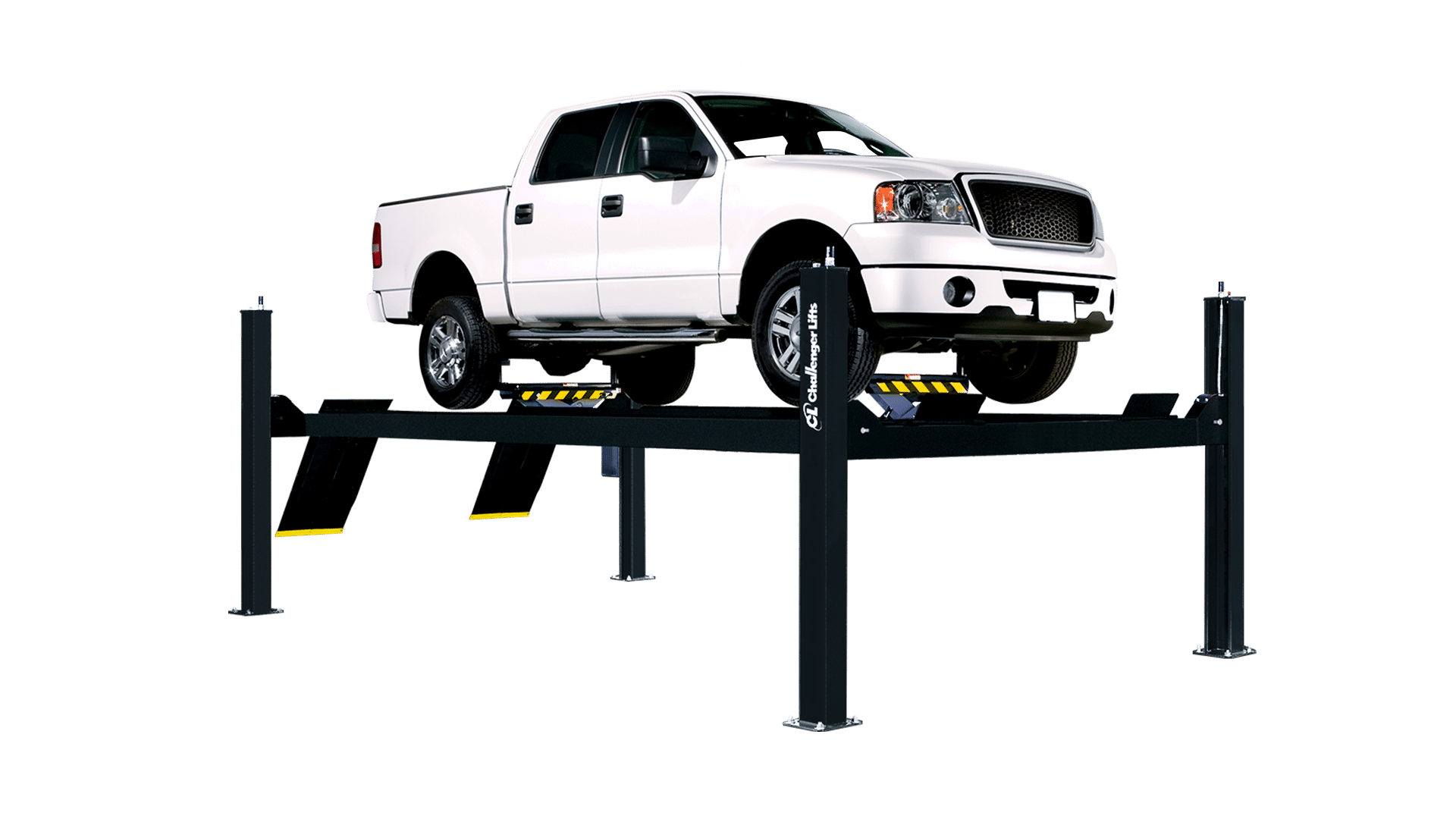

Challenger 44040E HD Ex-Length Chain Driven 4-Post Truck Lift 40,000 lb – New Black Color
The Challenger 44040E heavy-duty four-post truck lift delivers professional-grade performance with a massive 40,000 lb. capacity, purpose-built for servicing commercial trucks, transit vehicles, waste haulers, and heavy construction equipment. Engineered with extended 41-foot overall length, this lift accommodates vehicles with wheelbases up to 370 inches, making it the ideal solution for shops specializing in larger commercial fleet service. Now available in a sleek new black finish, the 44040E combines industrial strength with modern aesthetics.
At the heart of this lift's unmatched reliability is the heavy-duty high tensile strength leaf chain and sealed roller bearings, engineered to handle demanding daily use while minimizing maintenance requirements. The innovative variable-synchro power system features dual hydraulic lift cylinders with independent lever controls, allowing technicians to raise the front or rear suspension simultaneously or independently—essential for safely lifting vehicles with unbalanced weight distribution such as dump trucks, crane trucks, and other heavy front or rear axle vehicles.
Superior Safety and Control Systems
Safety is paramount with the Challenger 44040E. The lift is equipped with a velocity fused redundant hydraulic safety system that provides multiple layers of protection during operation. The single point air actuated lock release system allows technicians to disengage all column locks simultaneously with the push of a button, streamlining workflow and enhancing safety by eliminating the need to manually release individual locks.
The 10-level twin ladder lock positions provide versatile working heights across a 73-inch rise height, ensuring technicians can achieve comfortable access for a wide range of service procedures—from undercarriage inspections to transmission work and exhaust system repairs. Each lock position is robust and secure, providing confidence when working beneath heavy commercial vehicles.
Independent Control Console
The independent control console is mounted away from the hydraulic lift unit, providing safe and convenient access to all power controls. This professional-grade console features the variable-synchro power system controls to raise and lower the front or rear suspension either simultaneously or independently, dual precision pressure gauges for monitoring system performance, and the single point air lock release button for effortless operation.
This separate console design allows operators to maintain clear sight lines and safe positioning during lifting operations, while the intuitive control layout ensures quick, confident operation even during high-volume service days.
Heavy-Duty Runways and Drive-On Design
The diamond plate anti-skid runways and heavy-duty fixed approach ramps are engineered for positive vehicle traction and long-lasting durability. The ramps are securely bolted down to ensure safe and easy drive-on operation, even with fully loaded commercial trucks. The diamond plate surface provides superior grip in all weather conditions, reducing the risk of slippage during vehicle positioning.
The adjustable runways accommodate a variety of vehicle track widths, with spacing adjustable from 36 to 58 inches between runways. Each runway measures 32 inches wide and sits at a 14-inch height, providing ample clearance for low-profile components while maintaining easy drive-on access. The 144-inch inside column spacing ensures compatibility with wide-track commercial vehicles.
Twin Ladder Lock Positions
The 10-level twin ladder lock positions provide exceptional versatility, allowing technicians to select the optimal working height for any service procedure. Whether performing quick inspections or extensive repairs, these precisely engineered lock positions deliver a comfortable and safe working height across a wide range of vehicle types and service requirements.
Each lock engages positively and securely, providing peace of mind when working beneath vehicles weighing up to 20 tons. The twin ladder design ensures balanced support and redundant safety across the entire lifting platform.
Built-In Convenience Features
The built-in runway rail system provides seamless integration with optional convenience accessories such as rolling jacks and sliding oil drain pans. This integrated rail system keeps your workspace organized and allows technicians to position tools and equipment exactly where needed along the full length of the vehicle, dramatically improving workflow efficiency during complex service procedures.
With a 10HP motor and rapid 70-second rise time, the 44040E minimizes vehicle lift time, maximizing bay productivity. The lift operates on 3-phase power (230v-460v) at 30 amps, making it compatible with most commercial shop electrical systems.
Key Performance Highlights
- 40,000 lb. capacity for heavy commercial trucks and transit vehicles
- Extended 41-foot overall length accommodates wheelbases up to 370 inches
- Variable-synchro power system with dual hydraulic cylinders for independent front/rear control
- Velocity fused redundant hydraulic safety system and single point air lock release
- Heavy-duty leaf chain and sealed roller bearings for maximum reliability and minimal maintenance
Product Features
- 40,000 lifting capacity for heavy commercial truck and transit vehicles
- Heavy duty, high tensile strength leaf chain and sealed roller bearings for maximum reliability
- Variable-synchro power system with dual hydraulic lift cylinders provide the ability to variably or simultaneously raise the front or rear lift suspension, providing a stable platform when lifting vehicles with heavier front or rear axles
- Velocity fused redundant hydraulic safety system
- Single point air actuated lock release system allows technician to disengage all column locks simultaneously
- Diamond plate anti-skid runways and heavy duty fixed approach ramps for positive vehicle traction and long lasting durability
- Adjustable runways accommodate a variety of tread and axle widths
- Built-in runway rail system for optional convenience accessories like rolling jacks and sliding oil drain pan
Product Specifications
Model Number
44040
44040E
44040X
Lift Capacity
40,000 lbs.
A Overall Length
36'
41'
46'
B Overall Width
17' 1-1/4"
C Inside Columns
144"
D Between Columns
290"
350"
410"
E Overall Height
92"
F Height of Runways
14"
G Width of Runways
32"
H Width Between Runways
36" – 58"
I Maximum Wheelbase
310"
370"
430"
J Rise Height
73"
Motor
10HP
Voltage 3 Phase
230v – 460v
Speed of Rise
70 seconds
Amps
30
Shipping Weight
12050 lbs.
(5466 kg)
13050 lbs.
(5919 kg)
14525 lbs.
(6588 kg)
Available in Black Only
Key Features
- Published product configuration: Challenger 44040E HD Ex-Length Chain Driven 4-Post Truck Lift 40,000 lb – New Black Color The Challenger 44040E heavy-duty four-post truck lift delivers professional-grade performance with a massive 40,000 lb. capacity, purpose-built for servicing commercial trucks, transit vehicles, waste haulers, and heavy
- Exact manufacturer model or part number: 44040E
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 407ES-004965 |
| MPN / Model | 44040E |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model 44040E, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
