Product Overview

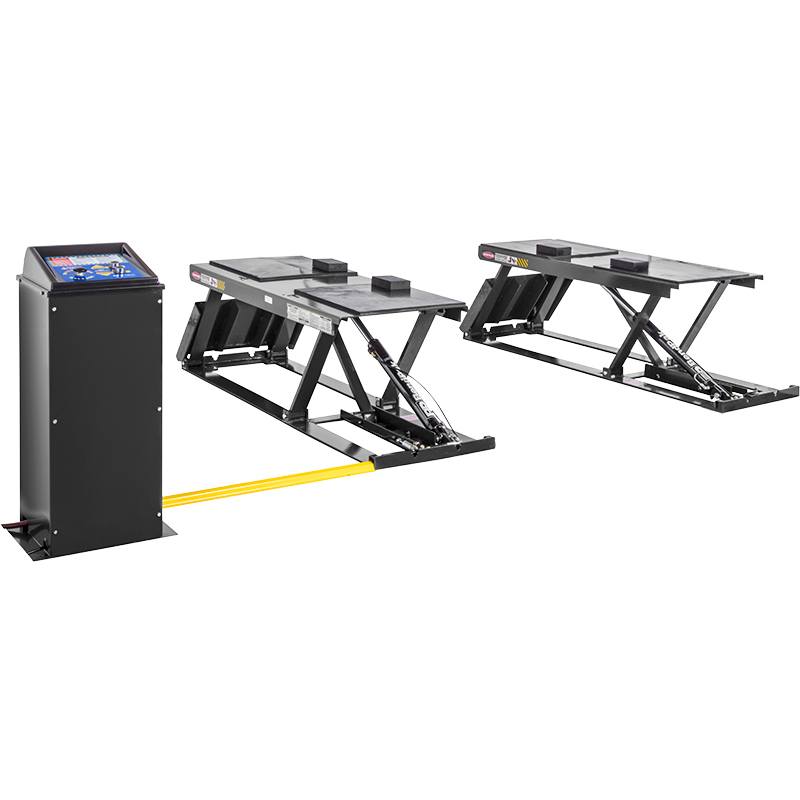

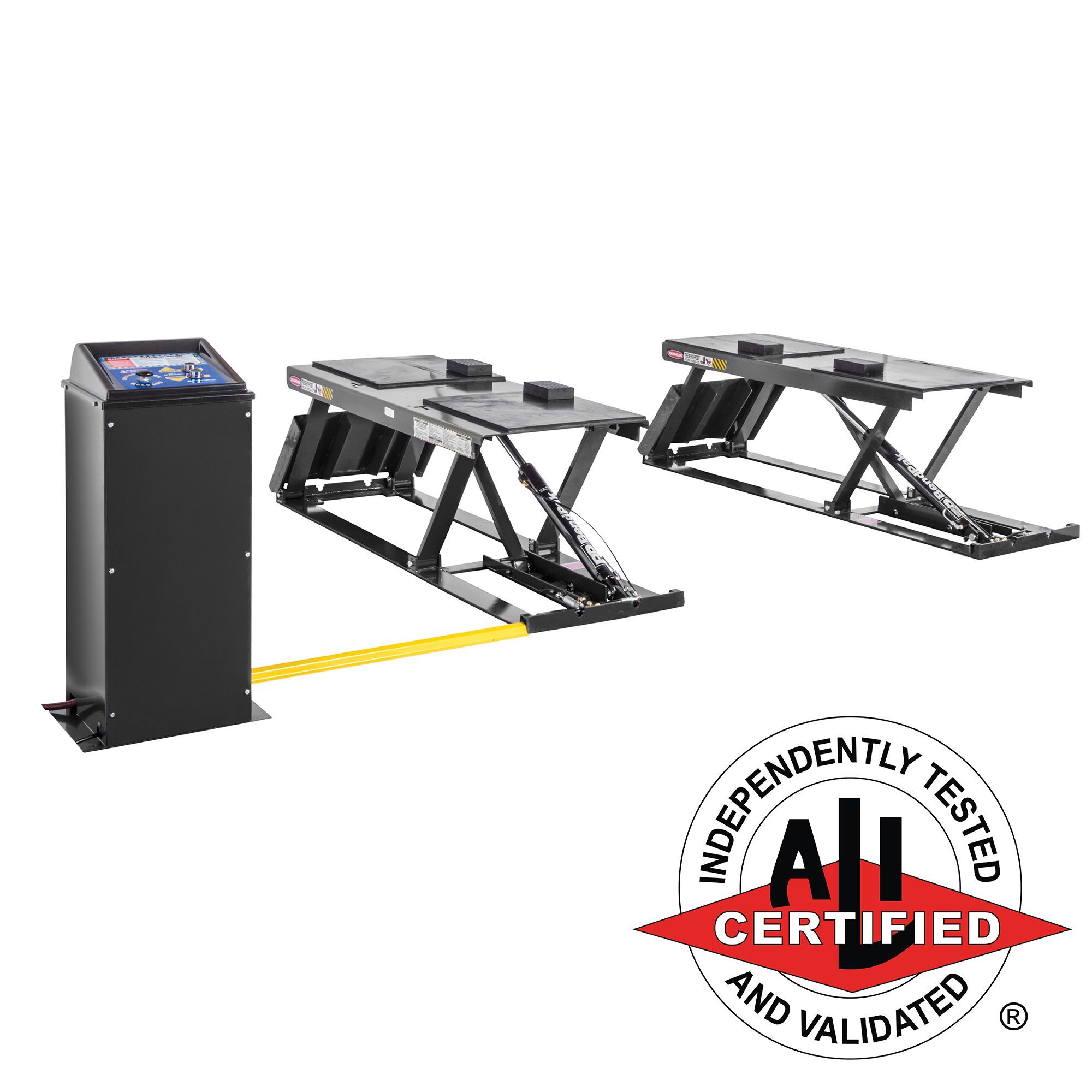

BendPak P9000LTF Low-Rise, Open-Center Pit-Style, Flush-Mount Car ALI Lift 9,000 lb.
The BendPak P9000LTF is a professional-grade, flush-mount, low-rise pit lift engineered for shops that demand serious lifting power without sacrificing valuable floor space. With a robust 9,000-lb. capacity, this ALI-certified lift transforms fast-lube pits into full-service wheel and brake bays, delivering maximum versatility in a zero-footprint design. Whether you're servicing passenger cars, high-stance trucks, or large SUVs, the P9000LTF offers the strength, safety, and adaptability to handle virtually any vehicle that rolls into your shop. Built with reinforced lifting arms, a dual-pump power unit, and pneumatic safety locks, this lift is engineered for efficiency, reliability, and years of heavy-duty performance.
Massive Power and Zero Footprint
The P-9000LTF is BendPak's premier 9,000-lb. flush-mount pit lift, taking the proven design of the P-6BF and amplifying its lifting power to meet the demands of today's heavier vehicles. No matter what you're working on—compact cars, mid-size sedans, full-size trucks, or high-stance SUVs—BendPak has the capability to lift it safely and efficiently. With the optional arm extension kit and truck adapter set, even the tallest trucks and SUVs can be serviced with ease, providing the clearance and reach needed for challenging lift point spreads and varied vehicle frames.
The P-9000LTF enables shops to run faster and earn more by converting underutilized fast-lube pits into highly productive wheel service and brake work bays. A host of clever engineering features and standard components ensure this car lift will deliver many years of valuable, dependable service in even the busiest professional environments.
Pneumatic Lock Release for Superior Safety
While other brands still rely on outdated spring-release mechanisms, the P-9000LTF utilizes advanced pneumatic lock release technology. Traditional springs are less effective for low-rise lift styles and eventually require maintenance—an issue compounded in flush-mounted installations where springs remain hidden and harder to inspect unless actively lifting vehicles. BendPak's air cylinder system is extraordinarily safe, requires virtually no maintenance, and operates reliably with just a simple 50 psi charge every once in a while. This modern approach ensures consistent, dependable safety performance over the long haul.
Low-Profile, Flush-Mount Design
When flush-mounted, the zero-footprint P-9000LTF virtually disappears into your shop floor. This innovative design takes up less space in your facility, permitting easier movement around tight work areas and maximizing usable shop real estate. The lift mounts flush against the concrete, creating a seamless, drive-over surface when lowered. This recessed installation means technicians can move freely around the bay without navigating around protruding lift equipment, streamlining workflow and enhancing overall shop efficiency.
Rugged Steel Channel Frame Built to Last
Everything about this lift is heavy-duty. The P-9000LTF features a rugged steel channel frame with super-wide construction designed to handle any size vehicle frame with confidence. The steel components are finished with a premium powder-coat finish applied through a rigorous 10-step process, ensuring the very best in quality, corrosion resistance, and long-term durability. The steel itself, combined with BendPak's superior finish, makes your lift as reliable as any lift ever made—ready to stand up to the demands of daily professional use for years to come.
Solid Rubber Lift Blocks and Durable Contact Pads
BendPak doesn't compromise when it comes to contact point reliability. Every P-9000LTF comes standard with durable rubber-topped pad surfaces and solid rubber lift blocks engineered for quick, secure vehicle setup. These aren't flimsy contact pads that tear or wear out prematurely, costing you more down the road. BendPak's hard rubber blocks are built tougher than the competition, sitting squarely on the lift's frame and even adding a few extra inches to your lift's overall height capability. This rugged construction ensures long-lasting performance and peace of mind with every lift cycle.
Optional Arm Extensions for Trucks and SUVs
Trucks, SUVs, and other long-wheelbase vehicles often require more than standard rubber blocks to achieve adequate lift point clearance. That's why BendPak offers an enhanced adjustable lifting arm set as an optional upgrade. This arm kit provides offset lifting capability and additional height to handle everything from compact cars to full-size pickup trucks and high-clearance SUVs. With these optional arms installed, the P-9000LTF becomes even more versatile, ensuring you can service any vehicle that rolls your way with confidence and ease.
Powerful Electric-Hydraulic Power Unit
At the heart of the P-9000LTF is a heavy-duty 1.5 HP electric-hydraulic power unit paired with a dual-pump system featuring a built-in proportioning valve. This robust motor configuration delivers smooth, consistent lifting performance with a full rise time of just 55 seconds. Electronic push-button controls allow for smooth, single-hand operation, giving technicians precise command over lift movements. The power unit is built for reliability and longevity, ensuring dependable service lift after lift, day after day.
Automatic Multi-Position Safety Locks
Safety is paramount in any shop environment, and the P-9000LTF is equipped with automatic multi-position safety locks with air release for safe, remote operation. These locks engage at multiple locking heights 15", 19", 21.5", and 23.5" plus a fully lowered position at 4" and full rise at 24". This multi-lock system provides flexible working heights and redundant mechanical safety, giving you and your team peace of mind every time you lift a vehicle.
Key Highlights
- 9,000-lb. lifting capacity handles a wide range of vehicles from cars to trucks and SUVs
- Flush-mount, zero-footprint design recessed installation keeps your shop floor clear and maximizes workspace
- Reinforced parallel lifting arms and upper lift platform engineered to better support inboard loading and heavy vehicle frames
- Dual-pump power unit with built-in proportioning valve delivers smooth, controlled lifting with a 55-second full rise time
- Pneumatic safety locks with air release modern, low-maintenance safety system for reliable, remote lock operation
- ALI-certified meets industry safety and performance standards for professional vehicle lifts
- Optional adjustable lifting arms extend versatility for trucks, SUVs, and long-wheelbase vehicles
Detailed Instructions and Support
The P-9000LTF comes with extremely detailed and easy-to-read installation and operation instructions. Safety decals and stick-on labels are included with every lift and can be replaced at any time by contacting BendPak directly. BendPak stands behind their products with comprehensive documentation, ensuring you have all the information you need for safe installation, operation, and long-term maintenance.
Product Features
- 9,000-lb. lifting capacity
- Reinforced parallel lifting arms to better support inboard loading
- Reinforced upper lift platform to better support inboard loading
- Dual-pump power unit with built in proportioning valve
- Easily convert fast-lube pits into wheel service work bays
- Mounts outside the pit rail without interfering with center work area
- Model P-9000LTF flush-mount model provides recessed drive-over option
- Heavy duty 1.5 HP electric-hydraulic power unit
- Electronic push-button controls allow smooth, single-hand operation
- Automatic multi-position safety locks with air release deliver safe, remote operation
- Powder-coat finish
- Durable rubber-topped pad surface and rubber lift blocks provide quick set-up
- Enhanced adjustable (optional) lifting arms
Product Specifications
Model
P-9000LT
P-9000LTF
Style
Low-Rise
Low-Rise Flush Mount
Capacity
Lifting Capacity:
9,000 lbs. (4,082 kg)
Rise
Max Lifting Height
24” (610 mm)
Max Lift Height + Blocks
27” (686 mm)
Time to Full Rise
55 seconds
Outside Dimensions
Overall Length
124.6” (3,165 mm)
74.4” (1,890 mm)
Overall Lift Platform Length
58.5” (1,484 mm)
Overall Lift Platform Width
24” (610 mm)
Lowered Height
4” (102 mm)
4" (102 mm)
Locking Heights
Fully Lowered
4" (102 mm)
1st Lock
15" (381 mm)
2nd Lock
19" (483 mm)
3rd Lock
21.5" (546 mm)
4th Lock
23.5" (597 mm)
Full Rise
24" (610 mm)
Power Unit
Motor
1.5 HP / 208-230 VAC / 60 Hz / 1 Ph
Shipping
Weight
1,502-lbs. (681 kg)
1,134-lbs. (514 kg)
Dimensions
77" x 40" x 24"
(1,943 mm x 1,016 mm x 609 mm)
77" x 60" x 24"
(1,943 mm x 1,534 mm x 609 mm)
Key Features
- Published product configuration: BendPak P9000LTF Low-Rise, Open-Center Pit-Style, Flush-Mount Car ALI Lift 9,000 lb. The BendPak P9000LTF is a professional-grade, flush-mount, low-rise pit lift engineered for shops that demand serious lifting power without sacrificing valuable floor space. With a robust 9,000-lb. capacity, this ALI-certified lift
- Exact manufacturer model or part number: 5175155
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 407ES-004790 |
| MPN / Model | 5175155 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model 5175155, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
