QuickJack™ 6000TLX Extended-Length Portable 6,000 lbs Car Lift Bundle

Product Overview

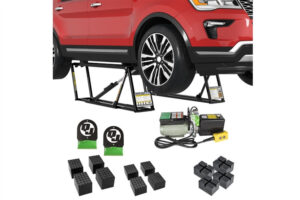

QuickJack™ 6000TLX Extended-Length Portable 6,000 lbs Car Lift Bundle

The QuickJack 6000TLX Bundle is the ultimate complete lifting package for longer-wheelbase vehicles, garage organization, and delicate unibody protection—now with bundled savings included. This kit includes the 6000TLX extended-length portable car lift with a massive 6,000 lbs capacity, a wall hanger set for space-saving vertical storage, and pinch-weld blocks for safe, secure contact with factory lift points on unibody vehicles. It's everything you need to lift, protect, and store your equipment with confidence and convenience.

6000TLX Portable Car Lift – Extended Reach & Heavy-Duty Performance

QuickJack developed the 6000TLX to solve a critical problem: lifting vehicles with wide lift point spreads that standard portable lifts simply can't reach. With an impressive 66-inch maximum lift point spread and a 76-inch frame length, the 6000TLX is ideal for long-wheelbase sedans, SUVs, crossovers, and light-duty trucks. This extended reach ensures secure, stable lifting across a wider variety of vehicles—without compromising safety or performance.

The system features upgraded structural reinforcements, including thicker cross members, improved weld geometry, and reinforced pivot joints that deliver increased rigidity under heavy loads. The newly redesigned hydraulic power unit includes a pressure-compensated flow divider and independent shut-off solenoids, ensuring synchronized, balanced lifting and lowering every single time—even if you stop mid-cycle.

Despite its extra length and strength, the 6000TLX still collapses to a low profile of just 3.5 inches tall when paired with the included 2-inch rubber lift blocks. This allows for easy clearance under low-slung vehicles and makes storage simple and compact. Setup takes just minutes with the factory-preassembled hydraulics, and full-height lifting happens in approximately 30 seconds using the convenient one-handed pendant control. The dual-position automatic safety locks engage securely at both mid-rise and full-rise heights for complete peace of mind.

The 6000TLX also features urethane wheels on each frame, making it easy to roll and reposition the lift in tight garage spaces or load it into a vehicle for mobile service work. It's the perfect combination of portability, power, and professional-grade lifting performance.

Wall Hangers Set – Save Space & Stay Organized

Keep your lift organized, accessible, and out of the way with the included Wall Hangers Set. These solid-steel hangers feature a durable powder-coated black finish and a laser-cut QuickJack logo. Rated at 150% above maximum load capacity, they're built for safe, long-term vertical storage of your QuickJack frames.

Each set includes two hangers designed to mount directly into wall studs, providing secure support for vertical frame storage. For best results, install the hangers at equal height and high enough so that the frame bottoms rest lightly on the floor. This reduces strain during lifting and hanging, and it frees up valuable garage floor space for vehicles, tools, or other equipment.

The wall hangers are universal-fit and compatible with all QuickJack models, making them a smart long-term investment for any garage setup.

Pinch-Weld Blocks Set – Protect Delicate Lift Points

This bundle includes QuickJack's premium Pinch-Weld Blocks ideal for unibody vehicles with factory pinch-weld lift points. The cross-slotted urethane pads cradle the vehicle's pinch welds securely and evenly, reducing the risk of bending, crushing, or damaging delicate body rails during the lift. These blocks are especially important for older vehicles, low-clearance sports cars, or any vehicle with corroded or fragile pinch welds.

Made from durable, single-piece urethane construction, the blocks are resistant to oil, water, chemicals, and road grime, ensuring a long service life even in harsh garage environments. They can be positioned lengthwise or crosswise in your lift trays for a secure, stable connection. Each set includes four blocks enough for all four lift points on your vehicle.

Stop improvising with wood blocks, hockey pucks, or makeshift pads. These purpose-built jack pads give you peace of mind, vehicle protection, and professional-grade results every time you lift.

Key Highlights

• 6,000 lbs lifting capacity with extended 76-inch frame length and 66-inch maximum lift point spread

• 24-inch maximum lift height for increased clearance and access to undercarriage components

• Factory-preassembled hydraulics with pressure-compensated flow divider for perfectly synchronized lifting and lowering

• Dual-position automatic safety locks engage at mid-rise and full-rise for secure, hands-free support

• Complete bundle includes: 6000TLX lift system, wall hanger set, and pinch-weld blocks—everything you need in one package

• Low-profile design collapses to 3.5 inches with 2-inch blocks for easy positioning under most vehicles

• Portable and mobile urethane wheels allow easy rolling, repositioning, and storage

• One-handed pendant control for effortless operation and fast 30-second full-rise time

• ALI-certified and validated for safety and quality assurance

Watch It In Action

What's Included in This Bundle

Box 1 – Left Frame Assembly

• 6000TLX Left Frame Assembly

• 1x Short hydraulic hose

• 1x Frame-positioning handle

Box 2 – Right Frame Assembly

• 6000TLX Right Frame Assembly

• 1x Short hydraulic hose

• 1x Frame-positioning handle

Box 3 – Power Unit & Accessories

• 1x Hydraulic power unit with pendant control

• 4x Medium rubber lift blocks (2")

• 4x Tall rubber lift blocks (3")

• 2x Long hydraulic hoses

• Setup and instruction manual

• ALI-certified manuals: "Lifting It Right" Safety Manual, Lifting Points Quick Reference Guide, and Safety Tips Cards

Box 4 – Pinch-Weld Blocks

• 4x Pinch-Weld Blocks

Box 5 – Wall Hanger Set

• 2x Wall Hangers

Requirements

• 3 liters of Automatic Transmission Fluid (ATF) for hydraulic system operation

• Air source to inflate air cylinders up to 50 PSI

• Basic assembly tools (all hydraulic hose fittings come pre-assembled from the factory)

Note: All hydraulic hose fittings come pre-assembled from the factory for fast, hassle-free setup.

Bundle Benefits

• Save compared to purchasing items separately get the lift, storage solution, and pinch-weld protection in one complete package

• All-in-one solution for lifting, storage, and safe unibody support—no guesswork or additional purchases required

• Perfect for home garages, detailing shops, and light-duty service work professional results without the cost or footprint of a full-size lift

• Ready to lift right out of the box with factory-preassembled hydraulics and included manuals

Product Features

6000TLX Portable Car Lift

• 6,000 lbs Capacity

• Fast & easy set-up

• Portable lifting system makes vehicle maintenance on and off the track convenient and lightning fast

• QuickJack can go anywhere and is easily stowed in the trunk or back seat of most cars

• Factory preassembled hydraulics

• The 6000TLX arrives with its hydraulic system fully preassembled at the factory, eliminating setup headaches and ensuring flawless performance right out of the box. Just connect and start lifting.

• Automatic safety locks

• The 6000TLX features dual-position automatic safety locks that engage securely as the frames rise—locking in at both mid-rise and full-rise heights. To lower, simply flip the lock bar and enjoy a smooth, controlled descent every time.

• Increased lifting height & extended reach

• With a 24-inch lift height and an extended 76-inch frame, the 6000TLX offers additional clearance and reach for vehicles with longer wheelbases. Great for lifting cars, light-duty trucks, and SUVs with wide lift point spreads.

• Upgraded hydraulic system

• The newly engineered power unit features a pressure-compensated flow divider and independent shut-off solenoids. This ensures synchronized frame movement and eliminates the risk of imbalance, even when stopping mid-cycle.

• Structural reinforcements

• Thicker cross members, improved weld geometry, and upgraded pivot joints improve frame rigidity under heavy loads, reduce flex, and increase long-term durability—essential for repeated use on heavier vehicles.

• One-handed operation & synchronized lifting

• Operate the QuickJack effortlessly using the convenient pendant control with one hand, leaving your other hand completely free. The reengineered electric/hydraulic power unit features a pressure-compensated flow divider, ensuring synchronized lifting and lowering for smoother, safer performance every time.

• Accessories for expanded versatility

• Compatible with all major QuickJack accessories, including SUV adapters, pinch-weld blocks, and motorcycle/ATV kits. Customize your lift to match your specific vehicle types and service needs.

• Despite its extended size, the 6000TLX maintains QuickJack’s trademark low profile and portability. Urethane wheels let you roll and stow the lift easily, making it perfect for tight garage spaces or mobile service work.

Wall Hangers

• Sold in sets of two

• Powder-coated black finish

• Universal fit for all QuickJack models

• Rated 150% above maximum load for added safety

• Solid-steel construction with laser-cut QuickJack logo

• Mounts directly into wall studs for vertical storage

Pinch-Weld Blocks

• Cross-slotted urethane pads cradle delicate pinch-weld rails

• Ideal for unibody vehicles with factory jack points

• Resistant to oil, water, chemicals, and road grime

• Position blocks lengthwise or crosswise in lift trays

• Durable, single-piece construction for long service life

• Sold in sets of 4

Bundle Benefits

• Save compared to purchasing items separately

• All-in-one solution for lifting, storage, and safe unibody support

• Perfect for home garages, detailing, and light-duty service work

• Ready to lift right out of the box with no guesswork

Includes

• Box 1

• 6000TLX Left Frame Assembly

• 1x Short hydraulic hoses

• 1x Frame-positioning handles

• Box 2

• 6000TLX Right Frame Assembly

• 1x Short hydraulic hoses

• 1x Frame-positioning handles

• Box 3

• 1x Hydraulic power unit with control

• 4x Medium rubber lift blocks (2")

• 4x Tall rubber lift blocks (3")

• 2x Long hydraulic hoses

• Setup and instruction manual

• ALI-certified manuals: "Lifting It Right" Safety Manual, Lifting Points Quick Reference Guide, and Safety Tips Cards

• Box 4

• 4x Pinch-Weld Bocks

• Box 5

• 2x Wall Hanger Set

Requirements

• 3 liters of Automatic Transmission Fluid

• Air source to inflate air cylinders up to 50 PSI

• Assembly tools

Note: all hydraulic hose fittings come pre-assembled from the factory.

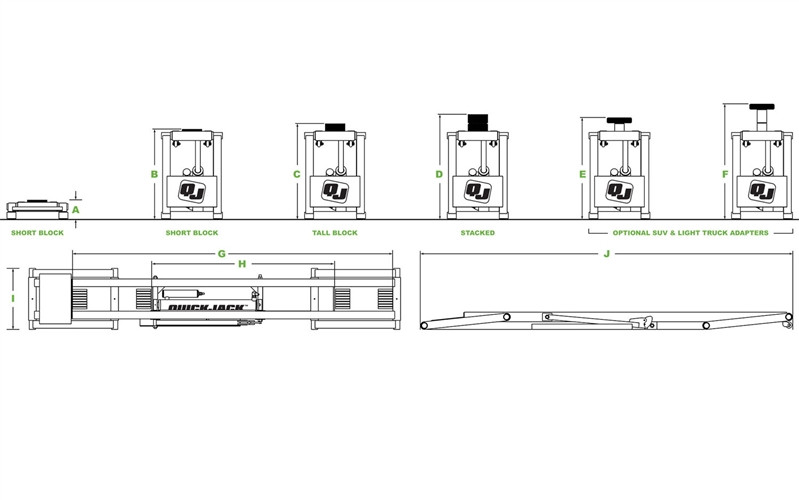

Product Specifications

Model

6000TL
6000TLX

Capacity

Lifting Capacity

6,000 lbs. (2,722 kg)

Lowered Height

A With 2" block

3.5" (89 mm)

Lifting Height

B With 2" Block

21" (521 mm)

C With 3" Block

22" (546 mm)

D Max. Height

24" (616 mm)

E With adapters

24" (597 mm)

F With adapters + pin

26.75" (673 mm)

Lift Point Spread

G Maximum

60" (1,524 mm)
66" (1,676 mm)

H Minimum

37" (940 mm)
43" (1,092 mm)

Power

Voltage / Hz

110V / 60Hz

Frame Dimensions (ea.)

I Width

11" (278 mm)

J Length

70" (1,778 mm)
76" (1,930 mm)

Frame Weight

78 lbs. (35 kg)
81.5 lbs. (37 kg)

Other Specs

Time to Full Rise

30 seconds

Power Unit Weight

15 lbs. (7 kg)

Shipping

Shipping Dimensions (ea. frame)

73.75" L x 15.25" W x 5" H
(1,869 x 385 x 129 mm)
79.5" L x 15.25" W x 5" H
(2,015 x 385 x 129 mm)

Total Shipping Weight

240 lbs. (109 kg)
250 lbs. (113 kg)

Specifications
Pinch-Weld Blocks

Length
4" (102 mm)

Width
3" (76 mm)

Height of Block
3" (76 mm)

Pinch-weld Width
0.4" (10 mm)

Pinch-weld Depth
0.5" (13 mm)

Specifications
Wall Hangers

Width
4.75" (121 mm)

Height
6.75" (172 mm)

Depth
2.5" (57 mm)

Weight ea.
1 lbs (0.5 kg)

Shipping Weight
3 lbs (1.4 kg)

Key Features

• Published product configuration: QuickJack™ 6000TLX Extended-Length Portable 6,000 lbs Car Lift Bundle The QuickJack 6000TLX Bundle is the ultimate complete lifting package for longer-wheelbase vehicles, garage organization, and delicate unibody protection—now with bundled savings included. This kit includes the 6000TLX extended-length portable car
• Exact manufacturer model or part number: 5175638
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175638, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
