Product Overview

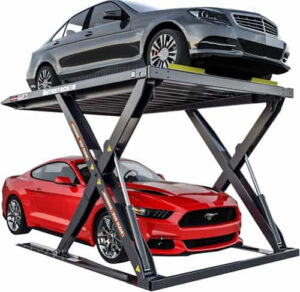

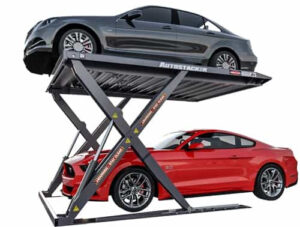

BendPak Autostacker™ A6S Scissors Parking Lift Platform 6,000 lb w/Power Unit Console
Supersedes PL-6SR
The revolutionary BendPak Autostacker™ A6S parking lift represents a breakthrough in vehicle storage technology—a reflection of our continuing commitment to design and deliver innovative solutions that offer exceptional value to our customers. This space-saving design allows you to stack one vehicle above another in the same footprint typically required for a single parking stall. With the strength to handle loads up to 6,000 pounds and a footprint considerably smaller than other mechanical parking systems, the A6S delivers more parking capability per square inch than any other lift in its class. Despite its compact design, it provides a generous 80 inches of underside clearance, making it perfect for cars, light trucks, and SUVs in both commercial and residential applications.
Benefiting from BendPak's vast automotive experience, the Autostacker applies many proven technologies to its family of commercial vehicle parking systems. Thanks to the lift's auto-synchronizing power system and simple operator controls, you'll experience greater versatility and reliability than traditional mechanically operated parking solutions. Only the Autostacker offers the flexibility of using a compact, vertical lifting platform to double your parking capability literally overnight—either indoors or outside.

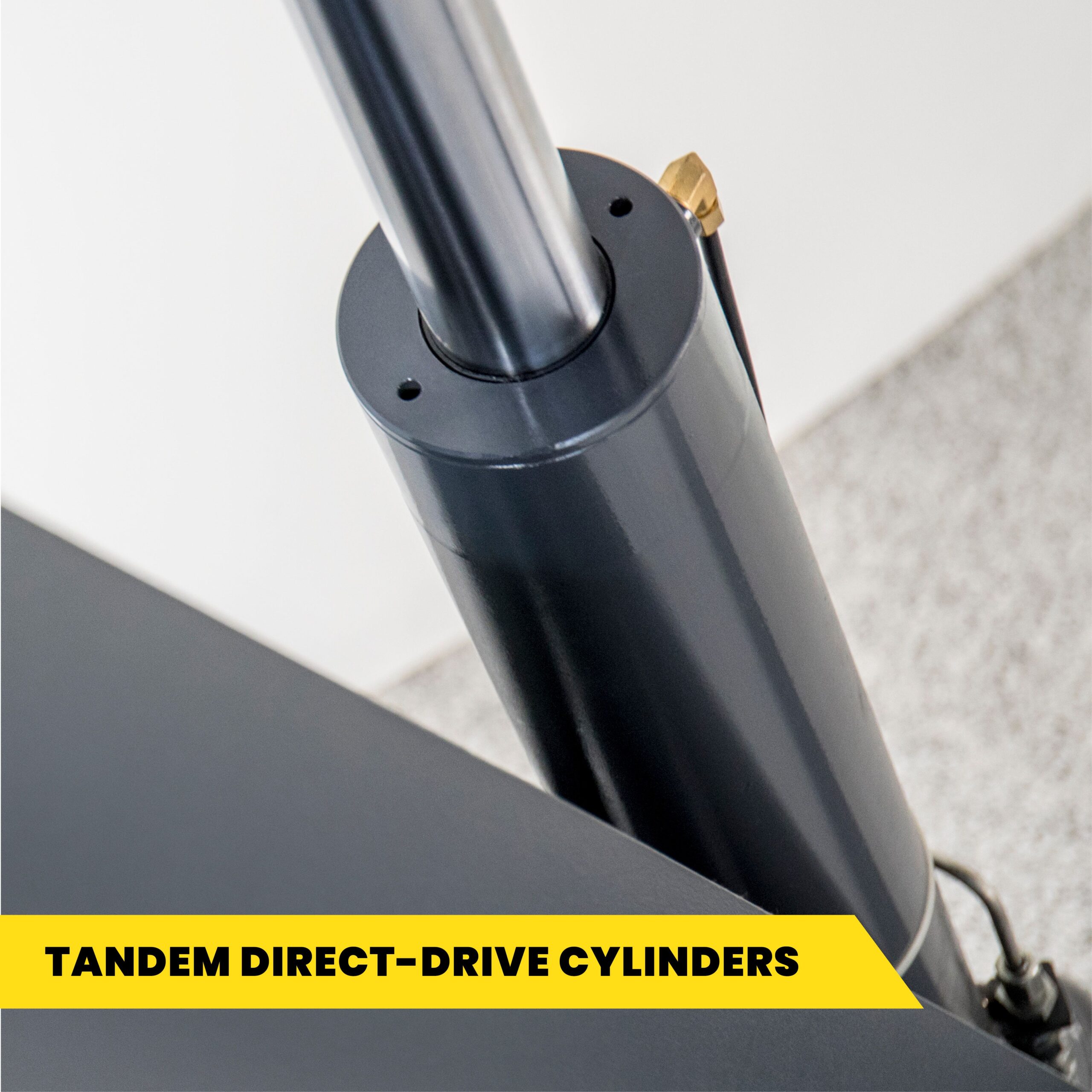

Our innovative design uses tandem direct-drive hydraulic cylinders that are smartly concealed within paired scissors structures—acting as the lifting muscle for the full-length galvanized platform. Every Autostacker that rolls off our assembly line incorporates materials and operating components of the highest quality, skillfully designed to match our pedigree for ruggedness and dependability. Combined with BendPak's tradition of rugged and reliable construction and the Autostacker's innovative engineering, it's easy to see why Autostacker is America's premier provider of vehicle storage solutions.

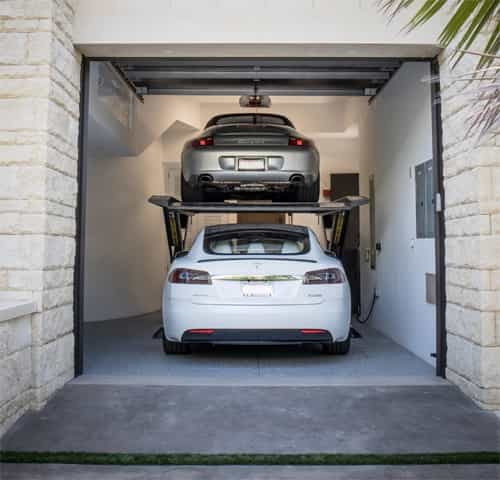

Commercial & Residential Applications

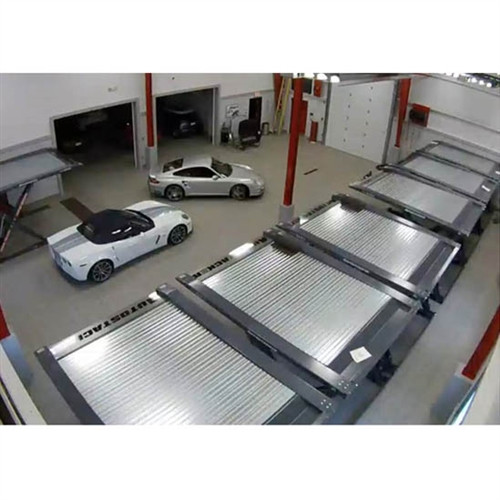

As the costs of commercial and residential development increase, gaining additional parking spaces in the same usable area provides instant value. Autostacker mechanical parking systems are designed to increase parking density and cut costs over traditional parking methods. There are, of course, other ways to add parking spaces—but none as cost-effective as the Autostacker.
In-ground parking requires a construction crew to excavate into a conventional basement, which is extremely costly and difficult, not to mention messy. If you need to dig down or add levels to existing parking areas, you're looking at costs ranging from $35,000 to $50,000 per stall. When using Autostacker parking systems, you'll find that you are able to store vehicles in a much tighter space than typically required for individual parking units.
A normal parking stall requires around 300–350 square feet for the stall, plus a moderate amount of clearance for drive aisles. Autostacker's floor space requirement is just 200 square feet, and again, that delivers you two spaces, not just one. This makes it the ultimate solution for maximizing property value while minimizing cost and construction complexity.
Simple, Dependable Operation
The operator power console features simple ergonomic controls that are crafted with the user's well-being in mind. A dependable hydraulic drive system provides reliable power that requires very little service and maintenance over time. Tandem drive cylinders, combined with an intelligent hydraulic circuit, balance the hydraulic pressure accurately between the twin lifting cylinders for precise, equalized lifting of the platform.
Removable covers provide easy access for simple routine maintenance and service. With the simple press of a button, your vehicle is elevated and an added parking space is instantly created. No more parking outdoors or cramming into undesirable parking spaces. It's just that easy. Rapid rise and descent speeds are delivered through a dependable hydraulic circuit that provides precise, equalized lifting without the need for complicated electronics that often fail when subjected to high-use and soiled or damp work environments.
Uncompromising Safety Features
Our promise to deliver a safe parking lift is the most important commitment we make in order to earn your trust and ensure your absolute satisfaction. As part of our commitment to operator care, we incorporate the highest level of security features into every lift we build. Our standard power console features include the following: key-switch disconnect provides an additional measure of security against operator tampering; emergency stop button disables lift at any time; warning light and audible alarm indicate when the lift is in operation; automatic safety latches and locking systems that engage continuously as the lift rises; lowering systems that require two-hand operation; ergonomic placement of operator controls; and of course, all control systems are within safe reach for easy shut-off when the lift is in use.
The waist-height control panel also includes full-faced, simple-to-read instructions with pictographs that outline easy set-up and operation, including descriptive safety and operator warnings. From its secure key-lock safety switch and easy-to-understand operator controls to its smart control layout, operators will be pleasantly surprised at how easy it is to safely operate. Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure. All UL Listed electrical components meet National Electrical Code (NEC) requirements.
Autostacker provides helpful manuals and publications that are made available through your Autostacker dealer. Maintenance and parts manuals, as well as operator manuals, can be ordered using the serial number found on your lift. If you have never used a mechanical parking system or would like details about providing a training program for your work or commercial business, ask your Autostacker dealer about training options.
Value-Driven Design
Consider how Autostacker's small footprint and virtually flush base frame design allow for tighter turning and increased maneuverability, making vehicle positioning on and under the lift a whole lot easier. Unlike other surface-mounted parking lifts with multiple columns, elevated outrigger tubes and large equalizing bars, only the Autostacker with none of these hindering elements—allows for precise vehicle maneuvering in even the most confined areas of your garage space or operation.
The versatility of the Autostacker car parking system makes it the right lift for several reasons. To start with, it is ready to tackle demanding indoor or outdoor use—even on asphalt surfaces—and it offers the perfect solution for safely storing cars, trucks and SUVs inside your garage or vehicle storage facility. And if that weren't enough, these rugged auto parking lifts increase the value of your property. When you realize just how many ways the innovative and truly unique Autostacker can benefit your operation, you'll discover the true value that only Autostacker can provide. Only the Autostacker gives you two spaces in one for less than any other comparable option.
Because it is smartly designed using a simple and commercially tested hydraulic power system, it not only delivers a smooth and more controlled operation, but it dramatically decreases the amount of maintenance and service costs that plague typical mechanically operated systems with chains, cables and complicated electronics. When you combine these benefits with the Autostacker's optional master power unit capable of powering up to ten lifts on a single motor, this will likely be the most versatile parking lift you'll soon come to love.

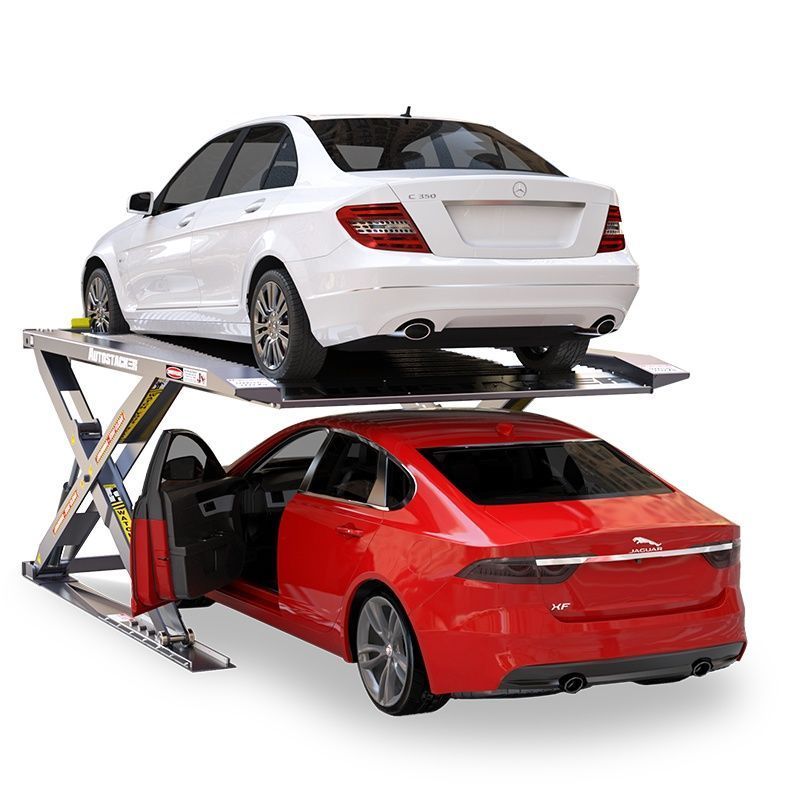

Vehicle Security & Protection
Want the ultimate in security against vandalism and vehicle theft? Park your car almost eight feet in the air! Many of our clients appreciate the added value of parking their car up and out of the way, clear of everyday threats and chance occurrences that plague defenseless cars left idle in their surroundings. Maybe you're one who adores cats but hates finding unsightly paw prints all over your car; maybe unruly animals are treating your sparkling clean wheels as their own personal urinal; perhaps your car has taken on a secondary role as your kids' backstop. In any case, whatever your car parking phobia may be, you'll be instantly relieved when you realize your vehicle is parked high and out of range of kids, pets and vandals.

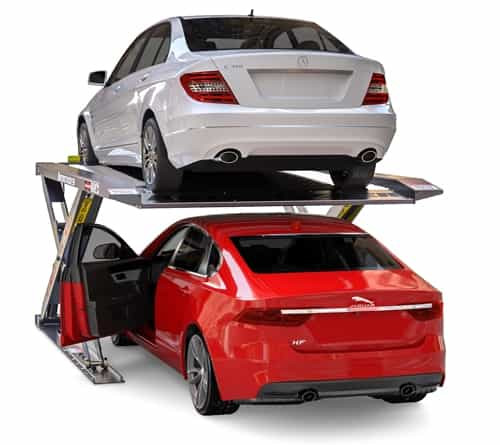

Vehicles parked below the Autostacker are protected by a barrier that prevents nearby swinging car doors from making contact with your car; it also protects your prized possessions against scratches, dings and dents often caused by toys, bikes, trashcans or other property being carelessly hauled through garage aisles. Without the advantage of wrap-around perimeter protection, your vehicle can be easily dented—a common occurrence in parking spaces everywhere. In both home garages and commercial settings, the Autostacker acts as vehicle sentry, guarding against the calamities of typical garage chaos and clutter.

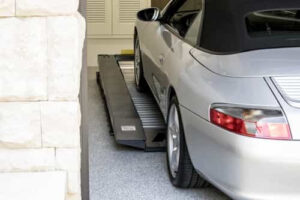

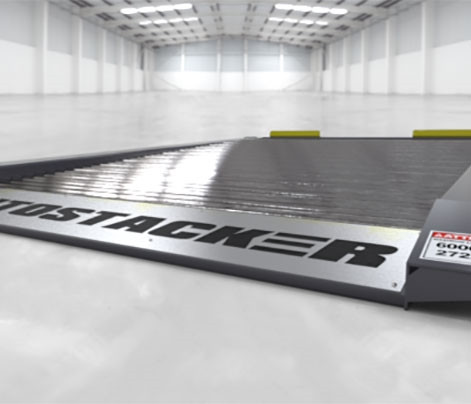

Low-Profile, Full-Width Deck
The Autostacker features our patent-pending, low-profile, gradual sloping lift platform. This somewhat insignificant-sounding feature plays a very significant role when it comes to driving on and off the lift platform. While most other car lifts feature a level deck with an aggressively angled entry ramp, we've purposefully designed the Autostacker with a full-width, gradually sloping platform that reduces the height at the approach end—making vehicle entry and exit an easy, pain-free affair.
With a barely noticeable incline of just 5 degrees, Autostacker easily accommodates Corvettes, Porsches, Vipers, Mustangs, BMWs, Ferraris and other high-performance cars with wide tires and/or low ground clearance. The front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward, adding another layer of security to your parking experience. The 100% hot-dipped, galvanized steel platform is finished with an attractive slate gray, baked-on powder coat finish that provides added toughness and corrosion resistance for years of reliable service.
Cushioned Door Protection
Autostacker's patented Door-sentry™ car door protectors include a full-length design that accommodates a wide variety of door types, shapes and heights. Regardless of whether your car doors sit high or low, if they're opened up quickly and carelessly, Autostacker's impact-cushioning door guards are ready to protect them from dings, scratches and dents. Made from energy-absorbing rubber, these protectors provide an extra level of security, giving you peace of mind and protecting your car when you can't.

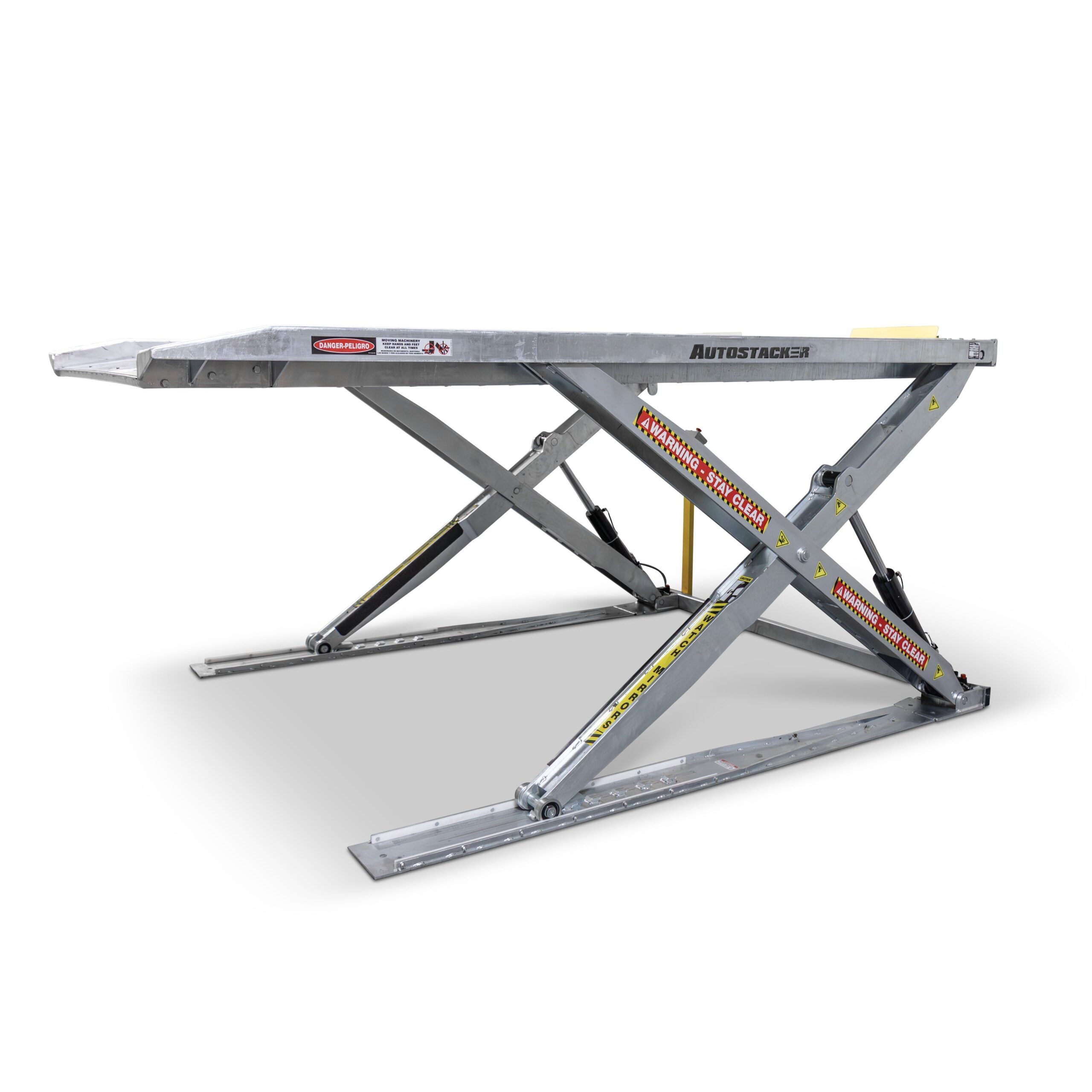

Intelligent Engineering & Construction Quality
The Autostacker A6S benefits from rugged, welded-steel construction that is strong and durable. Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height—critical for installations with limited ceiling clearance. Full-width, straight-through axles increase overall stability and tracking through the vertical travel range, while full-width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads.
Extra-wide, heavy-duty steel scissor arms with cross member bracing enhance stability. The unique clevis-design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins. The patented asymmetric scissor arms provide greater underside door clearance, allowing easier access to vehicles parked below the lift.
Operation is remarkably quiet at just 52 dB quieter than a normal conversation—making the Autostacker A6S ideal for residential garages and upscale commercial facilities where noise is a concern. Your neighbors and customers will appreciate the near-silent operation of this advanced parking system.

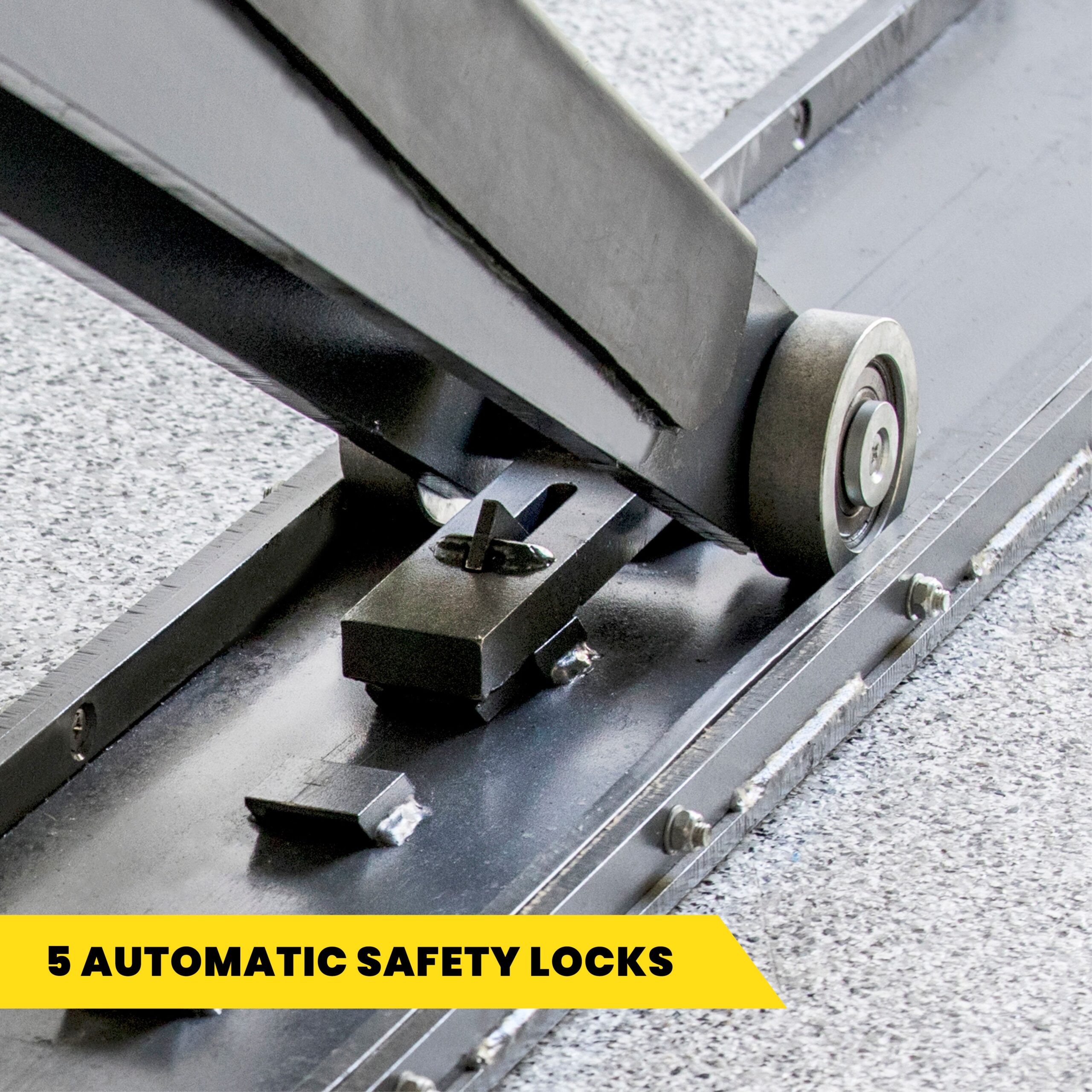

Automatic Safety Locks & Variable Parking Heights
Automatic locks are essential to safety. This goes for any car lift type, but new challenges are presented by Autostacker's fully collapsible frame. We devised five lock stops, placed along the base of each side of the lift. As the scissor arms rise, a lock mechanism glides over the stops. Simply descend the lift until both traveling locks (one on each arm) simultaneously engage the desired lock stop. This provides variable height parking that accommodates a wide range of vehicle and ceiling heights—maximizing your flexibility and ensuring you can park nearly any vehicle combination.
The lift locks at five different parking heights, giving you ultimate flexibility: from a low position of 52.5 inches up to a maximum height of 81.25 inches. This allows you to tailor the upper vehicle's height based on the size of the vehicle below and your ceiling clearance. Optional removable access panels allow for convenient vehicle maintenance even while the car is stored above.
Key Highlights
- 6,000-lb. lifting capacity handles cars, light trucks and SUVs
- Five automatic locking heights provide variable parking options from 52.5" to 81.25"
- Minimal footprint (just 200 sq ft) fits a typical parking space yet delivers two parking spots
- Full-width, gradual sloping platform with only 2" entry ramp height—perfect for low-clearance sports cars
- Dual, direct-drive hydraulic lifting cylinders deliver smooth, precise, equalized lifting
- Patented Door-sentry™ rubber protectors guard against door dings and scratches
- Whisper-quiet 52 dB operation quieter than a normal conversation
- 100% hot-dipped galvanized steel platform with powder coat finish for maximum durability
- UL Listed electrical components and hydraulic safety valves ensure operator protection
- Key-switch disconnect, emergency stop, audible alarm and warning light for enhanced security
What's Included
Your BendPak Autostacker™ A6S system includes everything you need for a complete, professional installation:
5260591 A6S Scissors Parking Lift Platform:
- Right side scissors superstructure
- Left side scissors superstructure
- Front wheel trough
- Ramp assembly with logo plate
- Lower front tie-bar
- Galvanized decking section
- Front tire stops
- Complete parts package including all fasteners, hoses, fittings & anchor bolts
- Installation and operator's manual
5585042 Power Unit Console:
- Standard Power Unit Console – 208-240V / 50/60Hz, 1-Phase (A6S-OPT1) or 110V, 50/60Hz, 1-Phase (A6S-OPT1-110)
⚠️ WARNING: Cancer and Reproductive Harm

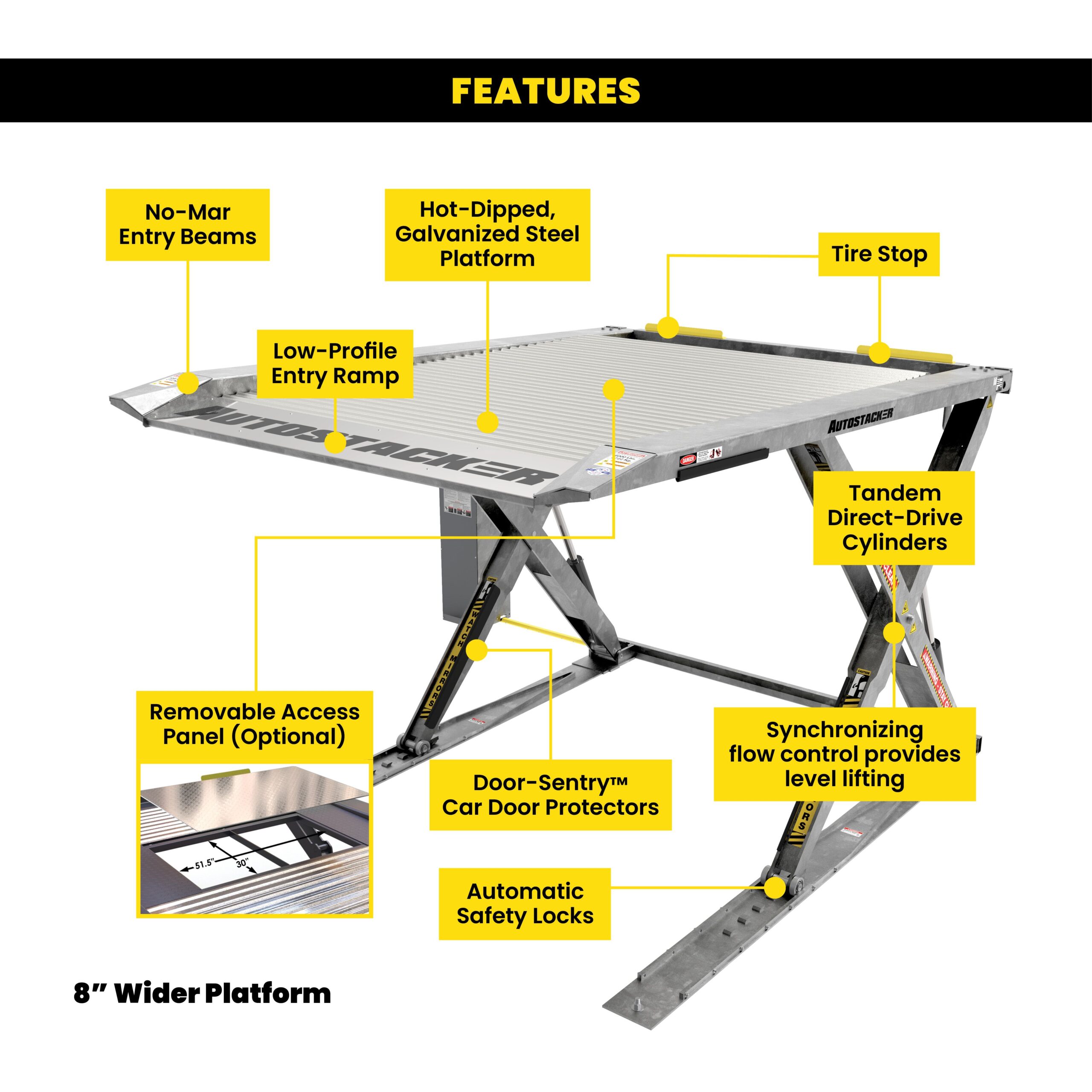

Product Features
- 6,000‐lb. lifting capacity
- Key‐switch disconnect fully disables operation for enhanced security
- Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation.
- Accommodates cars, light trucks and SUVs
- Rugged, welded‐steel construction is strong and durable
- 100% hot‐dipped, galvanized steel platform
- Attractive slate gray, baked‐on powder coat finish provides added toughness
- Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
- Full‐width, gradual sloping platform reduces entry ramp height
- Automatic safety locks engage at five different parking heights
- Simple push‐button controls
- Dual, direct‐drive hydraulic lifting cylinders
- Dependable hydraulic circuit that provides precise, equalized lifting
- Variable height parking accommodates a wide range of vehicle and ceiling heights
- Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
- Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
- Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
- Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
- Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
- Patented asymmetric scissor arms provide greater underside door clearance
- Patented Door‐sentry™ car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
- Space‐saving design is perfect for commercial or residential applications
- Minimal footprint fits a typical parking space
- Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
- UL Listed electrical components meet National Electrical Code (NEC) requirements
Supersedes PL-6SR

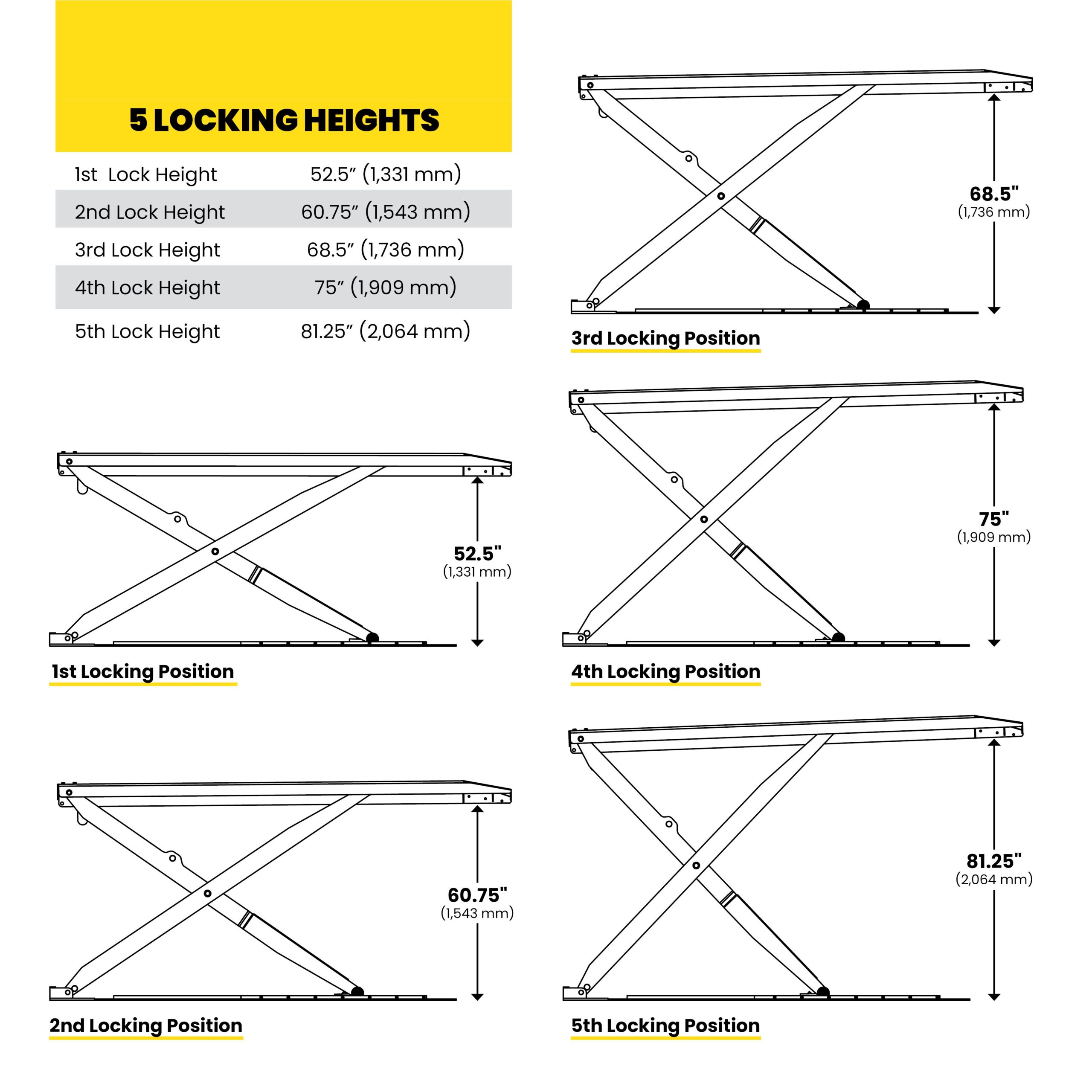

Autostacker Locking Heights
Automatic locks are essential to safety. This goes for any car lift type, but new challenges are presented by Autostacker’s fully collapsible frame. We devised five lock stops, placed along the base of each side of the lift. As the scissor arms rise, a lock mechanism glides over the stops. Simply descend the lift until both traveling locks (one on each arm) simultaneously engage the desired lock stop.
- 1st Locking Position: 51.75" (1,314 mm)
- 2nd Locking Position: 59" (1,498 mm)
- 3rd Locking Position: 65.5" (1,663 mm)
- 4th Locking Position: 71.25" (1,809 mm)
- 5th Locking Position: 76.25" (1,936 mm)
- 6th Locking Position: 81" (2,057 mm)
What's Included
- 5260591 A6S Scissors Parking Lift Platform
- Right side scissors superstructure
- Left side scissors superstructure
- Front wheel trough
- Ramp assembly with logo plate
- Lower front tie-bar
- Galvanized decking section
- Front tire stops
- Complete parts package including all fasteners, hoses, fittings & anchor bolts
- Installation and operators manual
- 5585042 Power Unit Console
- Standard Power Unit Console – 208-240V / 50/60HZ, 1-Phase

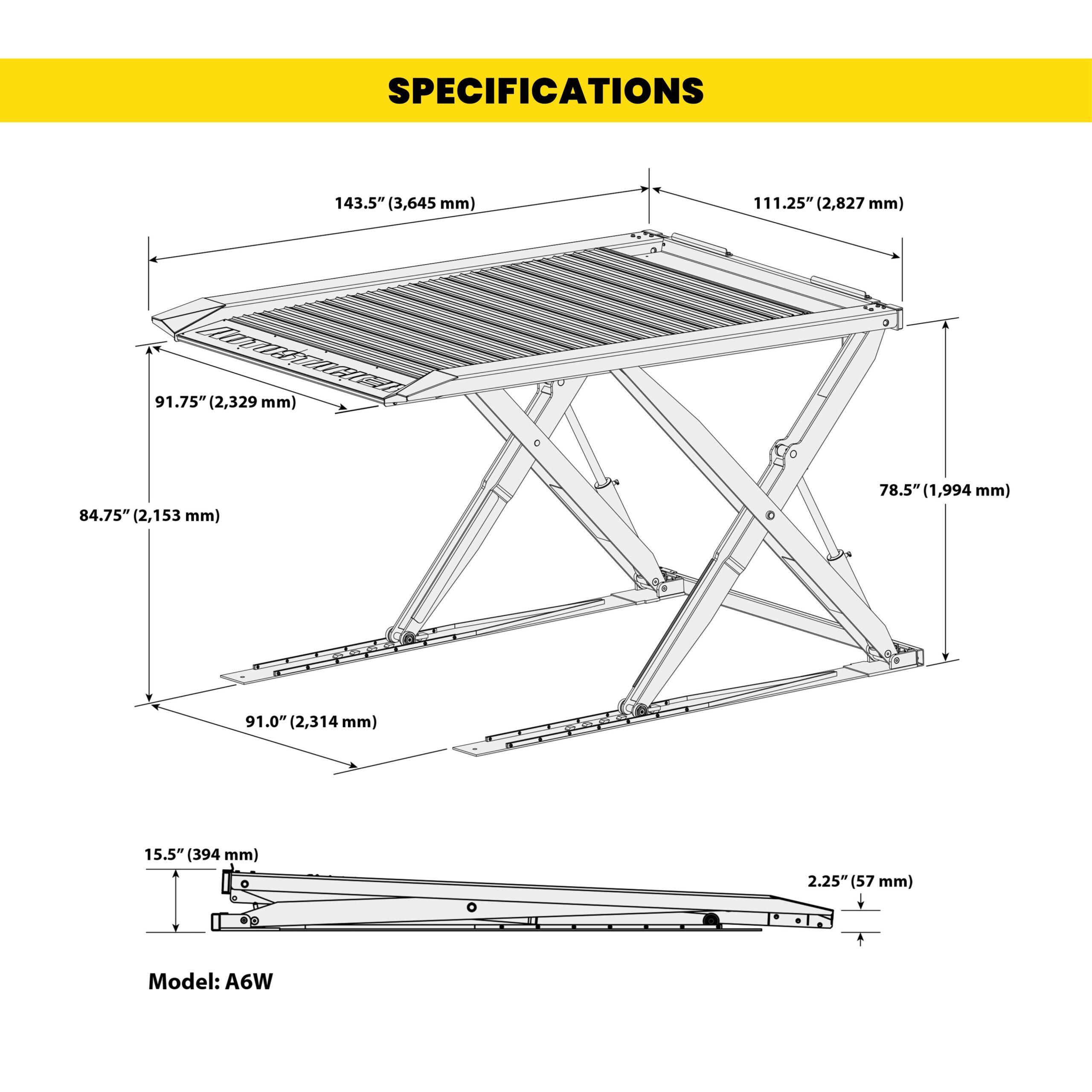

Product Specifications
Specifications
A6S (PL-6SR)
A6W (PL-6SRX)
Lifting Capacity
6,000 lbs. / 2,722 kg
Dimensions
Overall Width
103” / 2,620 mm
111” (2,815 mm)
Overall Length
143” / 3,630 mm
144” (3,658 mm)
Platform Length
124” / 3,150 mm
Platform Width
83.75” / 2,128
91.75” (2,331 mm)
Platform Height (forward)
13” / 330 mm
Ramp Height (entry)
2” / 51 mm
Max Under Underclearance
80” / 2,032 mm
Five Locking Heights
First (Lowest Locking Position)
52.5" (1,331 mm)
Second
60.75" (1,543 mm)
Third
68.5" (1,736 mm)
Forth
75" (1,909 mm)
Fifth (Highest Locking Position)
81.25" (2,064 mm)
Power
Motor
208-240V, 50/60 Hz / 1 Ph (A6S-OPT1) or 110V, 50/60HZ, 1-Phase (A6S-OPT1-110)
Noise
52 dB
Shipping Weight
Shipping Weight
2,558 lbs. (1,160 kg)
3,350 lbs. / 1530 kg
Shipping Dimensions
143" x 28" x 22"
(3632 mm x 711 mm x 558.8 mm)
144" x 28" x 30"
(3,657 mm x 711 mm x 762 mm)
Key Features
- Published product configuration: BendPak Autostacker™ A6S Scissors Parking Lift Platform 6,000 lb w/Power Unit Console Supersedes PL-6SR The revolutionary BendPak Autostacker™ A6S parking lift represents a breakthrough in vehicle storage technology—a reflection of our continuing commitment to design and deliver innovative solutions that offer
- Exact manufacturer model or part number: 5175274
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 407ES-004871 |
| MPN / Model | 5175274 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model 5175274, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
