Product Overview

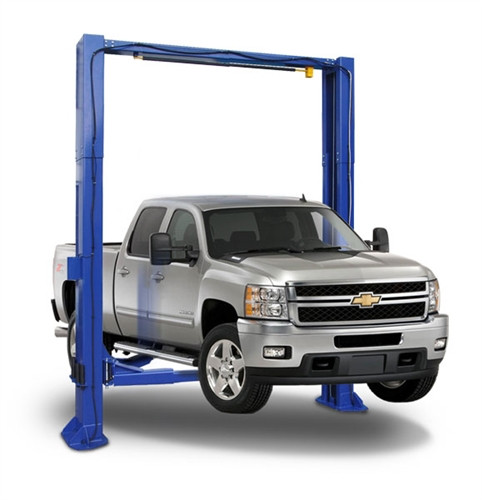

Auto Lift AL2-12K-CD 12K lb Clear Floor Direct Drive Two Post Car Lift
The Auto Lift AL2-12K-CD delivers professional-grade lifting performance for shops that demand reliability and value. With a robust 12,000 lb. capacity, this clear floor, direct drive two post lift combines commercial-grade construction with a space-efficient design that keeps your shop floor open and accessible. Built with heavy-duty components throughout, the AL2-12K-CD features a symmetric configuration ideal for a wide range of vehicles—from passenger cars to light trucks—making it a versatile workhorse for any automotive service environment.
This lift is engineered with the quality features you expect from a professional-grade system: heavy-duty leaf chain, steel pulleys, and a high-strength cable equalization system that ensures smooth, balanced lifting every time. The direct drive cylinders are built for longevity, and the extra-long 48" carriage reduces wear on sliders for extended service life. With a powder coated paint finish for durability and corrosion resistance, this lift is designed to withstand the demands of a busy shop environment day after day.
Key Highlights
- 12,000 lb. capacity handles a wide range of vehicles from sedans to light trucks with confidence
- Clear floor design no floor plates or cables to trip over, maximizing shop floor accessibility and safety
- Direct drive system with long-lasting cylinders and 50-second lifting speed for efficient operation
- Extra-long 48" carriage reduces slider wear and extends component life
- Single point pneumatic safety lock release and padded overhead cut-off bar for enhanced operator safety
- Free stackable truck adapters included – set of 4 each in 2.5" and 5" heights for added versatility
Built for Durability and Performance
The AL2-12K-CD features heavy-gauge steel construction throughout, including 7mm thick columns and carriages and 9.5mm thick lifting arms for exceptional strength and rigidity. The 3/8" diameter cables and robust steel pulleys ensure reliable, synchronized lifting with minimal maintenance. With a symmetric arm configuration, this lift provides versatile vehicle positioning, and the drop-in adapters come standard for quick pad adjustments.
Measuring 151-1/8" overall width with 122" width between columns and 109" drive-thru clearance, the lift offers ample room for most vehicles while maintaining a compact shop footprint. The low 5.5" pad height accommodates low-clearance vehicles, while the 72" max lift height (or 77" with tallest adapter ) provides excellent working clearance underneath. Arms extend from 37-5/8" to 56-3/4" for flexible vehicle positioning.
Free Truck Adapters Included
Every AL2-12K-CD lift includes a complete set of stackable truck adapters at no additional charge 4 each of 2.5" and 5" adapters adding versatility for lifting trucks and vehicles with higher lift points. This value-added feature expands the range of vehicles you can service right out of the box.
Free stackable truck adapters (2.5" and 5") included with every AL2-12K-CD lift
Product Features
- 12,000 lb lifting capacity
- Symmetric design
- Direct drive
- Long lasting, direct drive cylinders
- Extra long (48") carriage for less wear on sliders
- Padded overhead cut-off bar
- Single point pneumatic safety lock release
- Drop in adapters standard
- Powder coated paint finish
Free Stackable Truck Adapters Set of 4 each: 2.5" & 5"
Product Specifications
Specifications
AL2 12KC-D
Capacity
12,000 lbs.
Overall Height
165"
Width Overall
151-1/8"
Max Lift Height
72"
With Tallest Adapter
77"
Width Between Columns
122"
Low Pad Height
5.5"
Drive thru Clearance
109"
Lifting speed
50 sec
Asymmetric / Symmetric
Symmetric
Clear Floor / Floor Plate
Clear Floor
Short Arm Reach – min/max
37-5/8" – 56-3/4"
Long Arm Reach – min/max
Same
Cable Diameter
3/8"
Column Size
8-3/4" x 12-3/4"
Column Steel Thickness
7mm
Carriage Steel Thickness
7mm
Arm Steel Thickness
9.5mm
Ship Weight
2,295 lbs.
Power
220V – 20 AMP – 1 PH
Key Features
- Published product configuration: Auto Lift AL2-12K-CD 12K lb Clear Floor Direct Drive Two Post Car Lift The Auto Lift AL2-12K-CD delivers professional-grade lifting performance for shops that demand reliability and value. With a robust 12,000 lb. capacity, this clear floor, direct drive two post lift combines commercial-grade construction with a
- Exact manufacturer model or part number: AL2-12K-CD
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Auto Lift |
|---|---|
| SKU | 407ES-004758 |
| MPN / Model | AL2-12K-CD |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model AL2-12K-CD, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
