Atlas® Platinum PVL12 ALI Certified 2 Post Lift 12,000 lbs

Product Overview

Atlas® Platinum PVL12 ALI Certified 2 Post Lift 12,000 lbs

The Atlas® Platinum PVL12 represents the pinnacle of commercial-grade overhead 2-post lift design—engineered specifically for professional shops and serious enthusiasts who demand the capacity to handle long wheelbase trucks, full-size SUVs, dually pickups, and standard passenger cars with equal confidence. With a robust 12,000 lb. capacity, extra-wide column spacing, and adjustable height configurations to fit virtually any shop ceiling, this lift maximizes versatility without compromising safety or performance.

Designed for both heavy-duty truck service and everyday vehicle maintenance, the PVL12 features a symmetric design with an expansive 122 5/8" inside column clearance and an impressive 109 5/8" drive-through opening accommodating the widest vehicles on the road today. The 3-stage symmetric arms with automatic arm restraints ensure precise positioning and safe, consistent lifts every time, while the 150 3/8" overall floor width provides the stability required for lifting heavy commercial vehicles.

At the heart of the PVL12 is the premium ALLY AL3500 Power Unit, certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. This advanced power unit features extra heavy-duty armatures and enhanced motor windings with increased silver metal content in wires and connections, dramatically reducing heat generation and ensuring constant torque throughout the entire lifting process. The result is faster cycle times, smoother operation, and more reliable performance—backed by an industry-leading two-year limited warranty.

Why Choose the Atlas® Platinum PVL12?

This lift stands out in the crowded 2-post lift market by delivering a unique combination of capacity, clearance, and commercial-grade construction that's hard to find at this price point. Whether you're lifting a dually pickup truck, a lifted 4×4 SUV, or a sports sedan, the PVL12 provides the space, stability, and lifting power you need to work safely and efficiently.

• 12,000 lb. Capacity: Handles full-size trucks, SUVs, vans, and commercial vehicles with authority—ideal for shops that service a diverse vehicle fleet.

• Adjustable Column Height: Choose between 165" (13' 9") or 177" (14' 9") overall height to perfectly match your shop ceiling—a critical advantage for shops with lower ceilings or future expansion plans.

• Extra-Wide Design: With 139 1/8" outside column-to-column spacing and a 109 5/8" drive-through clearance, this lift accommodates even the widest dually trucks and commercial vehicles.

• Direct-Drive Cylinders & Single Point Lock Releases: Faster operation, fewer moving parts, and simplified maintenance mean less downtime and lower long-term costs.

• Shop-Friendly Features: Includes a padded shut-off bar to protect against accidental contact, thick rubber door guards on the carriage to prevent vehicle damage, and a durable powder coat finish that resists scratches and corrosion.

Complete Truck Adapter Set Included

Every Atlas® Platinum PVL12 comes ready to lift trucks and high-clearance vehicles right out of the crate. Unlike many competitors that charge extra for truck adapters, the PVL12 includes a free 8-piece truck adapter set a significant value-add that saves you money and ensures you can service a wider range of vehicles from day one.

What's Included:

• 8-Piece Truck Adapter Set: Allows you to safely lift trucks and larger vehicles with higher ground clearance—no additional purchase required.

• All Mounting Hardware: Everything you need for professional installation is included in the box, so you can get up and running quickly.

Premium ALLY AL3500 Power Unit: Performance & Reliability

The ALLY AL3500 Power Unit is not your standard off-the-shelf hydraulic pump—it's a premium, MET-certified power unit engineered specifically for high-demand commercial applications. This unit sets a new standard for reliability, efficiency, and longevity in 2-post lift operation.

What Makes the AL3500 Different?

• Extra Heavy-Duty Armatures: Built to withstand the rigors of daily commercial use, providing consistent performance over thousands of lift cycles.

• Enhanced Motor Windings: Increased silver metal content in wires and connections dramatically reduces electrical resistance and heat generation.

• Constant Torque Output: Maintains steady lifting power from start to finish, eliminating the slowdowns and stuttering common in lesser power units.

• Fast Lifting Time: The PVL12 reaches full height in just 55 seconds, keeping your workflow moving and maximizing shop productivity.

• MET Certified: Meets rigorous electrical safety standards for use in both the United States and Canada.

The advanced electrical design minimizes heat buildup—a common cause of premature motor failure in hydraulic lifts—extending motor life and reducing the risk of costly downtime. The result is a power unit that delivers faster cycle times, quieter operation, and longer service life than standard units.

Built for Commercial Durability & Daily Use

From the powder coat finish that resists scratches and corrosion to the automatic arm restraints that lock arms safely in place during positioning, every detail of the Atlas® Platinum PVL12 is designed with professional use in mind. The 7 1/2" x 14 1/2" columns provide exceptional rigidity and stability, even when lifting vehicles at full capacity, while the direct-drive cylinder design reduces maintenance requirements and improves long-term reliability.

Commercial-Grade Construction Features:

• Powder Coat Finish: Durable, professional finish resists chipping, scratching, and rust—keeping your lift looking sharp for years.

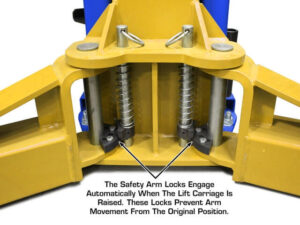

• Automatic Arm Restraints: Secure arms in position during adjustment, preventing accidental slippage and improving technician safety.

• Padded Shut-Off Bar: Protects against accidental contact and provides a soft, cushioned barrier for added shop safety.

• Thick Rubber Door Guards: Mounted on the carriage to protect vehicle doors and body panels during positioning and lifting.

• Single Point Lock Releases: Simplify operation and reduce training time—technicians can release locks quickly and safely with minimal effort.

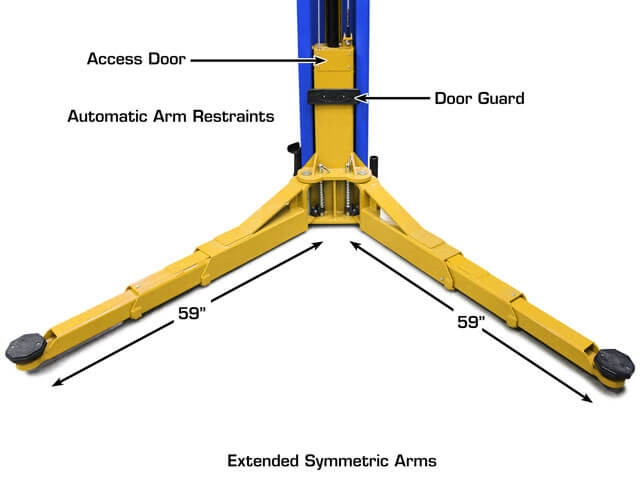

• 3-Stage Symmetric Arms: Extend and adjust to accommodate a wide range of wheelbases and vehicle configurations, from compact cars to extended cab trucks.

Technical Performance & Specifications

The PVL12 delivers impressive lifting performance while maintaining a relatively compact footprint. With a maximum lift height of 85 1/2" (7' 1 1/2") with truck adapters and 73 5/8" (6' 1 5/8") without adapters, you'll have plenty of clearance for undercar work. The minimum lowered height of just 4 1/2" allows you to service even low-profile sports cars without issue.

The lift operates on 220V single-phase power with a 30 amp breaker requirement a standard electrical configuration in most professional shops. The hydraulic system requires 3-5 gallons of AW32 or AW46 hydraulic oil (not included), and the entire unit weighs 2,425 lbs, ensuring a stable, solid installation once anchored to your shop floor.

Perfect for a Wide Range of Vehicles

The PVL12's combination of extra-wide clearance and adjustable height options makes it the ideal choice for shops that service a diverse mix of vehicles. From compact sedans to full-size dually trucks, this lift handles it all with confidence and stability.

Ideal Applications:

• Full-size pickup trucks (including dually models)

• SUVs and crossovers of all sizes

• Vans and commercial vehicles

• Sports cars and sedans

• Classic cars and restoration projects

• Fleet maintenance and dealership service bays

Why Professionals Choose Atlas® Platinum

Whether you're running a busy independent shop, a dealership service department, or a high-performance garage, the Atlas® Platinum PVL12 delivers the combination of capacity, clearance, and quality that professionals demand—all at an unbeatable value. The ALI Certification provides peace of mind that this lift meets the highest industry standards for safety, while the premium ALLY power unit and commercial-grade construction ensure years of reliable service.

Add in the free 8-piece truck adapter set, included mounting hardware, and adjustable height configurations, and you have a lift that's ready to tackle any job—right out of the crate.

Important Note: Hydraulic oil is NOT included with this lift. The PVL12 requires 3-5 gallons of AW32 or AW46 hydraulic oil for operation. Please plan to purchase oil separately.

Product Features

• 12,000 lb. Capacity

• Commercial Grade

• Extra Tall & Extra Wide

• Adjustable Height 165" (13' 9") or 177" (14' 9")

• 3-Stage Symmetric Arms

• Automatic Arm Restraints

• "Padded" Shut-Off Bar

• Thick Rubber Door Guards on Carriage

• Single Point Lock Releases

• Direct-Drive Cylinders

• Powder Coat Finish

• Free 8 Piece Truck Adapter Set

• Mounting Hardware Included

• Premium ALLY AL3500 Power Unit View Power Unit Specs

Includes

• 8 Piece Truck Adapter Set

• Mounting Hardware

Product Specifications

Specifications
PVL12

Capacity
12,000 lbs

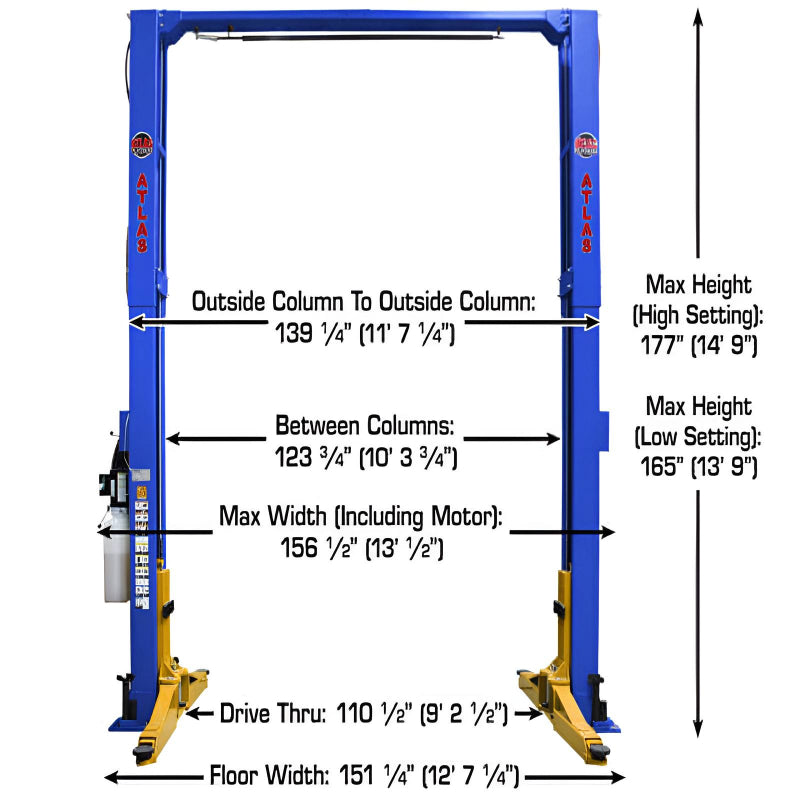

Overall Height
Low Setting: 165" (13' 9") / High Setting: 177" (14' 9")

Overall Floor Width
150 3/8" (12' 6 3/8")

Outside Column to Outside Column
139 1/8" (11' 7 1/8")

Inside Column
122 5/8" (10' 2 5/8")

Drive Thru
109 1/2" (9' 1 1/2")

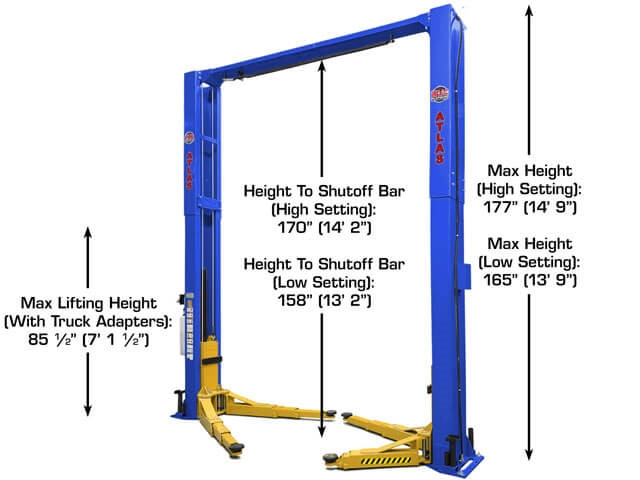

Max Lift Height w/Truck Adapters
85 1/2" (7' 1 1/2")

Max Lift Height w/o Truck Adapters
73 5/8" (6' 1 5/8"

Min Lowered Height
4 1/2"

Column Dimensions
7 1/2" x 14 1/2"

Lifting Time
55S

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Motor/Electrical Requirement
220V single (1) phase / 30 amp breaker is required.

Weight
2,425 lbs

Key Features

• Published product configuration: Atlas® Platinum PVL12 ALI Certified 2 Post Lift 12,000 lbs The Atlas® Platinum PVL12 represents the pinnacle of commercial-grade overhead 2-post lift design—engineered specifically for professional shops and serious enthusiasts who demand the capacity to handle long wheelbase trucks, full-size SUVs, dually pickups, and
• Exact manufacturer model or part number: AP-PVL12
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• 1 product manual or technical document linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model AP-PVL12, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Product document 1
