Product Overview

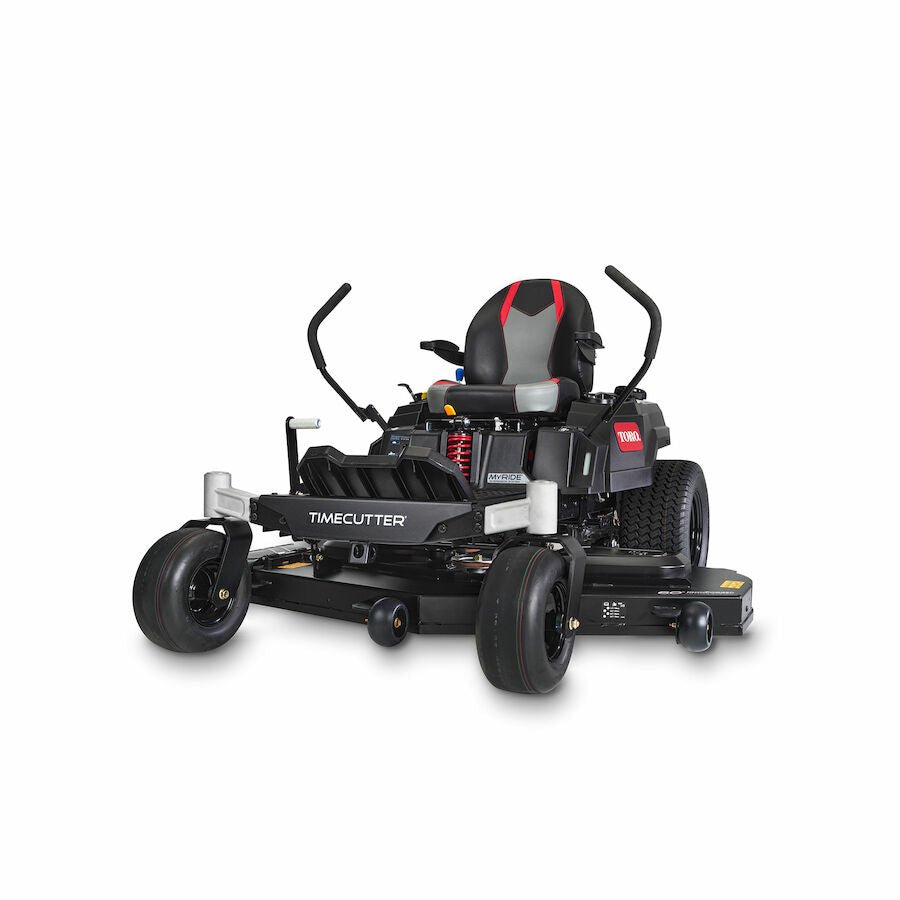

The Toro 77603 60″ TimeCutter Havoc MyRIDE Zero Turn is a Toro lawn and grounds equipment attachment listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-024106. Key specifications for this configuration include engine brand: Kohler; cutting width: 60 in.; engine power: 24.0 hp; engine displacement: 725 cc.
Key Features
- SKU: 407ES-024106
- Engine Brand: Kohler
- Cutting Width: 60 in.
- Engine Power: 24.0 hp
- Engine Displacement: 725 cc
- Engine Displacement (cc): 725 cc
- Transmission: Dual Hydrostatic HG-ZT2800
- Maximum Speed: 7.0 mph
- Fuel Capacity: 3 gal.
- Foot Operated Height of Cut: Standard
- Height of Cut: 1.0 – 4.25 in.
Product Highlights
- Deck construction: the published configuration uses 10-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests and suspension support.
- Ground-speed control: the published product information identifies three selectable operating ranges for trimming, towing, and mowing.
- Deck service: an integrated washout port supports routine underside cleaning.
Product Specifications
| Brand | Toro |
|---|---|
| Engine Brand | Kohler |
| Model / MPN | 77603 |
| SKU | 407ES-024106 |
| Cutting Width | 60 in. |
| Engine Power | 24.0 hp |
| Engine Displacement | 725 cc |
| Engine Displacement (cc) | 725 cc |
| Transmission | Dual Hydrostatic HG-ZT2800 |
| Maximum Speed | 7.0 mph |
| Fuel Capacity | 3 gal. |
| Foot Operated Height of Cut | Standard |
| Height of Cut | 1.0 – 4.25 in. |
| Air Filter | Low Profile Air Cleaner (LPAC) |
| Anti Scalp Wheels | Standard |
| Armrests | Standard |
| Bagger Capacity | 4.9 bushels |
| Blade Count | 3 |
| Blades | HI FLOW 20.5″ Black |
| Brake System | Electric Parking Brake – Internal |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3.3 x 1.75 x 10 gauge |
| Caster Tires | 13″ x 6.5″ x 6″ Pneumatic |
| Clutch | Electromagnetic |
| Collection Capacity | 4.9 bushels |
| Comfort Platform | MyRIDE® Suspension System |
| Controls | Dual Wrap Around Levers |
| Cooling System | Air Cooled |
| Crankshaft | 1″ w/Steel Protector |
| Cup Holder | Standard |
| Deck Design | 10 gauge Fabricated IronForged™ |
| Deck Material | 10 Gauge Steel |
| Discharge Chute | Side |
| Drive System | 5-Speed Transmission |
| Drive Tires | 20″ x 10″ – 10″ |
| Drive Type | Rear-Wheel Drive |
| Engine | 24 hp Kohler KT735 |
| Engine Horsepower | 24.0 hp |
| Forward Ground/Transport Speed | Up to 7.0 mph |
| Frame | 3.3 x 1.75 x 10 gauge |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Hitch Bracket | Standard |
| Hour Meter | Standard Hour Meter |
| Hydraulic Fluid | Synthetic |
| Number of Blades | 3 |
| Product Features | Cup Holder, Deck Washout Port, Foot Operated Height of Cut, Hitch Bracket, Hour Meter |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Recycler Kit | Kit available |
| Shocks | 1 Front Center / 2 Rear |
| Spark Plug Type | RFI Spark Plug |
| Spindle Bearings | Maintenance-free |
| Start Type | Electric, Key Start |
| Steering Controls | Dual-Action Single-Bail |
| Washout Port | Standard |
Application and Compatibility
Confirm the carrier machine, hitch or mounting interface, hydraulic requirements, dimensions, and included hardware before ordering this attachment.
Before You Order
- Use SKU 407ES-024106 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
