Product Overview

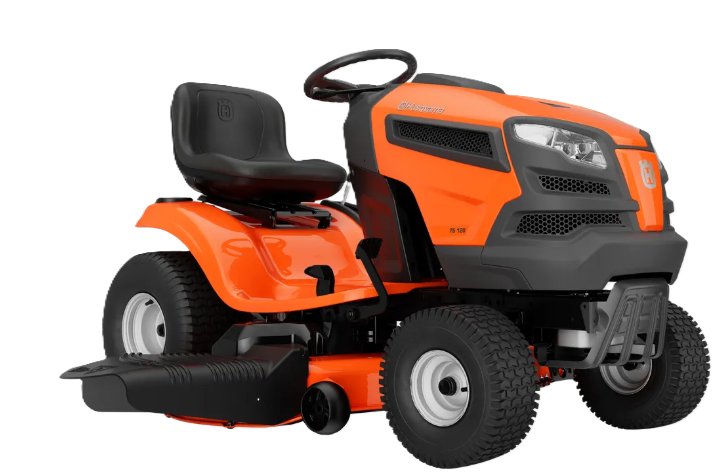

The Husqvarna TS 120 42″ Riding Lawn Tractor 970846301 – Air Induction Technology is a Husqvarna riding lawn mower listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-024378. Key specifications for this configuration include engine brand: Briggs & Stratton; transmission brand: Tuff Torq; cutting width: 42 in; 1engine power (as rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM.
Key Features
- SKU: 407ES-024378
- Engine brand: Briggs & Stratton
- Transmission Brand: Tuff Torq
- Cutting width: 42 in
- 1Engine Power (As rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM
- Engine Power (As rated by the engine manufacturer): 14.17 kW
- Engine Power (As rated by the engine manufacturer)1: 19 hp
- Engine Displacement: 33 cc
- Transmission: Hydrostatic
- Transmission type: Hydrostatic
- Cutting height, max (approximate): 4 in
Product Highlights
- Operator station: a high-back seat is identified.
- Deck service: an integrated washout port supports routine underside cleaning.
Product Specifications
| Brand | Husqvarna |
|---|---|
| Engine brand | Briggs & Stratton |
| Transmission Brand | Tuff Torq |
| Model / MPN | 970846301 |
| SKU | 407ES-024378 |
| Cutting width | 42 in |
| 1Engine Power (As rated by the engine manufacturer) | Gross power rating as per SAE J1995, at specified RPM |
| Engine Power (As rated by the engine manufacturer) | 14.17 kW |
| Engine Power (As rated by the engine manufacturer)1 | 19 hp |
| Engine Displacement | 33 cc |
| Transmission | Hydrostatic |
| Transmission type | Hydrostatic |
| Cutting height, max (approximate) | 4 in |
| Cutting height, min (approximate) | 1.5 in |
| Seat back height | High 15″ |
| Anti-scalp wheels | 2 |
| Blade Count | 2 |
| Collector | Available as accessory |
| Cylinder displacement | 33 cu.inch |
| Cylinders | 1 |
| Drive method | Pedal-operated |
| Engine name | EXi |
| Front-End Protection | Available as accessory |
| Fuel tank volume (with reserve) | 2.5 gal (US) |
| Greasable mandrels | No |
| Hour meter type | Digital with pre-programmed service intervals |
| Motor/engine manufacturer | Briggs & Stratton |
| Nose roller | No |
| Oil filter | Yes |
| Power/fuel type | Petrol |
| Seat material | PU |
| Seat type | Comfort mid back |
| Speed forward max | 5.2 mph |
| Speed reverse max | 2.2 mph |
Application and Compatibility
Confirm deck width, turning radius, engine, transmission, attachment compatibility, and storage dimensions before purchase.
Before You Order
- Use SKU 407ES-024378 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
