Product Overview

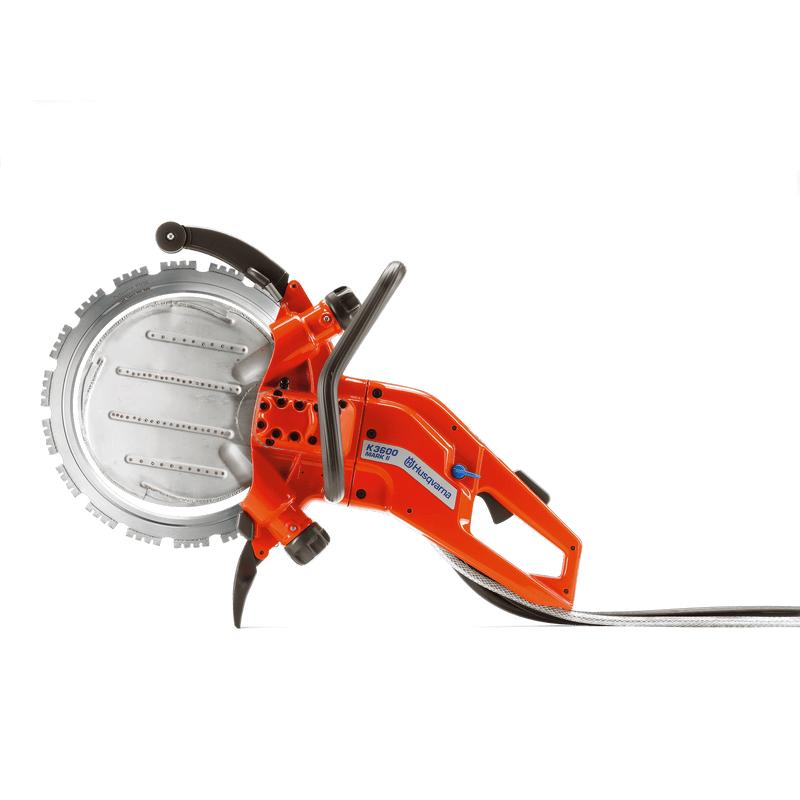

Husqvarna 968424101 Ring Saw is a ring saw designed for deep handheld cuts where conventional blade depth is not sufficient. The 968424101 configuration pairs Hydraulic power source, 5.8 hp engine power, and 18.3 lbs weight.
Key Features
- 14 in cutting capacity supports the intended blade or bar setup
- 5.8 hp power package for dependable production cutting

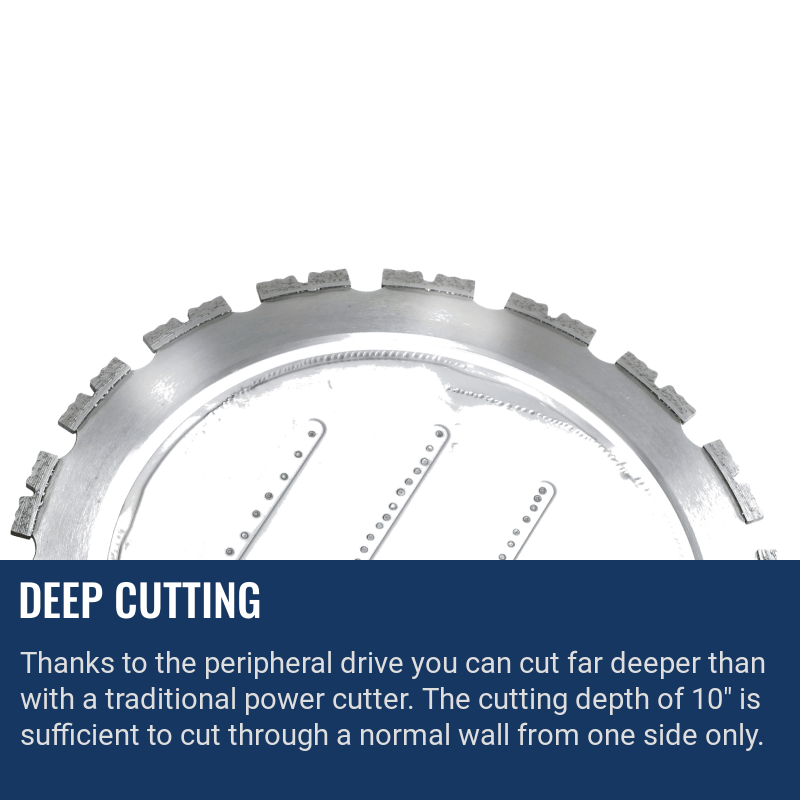

- Ring saw format supports deeper handheld cuts than standard disc cutters

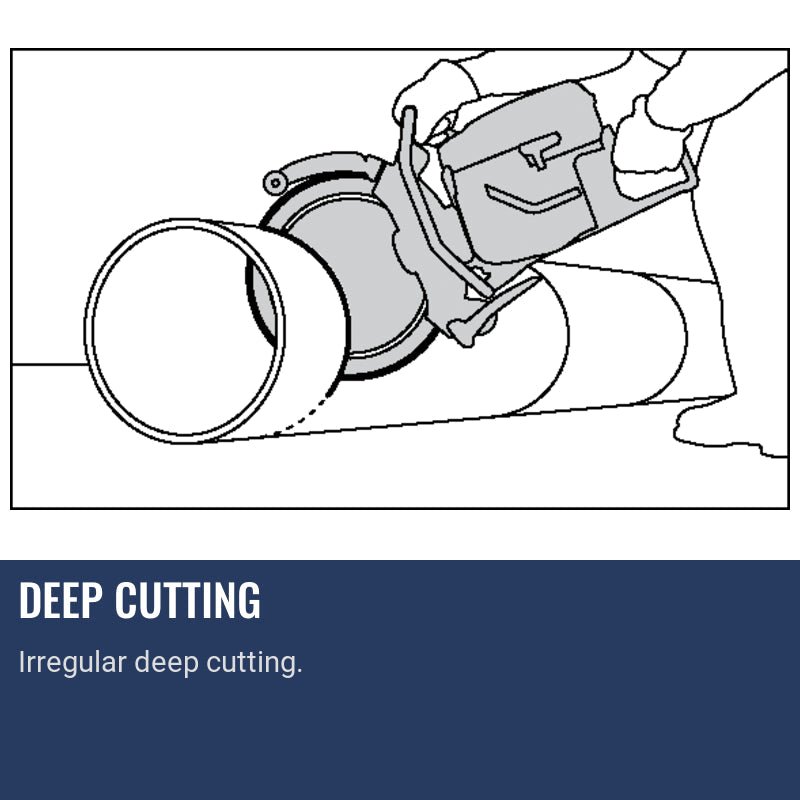

- Useful for wall openings, pipe penetrations, and confined access cutting

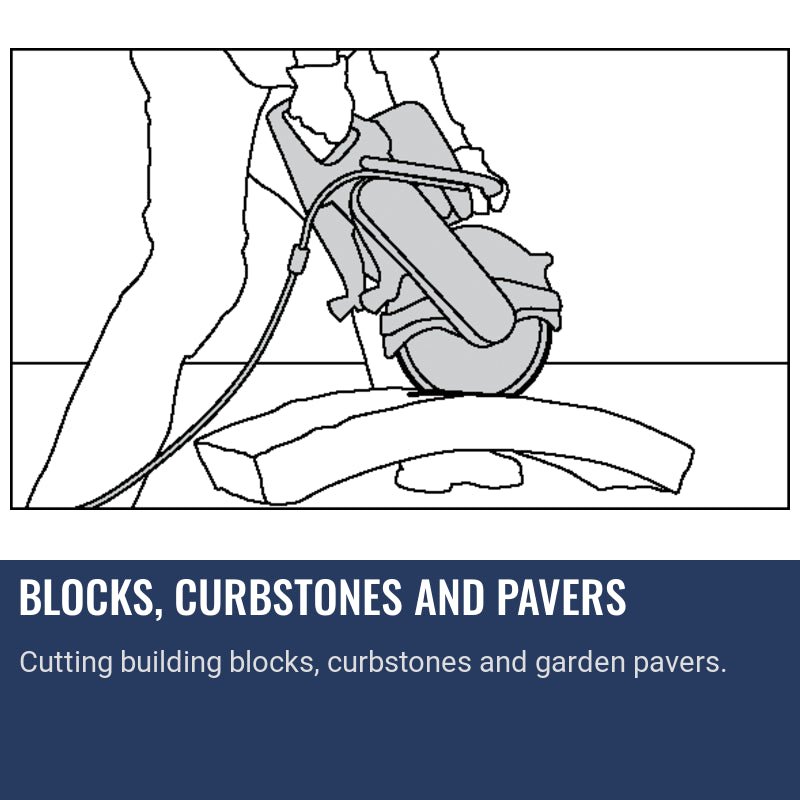

- Professional cutting platform for reinforced concrete and masonry

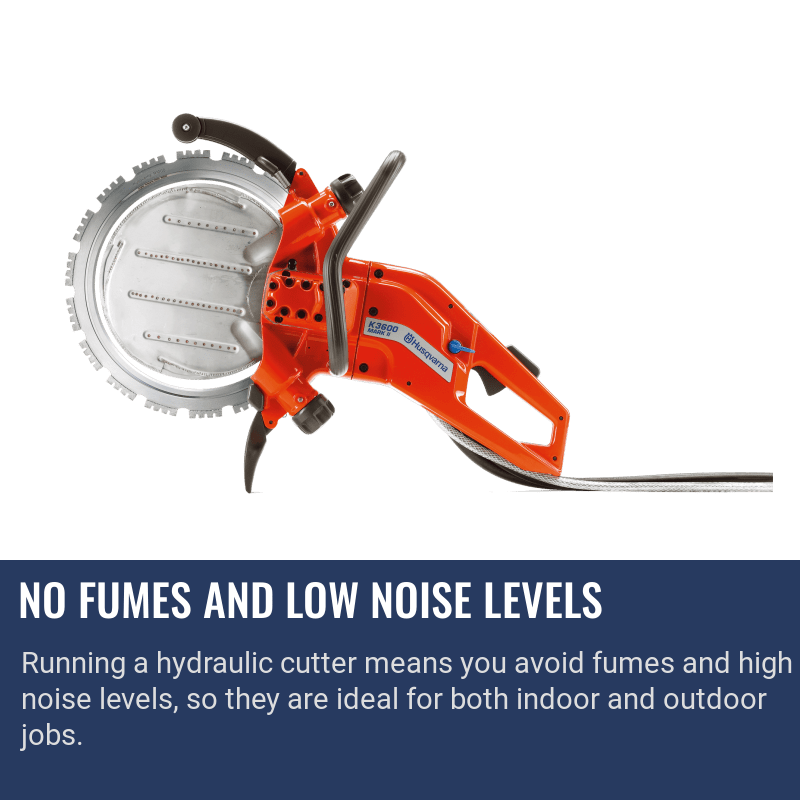

- Hydraulic power configuration for matching site conditions
Product Specifications
- Max Blade Diameter
- Ensures wide cutting reach.
- Warranty
- 2 year limited
- Engine Power (As rated by the engine manufacturer)
- 5.8 hp
- Power source
- Hydraulic
- Cutting depth, max
- 10.6 in
- Blade diameter, max
- 14 in
- Blade thickness, max
- 0.22 in
- Peripheral speed, max
- 10,800 fpm
- Coolant
- Wet Hydraulic oil flow 10 gal/min Hydraulic pressure, max 2,176 psi
- Product size length
- 28.15 in
- Product size width
- 6.89 in
- Product size height
- 16.4 in
- Weight
- 18.3 lbs
- Packaging length (Calc)
- 33.858 in
- Packaging width (Calc)
- 12.402 in
- Packaging height (Calc)
- 19.488 in
- Article gross weight (Calc)
- 48.502 lbs
- Sound power level, guaranteed (LWA)
- 111 dB(A)
- Sound pressure level at operators ear
- 99 dB(A)
- Vibrations left/front handle
- 4.3 m/s²
- Vibrations right/rear handle
- 6 m/s²
- Article Number
- 968424101
Applications & Purchase Considerations
The 968424101 is best matched to deep handheld cuts where conventional blade depth is not sufficient where the job requires Hydraulic power source, 5.8 hp engine power, and 18.3 lbs weight.
- Site utility or fuel: Hydraulic
- Handling reference: 18.3 lbs
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Husqvarna Construction |
|---|---|
| SKU | 407ES-005491 |
| MPN / Model | 968424101 |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Cutting |
| Collection | Ring Saws |
| Product Type | Ring Saw |
Before You Order
Confirm that model 968424101, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
