Product Overview
Husqvarna DMS 240 Core Drill With Stand is a core drill with stand designed for complete coring setups for controlled penetrations in concrete and masonry. The DMS 240 configuration pairs Corded power source, 3.3 hp rated input power, and 61 lbs weight.
Key Features
- 100-120 V power/drive requirement captured for jobsite planning
- 10 in drilling or boring capacity for selecting the right bit and setup
- 1 1/4" 7 UNC spindle/thread detail helps confirm bit and adapter compatibility
- DMS 240 drill motor and stand; pump only for pump variant mount/system configuration supports correct rig pairing
- Integrated motor-and-stand system reduces compatibility decisions

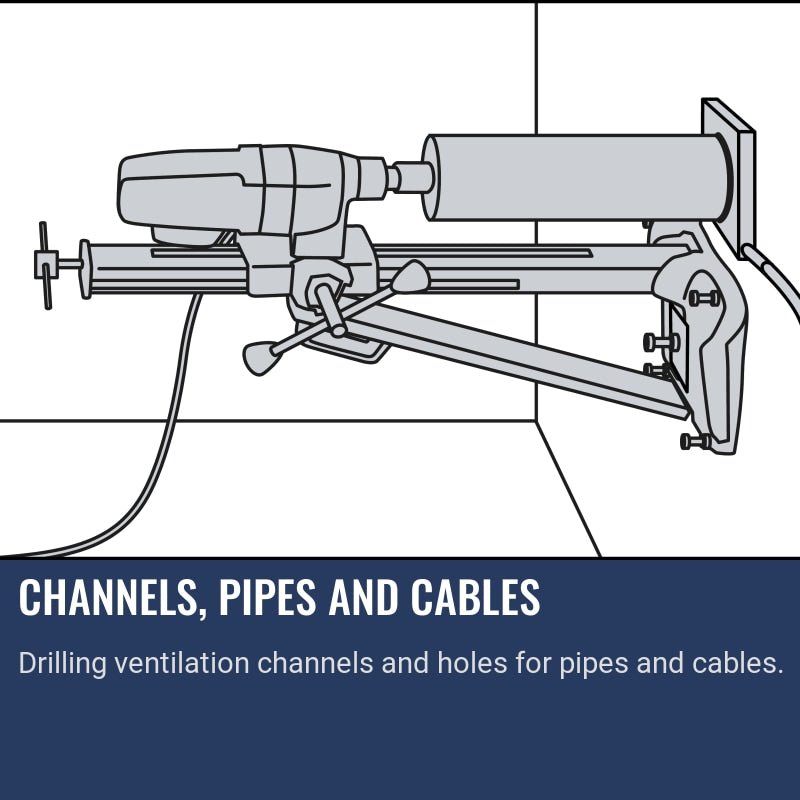

- Designed for contractors drilling openings for utilities, ventilation, plumbing, and drainage
Product Specifications
- auto
- promo
- WASHER QUICK RELEASE/COPPER D
- SKU: 543052878 Husqvarna Drill motor keys Accessories SKU: 531140951
- Available Variants
- DRILL MOTOR DMS 240 100-120 V 1-ph 60 Hz US DRILL MOTOR DMS 240 100-120 V 1-ph 60 Hz US
- Rated input power
- 3.3 hp
- Frequency
- 60 Hz
- Voltage
- 100-120 V
- Phases
- 1 ph
- Power Source
- Corded
- Recommended drill bit diameter, min
- 0 in
- Drill bit diameter, max
- 10 in
- Coolant
- Wet
- Number of gearbox speeds
- 2
- Water connector
- G 1 / 4"
- Water pressure, max
- 116 psi
- Spindle thread, inner
- 5/8" 11 UNC
- Spindle thread, outer
- 1 1/4" 7 UNC
- Column's Angling
- 0-60º
- Column installation
- Tiltable
- Rated current
- 20 A
- Travel length, max
- 27 in
- Product size length
- 21.5 in
- Product size width
- 10.5 in
- Product size height
- 41.4 in
- Weight
- 61 lbs
- Packaging length (Calc)
- 45.276 in
- Packaging width (Calc)
- 20.866 in
- Packaging height (Calc)
- 12.992 in
- Article gross weight (Calc)
- 74.957 lbs
- Sound power level, guaranteed (LWA)
- 106 dB(A)
- Sound power level, measured
- 106 dB(A)
- Sound pressure level at operators ear
- 90 dB(A)
- Warranty
- 2 year limited
- WooCommerce SKU
- 965173601
- Store Title
- Husqvarna DMS 240
- Max Drilling Diameter
- 10 in
- System Components
- DMS 240 drill motor and stand; pump only for pump variant
- Included
- Core drill motor and matched drill stand in listed DMS configuration; pump only for pump variant where selected
Applications & Purchase Considerations
The DMS 240 is best matched to complete coring setups for controlled penetrations in concrete and masonry where the job requires Corded power source, 3.3 hp rated input power, and 61 lbs weight.
- Site utility or fuel: 100-120 V
- Tooling or working setup: Core drill motor and matched drill stand in listed DMS configuration; pump only for pump variant where selected
- Handling reference: 61 lbs
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Husqvarna Construction |
|---|---|
| SKU | 407ES-005533 |
| MPN / Model | 965173601 |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Core Drilling |
| Collection | Core Drill Systems |
| Product Type | Core Drill With Stand |
Before You Order
Confirm that model 965173601, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
