Name: Gravely ZTHD52 Stealth Zero Turn Mower
Brand: Gravely
SKU: 407ES-024300
Price: 5849.10 USD
Availability: InStock

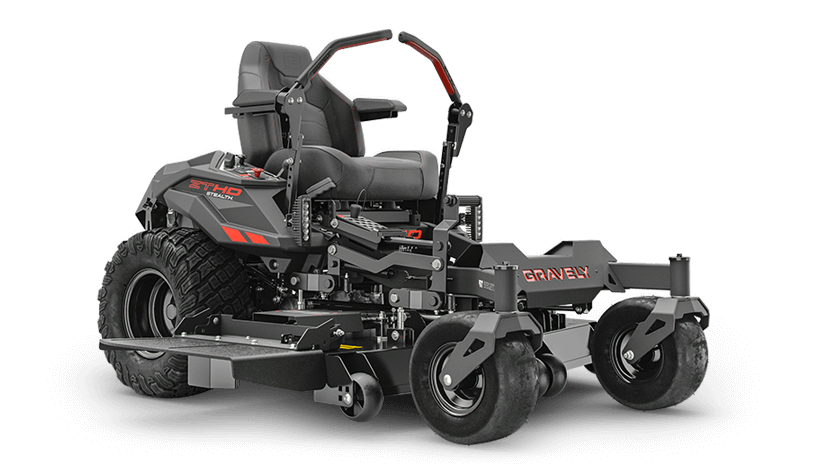

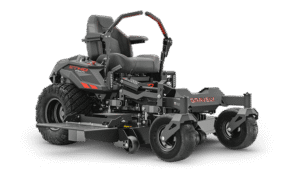

Gravely ZTHD52 Stealth Zero Turn Mower

SKU: 407ES-024300 In Stock

The Gravely ZTHD52 Stealth Zero Turn Mower is a Gravely zero-turn mower listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-024300. Key specifications include engine model: Kawasaki FR691V; cutting width: 52 in; engine power: 23 HP; engine displacement: 726 cc.

$5,849.10

Ships from a confirmed U.S. fulfillment location Processes in 1–3 business days

Standard Ground Shipping — $150/order

Up to 5-Year Warranty

35-Day Returns

Secure Checkout

Specifications

Product Overview

The Gravely ZTHD52 Stealth Zero Turn Mower is a Gravely zero-turn mower listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-024300. Key specifications for this configuration include engine model: Kawasaki FR691V; cutting width: 52 in; engine power: 23 HP; engine displacement: 726 cc.

Key Features

SKU: 407ES-024300
Engine Model: Kawasaki FR691V
Cutting Width: 52 in
Engine Power: 23 HP
Engine Displacement: 726 cc
Transmission: Hydro-Gear ZT-3100
Cutting Height Range: 1.5–5.0 in; 15 positions
Fuel Capacity: 5.0 US gal
Weight: 819 lb
Length: 79 in
Width: 56.2 in chute up; 67.3 in chute down

Product Highlights

The Stealth configuration combines a 52-inch fabricated deck with commercial ZT-3100 transaxles.
Published dimensions include both chute-up and chute-down transport widths.

Product Specifications

Brand	Gravely
Engine Model	Kawasaki FR691V
Model / MPN	991271
SKU	407ES-024300
Cutting Width	52 in
Engine Power	23 HP
Engine Displacement	726 cc
Transmission	Hydro-Gear ZT-3100
Cutting Height Range	1.5–5.0 in; 15 positions
Fuel Capacity	5.0 US gal
Weight	819 lb
Length	79 in
Width	56.2 in chute up; 67.3 in chute down
Height	47 in
Blade Count	3
Deck Construction	10-gauge fabricated X-Factor 3 deck
Ground Speed	Up to 8 mph forward and 4 mph reverse

Application and Compatibility

Confirm deck width, engine and transmission configuration, terrain or slope limits, access width, and service requirements before purchase.

Before You Order

Use SKU 407ES-024300 as the primary ordering reference.
Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.

Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
