Challenger SX14 Surface Mount Heavy-Duty Scissor Alignment Lift Package 14,000 lbs
The Challenger SX14 series scissor lifts deliver professional-grade performance for alignment work and heavy-duty vehicle service. Built to handle up to 14,000 lbs, this surface mount alignment rack combines precision engineering with ease of operation. Whether you're servicing trucks, vans, or dual rear wheel vehicles, the SX14 offers the capacity, versatility, and advanced features needed to maximize shop productivity.
Designed for efficiency and reliability, the SX14 features adjustable turn plates that accommodate a wide range of wheelbases, making alignment work faster and more flexible. The lift's extra wide runway width easily handles single and dual rear wheel vehicles, while LED lighting automatically illuminates the underside of the vehicle during service and turns off when lowered below 18 inches. With a single locking point, photo cell synchronization to ensure both runways lift in perfect unison, and maintenance-reduced rear slip plates with oversized encapsulated bearings, this lift is engineered for long-term performance in demanding shop environments.
Why Choose the Challenger SX14?
The SX14 is designed to handle the toughest jobs while keeping your technicians productive and comfortable. Here's what sets it apart:
- 14,000 lb capacity handles heavy-duty trucks, vans, and dual rear wheel vehicles with confidence
- Extra wide runways (91 ¼" overall width, 25 ½" platform width) accommodate a broad range of vehicle types
- 77-inch raise height for surface mount models gives technicians ample working space underneath vehicles

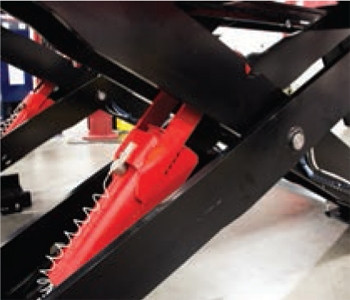

- Single point air actuated lock release allows ergonomic working height, increasing productivity and minimizing technician fatigue

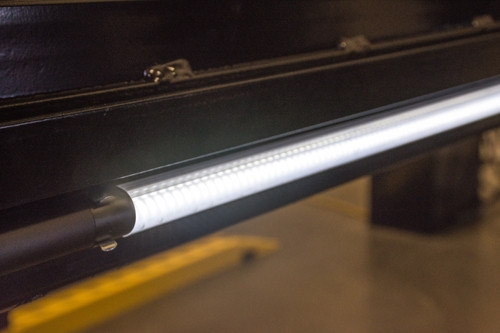

- Automatic LED undercarriage lighting provides exceptional visibility and turns off automatically when lift is lowered
- Photo cell synchronization ensures both runways lift smoothly and stay perfectly aligned throughout operation
- Twin hydraulic cylinders deliver smooth, reliable lifting performance
- Maintenance-reduced rear slip plates with oversized, encapsulated bearings protect against environmental debris and extend service intervals
- End rollers on approach ramps minimize noise and reduce potential floor damage
- Durable powder coat finish provides long-lasting protection and professional appearance
- ALI certified for safety and compliance
Model Versatility: SX14, SX14-ER, and SX14-FM
The SX14 series is available in multiple configurations to match your shop layout and vehicle service requirements:
- SX14 (Surface Mount): Standard model with 265" overall length, ideal for most shop applications
- SX14-ER (Extended Approach Ramps): Features 283" overall length with extended ramps to accommodate low-clearance vehicles
- SX14-FM (Flush Mount): 219" overall length with 66 ½" raise height, designed for flush installation in your shop floor
All models feature a 183" maximum wheelbase capacity, 176" maximum wheel alignment range, and 70 ¾" minimum 4-wheel alignment capability. The distance between platforms is a consistent 40 inches across all configurations.
Complete Alignment Package Included
When you invest in the Challenger SX14 Alignment Lift Package, you receive a complete, ready-to-use system:
- Challenger SX14 Scissor Lift with all standard features

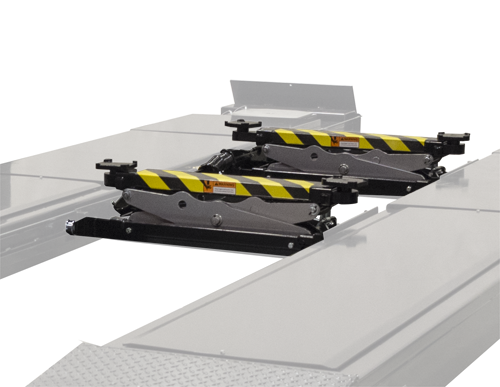

- Two Rolling Jacks for flexible vehicle positioning
- Pair of Adjustable Turn Plates for precise alignment work
- Airline Kit for Dual Jack Operation for synchronized jack control
This package gives your shop everything needed to perform professional alignment services right out of the box. The lift operates on 208v – 240v 1 Phase 60Hz power with a 3P motor, and requires a minimum recommended bay size of 14' x 28'.
Specifications & Ordering Information
The Challenger SX14 is available in black only. Adjustable controls can be positioned for technician convenience: 24" – 64" width range and 40" – 74" length range from the lift centerline.
Shipping specifications:
Lift: 212" L x 32" W x 50" H, weighing 6,800 lbs
Console: 17" L x 24" W x 52" H, weighing 330 lbs
Product Features
- Extra wide runway width accommodates single and dual rear wheel vehicles
- Photo cell ensures runway synchronization
- Automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”
- Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris
- Twin hydraulic cylinders provide smooth operation
- Approach ramps are equipped with end rollers to minimize noise and reduce floor damage
- Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
- Powder coat finish provides long-lasting durability
- Surface Mounted
- ALI certified
Package Includes
- Two Rolling Jacks
- Pair of Turn Plates
- Airline Kit for Dual Jack Operation
Product Specifications
Model Number
SX14
SX14-ER
(Extended Approach Ramps)
SX14-FM
Lift Capacity
14,000 lbs.
Installation
Surface Mount
Flush mount
A Overall Width
91 ¼"
B Overall Length
265”
283"
219”
C Distance between Platforms*
40"
D Platform Width
25 ½"
E Raise Height
77"
66 ½"
F Lowered Height
10 ½"
N/A
G Max Wheelbase**
183"
H Max Wheel Alignment
176"
I Min 4-Wheel Alignment
70 ¾"
J Distance to Controls Width
24" min – 64" max
K Distance to Controls Length
40" min – 74" max
Motor
3P
Voltage
208v – 240v 1 Phase 60Hz
Minimum Recommended Bay Size
14' x 28'
Lift Shipping Dimensions
212" L x 32" W x 50" H
Lift Shipping Weight
6,800 lbs
Console Shipping Dimensions
17" L x 24" W x 52" H
Console Shipping Weight
330 lbs
Available in Black Only
* Dimension between Runway Sidewalls, not Jack Rails.
** Wheelbase is based on a tire diameter of 30”
