Product Overview

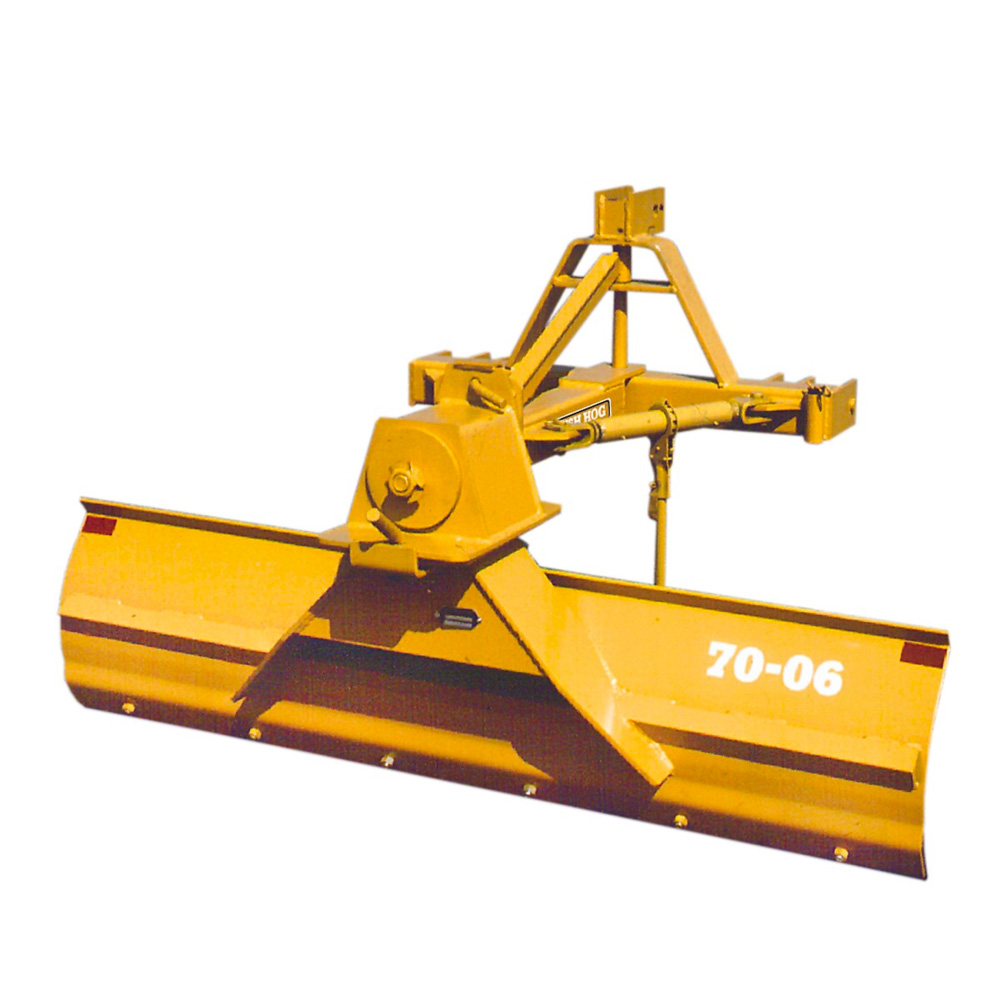

The Bush Hog 7′ Grader Blade #7007 is a Bush Hog lawn and grounds equipment attachment listed in the 407 Equipment Sales Lawn Care catalog. It is identified by SKU 407ES-024177 and manufacturer/model reference 7007. Key specifications for this configuration include manufacturer model: 7007; approximate weight: 538 lb; working width: 7 ft; angle adjustment: 360-degree rotation; five forward and five reverse positions.
Key Features
- SKU: 407ES-024177
- Manufacturer/model reference: 7007
- Manufacturer Model: 7007
- Approximate Weight: 538 lb
- Working Width: 7 ft
- Angle Adjustment: 360-degree rotation; five forward and five reverse positions
- Cutting Edge: 1/2 x 6 in reversible
- Hitch: 3-point ASAE Category 1 and 2; quick-hitch compatible
- Kingpin: 1-1/4 in Grade 8
- Maximum Tractor Power: 70 HP 2WD; 55 HP 4WD
- Moldboard: 18 in high x 5/16 in thick
Product Highlights
- Application: intended for grading, leveling, backfilling, and material distribution; confirm hitch category and working width.
- The 7-foot moldboard can be angled, offset, tilted, and rotated for grading or backfilling work.
- The three-point frame supports ASAE Category 1 and 2 tractors and compatible quick hitches.
Product Specifications
| Brand | Bush Hog |
|---|---|
| Manufacturer Model | 7007 |
| Model / MPN | 7007 |
| SKU | 407ES-024177 |
| Approximate Weight | 538 lb |
| Working Width | 7 ft |
| Angle Adjustment | 360-degree rotation; five forward and five reverse positions |
| Cutting Edge | 1/2 x 6 in reversible |
| Hitch | 3-point ASAE Category 1 and 2; quick-hitch compatible |
| Kingpin | 1-1/4 in Grade 8 |
| Maximum Tractor Power | 70 HP 2WD; 55 HP 4WD |
| Moldboard | 18 in high x 5/16 in thick |
| Offset Adjustment | 18 in left or right |
| Parking Stand | Standard |
| Product Series | 70 Series medium-duty rear blade |
| Tilt Adjustment | Five positions up to 30 degrees |
Application and Compatibility
Confirm the carrier machine, hitch or mounting interface, hydraulic requirements, dimensions, and included hardware before ordering this attachment.
Before You Order
- Use SKU 407ES-024177 and model 7007 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
