BendPak HD-9XW Extra Tall Four Post Car Storage Parking Lift 9,000 lb. – New Gray

Product Overview

BendPak HD-9XW Extra Tall Four Post Car Storage Parking Lift 9,000 lb. – New Gray

The BendPak HD-9XW is an extra-tall, 9,000-lb. capacity four-post lift designed to maximize your vertical space without sacrificing performance or safety. Engineered for both residential garages and commercial facilities, this high-rise model is ideal for vehicle storage, detailing, service work, and even storing ATVs, snowmobiles, jet skis, golf carts, and boats. With a max rise of 82" and a maximum lifting height of 86.5", the HD-9XW gives you the clearance you need to double your garage capacity or create comfortable under-vehicle workspace—all with standard 8-foot ceilings.

This is not a hobby lift. BendPak's expert engineers have packed the HD-9XW with commercial-grade features typically reserved for heavy-duty service models: heavy-duty 3/8" aircraft cable, a single hydraulic cylinder hidden beneath the runway, multi-position safety locks in each column, and a freestanding design that requires no special foundation. Optional casters let you roll the lift wherever you need it. Backed by over 40 years of industry leadership and a reputation built on reliability, this lift is everything you'd expect from BendPak—and more.

Why the HD-9XW Stands Out

• High-Rise Design: The HD-9XW offers an impressive 82" max rise and 86.5" maximum lifting height, providing outstanding vertical clearance for stacking vehicles or working underneath.

• Space-Saving Footprint: Roughly the size of a standard parking space 224" overall length × 110.25" overall width this lift maximizes your floor area without requiring additional real estate.

• Versatile Applications: Perfect for vehicle storage, detailing, service work, or storing toys like ATVs, snowmobiles, jet skis, golf carts, and boats. Make use of wasted vertical space in your garage or shop.

• Freestanding Installation: No special foundation or costly concrete work required. Optional casters enable portability—roll the lift outside or to another bay as needed.

• Adjustable Runway Spacing: Runways accommodate both narrow and standard vehicles with adjustable widths between runways ( 37.5" or 44.375" ), and include a rail-kit for mounting optional accessories like drip trays, jacks, and alignment kits.

Dependable, Commercial-Grade Engineering

Heavy-Duty Aircraft Cable: Each HD-9XW is equipped with 4 high-quality stainless steel lifting cables, each rated at 14,400 lbs. The combined rating is an astounding 640% of the lift's maximum capacity, ensuring extreme reliability and longevity. All lifting cables, airlines, safety latches, and sheaves are fully enclosed within the lift structure for a clean, safe appearance and protected operation.

Dual-Hub Cable Sheaves: BendPak insists on using dual-hub cable sheaves to reduce stress and fatigue on axles, sheaves, and cables. This design choice costs more to manufacture but delivers unmatched durability and peace of mind—standard equipment, not an upgrade.

Oversized, Self-Lubricating Rollers: The lift features oversized self-lubricating cable rollers and rugged 1-1/4" roller axles for smooth, maintenance-free operation over the life of the lift.

Single Hydraulic Cylinder: Mounted underneath the runway for minimal exposure and maximum protection, the HD-9XW's industrial-grade hydraulic cylinder features a single-piece, pilot-fitted, machined steel piston with specially designed pressure-loaded U-cup piston seals and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel, plated to a minimum of.001" diametrically, ensuring superior operation and longevity. High-durometer, mechanically-loaded rod seals eliminate leakage, while a urethane rod wiper provides abrasion-resistant exclusion protection. The welded cylinder body exceeds ASTM specifications, and an integrated flow restrictor provides controlled descent in the event of an unexpected hose rupture.

Electric / Hydraulic Power System: The lift incorporates a maintenance-free electric hydraulic power system with conveniently located controls within easy reach. The motor operates on 220 VAC / 60 Hz / 1Ph power and produces just 45 dB of noise quieter than normal conversation—for comfortable operation in any environment.

Multi-Position Safety Lock System

The HD-9XW is equipped with 15 multi-position adjustable safety locks spaced every 4 inches for precise, variable-height parking and service positioning. Automatic safety locks engage continuously as the lift rises, utilizing aircraft-quality stainless steel and aluminum pneumatic cylinders for reliable performance. A convenient push-button pneumatic control releases all four independent locks simultaneously—no manual disengagement required.

For added security, the HD-9XW features independent backup slack-cable safety latches in each column. These secondary locks engage automatically in the unlikely event of cable failure, providing an extra layer of protection. Internal anti-sway slider blocks in each column further enhance stability and safety during operation.

Air Supply Required:
An air supply (minimum 30 psi / 3 CFM ) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.

Rugged Construction & Premium Finish

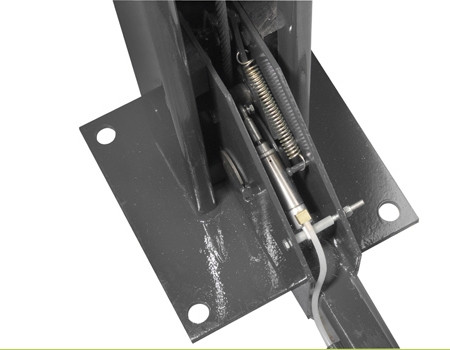

Large Base Plates: Each column rests on 10" × 12" base plates that provide a solid, stable foundation without requiring anchor bolts or special concrete work.

Durable Powder-Coat Finish: All HD-Series lifts are finished with BendPak's meticulous 10-step powder-coating process. Parts are sandblasted, washed in a 5-stage phosphate system, dried, and outgassed in a curing oven to prevent blemishes. After masking threaded holes and surfaces, parts are electrostatically coated and cured at 400°F for 45 minutes. The result is a high-quality, extremely durable finish that withstands harsh environmental and chemical conditions—far superior to "powder coat" claims from competitors.

Non-Skid Runway Surface: Runways feature a non-skid surface for secure vehicle positioning and safe operation. Removable approach ramps provide additional drive-under clearance when not in use, and longer approach ramps are designed to help load low ground-clearance vehicles with ease.

Watch the HD-9XW in Action

Customizable & Expandable

The HD-9XW is designed to grow with your needs. The customizable power unit location allows you to position the motor where it's most convenient for your space. Runways include an integrated rail-kit for mounting optional accessories such as:

• Drip Trays: Affordable polypropylene trays catch harmful fluids and protect your vehicles and flooring (available as an option).

• Drive-Thru Ramps: Create a seamless drive-through configuration for added convenience (optional).

• Solid Deck: Increase usable storage capacity by covering the open space between runways (optional).

• Rolling Jacks: Add optional 4,500-lb. air/hydraulic rolling jacks (Model RJ-45) for wheel service and brake work.

• Alignment Kit: Convert your lift into an economical two- and four-wheel alignment station with optional turnplates and slip plates (available as add-on kit #5210142 ).

Key Highlights

• 9,000-lb. maximum lifting capacity with 4,500-lb. max per axle

• 82" max rise and 86.5" maximum lifting height for high-clearance stacking and service work

• Freestanding design no anchor bolts or special foundation required

• 15 locking positions spaced every 4 inches for variable-height flexibility

• 50 seconds to full rise fast, efficient operation

• Fully enclosed lifting cables, safety locks, and sheaves for clean, protected operation

• Push-button pneumatic safety release disengages all four locks simultaneously

• ETL Approved and ALI Certified for safety and performance

Four Models to Choose From

You're currently viewing the HD-9XW, the standard-width, high-rise model. BendPak also offers the HD-9ST (narrow-width), HD-9M (standard-width), and HD-9STX (narrow-width, tall) to suit a variety of space and height requirements.

Optional Pair Drip Trays

BendPak 5700301 Plastic Drip Trays (fits BendPak's HD-7 and HD-9 Series Lifts – Set of 2)

A lightweight, cost-effective solution to drips, these polypropylene drip trays will catch harmful fluids and keep them in one place to protect your vehicles and garage flooring. Sold in sets of two. The reversible design accommodates BendPak four-post lifts with runways positioned either wide or narrow, making them a versatile accessory for any HD-Series lift.

Each tray features 56 articulated catches and gutters to restrain fluid from sloshing out, keeping oil, coolant, and other fluids neatly contained—even when carried or bumped. The smart black color hides stains and blemishes, and the impact-resistant polypropylene construction ensures years of rugged, reliable service.

BendPak Drip Trays – Specifications and Dimensions

Optional Add-On Alignment Kit (#5210142) – Available While Supplies Last

This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four-post lifts with minimum 19" wide runways. Convert your HD-9XW into an economical solution for performing two- and four-wheel alignments. The kit provides the necessary rear slip plates, turnplate pockets, and commercial-grade turnplates.

Kit Includes:

• Fits 9K–14K runway lifts with a minimum of 19" wide runways

• Bolt-on ramp pieces for both front turnplates and rear slip plates

• Commercial-grade turnplates

Optional Add-On Alignment Kit – Available While Supplies Last

⚠ WARNING: Cancer and Reproductive Harm

Product Features

• 9,000-lb. maximum lifting capacity

• Freestanding design

• High-rise

• Perfect for parking, storage and service

• Runways accommodate narrow and standard vehicles

• Runways include rail-kit for optional accessories

• Electric / hydraulic power system

• Single hydraulic cylinder mounted underneath runway

• Fully enclosed lifting cables, safety locks and sheaves

• Internal anti-sway slider blocks in each column

• Oversized self-lubricating cable rollers

• Features heavy-duty 3/8" aircraft cable

• Rugged 1-1/4" roller axles

• Multi-position safety locks in each column

• Adjustable lock ladders

• Runways feature non-skid surface

• Push-button pneumatic safety release

• Independent backup slack-cable safety latches

• Customizable power unit location

• Removable approach ramps for additional drive-under clearance

• Longer approach ramps for low-ground clearance vehicles available

• Optional drive-thru ramps available

• Optional drip trays available

• Optional solid deck available to increase storage capacity

• Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)

• ETL Approved

Optional # 5210142 Add-On Alignment Kit – Available While Supplies Last

This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four‐post lifts with minimum 19” wide runways. This wheel alignment kit provides the necessary rear slip plates, turnplate pockets and commercial‐grade turnplates to convert your standard four‐post lift into an economical solution for performing two and four‐wheel alignments.

Kit Includes

• Fits 9K – 14K Runway Lifts that are a minimum of 19” wide

• Bolt on ramp piece for both the front turn plates & back slip plates

• Turn plates

Product Specifications

Model

HD-9
HD-9XL
HD-9XW

Style

Standard Width
Standard Width /
Ext. Length
Standard Width / High Lift

Capacity

Lifting Capacity: (*)

9,000 lbs. (4,082 kg)

*Max Capacity / Front Axle

4,500 lbs. (2,041 kg)

*Max Capacity / Rear Axle

4,500 lbs. (2,041 kg)

Rise

A Min. Runway Height

4.5" (114 mm)

B Max. Rise

70" (1,778 mm)
82" (2,083 mm)

C Max. Lifting Height

74.5" (1,892 mm)
86.5" (2,197 mm)

Time to Full Rise

45 seconds
50 seconds

Outside Dimensions

D Overall Width

110.25" (2,800 mm)

E Outside Length

174" (4,420 mm)
198" (5,029 mm)

F Overall Length

200" (5,080 mm)
224" (5,690 mm)

G Height of Columns

88" (2,235 mm)
100" (2,540 mm)

Inside Dimensions

H Width Between Columns

100.25" (2,546 mm)

I Drive-Thru Clearance

86.5" (2,197 mm)

Runways

J Runway Width

19" (483 mm)

K Length of Runways

164" (4,166 mm)
188" (4,775 mm)

L Width Between Runways

37.5" or 44.375" (953 or 1,127 mm)

M Runway Centerline

56.5" or 63.375" (1,435 or 1,610 mm)

N Outside Edge of Runways

75.5" or 82.375" (1,918 or 2,092 mm)

Minimum Wheelbase

Rated Capacity

115" (2,921 mm)
135" (3,429 mm)

75% Capacity

100" (2,540 mm)
115" (2,921 mm)

50% Capacity

85" (2,159 mm)
95" (2,413 mm)

25% Capacity

70" (1,778 mm)
80" (2,032 mm)

Locking

Locking Positions

12
15

Lock Spacing

Every 4" (102 mm)

Power Unit

Motor

220 VAC / 60 Hz / 1Ph

Noise

45 dB

Shipping

Weight

1,746-lbs. (792 kg)
1,787-lbs. (810.6 kg)
1,798-lbs. (815.6 kg)

Dimensions

165" x 22" x 34"
(4,191 x 559 x 864 mm)
184" x 21" x 36"
(4,674 x 533 x 914 mm)
192" x 21" x 34"
(4,877 x 533 x 864 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Key Features

• Published product configuration: BendPak HD-9XW Extra Tall Four Post Car Storage Parking Lift 9,000 lb. – New Gray The BendPak HD-9XW is an extra-tall, 9,000-lb. capacity four-post lift designed to maximize your vertical space without sacrificing performance or safety. Engineered for both residential garages and commercial facilities, this high-rise
• Exact manufacturer model or part number: 5175863-V001
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175863-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
