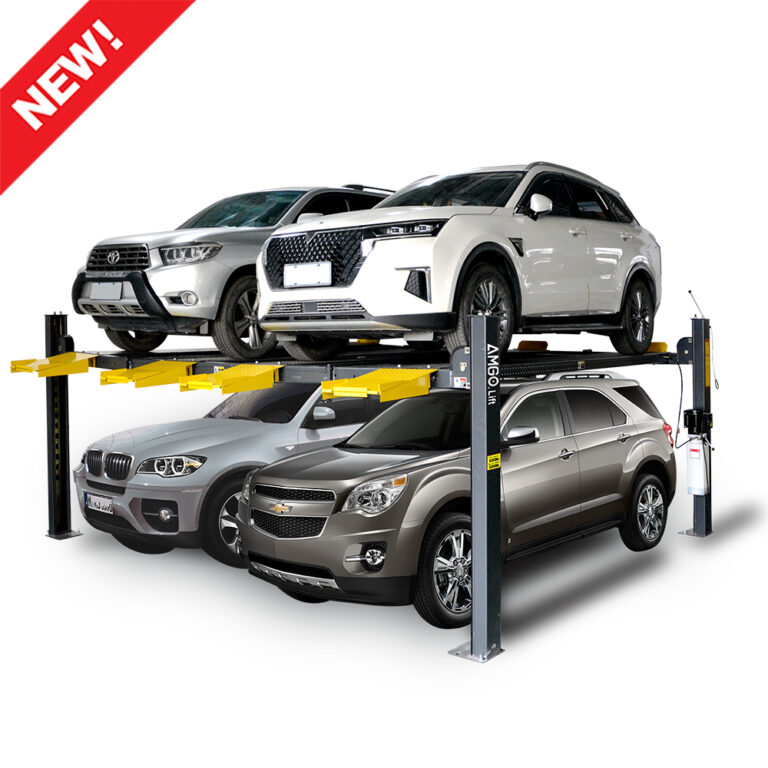

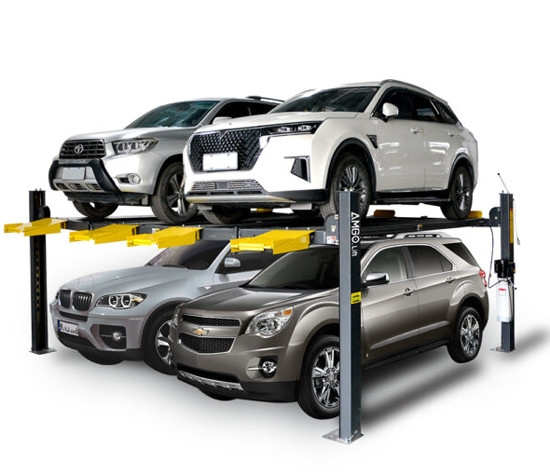

AMGO® Hydraulics 409-DPX Double Parking 4 Post Lift w/Ex-Length & Height

Product Overview

AMGO® Hydraulics 409-DPX Double Parking 4 Post Lift w/Ex-Length & Height

Ultimate Space-Saving Parking Solution

The AMGO® Hydraulics 409-DPX is our most innovative space-saving four-post lift, engineered to maximize your shop or garage capacity. This 9,000 lbs capacity double parking lift allows you to park four vehicles using just two parking positions effectively doubling your parking density without expanding your footprint. Perfect for high-end car collections, dealerships, service centers, or any facility where floor space is at a premium.

With its extended length and height design, the 409-DPX accommodates a wide range of vehicles while maintaining a remarkably low profile of just 6 3/32" at minimum height. The special back-to-back installation structure and 90° rotating motor mounting plate offer unmatched installation flexibility, allowing you to configure your space exactly how you need it.

This lift combines professional-grade performance with innovative safety features. Hidden safety locks with single-point manual release keep the installation clean and streamlined, while dual safety systems primary and slack-cable devices—provide redundant protection. Foldable drive-on ramps on all four units make loading effortless and fold away when not in use.

Key Advantages at a Glance

• 9,000 lbs lifting capacity with a maximum vehicle weight of 6,000 lbs per position—handles most passenger cars, luxury vehicles, and light trucks with ease

• Extended maximum lifting height of 87 11/16" provides exceptional clearance for walk-under access and maintenance work

• Double S-shaped columns deliver superior structural strength and stability throughout the entire lift range

• Non-slip diamond plate platforms and adjustable multiple safety ladders ensure safe access and secure vehicle positioning

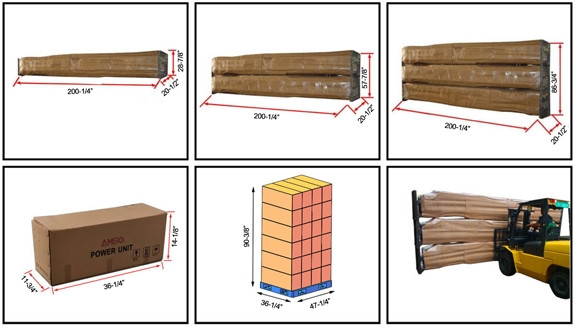

• Ingenious compact packaging design reduces shipping and storage costs—making transportation and installation more economical

Intelligent Safety Engineering

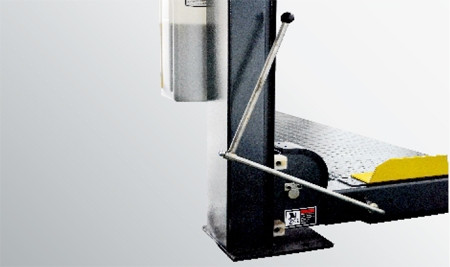

Hidden Lock System: The 409-DPX features a discreet hidden locking device with manual single-point safety lock release, eliminating clunky external mechanisms and maintaining a sleek, professional appearance. Release all locks from one convenient location for faster, easier operation.

Dual Safety Lock Protection: This lift is equipped with double safety locks that provide additional layers of security. Combined with both primary and slack-cable safety devices as standard equipment, you get comprehensive fail-safe protection that exceeds industry standards.

Every detail has been engineered with safety in mind—from the robust double S-shaped column construction to the low-profile design that minimizes trip hazards and maximizes stability.

Flexible Installation & Operation

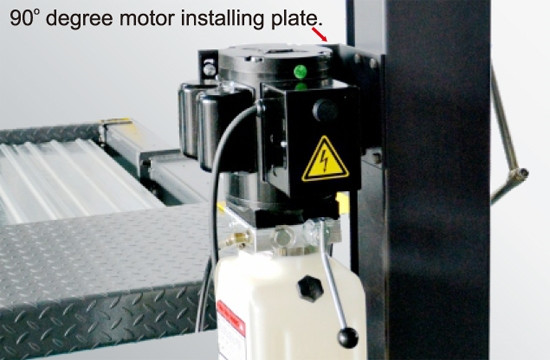

The 409-DPX is designed for versatile installation in almost any configuration. The special back-to-back structure allows multiple units to be installed adjacent to one another, maximizing space efficiency. The 90° rotatable motor mounting plate provides flexibility in power placement, so you can route electrical connections where they work best for your facility layout.

Powered by a robust 2.0 HP motor (standard 220V single phase with optional 110V available), the lift achieves full height in just 47 seconds. The drive-thru width of 177 23/32" and 196 1/16" between columns accommodates a wide variety of vehicle sizes with ease.

With an overall length of 207 9/32" with ramps and an overall width of 201 9/16", the 409-DPX offers maximum vehicle capacity while keeping the footprint manageable. The maximum lifting height of 73 11/16" and maximum height underneath runway of 69 3/4" give you the working clearance needed for serious undercarriage work.

Product Features

• 9,000 lbs Lifting capacity, max. car weight 6,000lbs

• 87 7/8" Max lifting height

• Low profile design, provides easy load for low clearance vehicles

• Primary safety lock and cable-slack protection device come standard

• Exclusive Features:

• Double S Shaped columns for increased strength

• AMGO' patented design concealed safety lock control device, with manual single-point lock release

• Multiple lock points secure the vehicles during lifting and storage

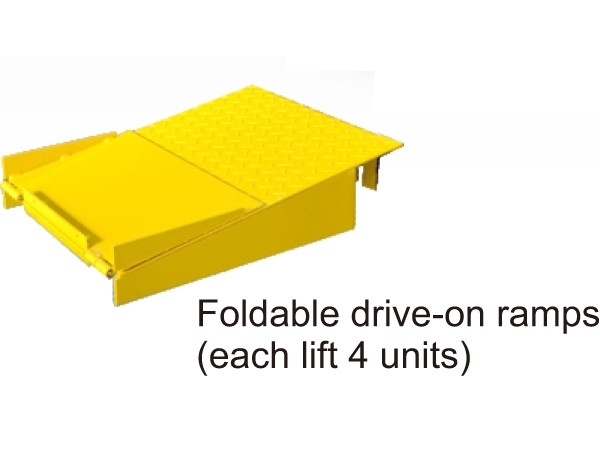

• Foldable drive-on ramps of 4 units

• Pull rope comes standard

• Non-slip diamond platforms

Product Specifications

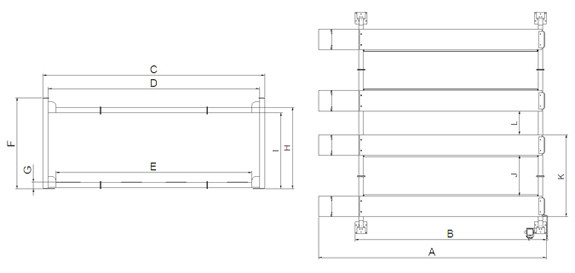

Specifications
409-DPX

Lifting Capacity
9,000 lbs

A Overall Length w/o Ramp
205 1/16"

A Overall Length w/Ramp
238 5/8"

B Outside Edge of Crossbeams
198 1/8"

C Overall Width
190 9/16"

D Width Between Columns
181"

E Drive thru Width
169 13/16"

F Overall Height
96 5/8"

G Minimum Height
5 15/16"

H Max Lifting Height
87 7/8"

H Max Lock Height (to Top of Runway)
85 1/8"

I Max Height Underneath Runway
83 7/8"

I Max Lock Height Underneath Runway
80 3/8"

J Width Between Columns
37"

K Overall Width (Single Parking Unit)
74 7/16"

L Width Between 2 Parking Units
13 3/4"

Lifting Time
57 S 220V / 120 S w/Optional 110V

Motor
2.0HP 220V Single Phase / Optional 2 HP 110V

Gross Weight
3,018 lbs

Key Features

• Published product configuration: AMGO® Hydraulics 409-DPX Double Parking 4 Post Lift w/Ex-Length & Height Ultimate Space-Saving Parking Solution The AMGO® Hydraulics 409-DPX is our most innovative space-saving four-post lift, engineered to maximize your shop or garage capacity. This 9,000 lbs capacity double parking lift allows you to park four
• Exact manufacturer model or part number: 409-DPX-V001
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 409-DPX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Product document 1
• Product document 2
