Product Overview

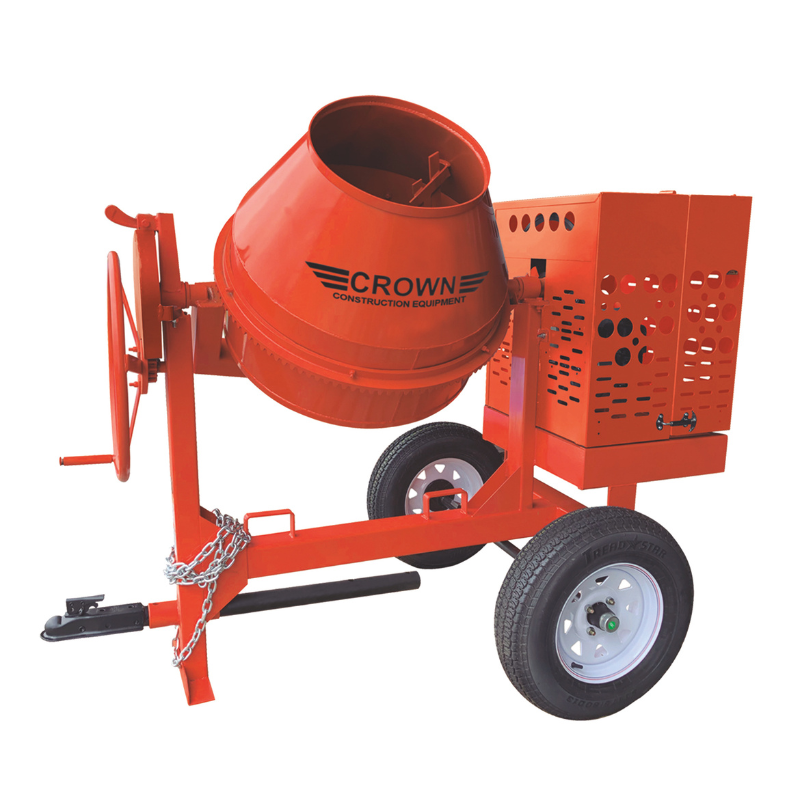

Crown Equipment C9 Series Towable Concrete Mixer is a towable concrete mixer designed for high-volume concrete or mortar mixing with towable jobsite mobility. The C9 Series configuration pairs Gasoline power source, Honda 8 HP gas or Baldor 1.5 HP electric power, and 9 cu ft drum capacity.

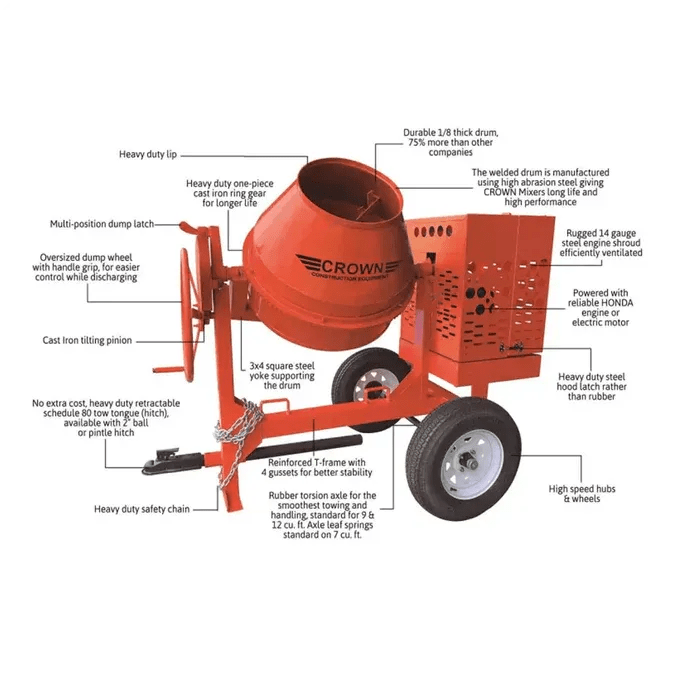

Key Features
- 9 ft³ batch/output detail helps crews plan mix cycles
- Honda GX240 power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- Pinions & Gear Rings drive system for consistent material turnover
- Towable mixer format supports concrete crews moving between pours
- Drum and paddle design supports consistent concrete, mortar, grout, or stucco mixes
Product Specifications
- Drum Capacity
- 9 cu ft
- Drum Material
- Steel drum
- Horse Power
- 8 HP
- Power Source
- Gasoline
- Weight
- 868 lb approx
- Product Type
- Concrete Mixer
- Product Subtype
- Highway
- Model/Series
- C9 Series
- Part #
- 609958
- frame
- )
- Mixing Blades
- Steel
- Engine/Motor

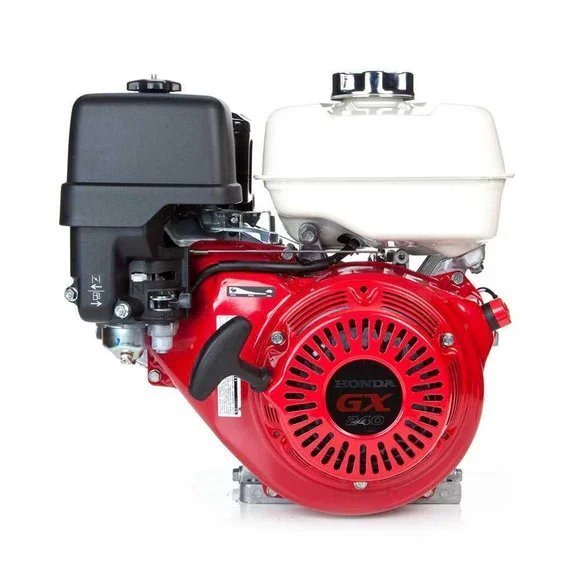

- Honda GX240
- Drive Type
- Cast Iron
- Drive
- Pinions & Gear Rings
- Drum Diameter Opening
- 19"
- Batch Input
- 1 – 1.5 bags
- Batch Output
- 9 ft³
- Charging Height
- 31"
- Batch Materials
- Concrete
- Axle Type
- Rubber Torsion Suspension System
- Wheel Size
- B78 x 13"
- Wheel Type
- Pneumatic
- Forklift Pockets
- Yes (2
- Stand Type
- High-Strength
- Removable Drum
- Yes (the drum can be interchanged with other drum sizes using the same
- Width (in)
- 51.5"
- Operating Length (in)
- 78"
- Towing Length (in)
- 98"
- Height (in)
- 63.5"
- Warranty
- 1 year limited
- Manufacturer family
- C9 Concrete Mixer
- Batch Capacity Bags
- 1-1.5 bags
- Power
- Honda 8 HP gas or Baldor 1.5 HP electric
- Drive System
- V-belt to gears
- Tires
- 175/70R13 pneumatic
- Overall Width
- 50"
- Overall Length
- 83" tow pole in
- Overall Height
- 63" drum down
- Drum thickness
- 1/8 in / 10 steel gauge
- Included
- Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
Applications & Purchase Considerations
The C9 Series is best matched to high-volume concrete or mortar mixing with towable jobsite mobility where the job requires Gasoline power source, Honda 8 HP gas or Baldor 1.5 HP electric power, and 9 cu ft drum capacity.
- Site utility or fuel: Gasoline
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 868 lb approx
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Crown Construction Equipment |
|---|---|
| SKU | 407ES-005402 |
| MPN / Model | 609958p |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Mixers |
| Collection | Towable Mixers |
| Product Type | Towable Concrete Mixer |
Before You Order
Confirm that model 609958p, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
